Will not crank with key

2004 MERCURY MOUNTAINEER
150,000 MILES • 4.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
DRAMP
  • MEMBER
  • 1 POST
Jumping starter with wire will crank. Key won’t crank. Replaced starter and have same problem. I cannot locate a relay or fuse as not on panel and don’t have owners manual. Diagrams I’ve found online don’t seem to be correct..
Aug 3, 2019 at 11:12 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
Hi Dramp,

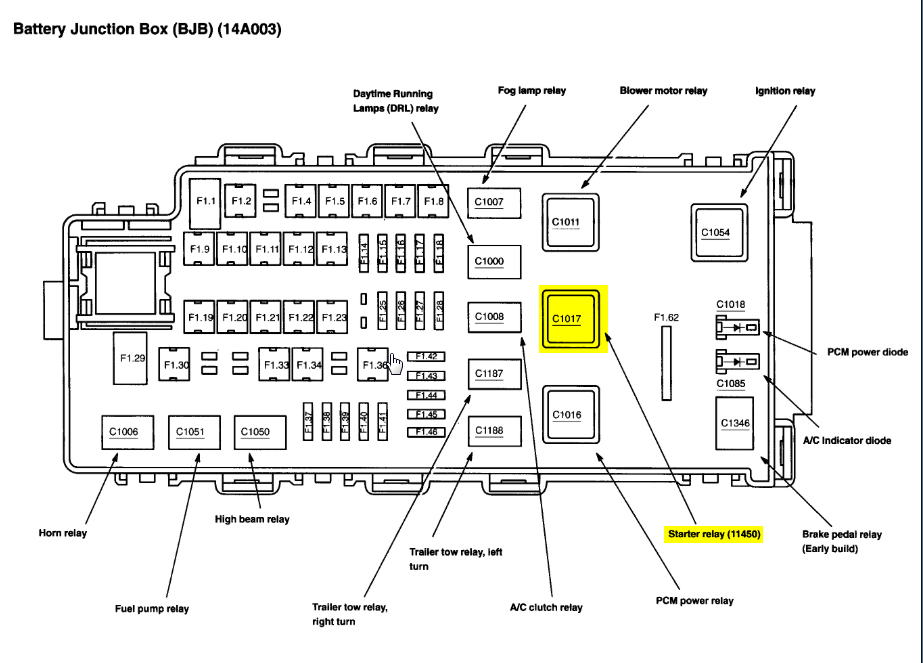

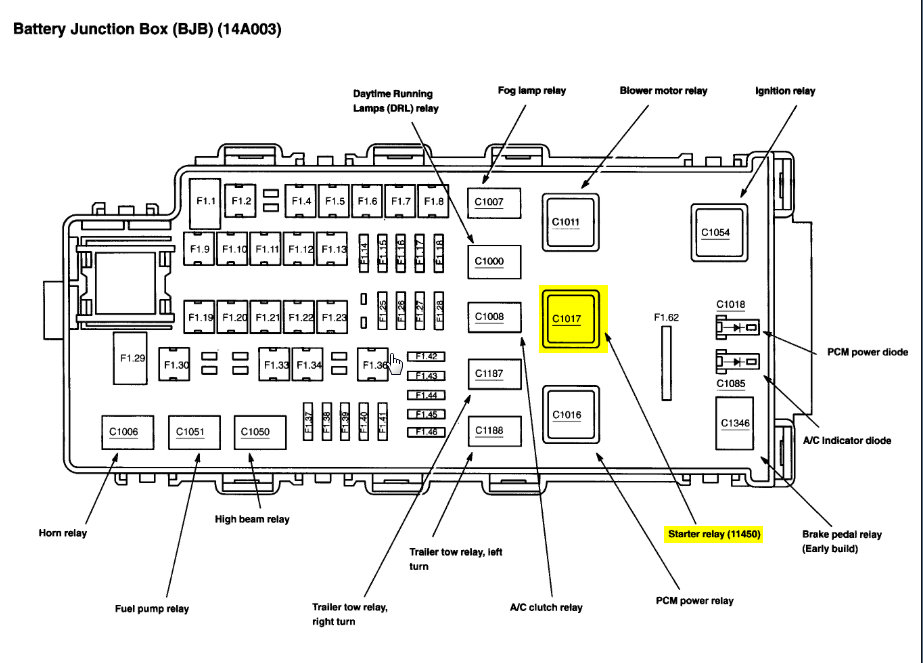

I attached the location of the starter relay. It is in the battery junction box under the hood.

Let me know if you need more help but I would agree this sounds like the issue. Thanks
Image (Click to enlarge)
Attached Media
Aug 3, 2019 at 11:32 AM
