Starter does not start

1983 MERCEDES BENZ 300SD
174,000 MILES • 5 CYL • TURBO • 2WD • AUTOMATIC
Avatar
ALOHADOT
  • MEMBER
  • 1 POST
Got hard to start leaving town barely cranked, stopped at home will not start again. Replaced rewound starter so far. Where is relay?
Sep 27, 2018 at 12:59 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

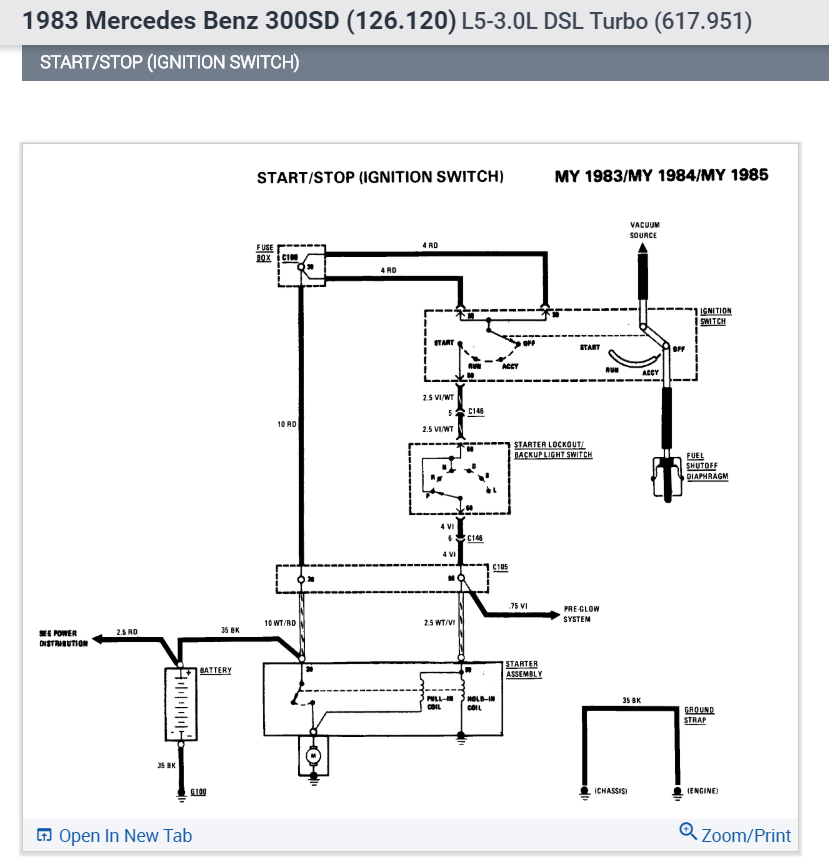

It does not have a relay for the starter. Here is a wiring diagrams to help you see how the system works. Is the battery okay? Here are two guides that can help:

https://www.2carpros.com/articles/how-to-check-wiring

and

https://www.2carpros.com/articles/car-battery-load-test

Check out the diagrams (below). Please let us know what you find.

Cheers, Ken
Image (Click to enlarge)
Attached Media
Sep 28, 2018 at 12:08 PM
