Splash shield installation

1998 DODGE NEON
130,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
WILLIS1PIE
  • MEMBER
  • 2 POSTS

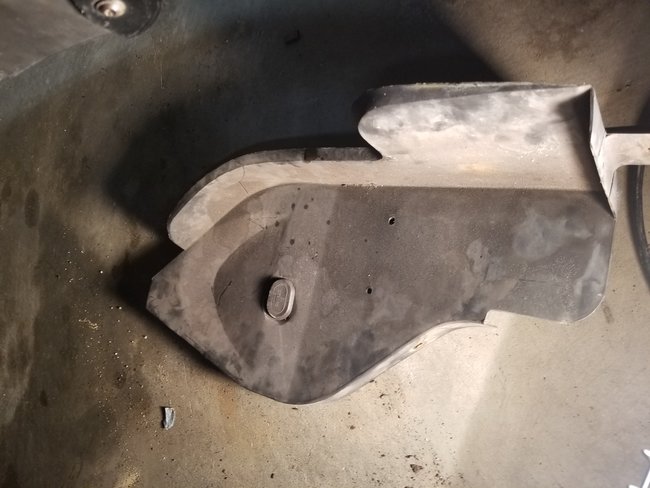

I was replacing the water pump and timed the car, but when I was putting everything back together I forgot how the inner splash shield goes back on. does anyone know. On the car listed above RT model.
Image (Click to enlarge)
Attached Media
Jan 21, 2019 at 9:59 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

Do you mean the one behind the right front wheel that covers the lower pulley?

It should be a two bolt shield.

Can you post a picture for me to see?

Roy
Jan 21, 2019 at 10:18 AM
Avatar
WILLIS1PIE
  • MEMBER
  • 2 POSTS

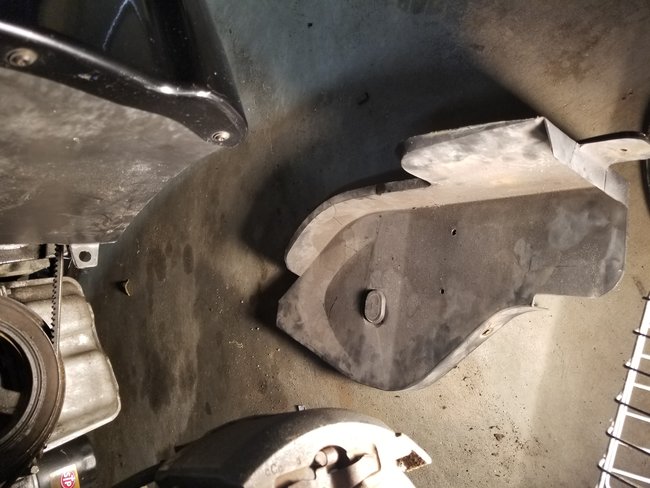

Here is the picture.
Image (Click to enlarge)
Attached Media
Jan 21, 2019 at 10:25 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
it bolts to the inner frame rail on the passenger's side see the bolts holes along the upper edge this is where it attaches. Can you take a picture of the frame rail so I can confirm?
Jan 24, 2019 at 1:28 PM
