Speed sensor location

Hello,

what was the Direct Trouble Code (DTC) number?

Thanks,
Alex
2CarPros

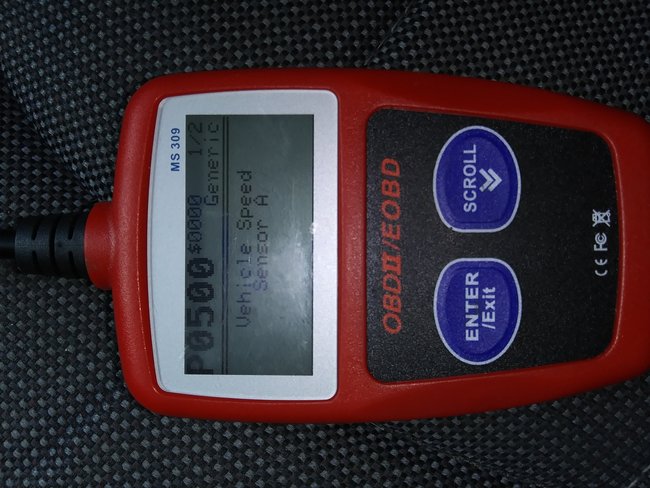

P0500.

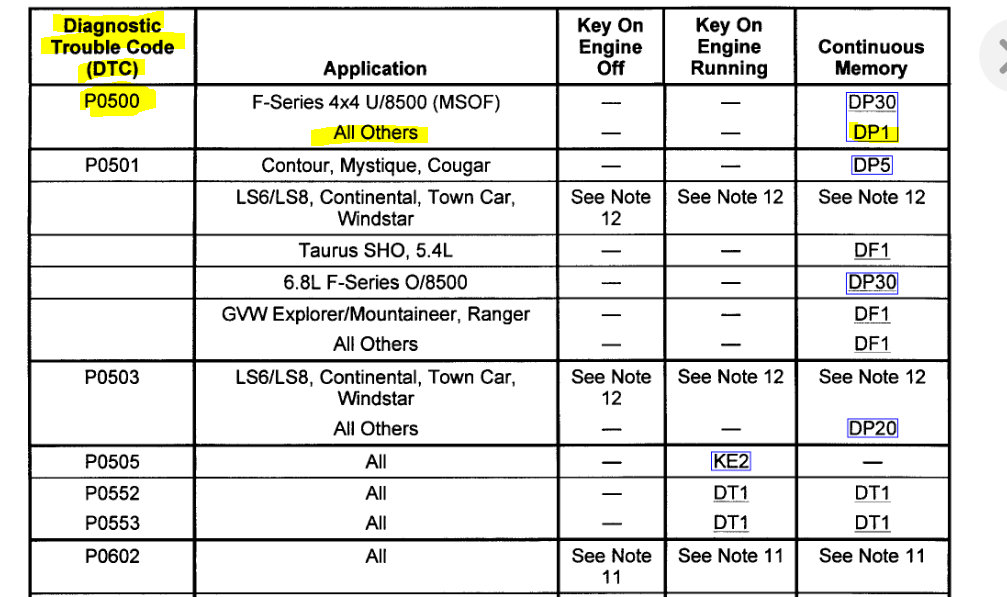

Hello,

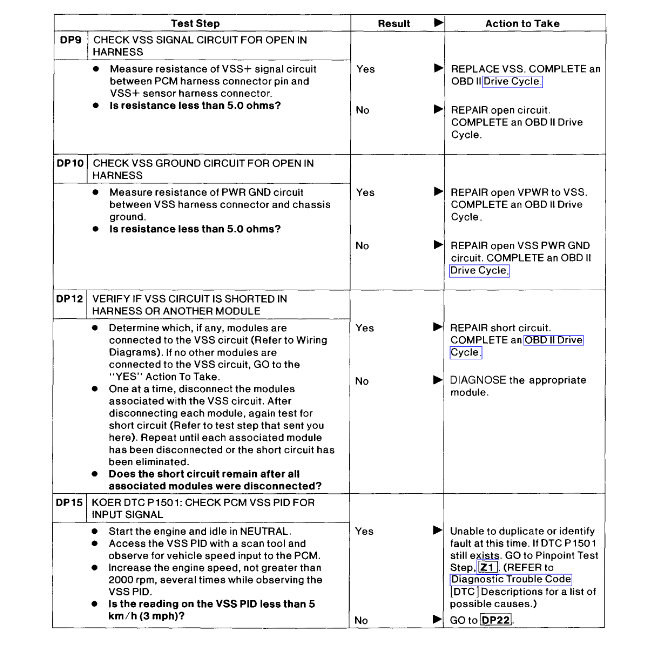

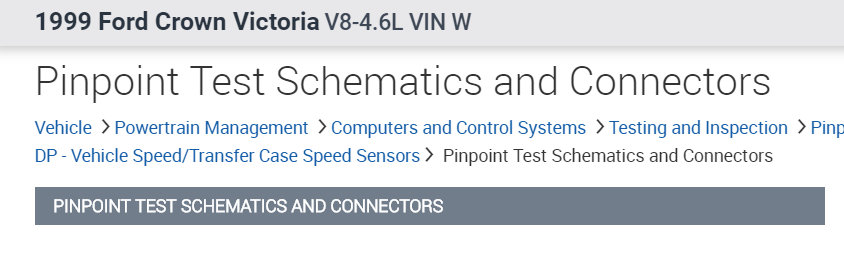

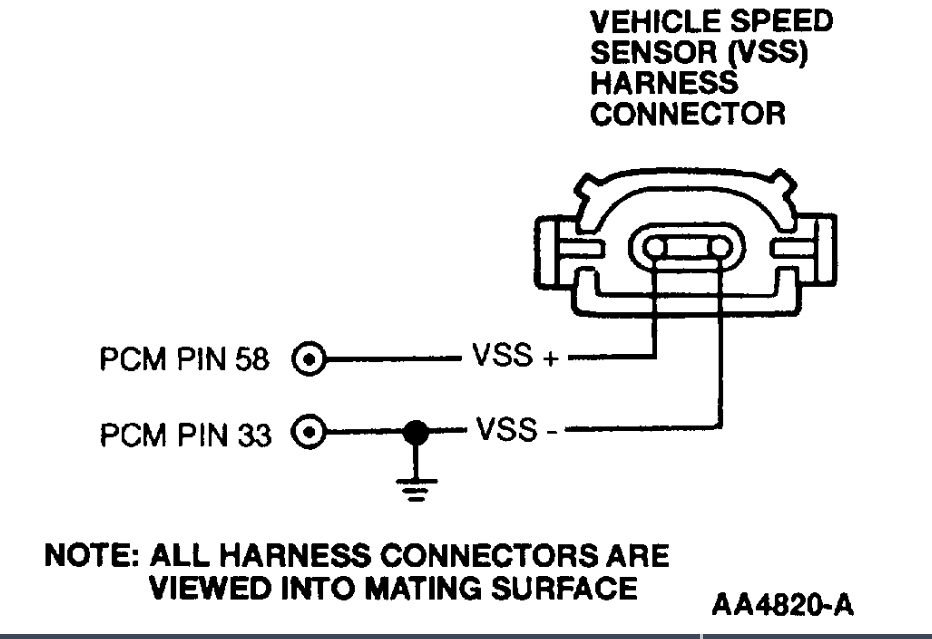

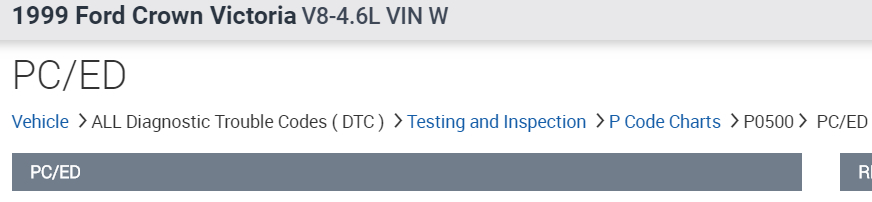

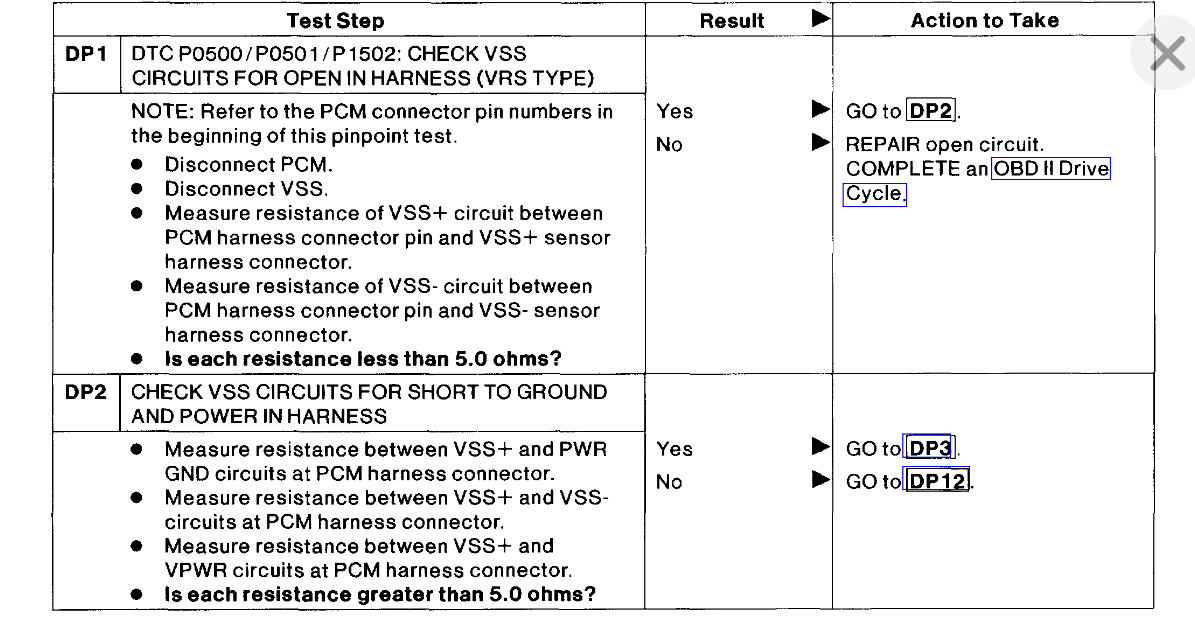

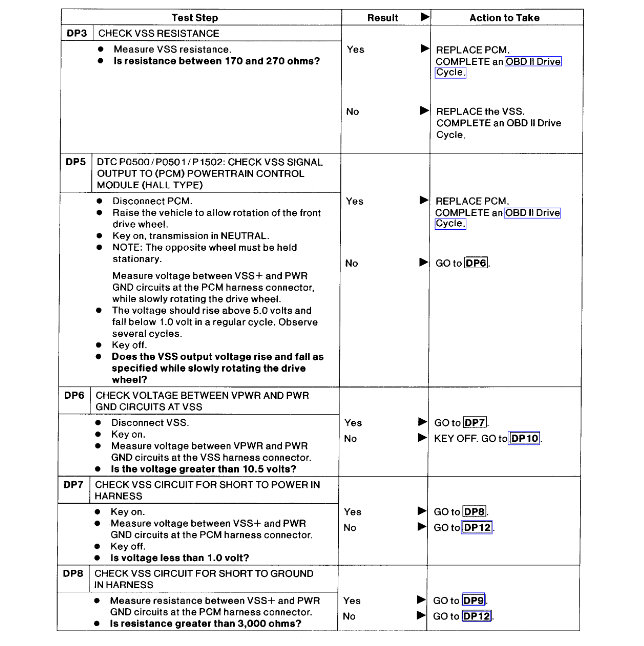

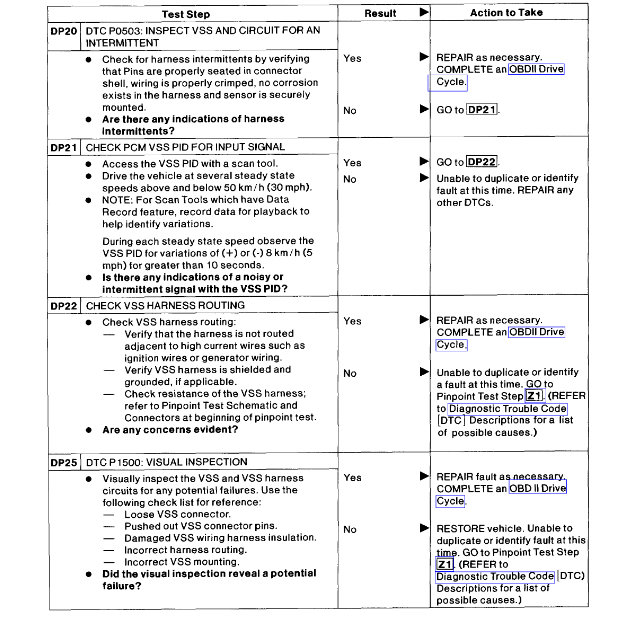

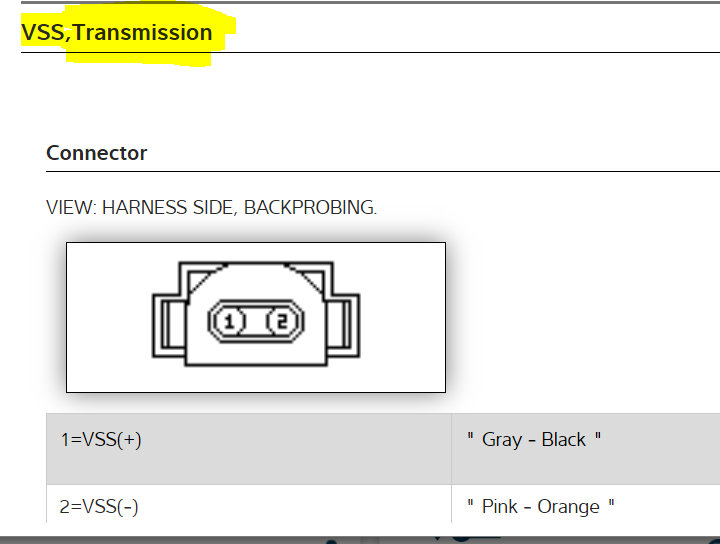

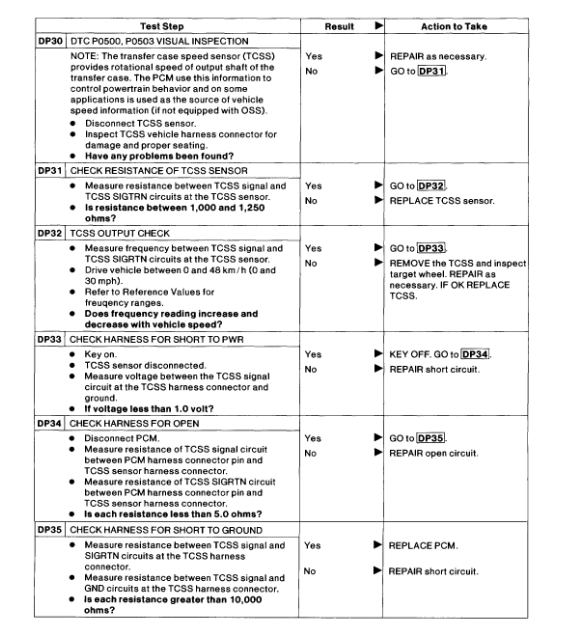

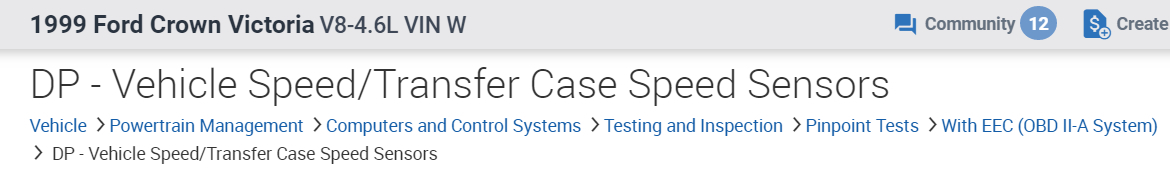

In the diagrams down below I have included the factory diagnostic Pinpoint Test DP for your vehicle's speed/transfer case speed sensors. This diagnostic troubleshooting Pinpoint Test will require you to use a multimeter, so here is a link down below, if you are unfamiliar with how to use one.

https://www.2carpros.com/articles/how-to-use-a-voltmeter

Please go through this guide and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros

What I need to know is where are the speed sensors located? I found the one with the orange gear, where's the other one

Hello again,

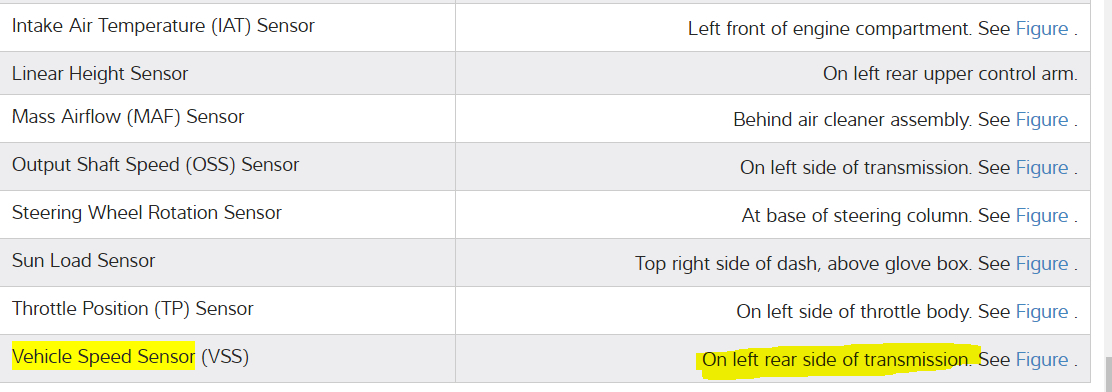

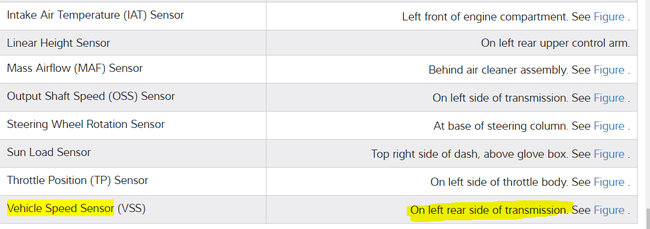

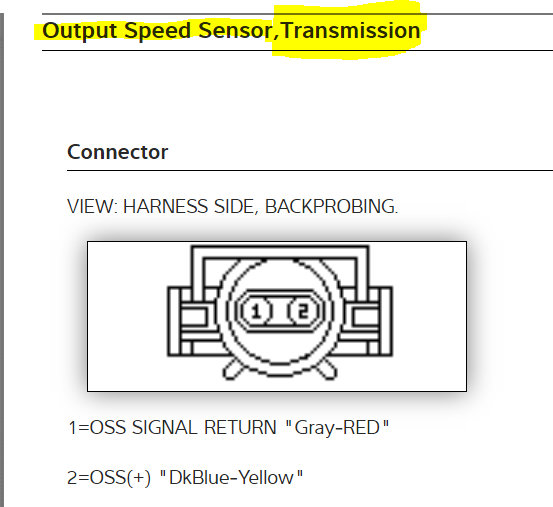

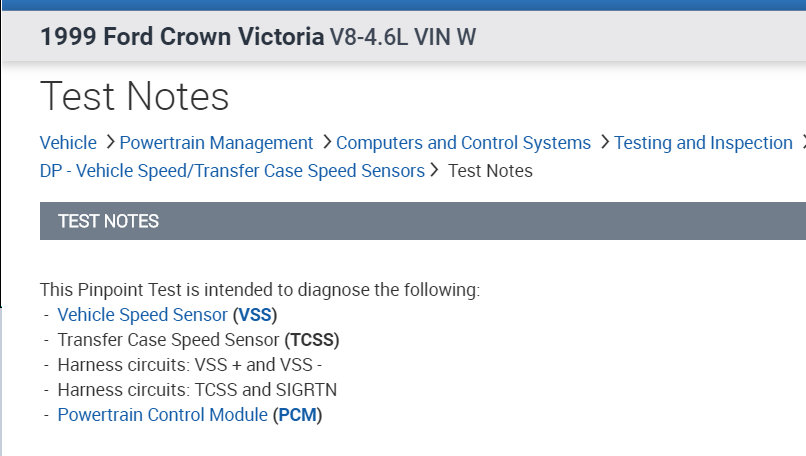

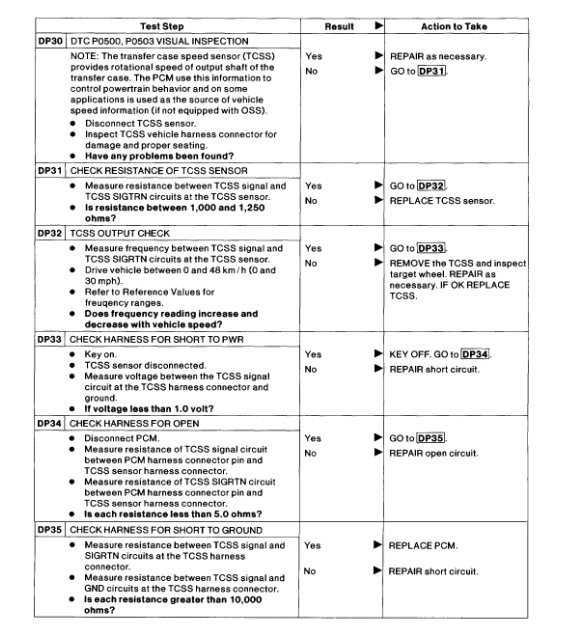

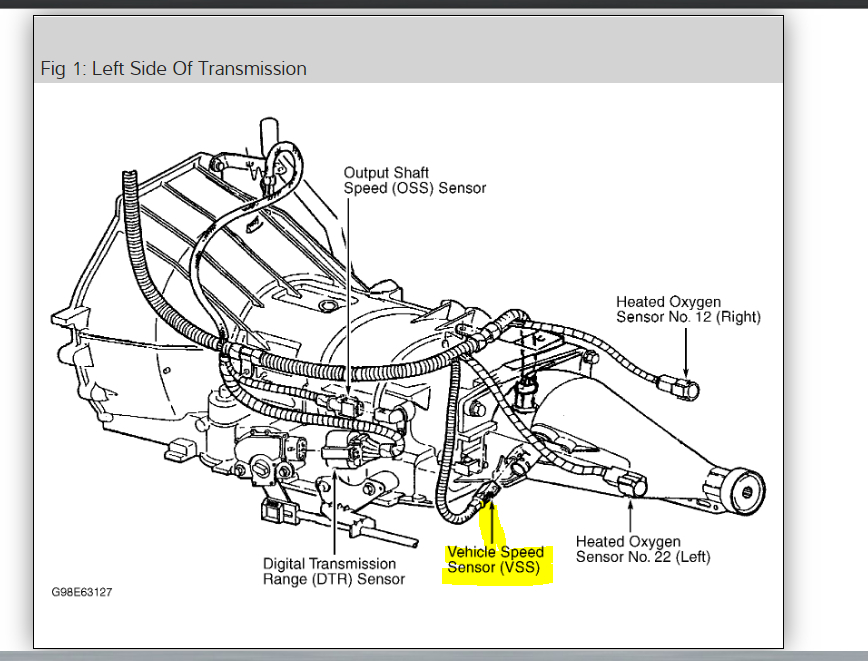

The information that you requested is in the diagrams down below, There is only one Vehicle Peed Sensor (VSS) and it is located on the transmission. There is an Output Speed Sensor, which is also on the transmission and the other end of the harness has a connector, which is on the engine.

Thanks,
Alex
2CarPros

So the speed sensor is the one without the gear?

Hello again,

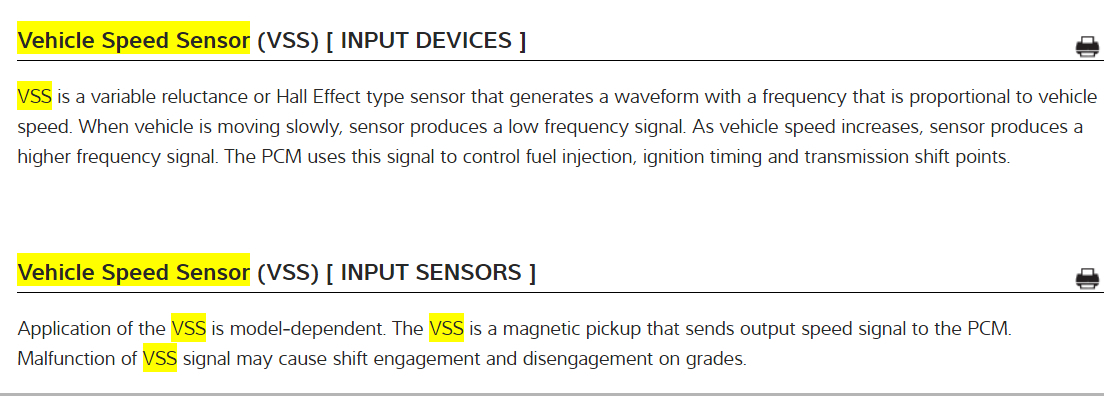

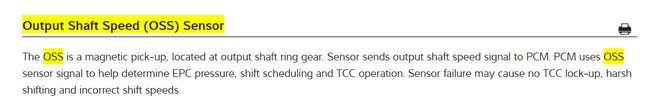

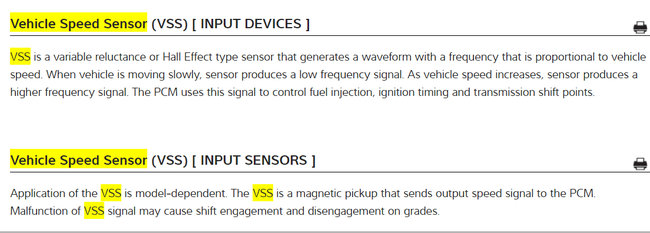

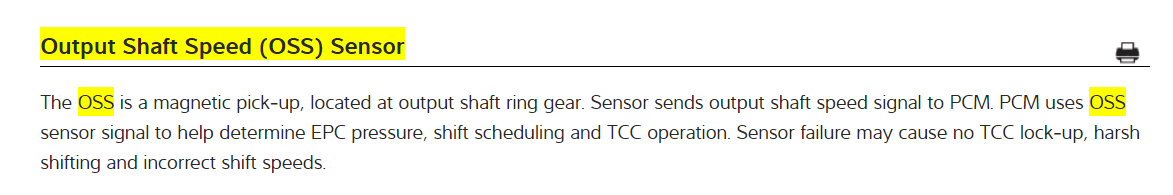

Here is a description of the OSS.

Thanks,
Alex
