After installing a shifter cable transmission will not shift out of park

1995 PONTIAC GRAND PRIX
215,000 MILES • 3.1L • V6 • 2WD • AUTOMATIC
Avatar
DEBBIE1401
  • MEMBER
  • 5 POSTS
I installed a cable shifter on my car it is column shift and it will not shift out of park.
Feb 14, 2020 at 7:14 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

Why did you replace the cable? Did you have this issue prior to replacing the cable?

Roy

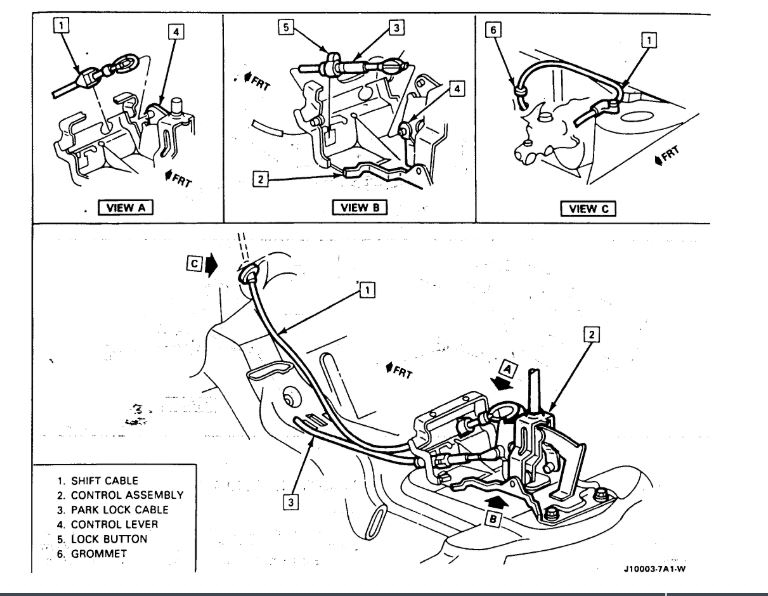

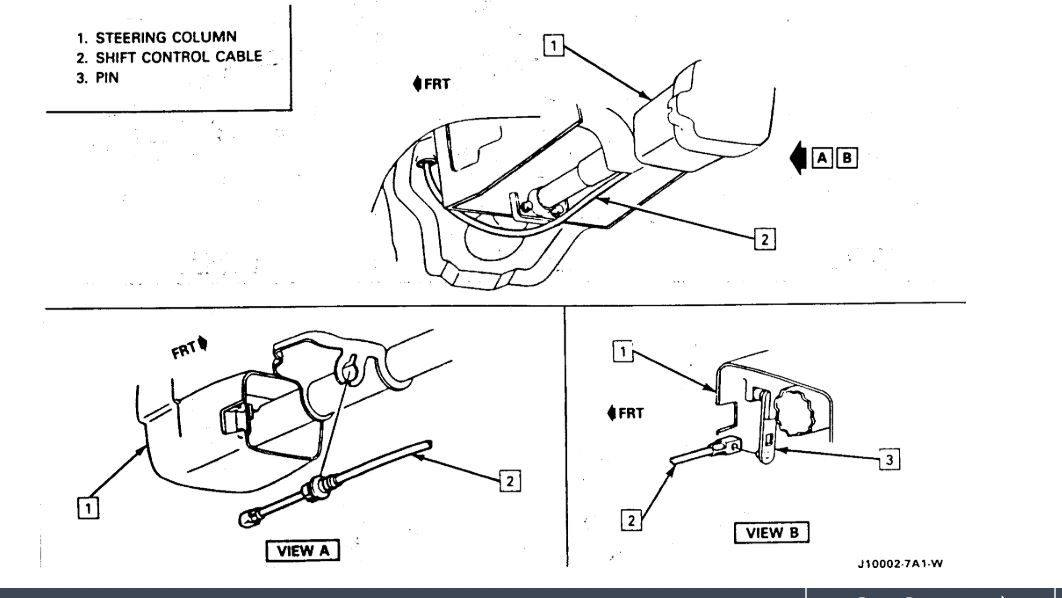

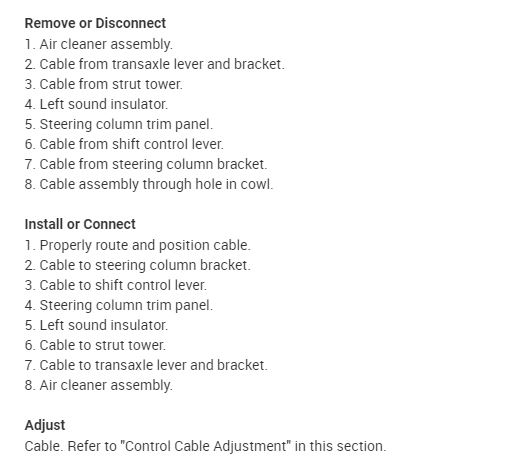

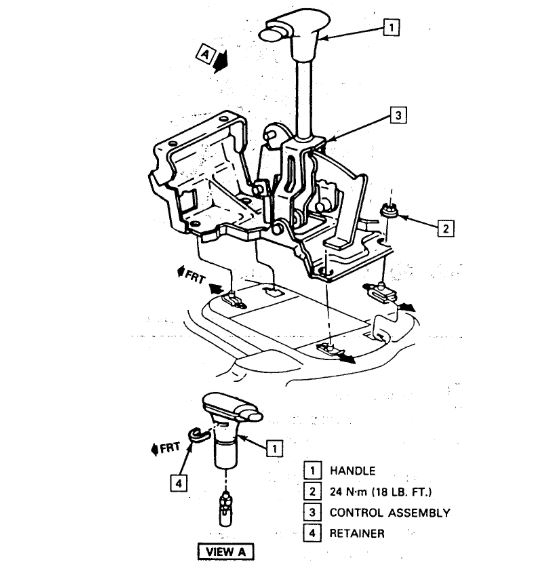

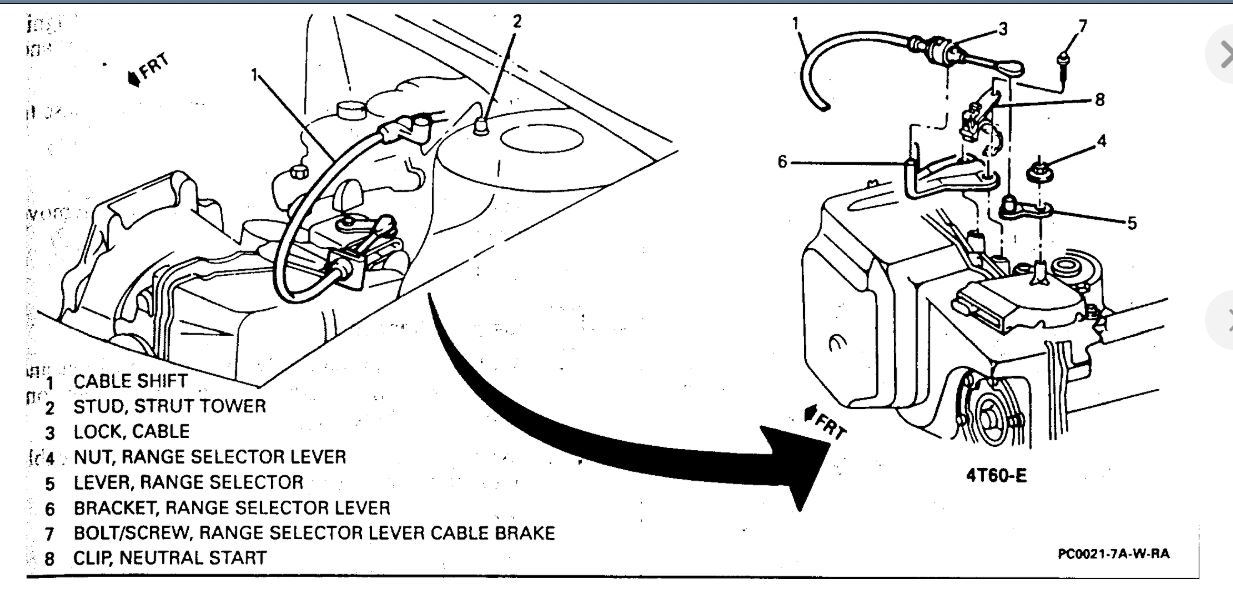

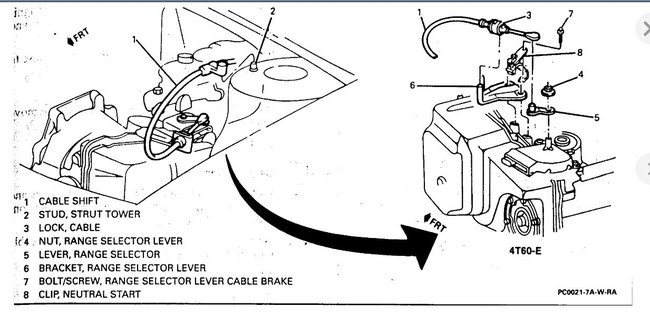

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 14, 2020 at 11:48 AM
Avatar
DEBBIE1401
  • MEMBER
  • 5 POSTS
the cable got on the battery and got on fire melted the cable so i had to replace it. melted all the way to brake pedal.
Feb 14, 2020 at 4:27 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
How much damage under the dash?

Can you upload some photos?

Roy
Feb 14, 2020 at 4:31 PM
Avatar
DEBBIE1401
  • MEMBER
  • 5 POSTS
not bad, just melted installation around the cable.
Feb 14, 2020 at 4:44 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
There is more damage than that if it will not come out of park.

With the new cable installed, does the shifter move freely?

Roy
Feb 15, 2020 at 4:57 AM
