How to set the camshaft timing properly?

2015 FORD EXPLORER
134,212 MILES • V6 • AUTOMATIC
Avatar
BLESSING EWOBOR
  • MEMBER
  • 754 POSTS
The vehicle water pump is bad, it has been replaced but I am having a problem in setting the Timing of the engine correctly. Please could I know the procedure to follow. I would be very grateful if you could be of help. I know that I disturb a lot.
Feb 16, 2024 at 12:40 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
2015 Ford Explorer there is to ignition timing to set?
Feb 16, 2024 at 4:29 PM
Avatar
BLESSING EWOBOR
  • MEMBER
  • 754 POSTS
Yes, I mean the timing of the cramkshaft to the crankshaft.
Feb 16, 2024 at 6:42 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

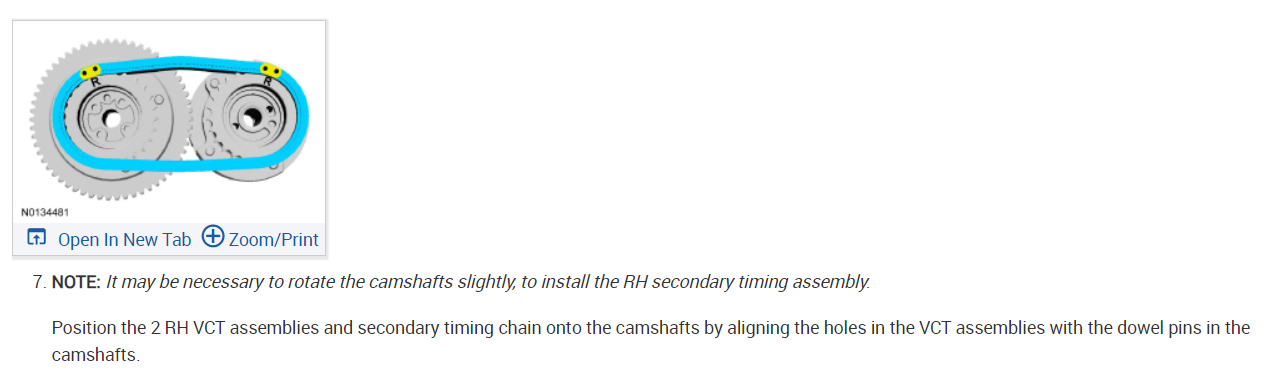

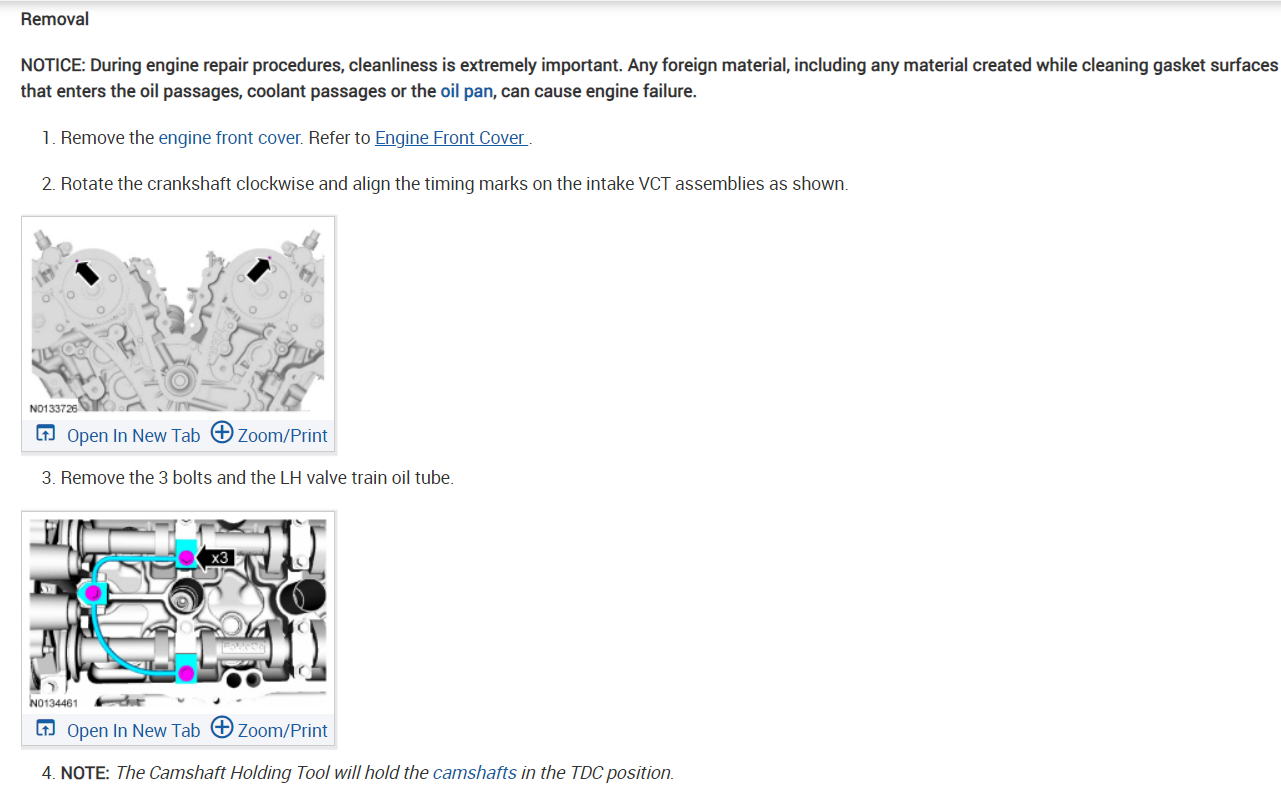

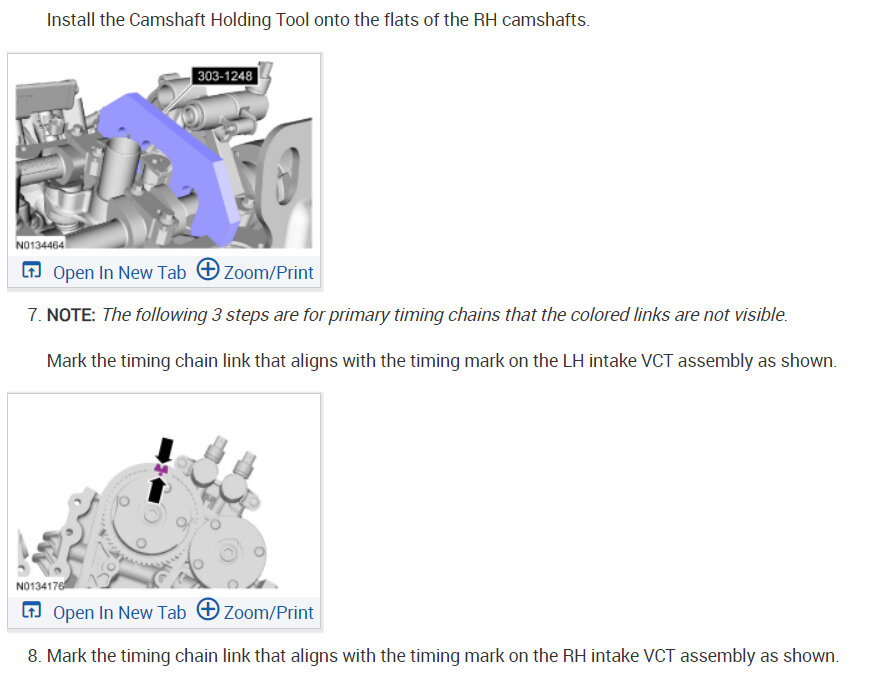

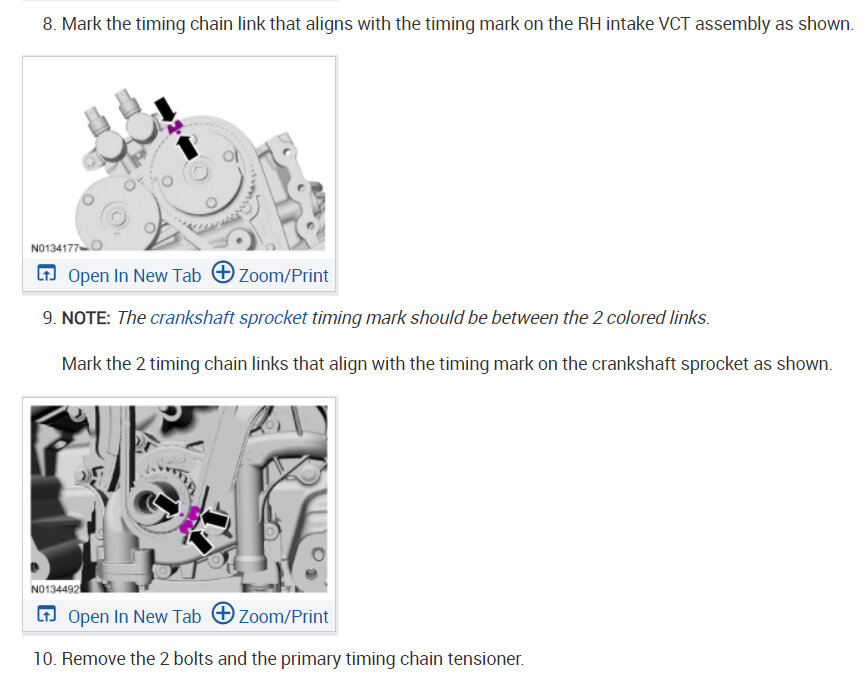

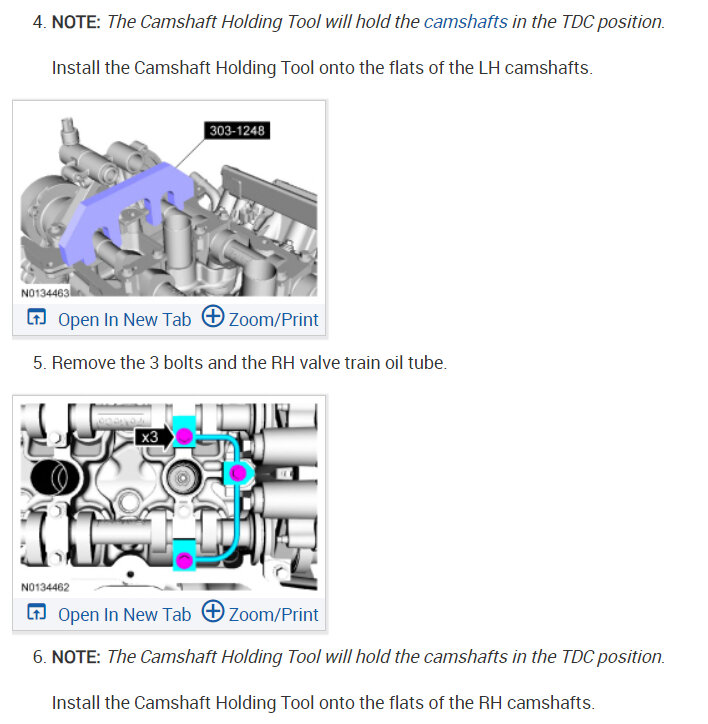

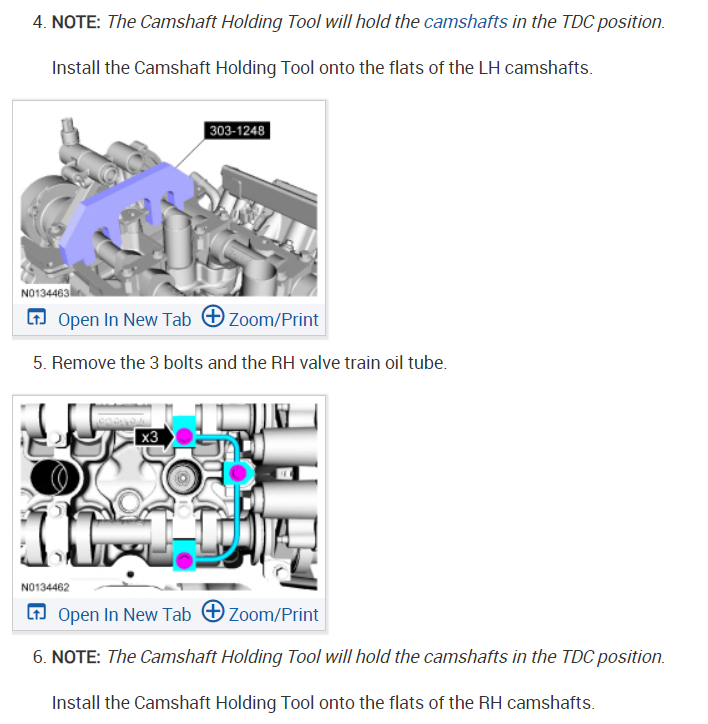

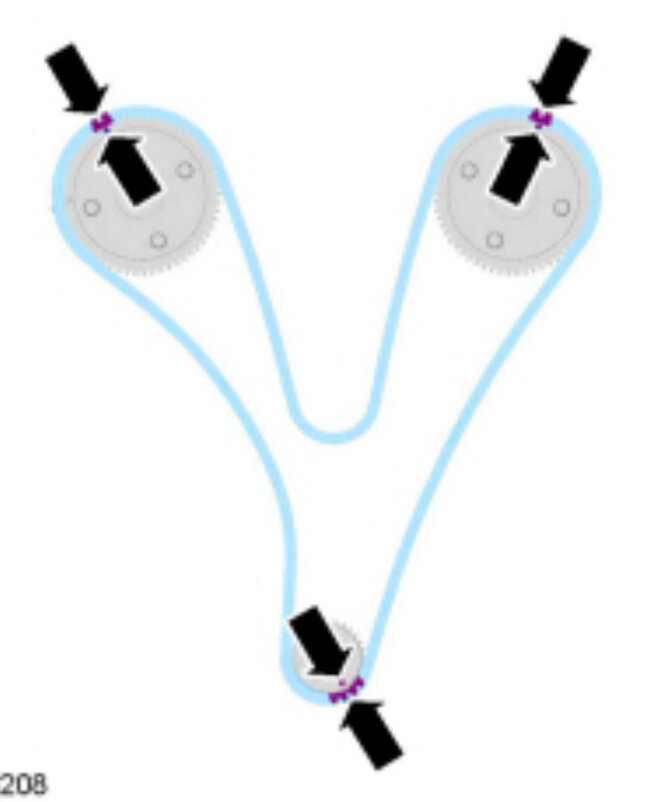

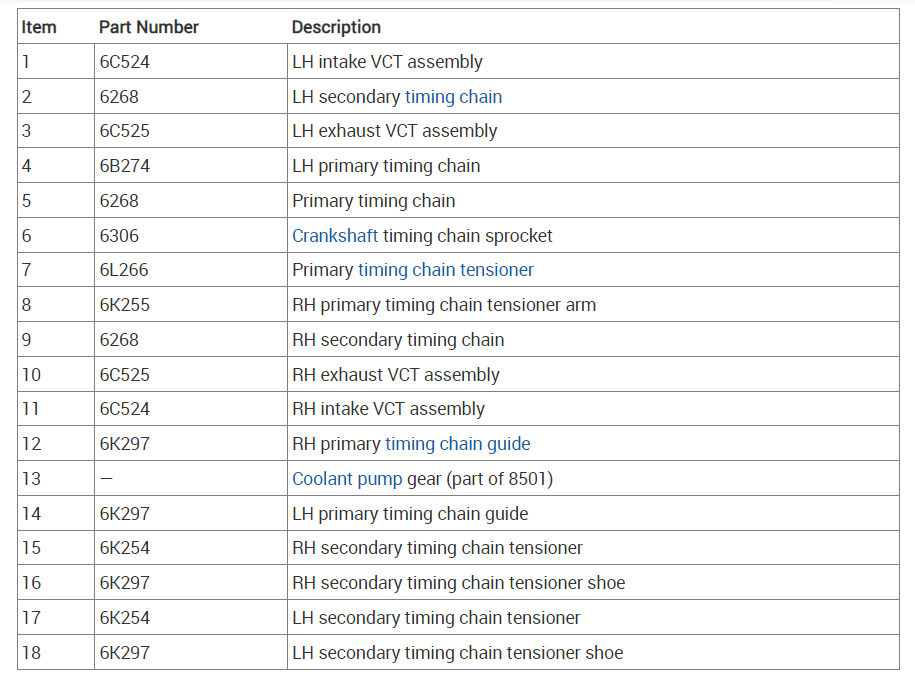

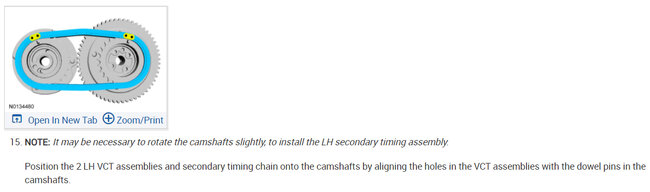

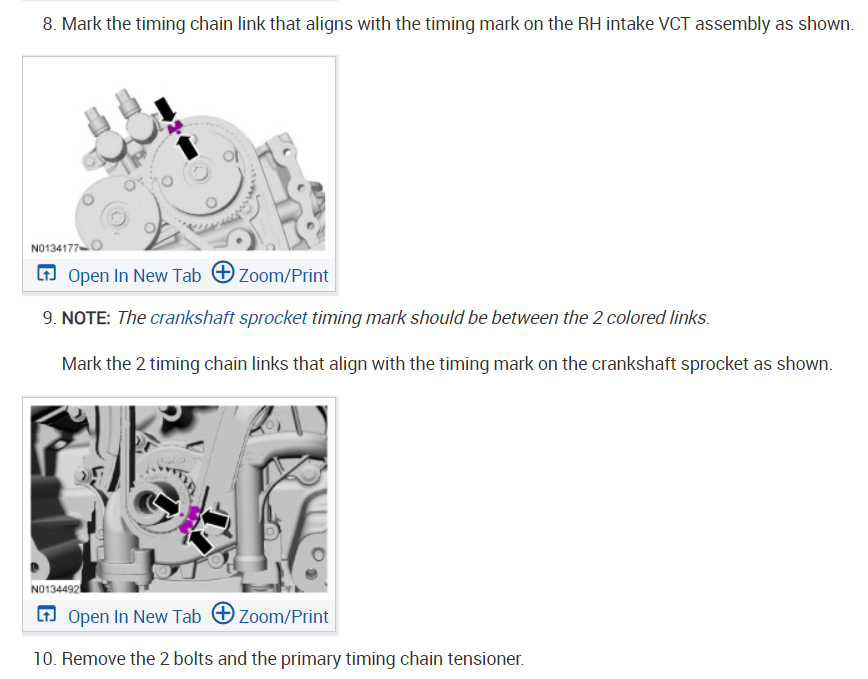

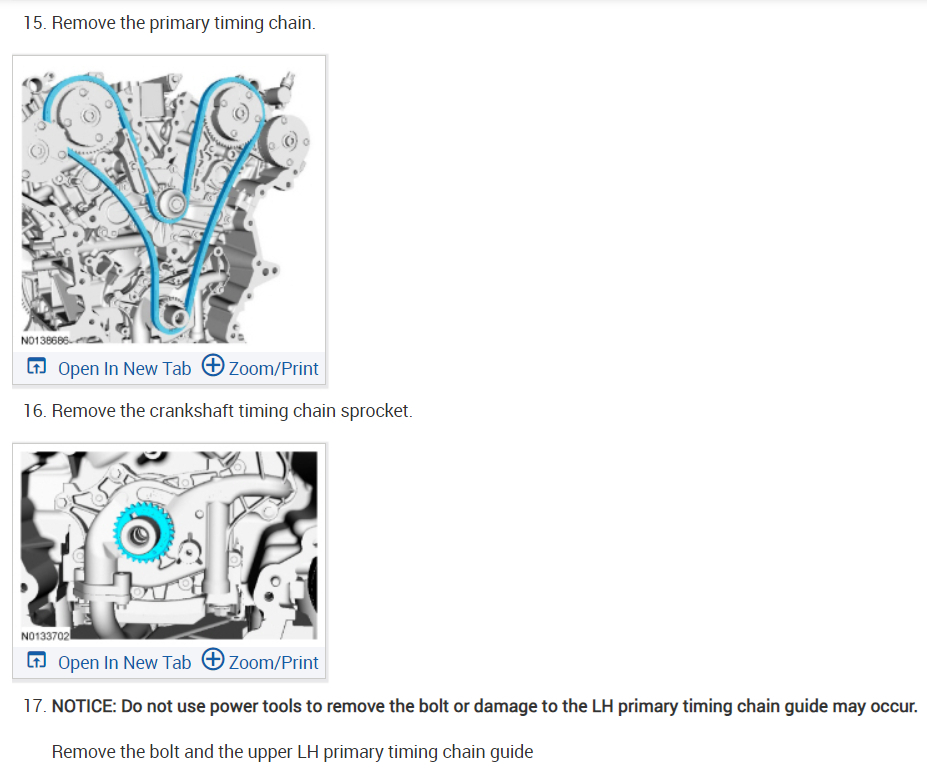

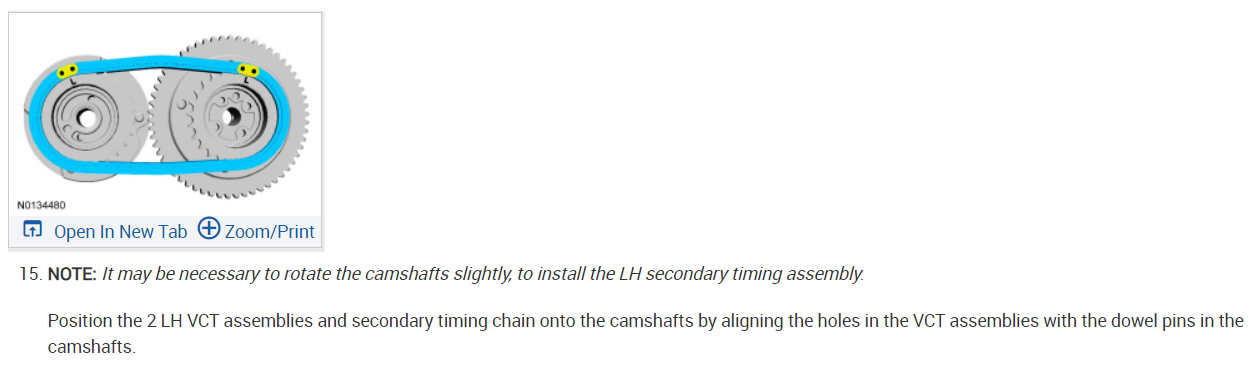

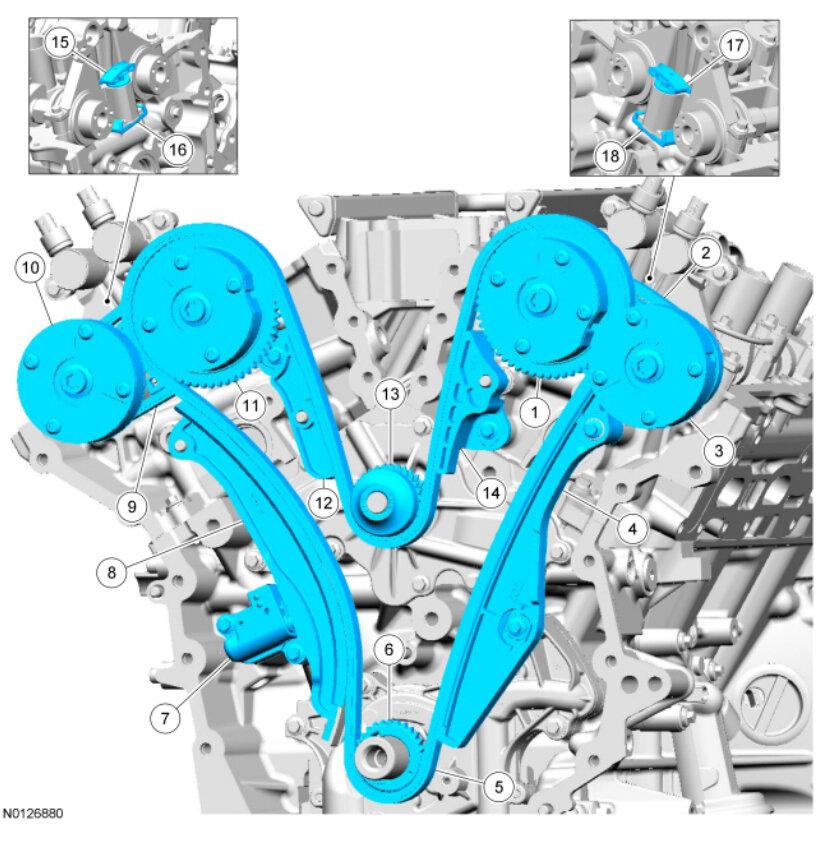

Sure, here are the timing chain marks for the camshaft and crankshaft. They look pretty straight forward with marks on the timing chain to align with the marks on the sprockets. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 17, 2024 at 9:50 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
anything?
