Serpentine routing diagram

2014 CHEVROLET IMPALA
200,000 MILES • 3.6L
Avatar
HOTLIPS1
  • MEMBER
  • 3 POSTS
I need a routing diagram for the serpentine belt for my car listed above. it is not by the radiator so I do not know where else to look. Thank you.
Apr 27, 2018 at 9:46 AM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

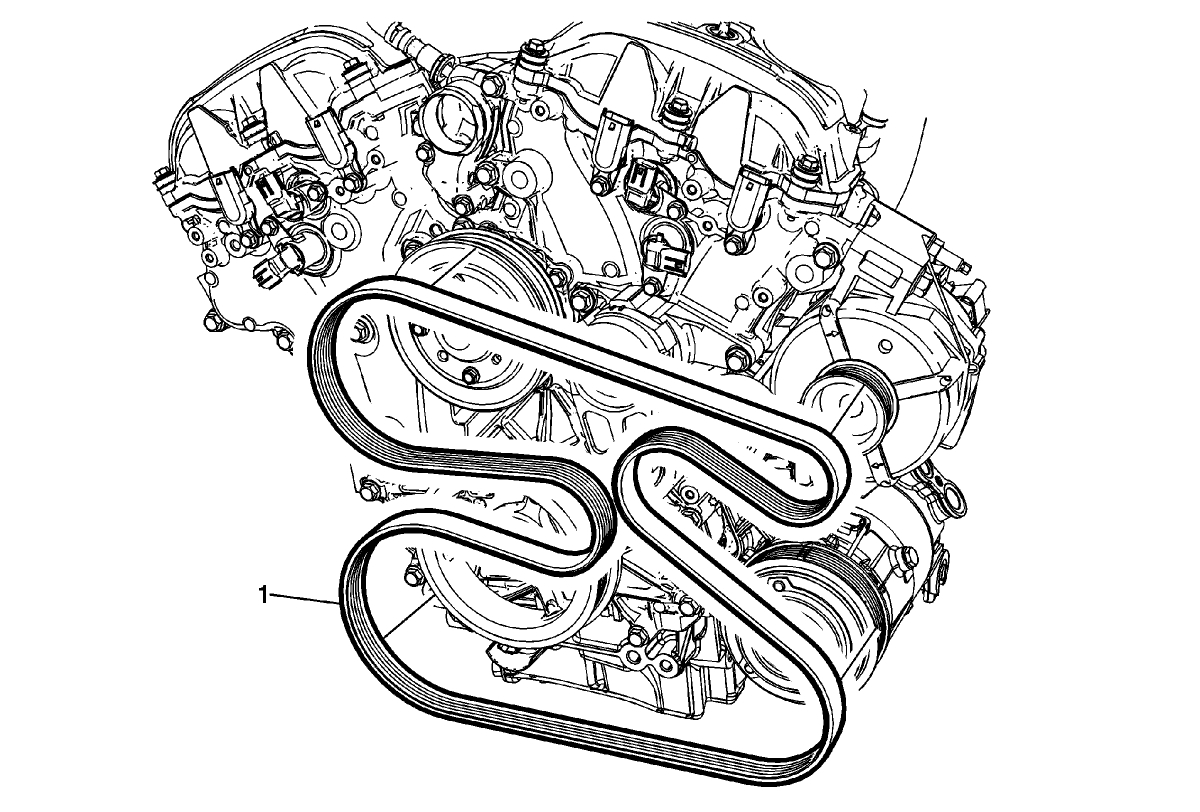

This should help. Check the tension-er as well.
Image (Click to enlarge)
Attached Media
Apr 27, 2018 at 11:48 AM
Avatar
HOTLIPS1
  • MEMBER
  • 3 POSTS
Thank you so much Steve w. I would have never figured it out. I am going to recommend you to all of my friends.
Apr 27, 2018 at 8:02 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
Some of them really make you realize why they call them serpentine belts.
Apr 27, 2018 at 9:31 PM
Avatar
HOTLIPS1
  • MEMBER
  • 3 POSTS
Awesome.
Apr 27, 2018 at 9:38 PM
