Serpentine belt routing instructions needed?

2005 CHEVROLET IMPALA
179,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
CWEATHERBY1
  • MEMBER
  • 1 POST
I changed the alternator and obviously the belt had to be undone. There is not a sticker anywhere to be found showing the routing diagram. I need to know how this belt goes back around these pulleys. Please
Aug 6, 2023 at 5:40 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Sure, here is the belt routing and a generic guide to help you with the steps:

https://www.2carpros.com/articles/replace-serpentine-belt

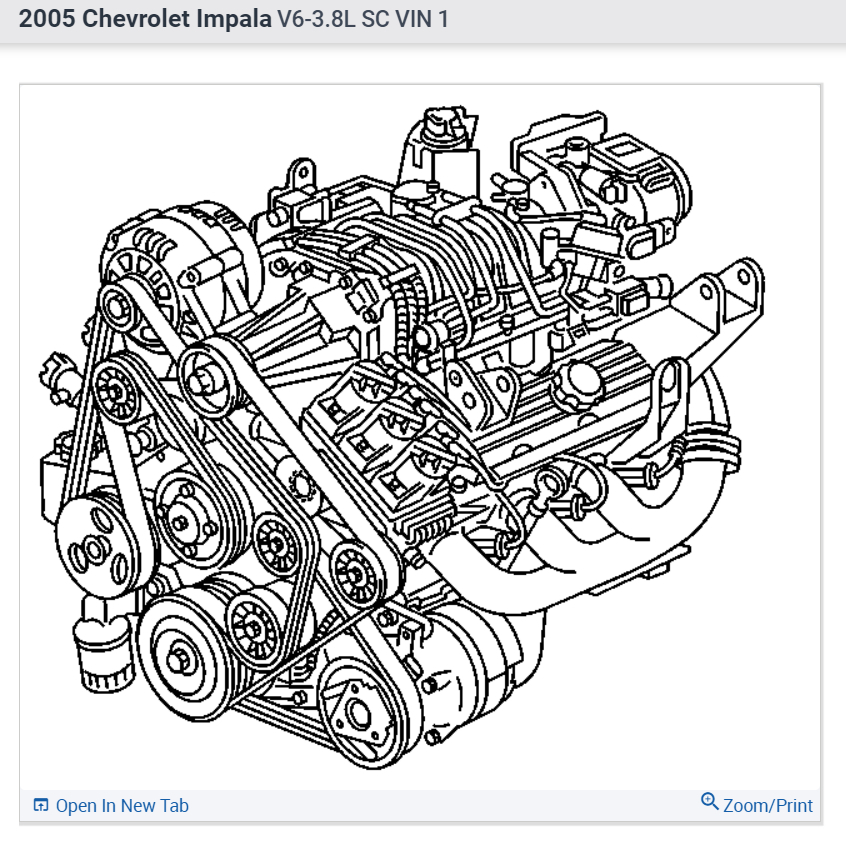

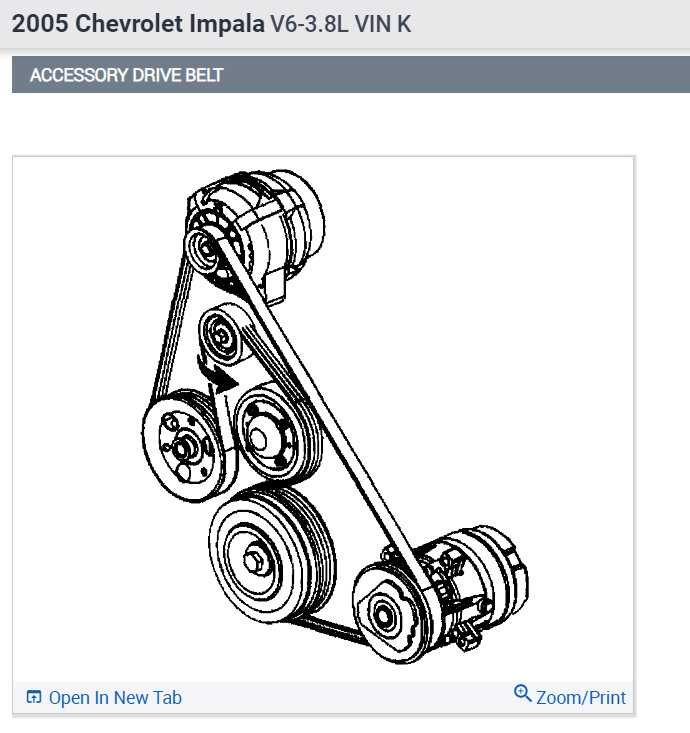

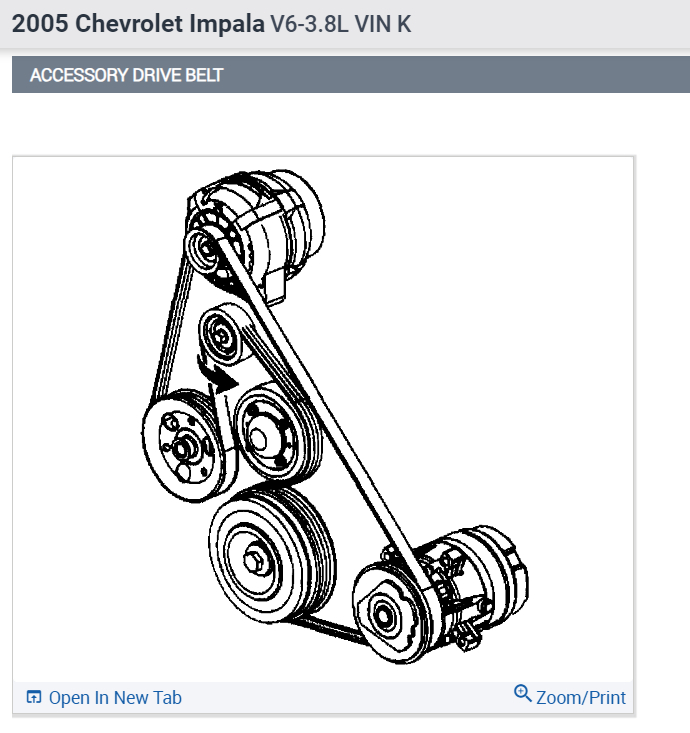

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 7, 2023 at 12:58 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Anything?
