Serpentine belt replacement diagram needed

2010 DODGE RAM
857,500 MILES • 2.7L • V6 • TURBO • 2WD • AUTOMATIC
Avatar
JANNIEYHAM
  • MEMBER
  • 1 POST
I need a diagram to put my new serpentine belt on. Itt’s a rear wheel drive, 2500 Diesel 2.7 and a 2010 it’s a heavy duty.
Jun 25, 2022 at 4:07 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

Please note that the Ram for that year came with a 6.7L diesel (not 2.7L).

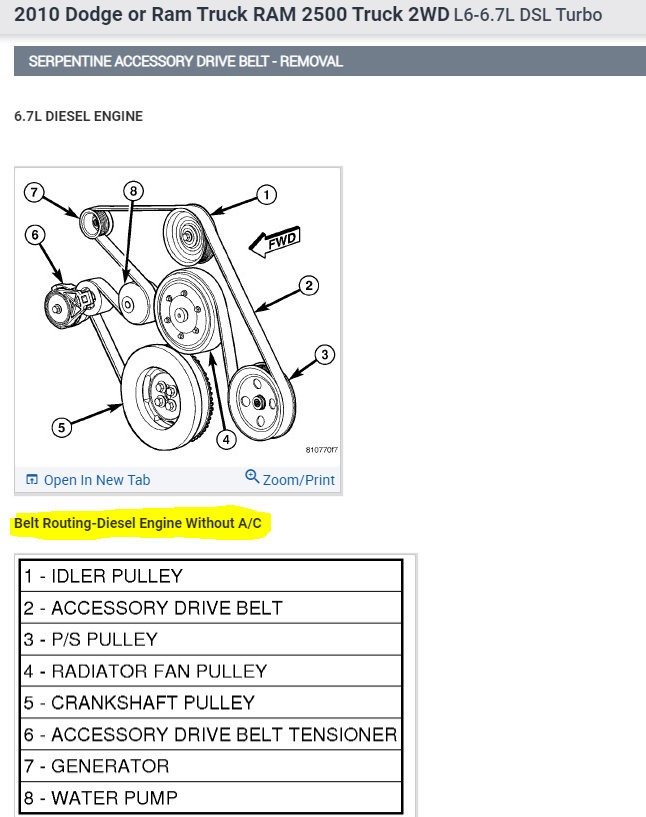

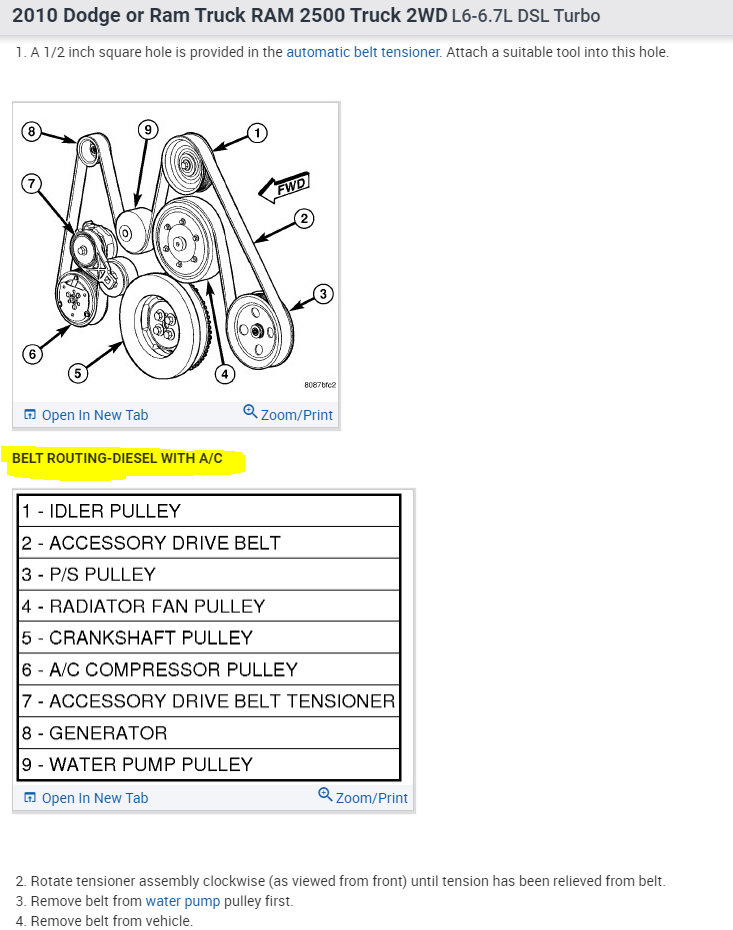

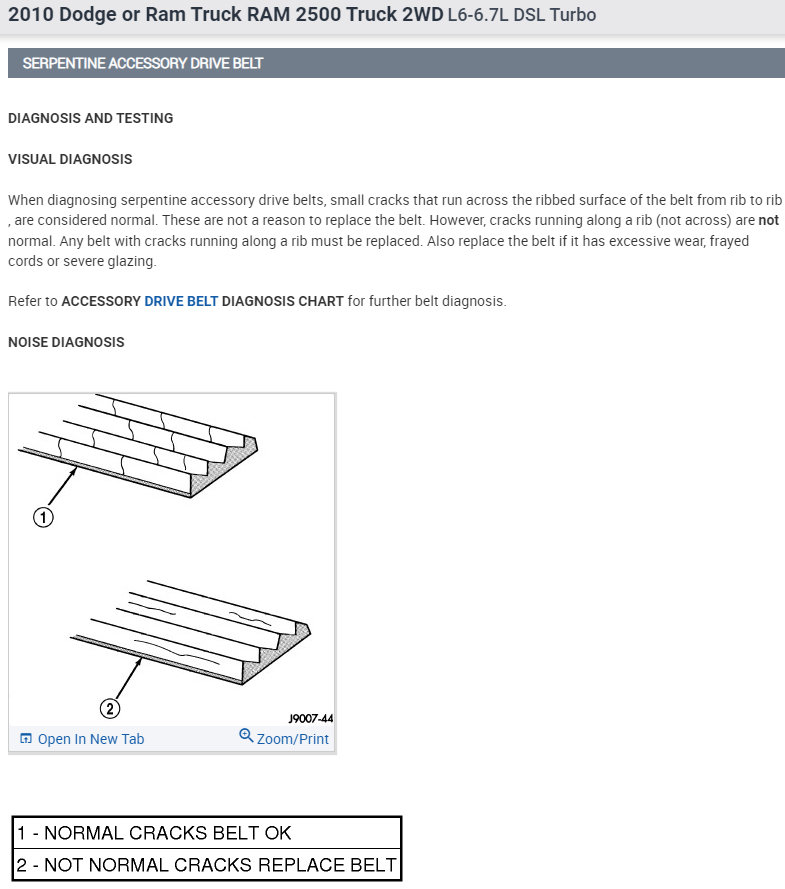

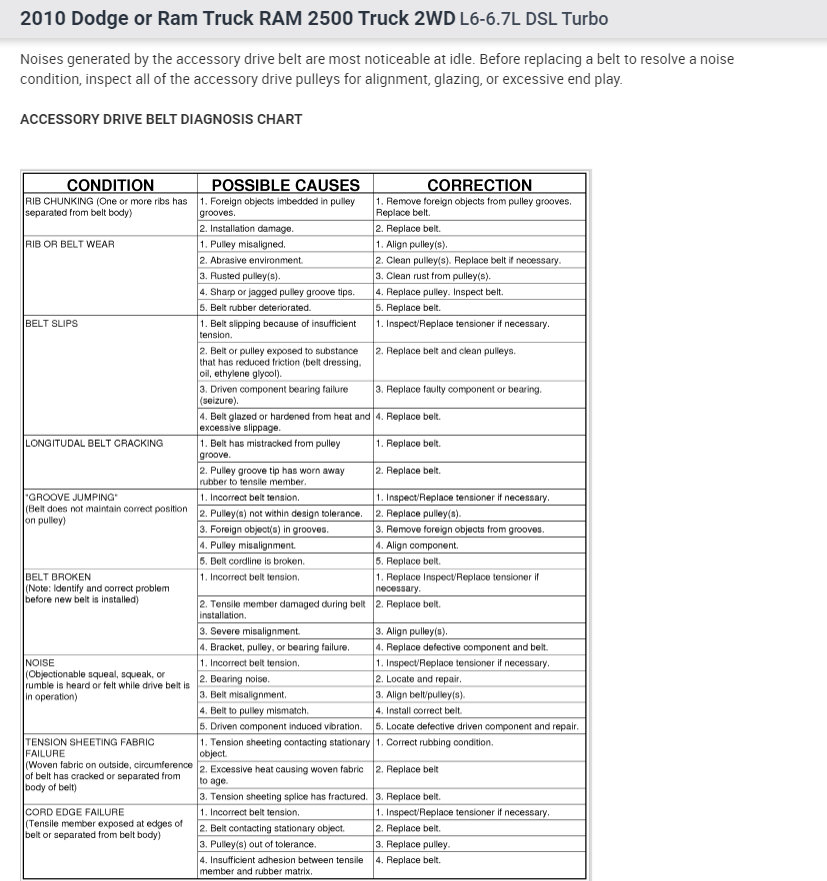

I have attached the belt diagram and procedure below for your reference.

Let me know of any questions.
Thank you.

https://www.2carpros.com/articles/replace-serpentine-belt
