Serpentine belt installation diagram needed?

1988 MERCEDES BENZ 260E
98,000 MILES • 6 CYL
Avatar
WCCOOPER815
  • MEMBER
  • 1 POST
how does the serpentine belt go on?
Nov 1, 2022 at 5:28 AM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

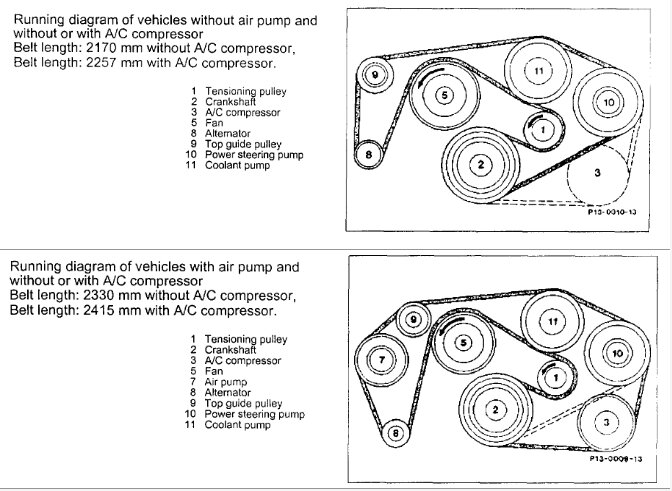

There are various versions, with and without air pump, with and without A/C compressor.
Please see image below.

How to replace belt:
https://www.2carpros.com/articles/replace-serpentine-belt

A good article:
https://www.pelicanparts.com/techarticles/Mercedes-W124/30-ENGINE-Drive_Belt_Tensioner_Replacement/30-ENGINE-Drive_Belt_Tensioner_Replacement.htm

Cheers, Boris
Image (Click to enlarge)
Attached Media
Nov 1, 2022 at 8:45 AM
