Serpentine belt diagram?

2016 TOYOTA HIGHLANDER
130,000 MILES • V6 • 4WD • AUTOMATIC
Avatar
DK012377
  • MEMBER
  • 20 POSTS
Looking for the serpentine belt diagram for this vehicle.
Oct 2, 2022 at 12:20 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

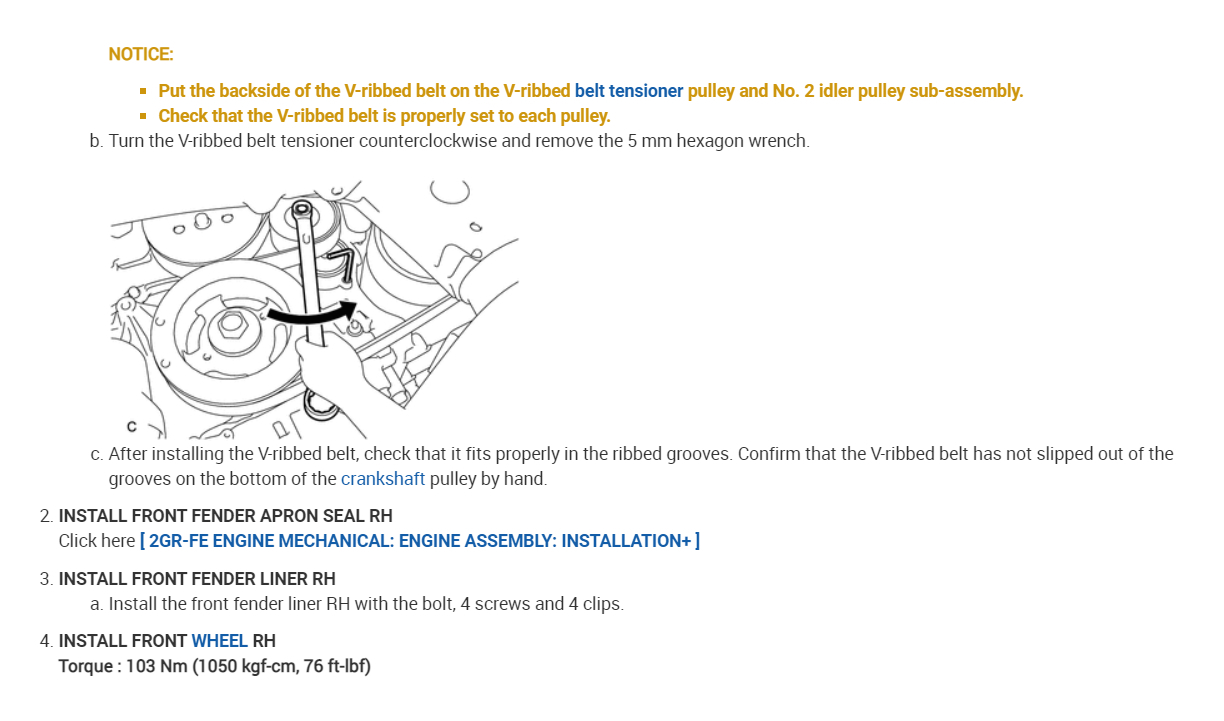

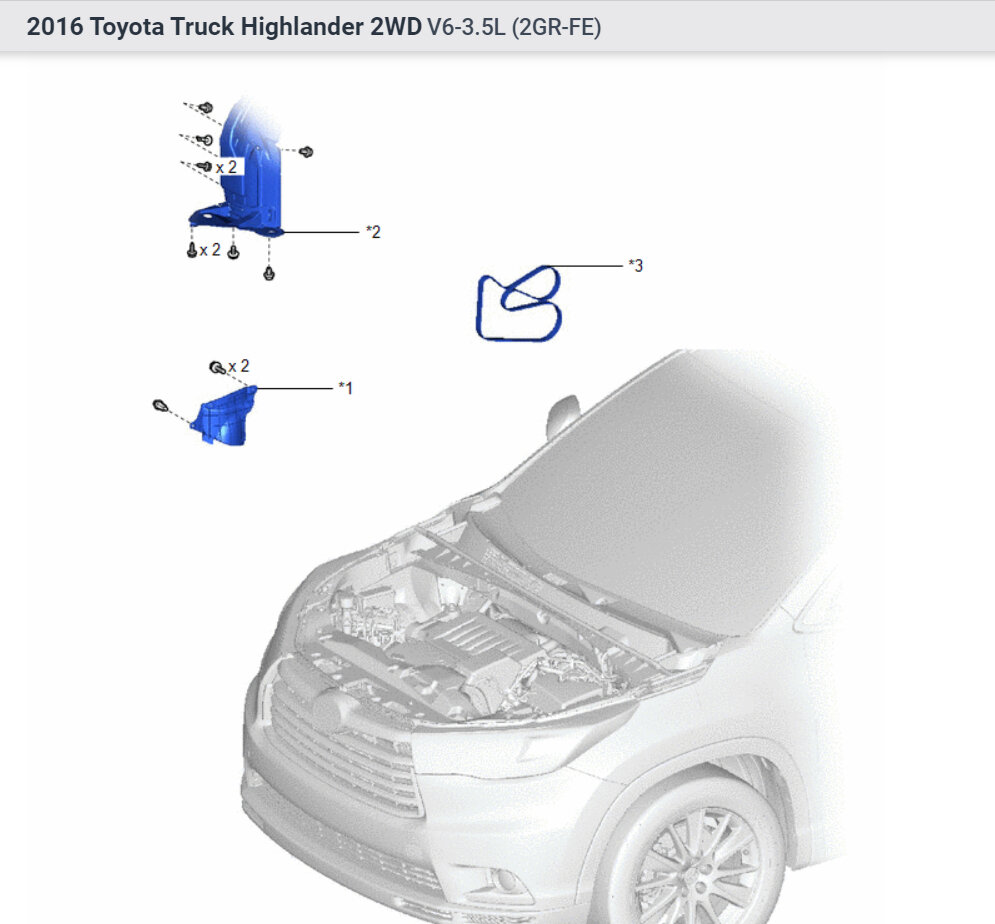

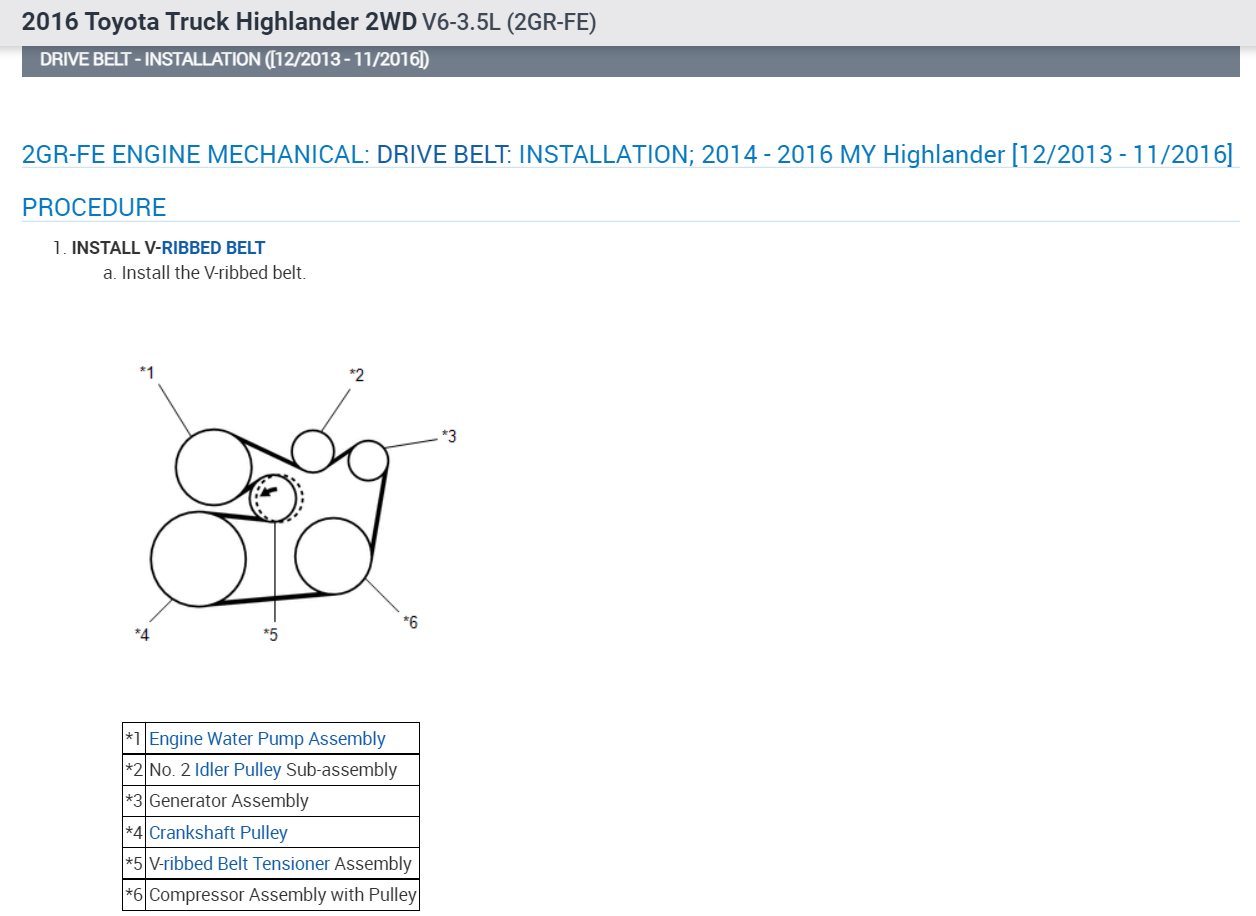

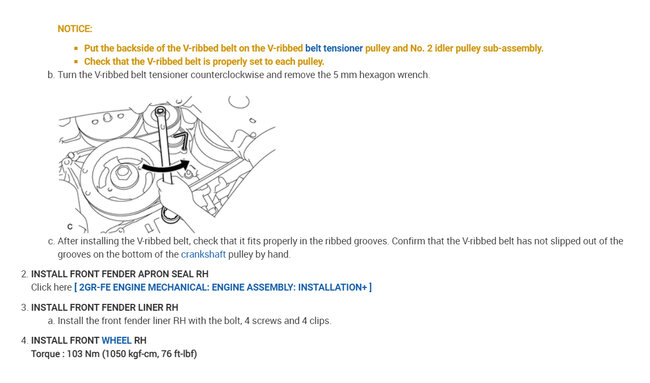

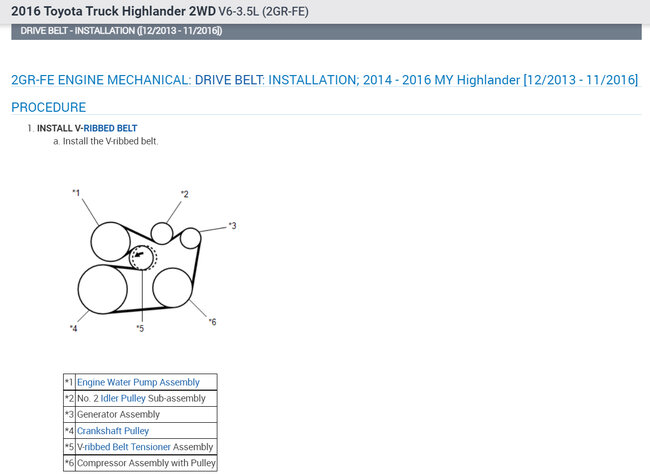

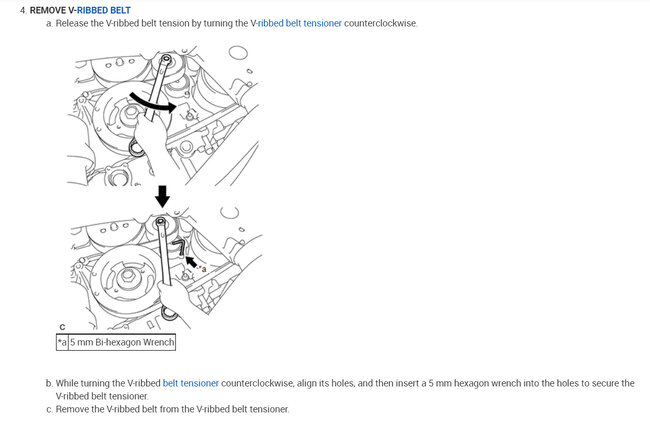

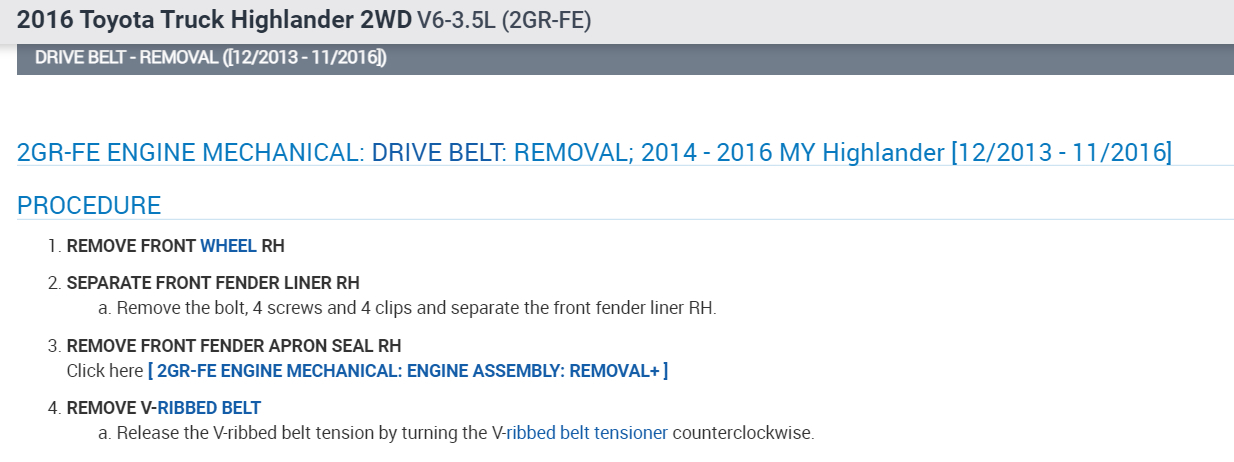

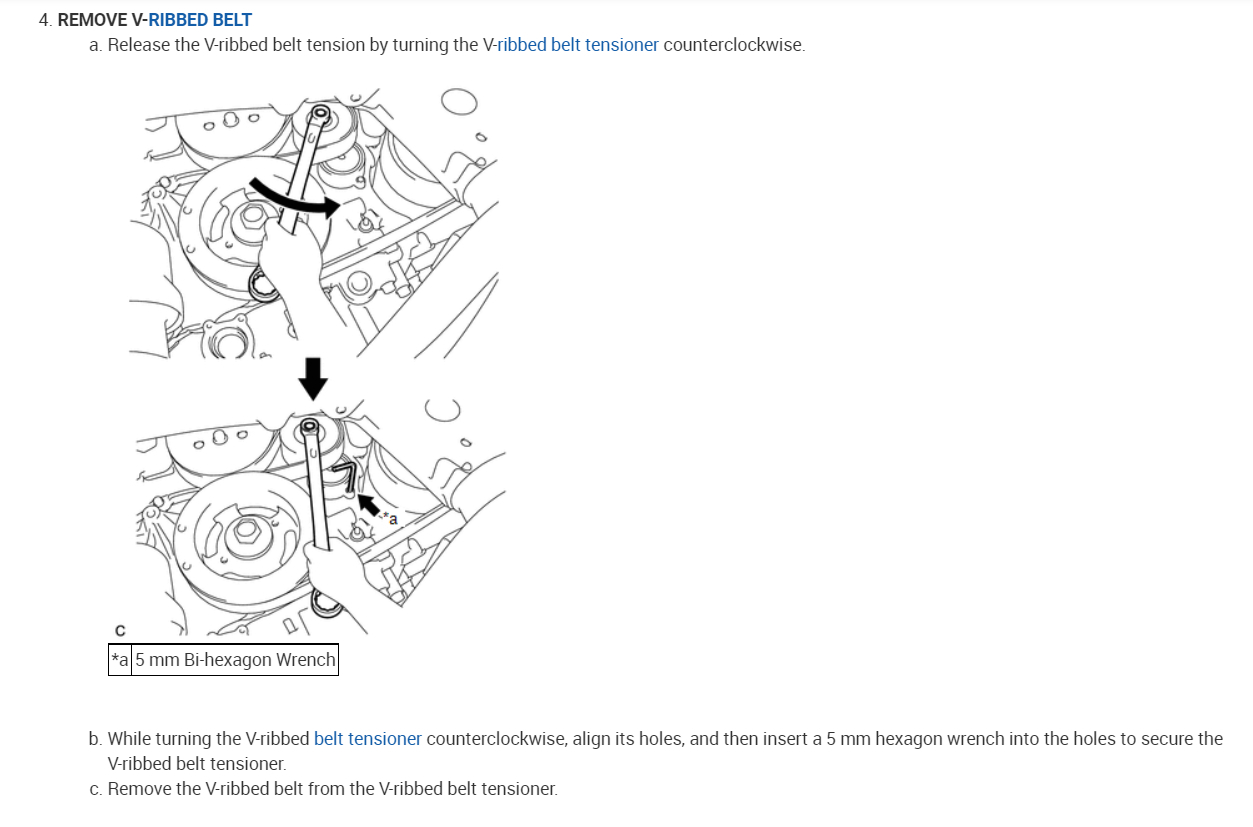

Here are the instructions and belt diagrams to help you change the serpentine belt out. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 3, 2022 at 8:02 AM
Avatar
DK012377
  • MEMBER
  • 20 POSTS
Thank you! You went above and beyond and I so appreciate you!!
Oct 4, 2022 at 7:03 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Good to hear, please use 2CarPros anytime we are here to help.
Oct 4, 2022 at 3:52 PM
