Serpentine belt A/C bypass diagram?

2007 CHRYSLER PACIFICA
198,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
TIFFANI W.
  • MEMBER
  • 3 POSTS
I need to know how to route my serpentine belt bypassing the A/C unit on the vehicle listed above.
Jan 30, 2024 at 2:05 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

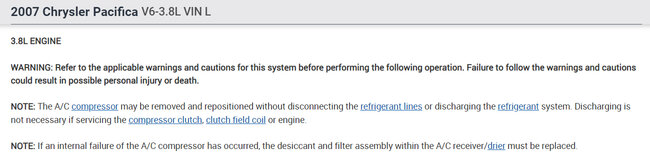

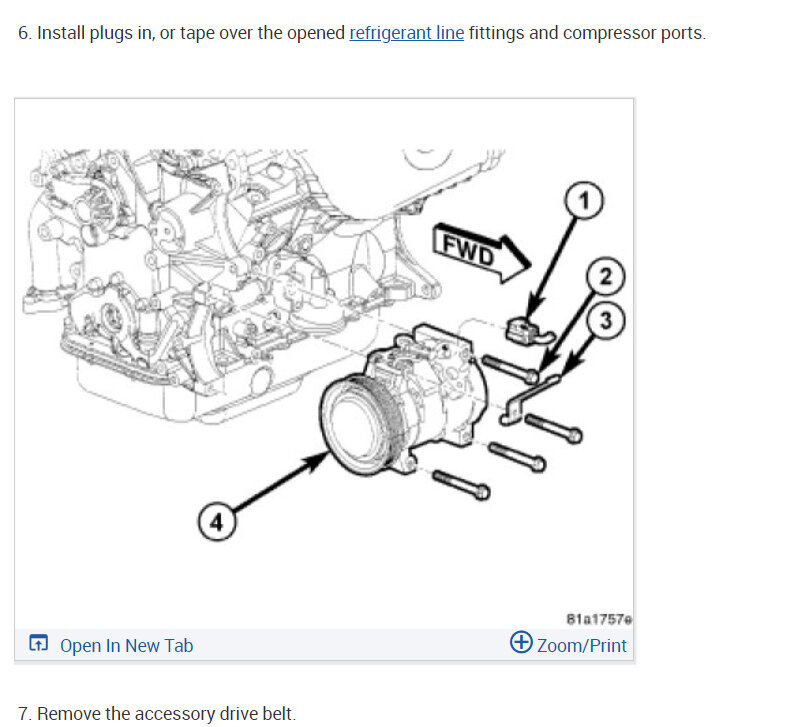

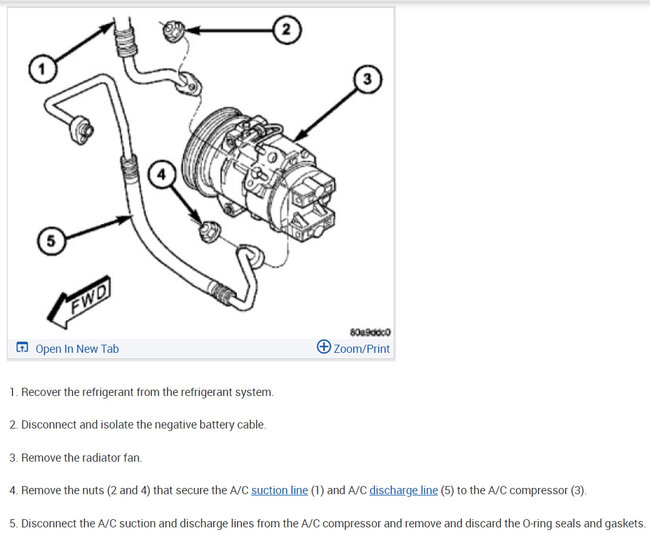

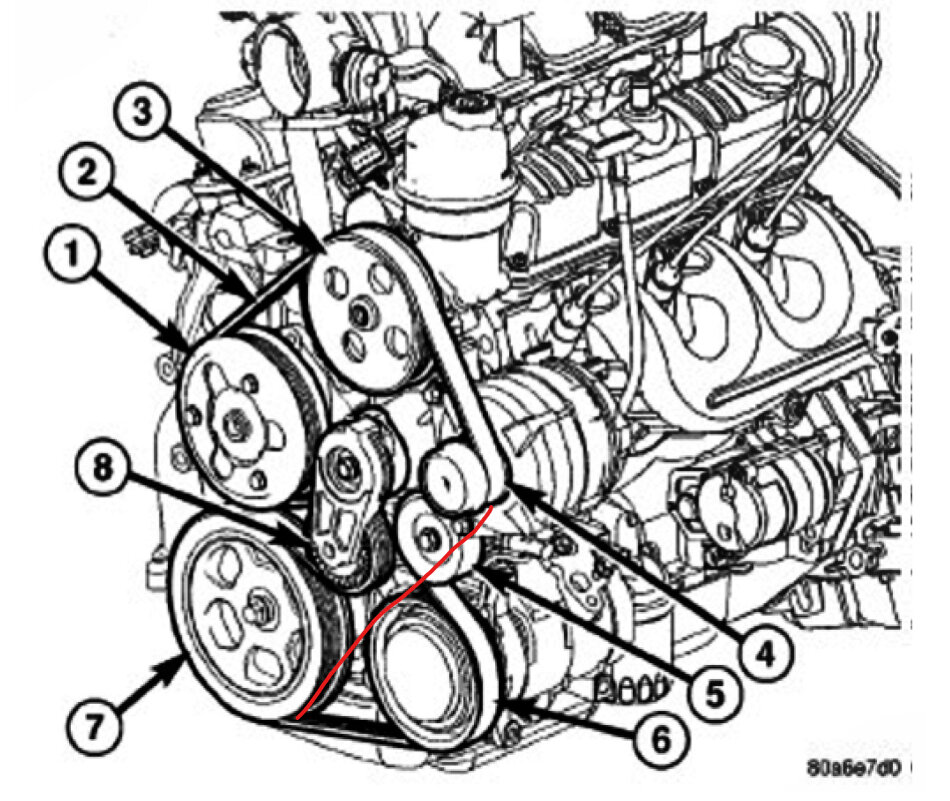

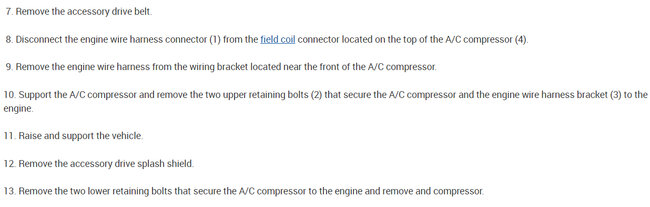

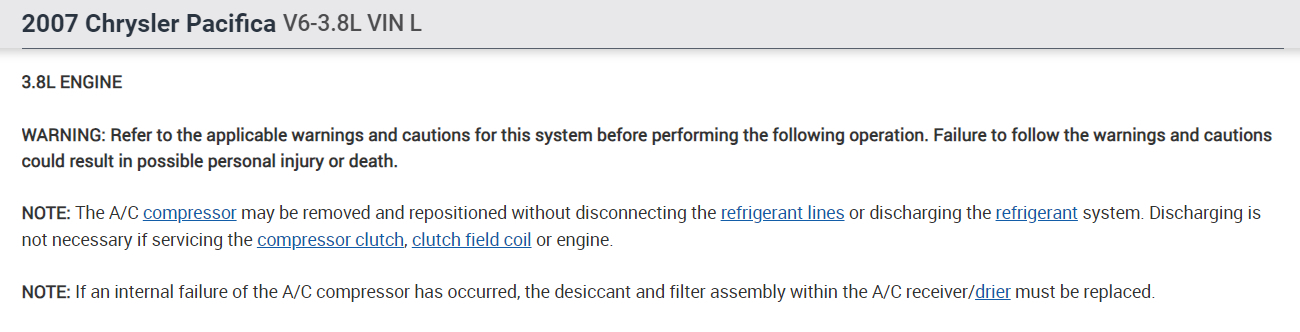

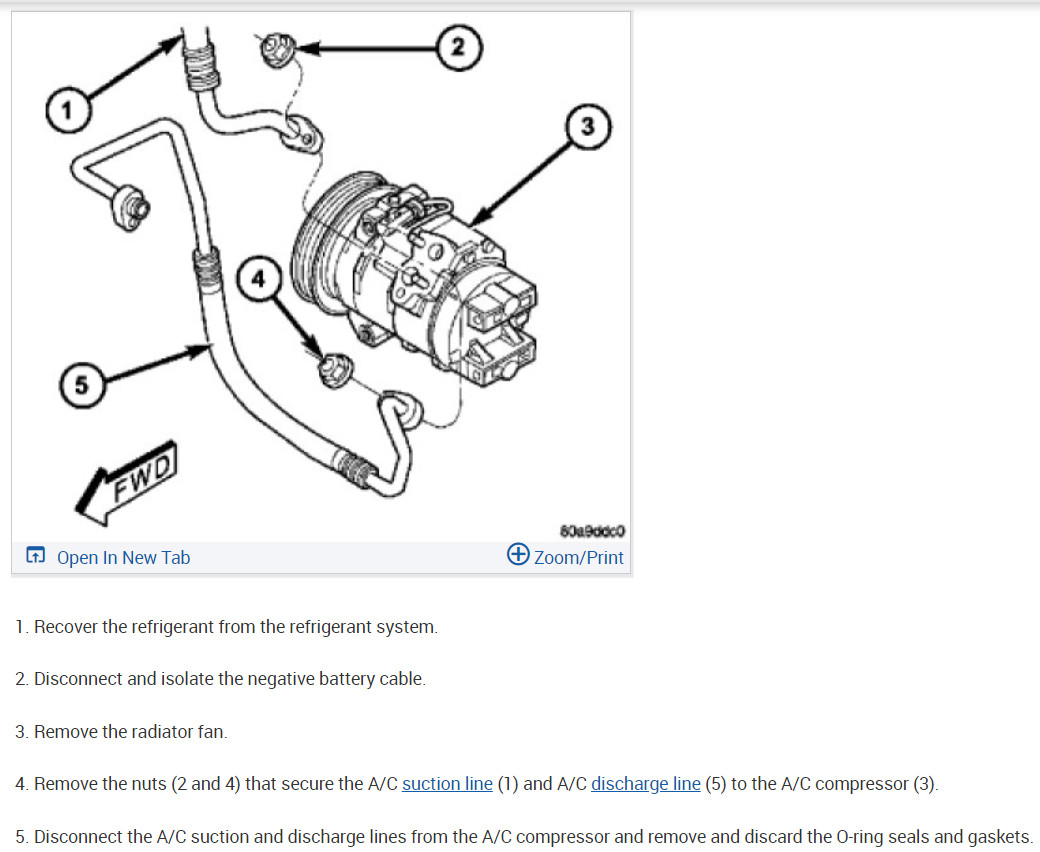

To have the belt work you will need to remove the A/C compressor and the idler pulley right below the alternator. Then just get few belts shorter than what the book calls for and do some trial and error. Here is how I see the belt routing to work, and I have left how to remove the A/C compressor as well and how to discharge the system which you must do beforehand. You can take back the belts that don't fit and get your money back.

https://youtu.be/4EqdrBVb0sY?si=-Vq2h5IvV8tXwxEr

Check out the images (below). Let us know if you need anything else.
Jan 30, 2024 at 4:55 PM
