Can I get the Serpentine belt diagram?

2002 HONDA CRV
200,000 MILES • 2.4L • 4 CYL
Avatar
RICKY HANEY
  • MEMBER
  • 1 POST
I need a serpentine belt diagram.
Apr 15, 2025 at 11:20 AM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

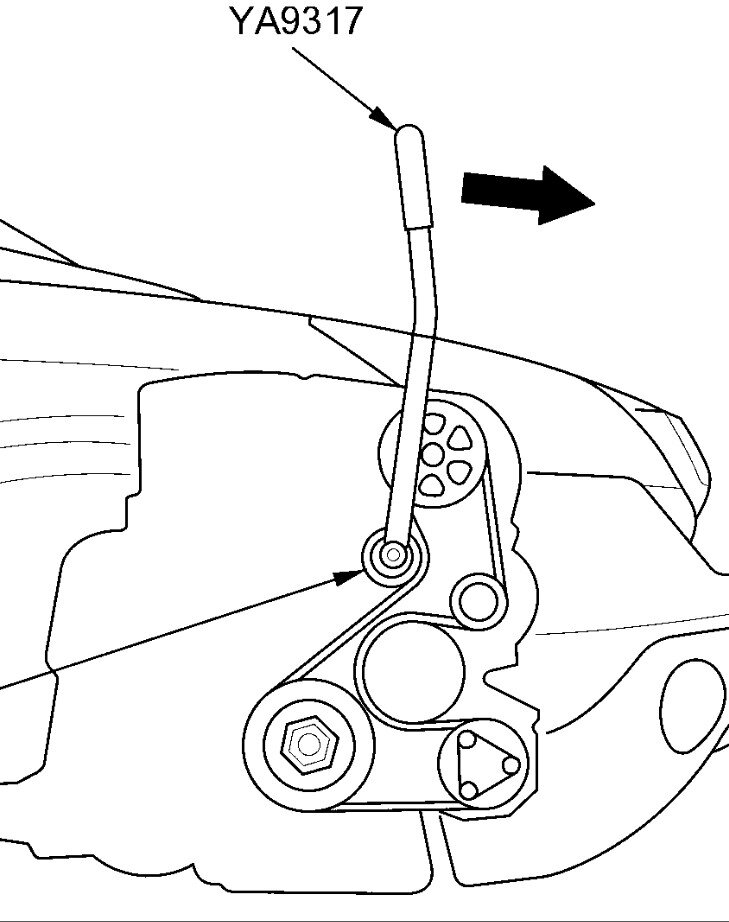

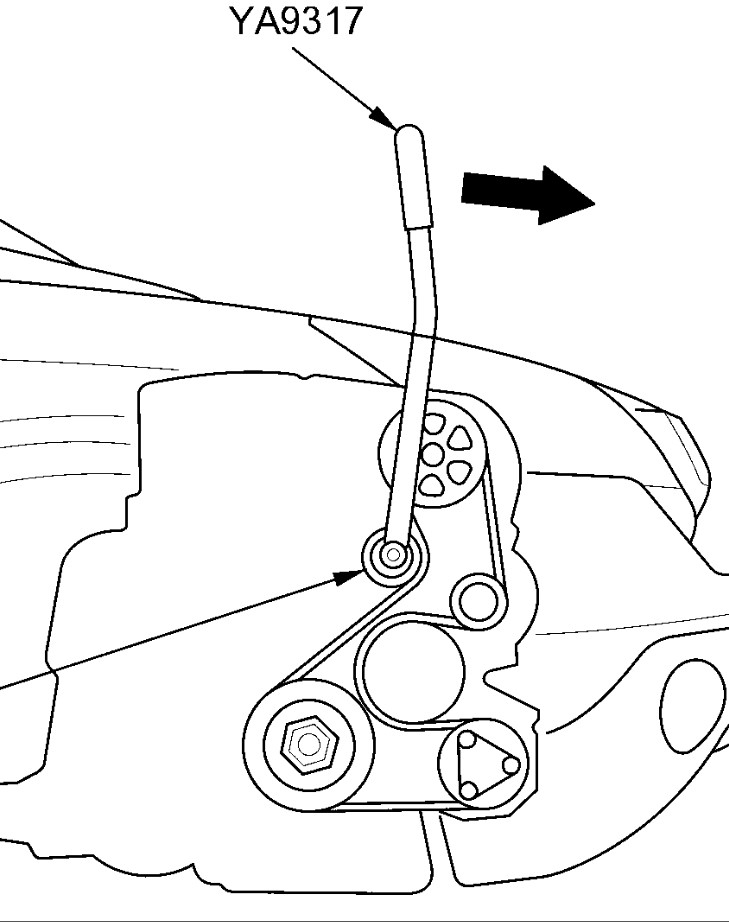

Here you go. Belt diagram for the 2.4. Normally done through the wheel well. Hang the belt on top then around the lower pulleys and then move the tensioner so the belt can slide in place.
Image (Click to enlarge)
Attached Media
Apr 15, 2025 at 11:28 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
thanks Steve :)
