I need a serpentine belt diagram for the above truck without air. Thank you
Jul 12, 2022 at 3:26 AM
Serpentine Belt diagram needed?
2007 FORD RANGER
MOMMAA
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,
Given these trucks had A/C from the factory, the manual does not provide any diagram for the belt without air.

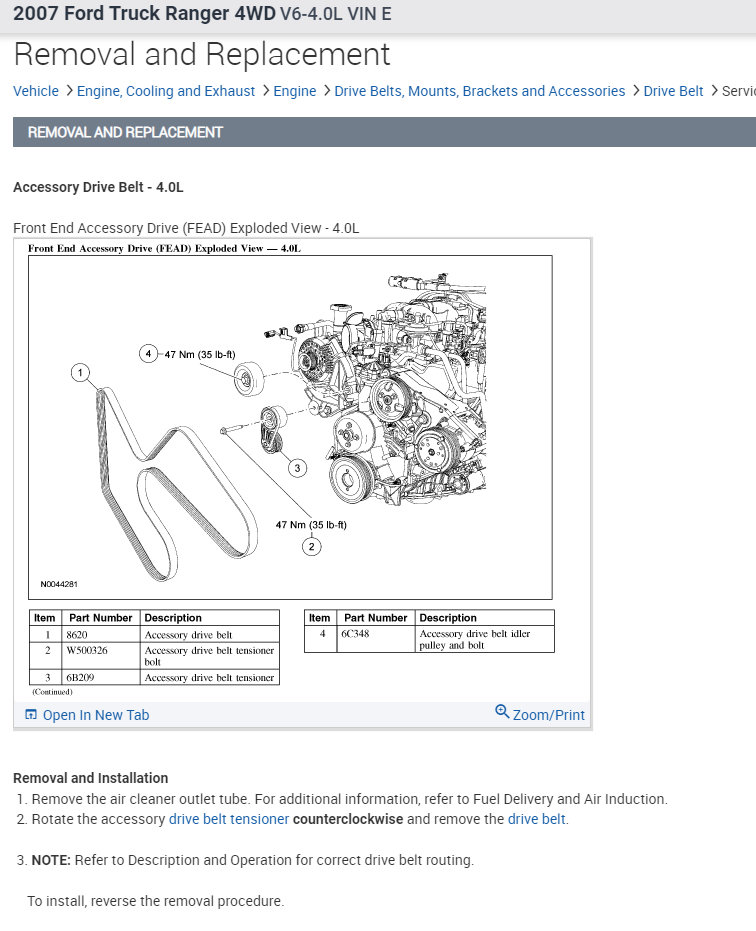

I have attached the belt diagram with A/C. You can use that as a reference to route the belt without the A/C.
https://www.2carpros.com/articles/replace-serpentine-belt
Let me know of any questions.
Thank you.
Given these trucks had A/C from the factory, the manual does not provide any diagram for the belt without air.
I have attached the belt diagram with A/C. You can use that as a reference to route the belt without the A/C.
https://www.2carpros.com/articles/replace-serpentine-belt
Let me know of any questions.
Thank you.
