Check engine light is on and I cannot scan the ECU using an OBD scanner?

Do you have codes in the other modules? If you can communicate with the other modules then you should be able to pull other codes. If you cannot then we may have a bus network issue.

Here is guide that talks about this CAN network:

https://www.2carpros.com/articles/can-scan-controller-area-network-easy

I would expect that we have loss of communication codes in the other modules that say they cannot communicate with the ECM. However, if the vehicle starts and runs and you have none of these codes then I suspect we have a scan tool or wiring issue.

So if this vehicle starts and runs, let's stop by a parts store and ask them to scan it. If we have two scanners that cannot communicate with the ECM then we can chase down a wiring issue.

At that point, I need you to get the voltage on pin 6 of the DLC and then get the voltage on pin 14 as well.

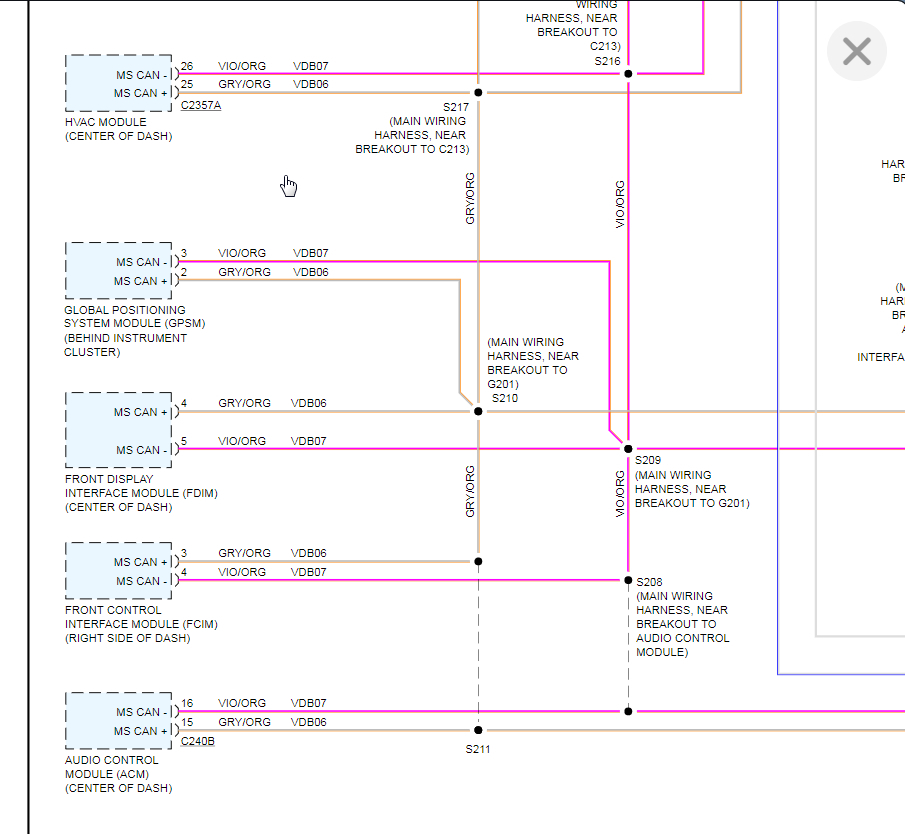

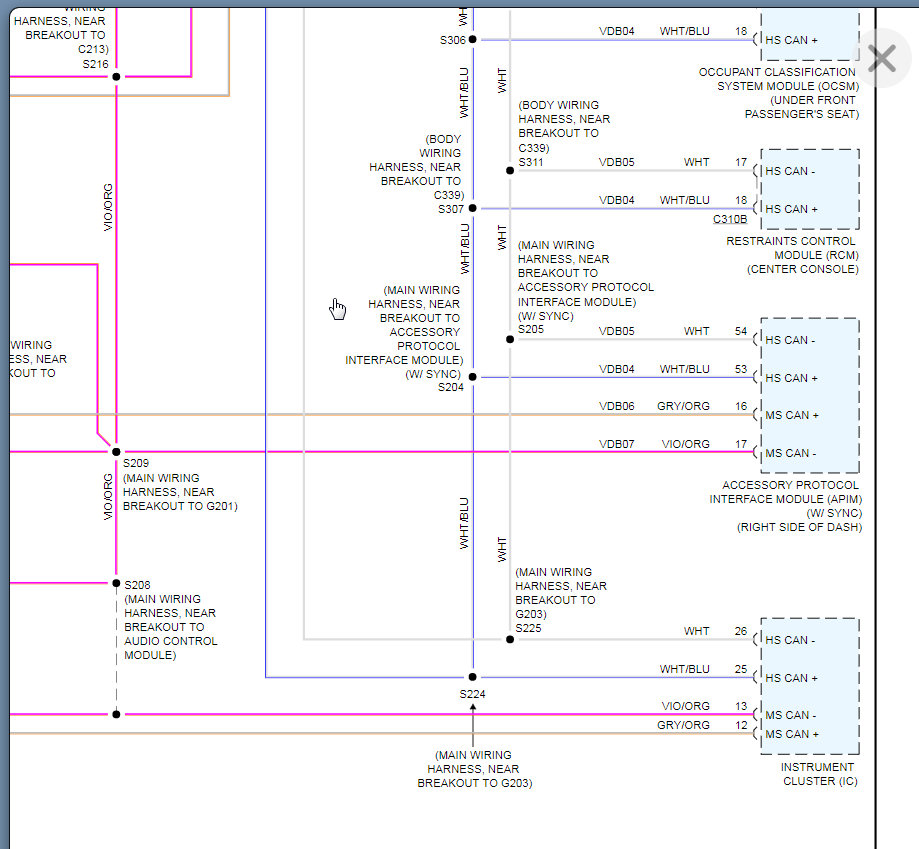

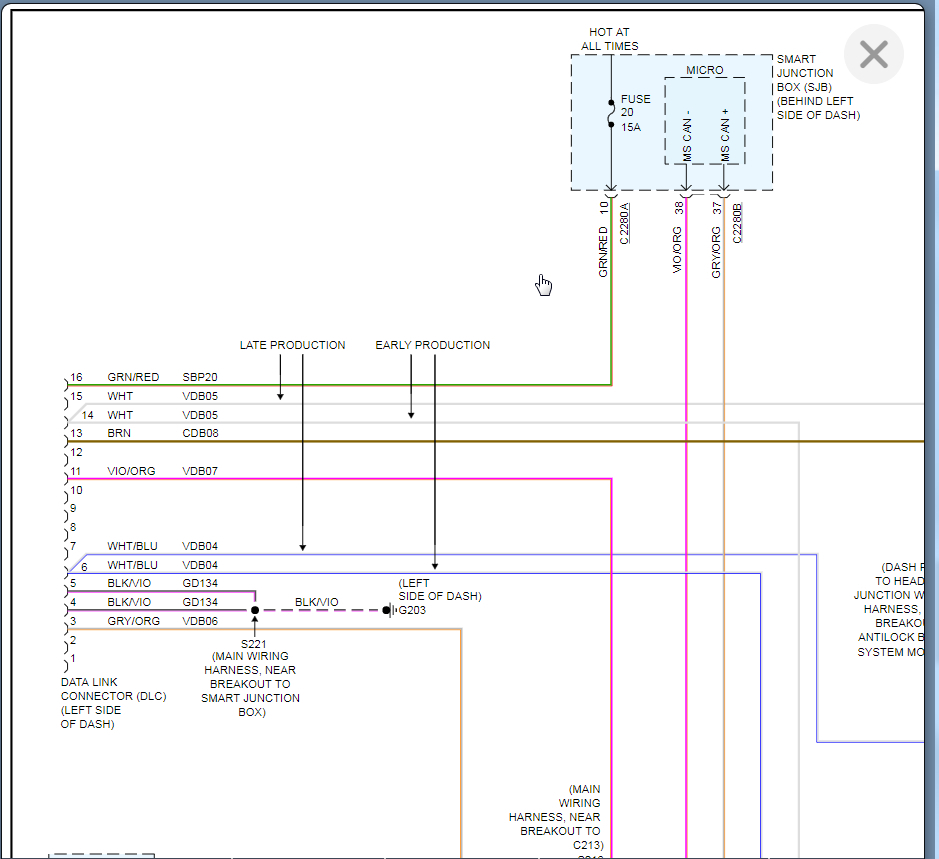

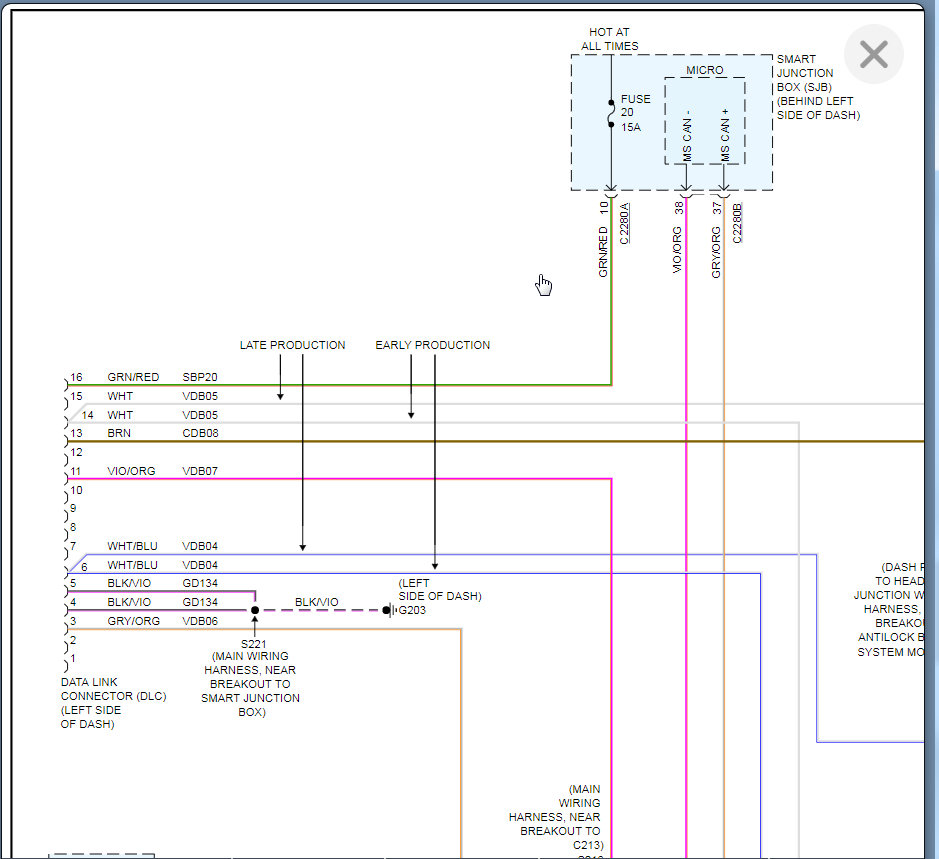

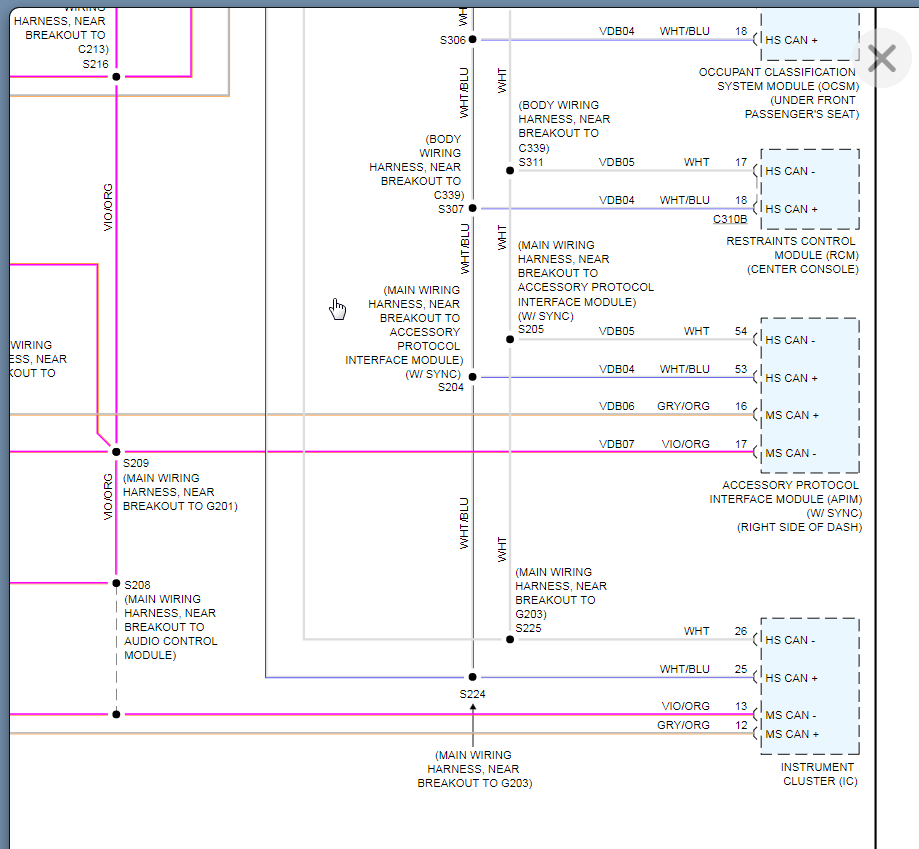

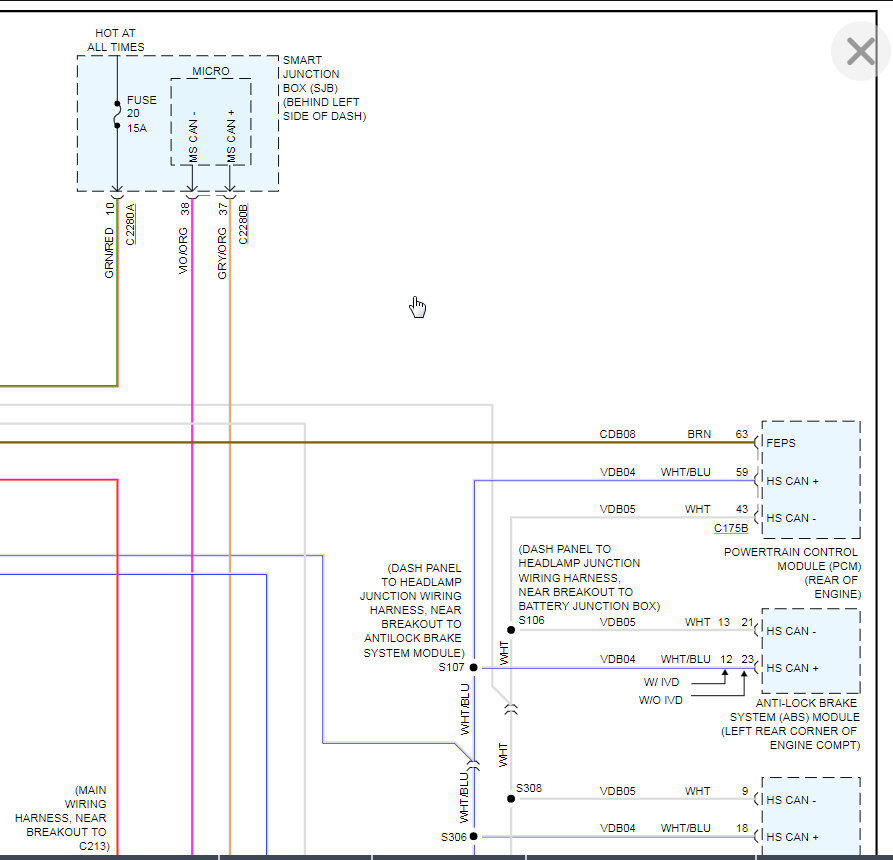

Let's start with this and go from there. Below is the wiring diagram for this. Thanks

Yes, i do have codes in the other modules, but no access to the engine control module.

Hi, is it possible to see an image of this smart junction smart box? I know under the dash on the left side you got a fuse box, is that what you referring to?

The vehicle i am having this problem is a Nissan Murano 2007.

Pin 6 is about 2.8 dcv and pin 14 about 2.2 dcv. also i got a resistance test, gives e 61 oams of resistance.

Also got ground on pin 4 and 5, Pin 16 reads battery voltage. That is where it gets me confused why the ECM will not appear.

That is great. All those voltage readings are showing that the bus is operating properly. Excellent job on the termination resistance as well.

What are the other codes? That can help us confirm the ECM is the issue. The next step is to check power, ground, and bus voltage at the ECM. If this checks out then it is usually the module itself.

However, let's get the actual codes in the other modules and we can go from there. Thanks

So how do i check Bus voltage at ECM also ground and power?

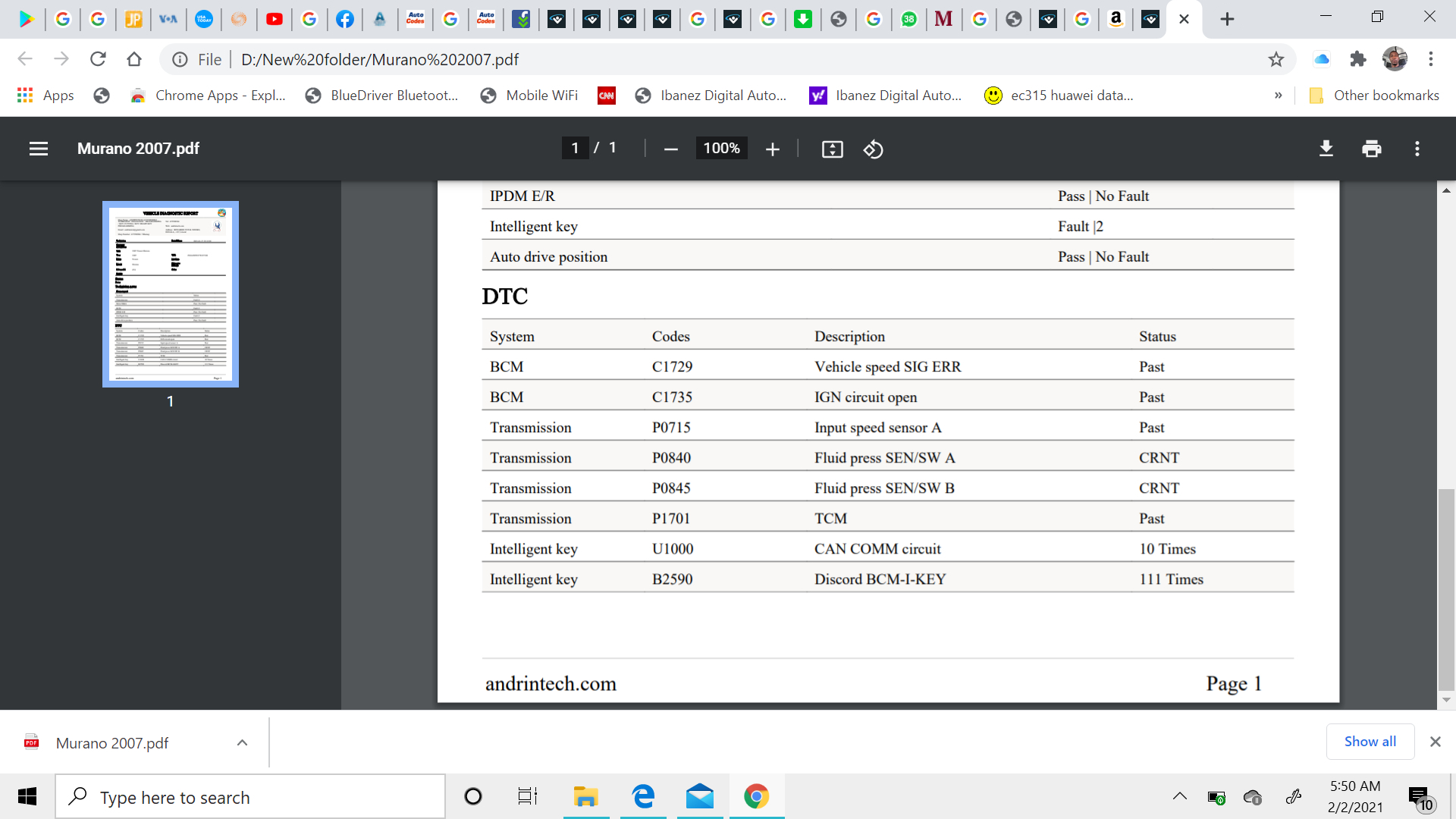

These are the other codes related to other modules.

Okay. I think we may have some confusion. What is telling you that you cannot scan the ECM? Are you thinking that because the check engine light is on that you have an issue with the engine control module?

If that is the case then that is not accurate. these other codes will cause the check engine light to come on as well. The check engine light is a generic term these days for a greater powertrain related issue.

The reason I am thinking this is the issue is because the CAN network is working perfectly based on what you did with these voltage checks and if the ECM was offline or not communicating with the scan tool then it would also not communicate with the other modules which would set all sorts of codes against it but you have none of these.

what explains the fact that, Can high gives me 2.83 dcv, while Can low give 2.03 dcv? Normally i expected both to give total reading of 5 dcvs. Now if you noticed from the dtc, the ABS does not appear as well, an the car runs down battery.

Lastly to mention, notice the part number for the ECU, it's for a 2004 Muruna, do they have same ECU Pin Out signals?

Okay. First, you are correct that they should equal 5 volts but they can vary slightly so the fact that this is at 4.86 volts total, that is not going to cause an issue as the bus can still operate like this.

Also, just because the ABS does not have any DTCs in it, is not an issue. It is not going to show up on that report unless it has a DTC in it. So if the ABS is not on the list, that just means it doesn't have a code in it.

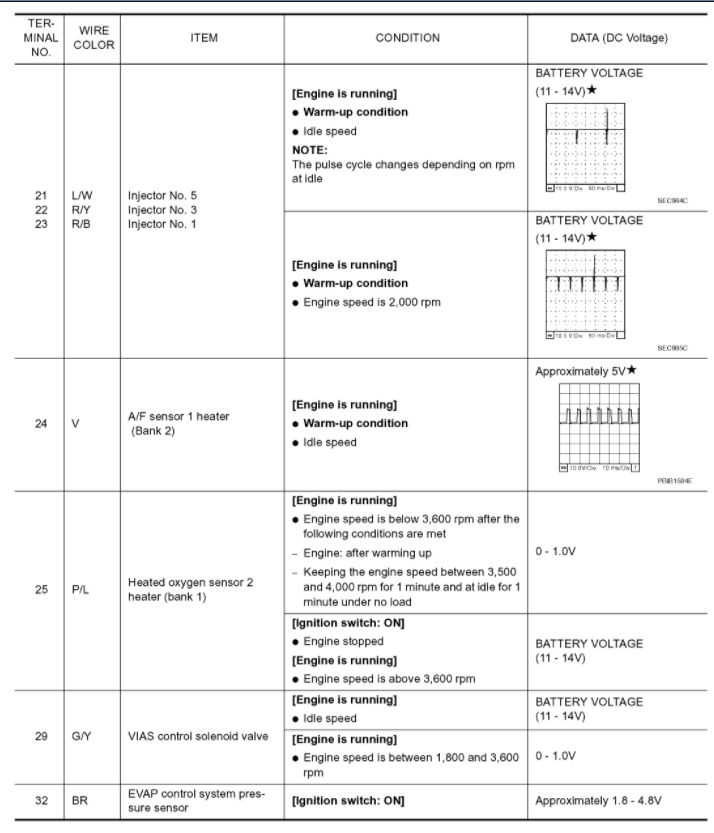

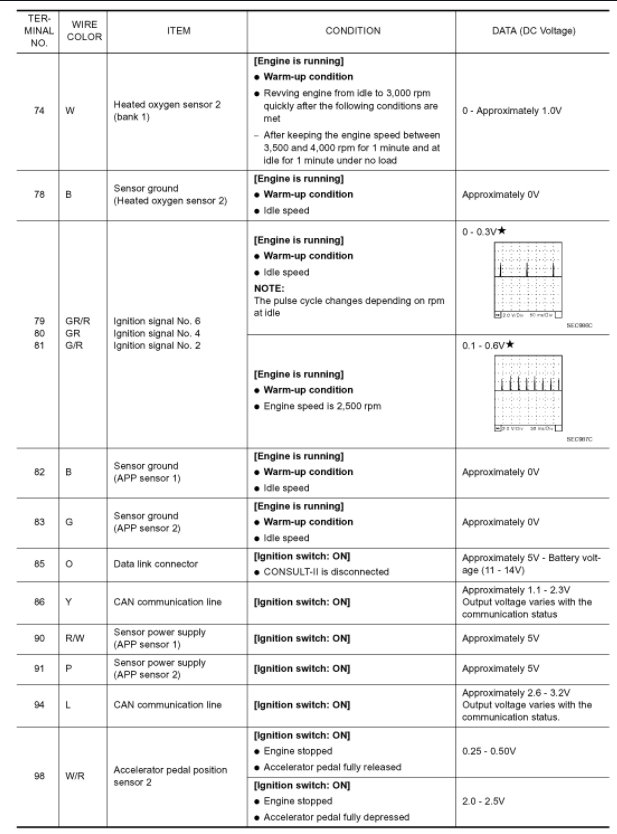

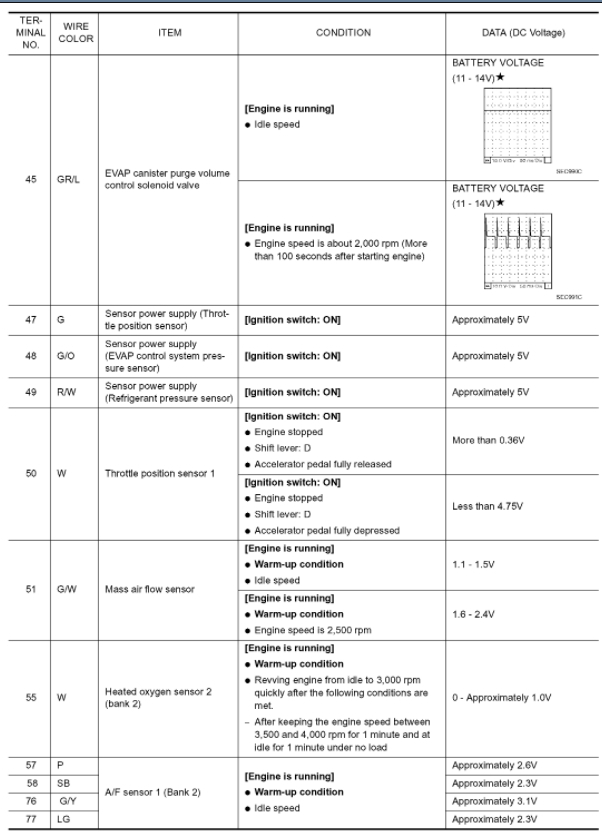

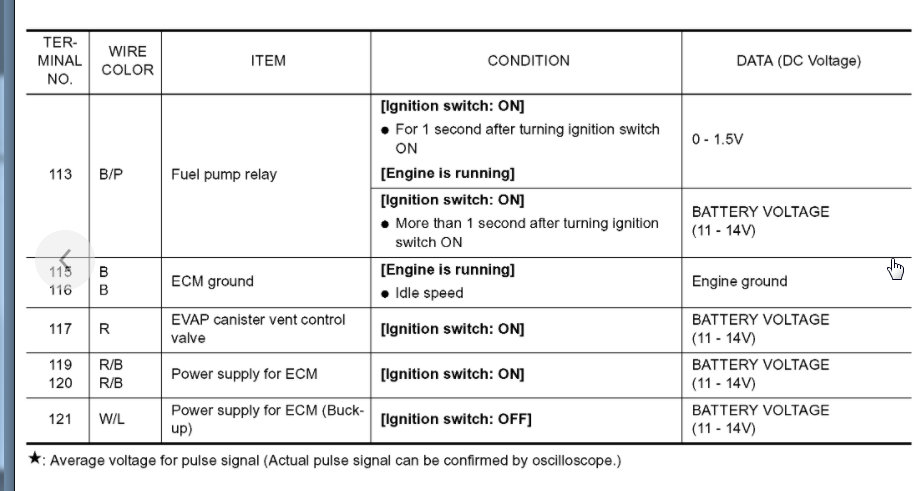

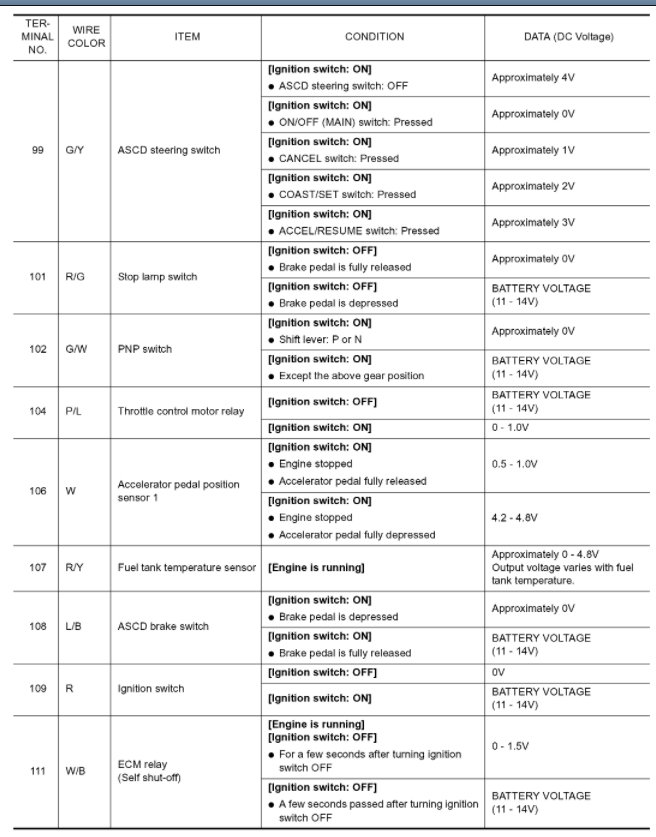

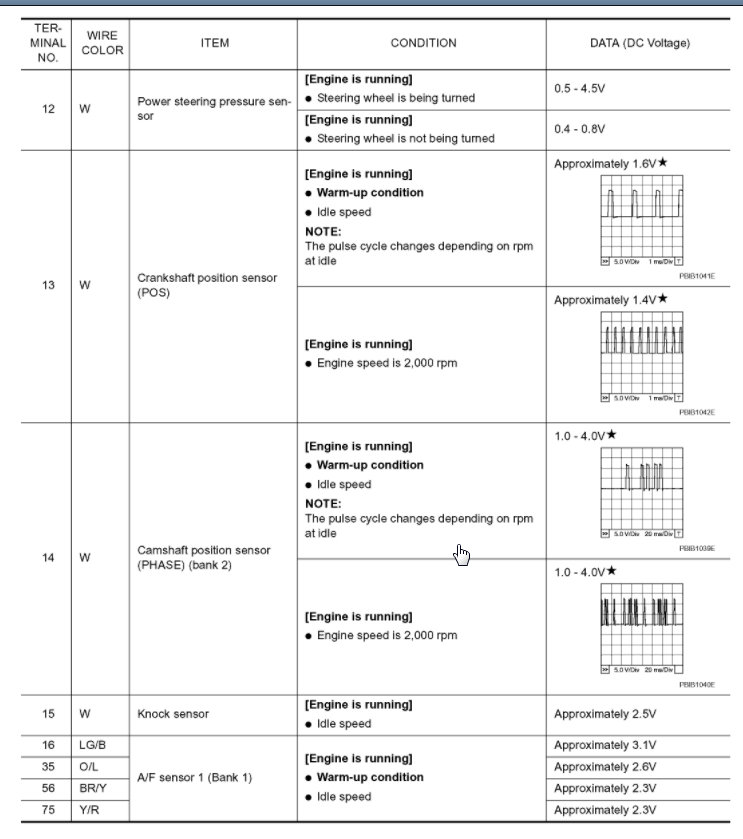

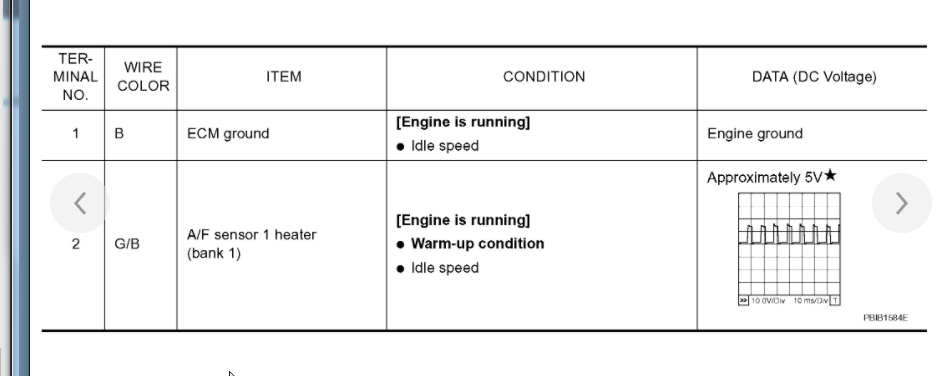

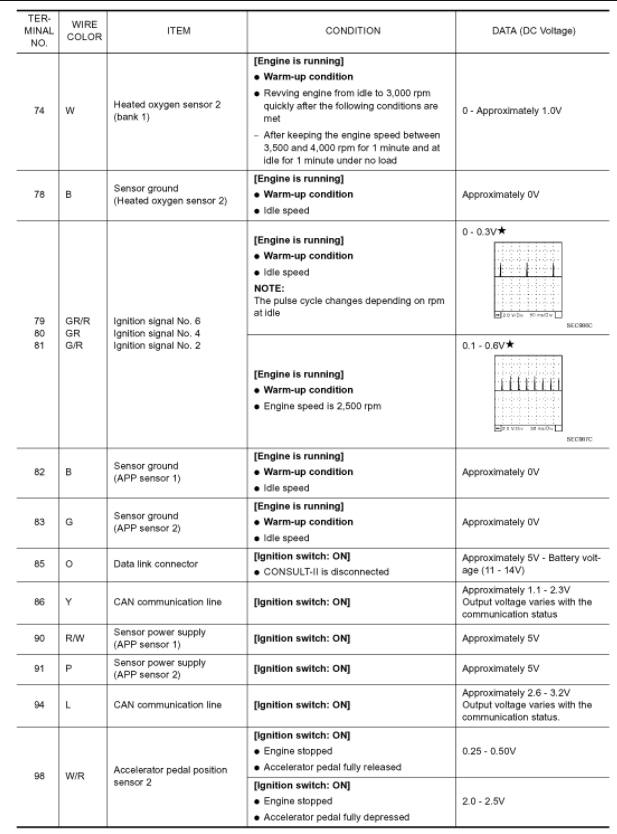

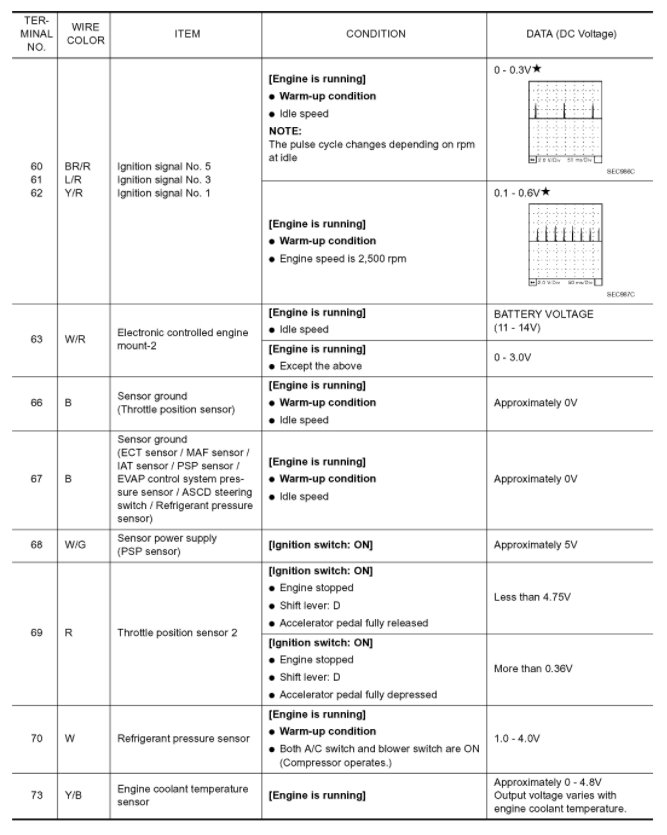

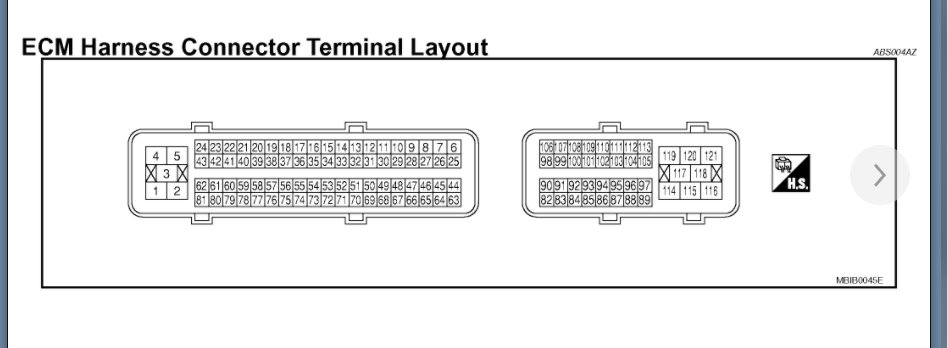

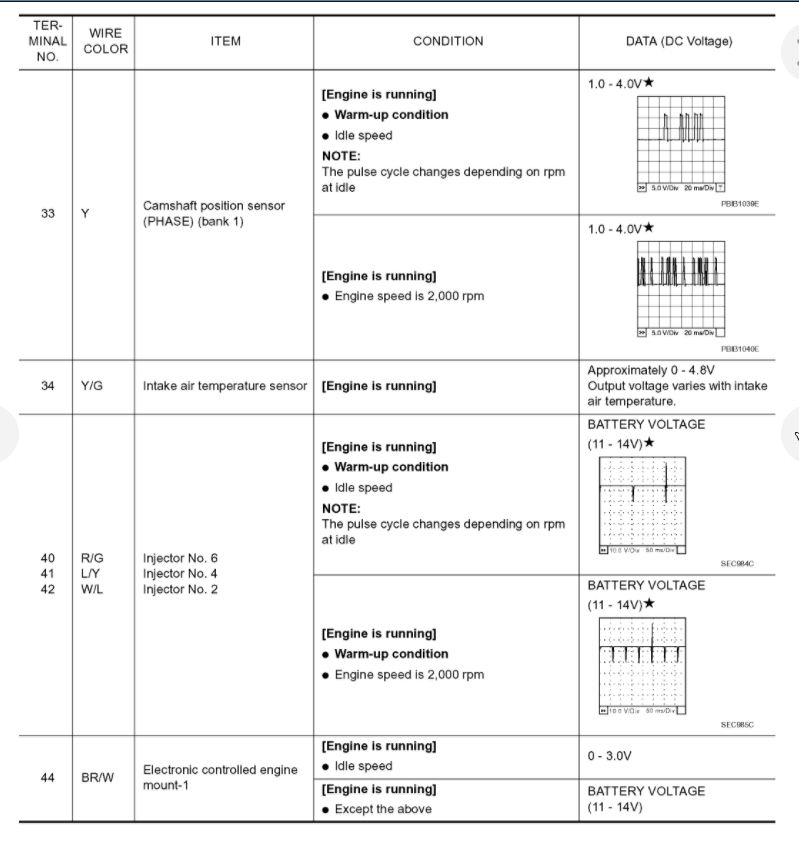

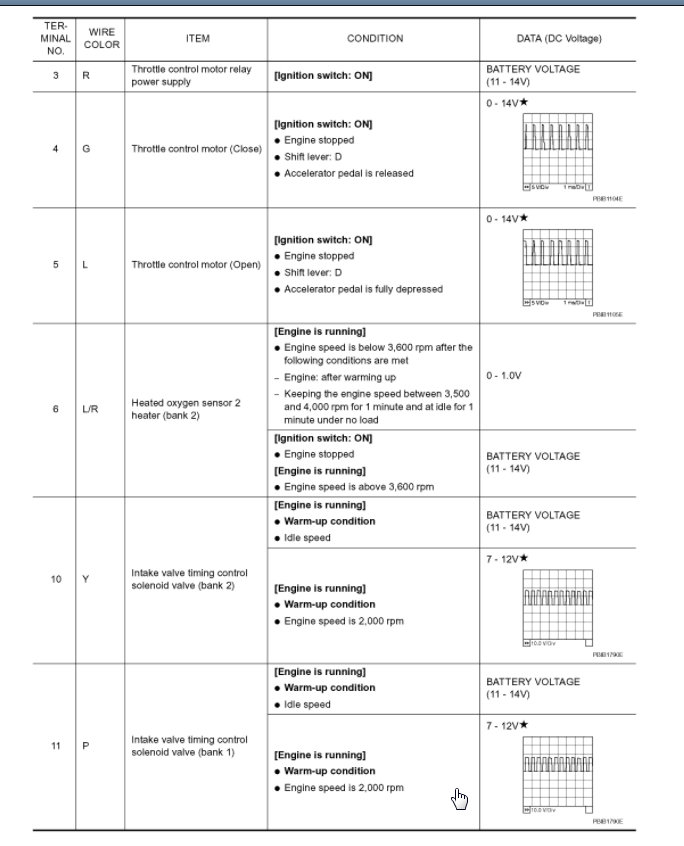

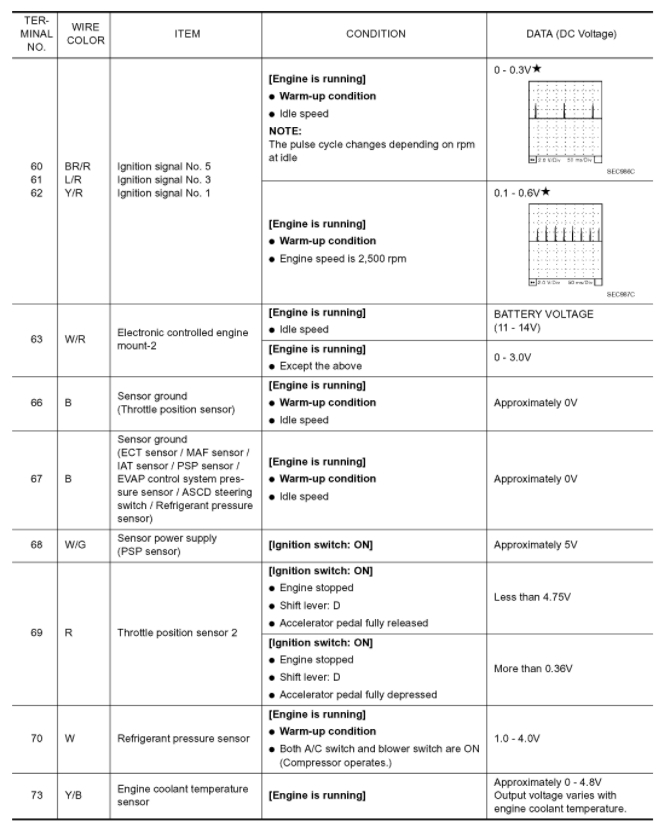

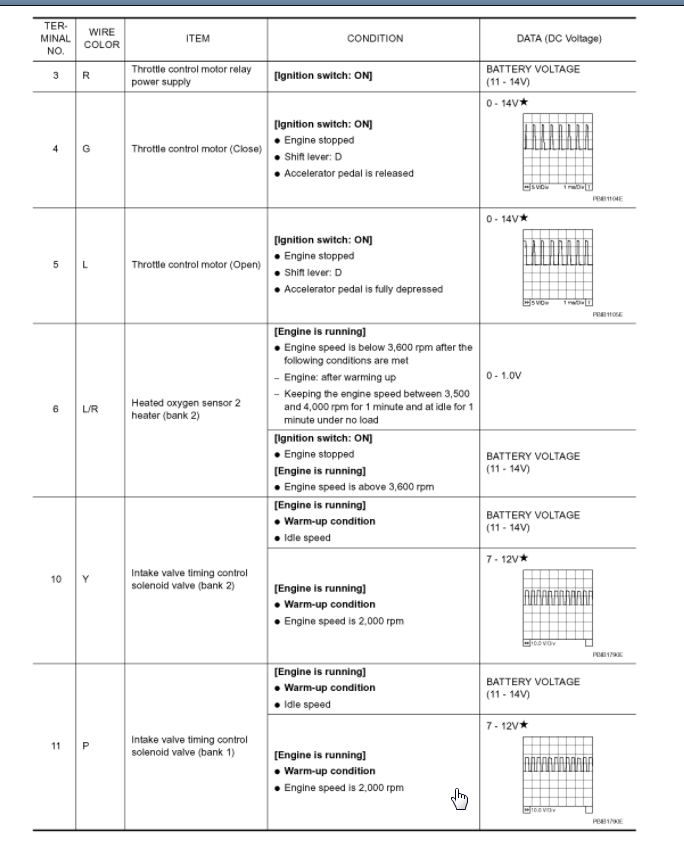

Lastly I attached the ECM pinout below.
