saab 9-3 serpentine belt diagram?

1999 SAAB
Avatar
LITTLE WING
  • MEMBER
  • 1 POST
The radiator and both hoses need to be replaced, as does the serpentine belt. What would you say would be a fair repair cost (parts and labor) for this work to be done?
Dec 10, 2007 at 10:16 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

Please note that the labor cost can vastly different for different shops as they all have different rates.

Here are the price for the parts. They will vary by brand.
Drive belt $20-$30
Radiator $150-$200
Hoses $30-$40


https://www.2carpros.com/articles/replace-serpentine-belt
https://www.2carpros.com/articles/how-to-replace-a-car-radiator

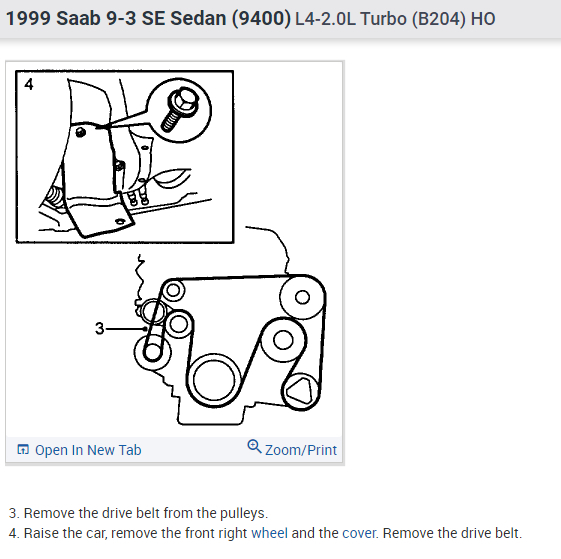

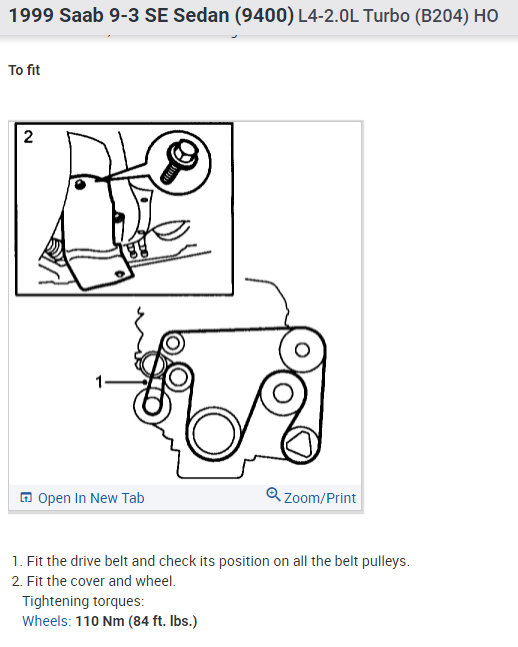

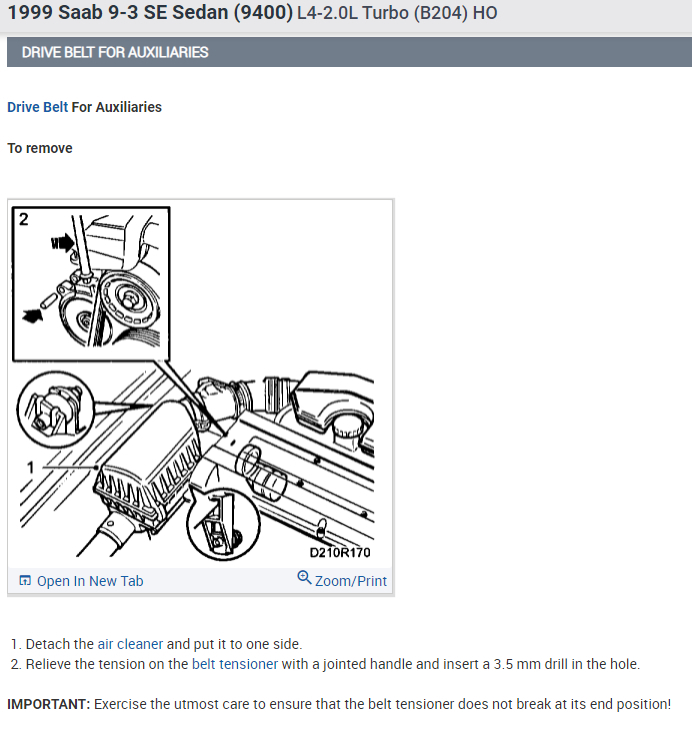

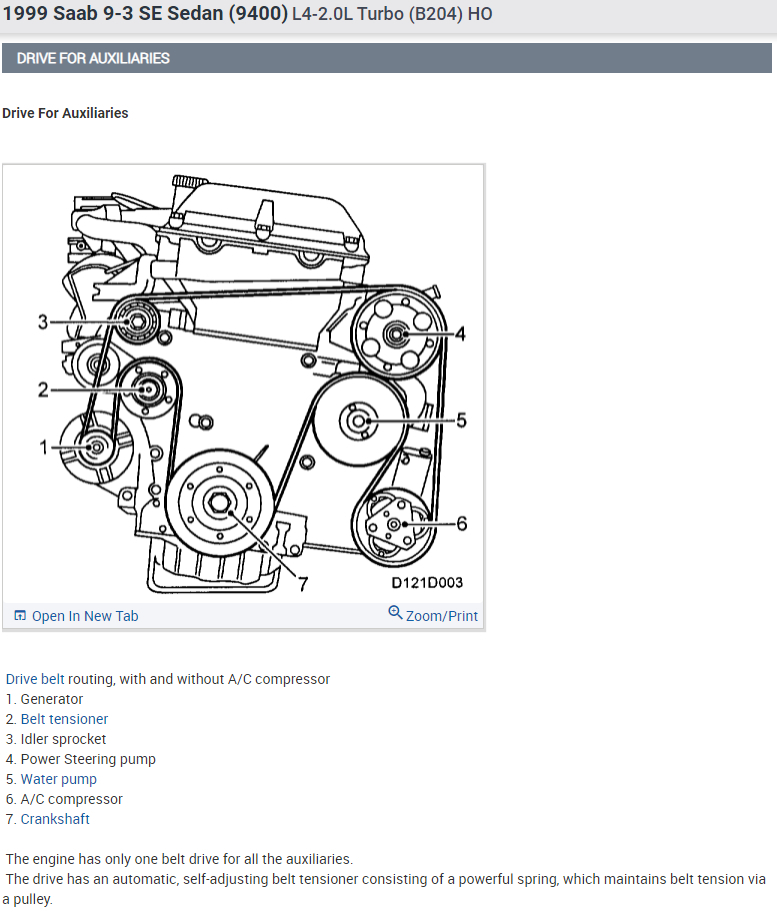

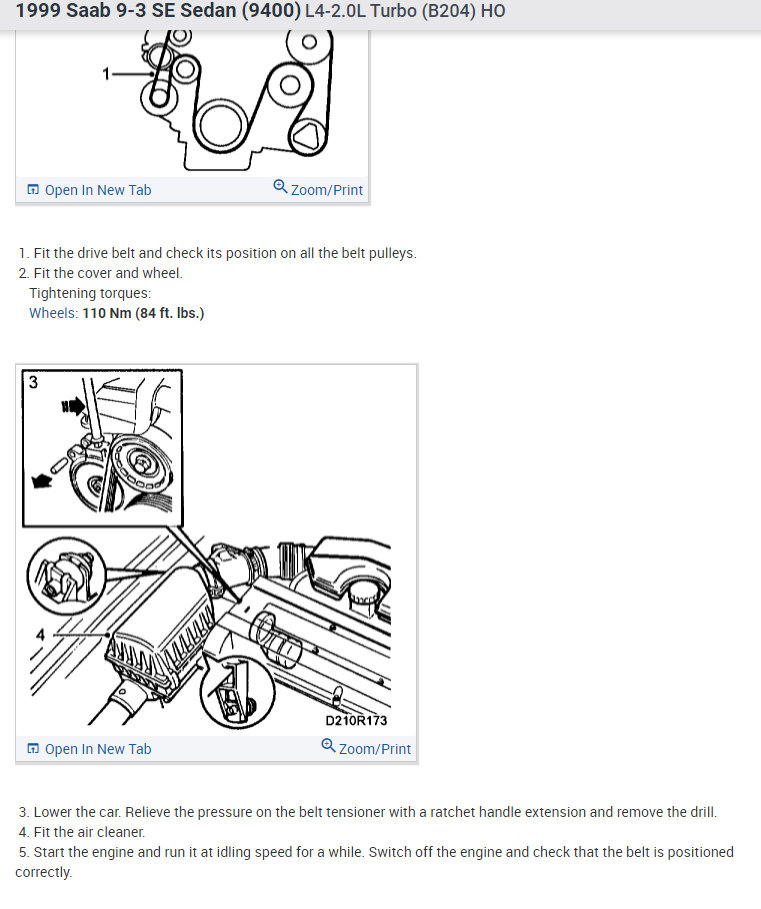

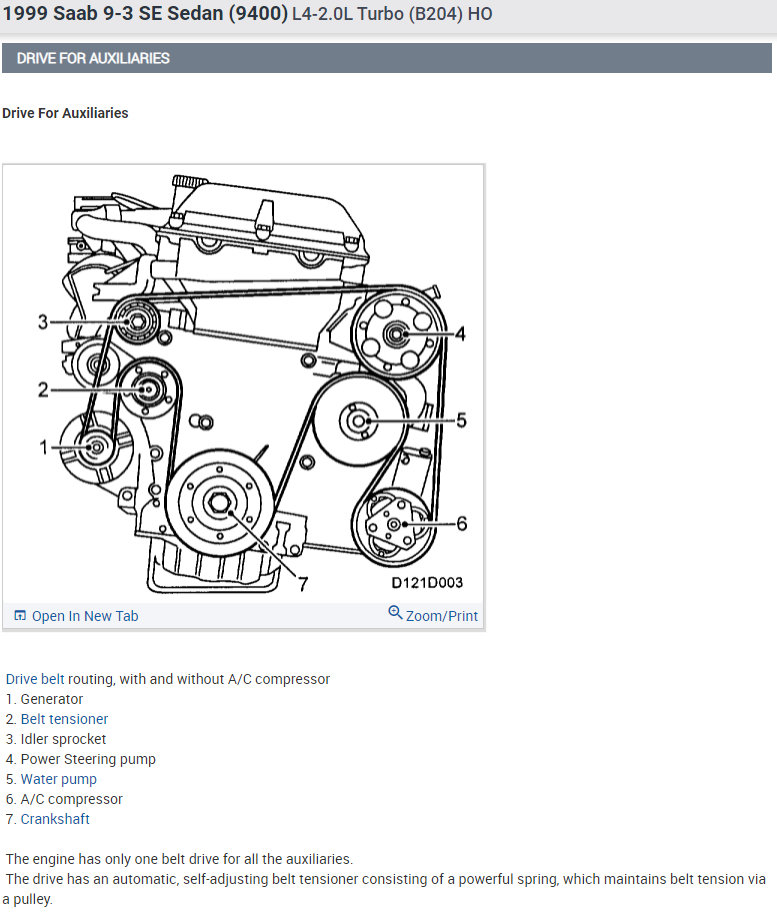

I have included the belt replacement procedure for your reference.

Please let me know of any questions.
Thank you.

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Sep 16, 2021 at 2:23 PM
