Reverse light wire cut

1995 FORD F-150
129,000 MILES • 4.9L • 6 CYL • 2WD • MANUAL
Avatar
THORNE1981
  • MEMBER
  • 2 POSTS
I just discovered that my reverse lights wire has been cut/ripped. I found it in the engine bay, but I couldn’t find where it was torn from. Should I just jump it from the fuse and if so, which fuse would it be? I don’t have an electric tester.
Mar 25, 2022 at 7:10 AM
Advertisement
Avatar
BORIS K
  • CERTIFIED EXPERT
  • 836 POSTS
Hello,

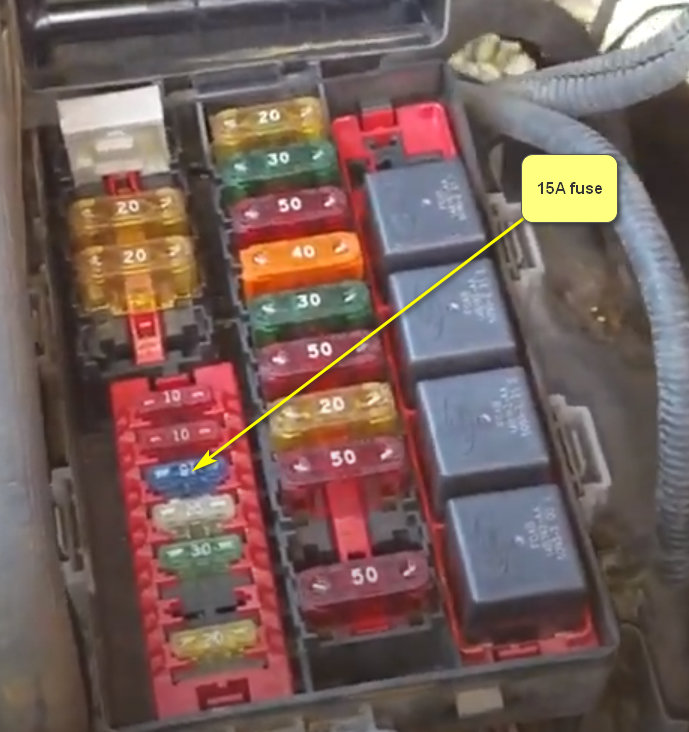

The reverse light fuse is fuse E(15A) in the engine fuse box, see picture below.

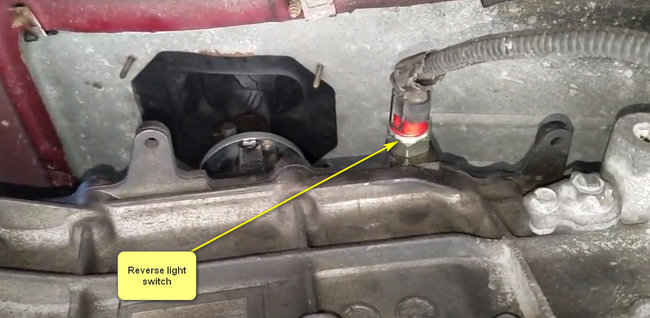

The purple/orange wire supplies the reverse light switch at the transmission. See picture 3 below.
From there the switch closes the circuit and supplies the backup lamps.

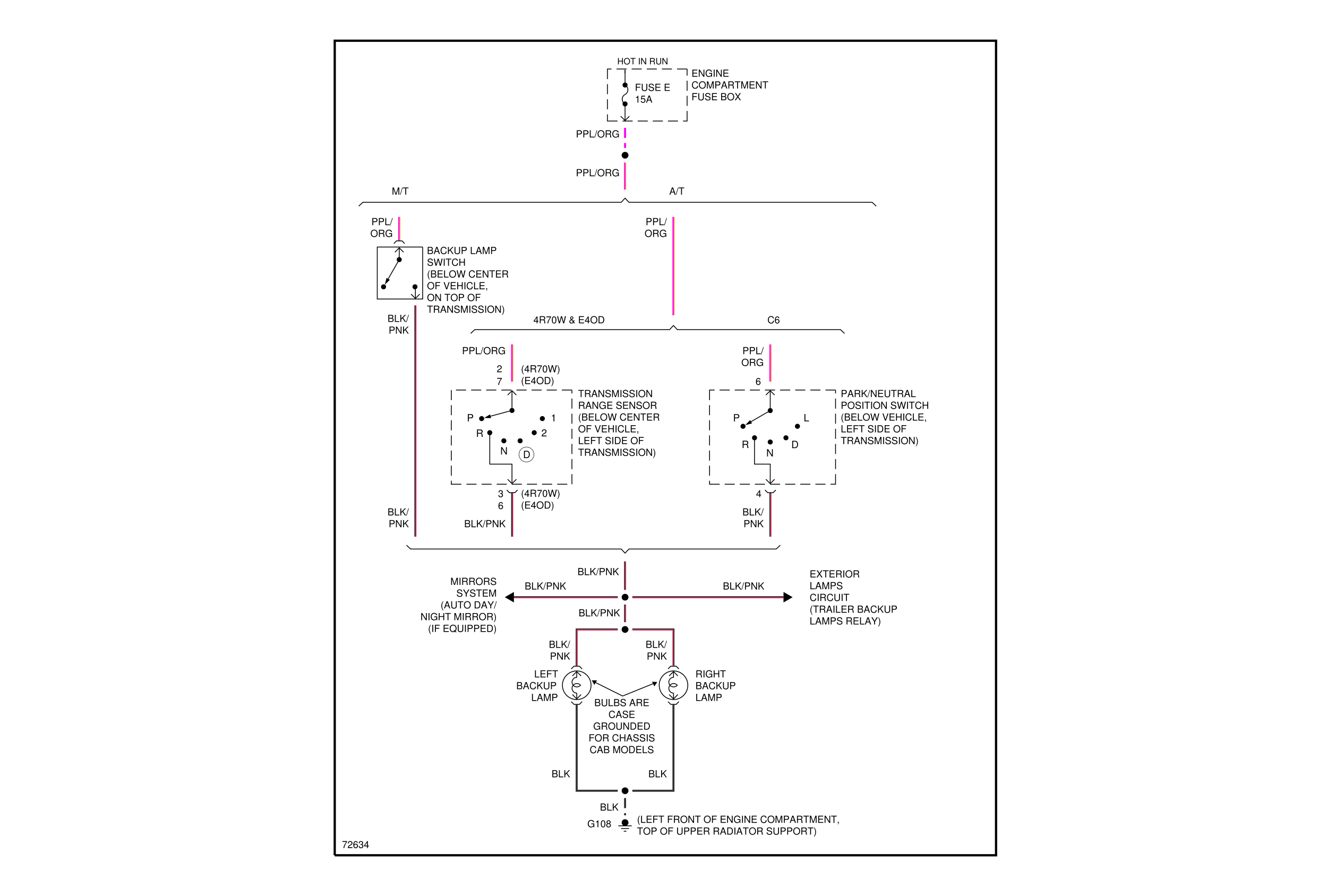

See diagram attached below.

Please let us know how you get along.

Cheers, Boris
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Mar 25, 2022 at 7:51 AM
Avatar
THORNE1981
  • MEMBER
  • 2 POSTS
Thank you for the help. I will take care of it this weekend and let you know how it goes.
