Installed a reverse backup camera need location of reverse gear signal wire

2004 FORD EXPLORER
170,000 MILES
Avatar
TONY02
  • MEMBER
  • 86 POSTS
Hey, I have the vehicle listed above that I installed a reverse back up camera. All I need to know is where is the reverse gear signal wire located?
May 29, 2020 at 5:39 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning again,

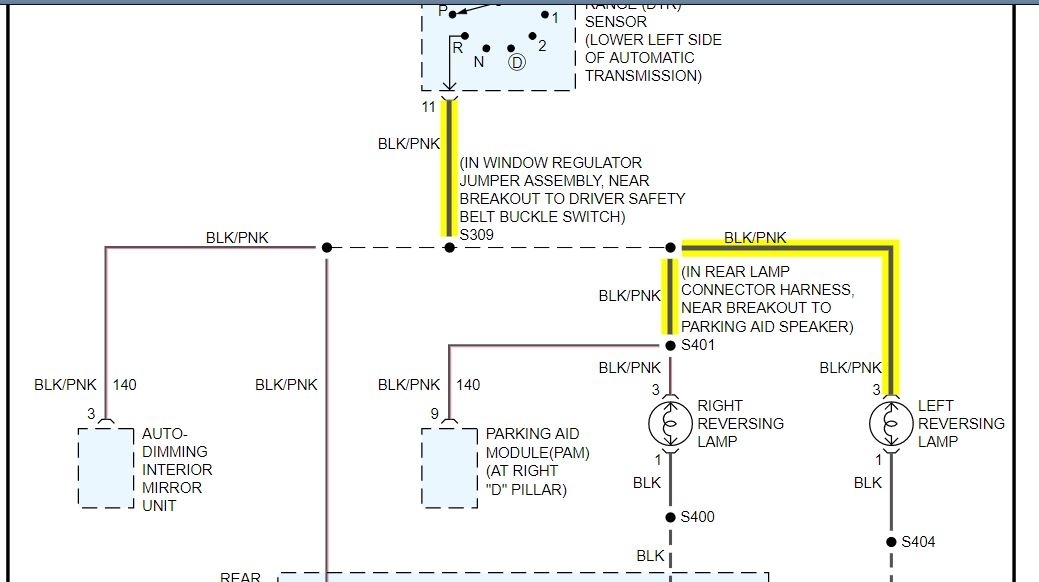

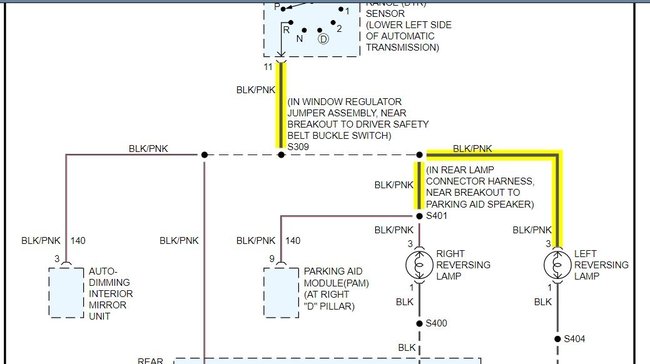

I attached a wiring diagram of the back up lights for you. The black/pink wire is the wire going to the back up lights with the key on and in reverse.

https://www.2carpros.com/articles/how-to-check-wiring

Roy
Image (Click to enlarge)
Attached Media
May 29, 2020 at 7:10 AM
