Replacing alternator diagram of the serpentine belt needed?

2013 FORD FUSION
87,000 MILES • 1.6L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
STACEYR
  • MEMBER
  • 1 POST
I'm replacing my alternator I need a diagram of the serpentine belt so that I can get to the tension pulley to take belt off and replace alternator.
May 15, 2025 at 2:08 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

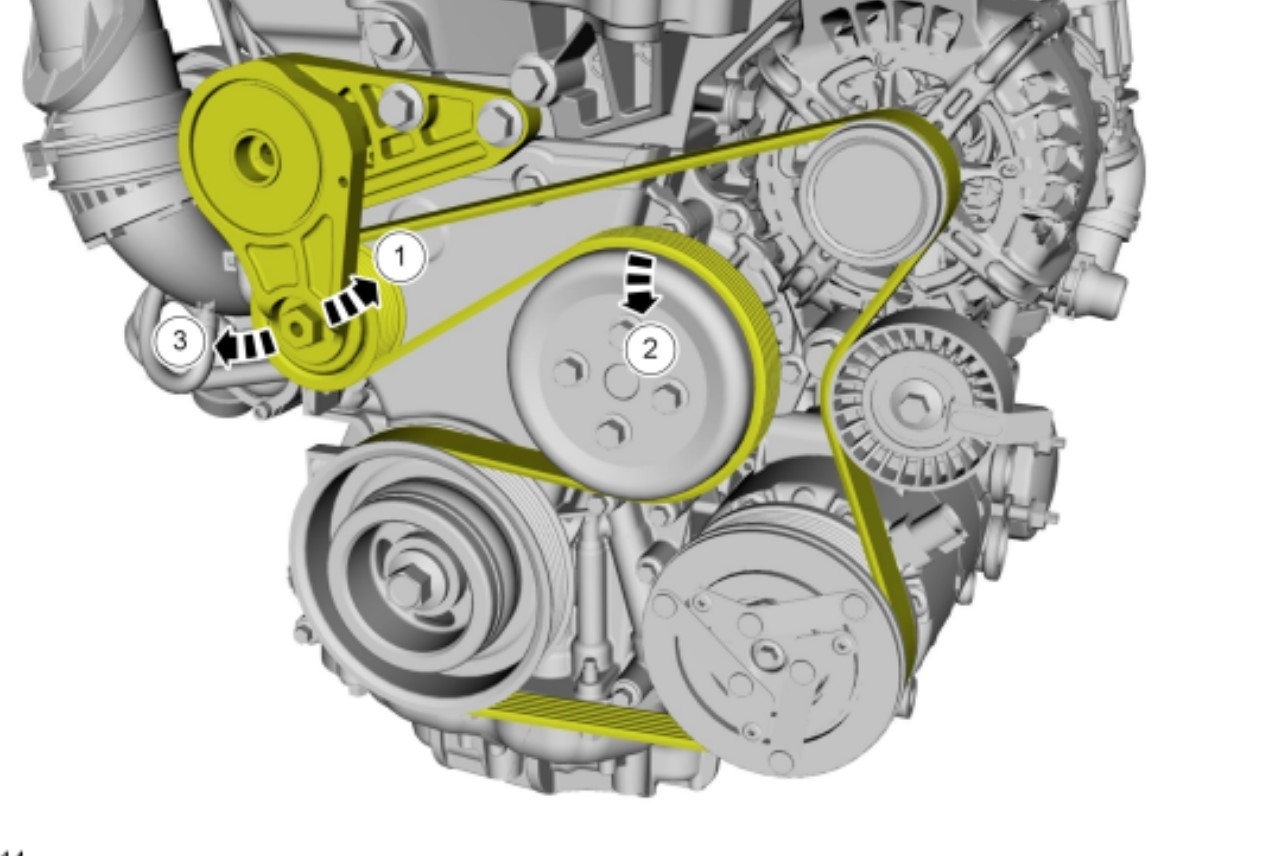

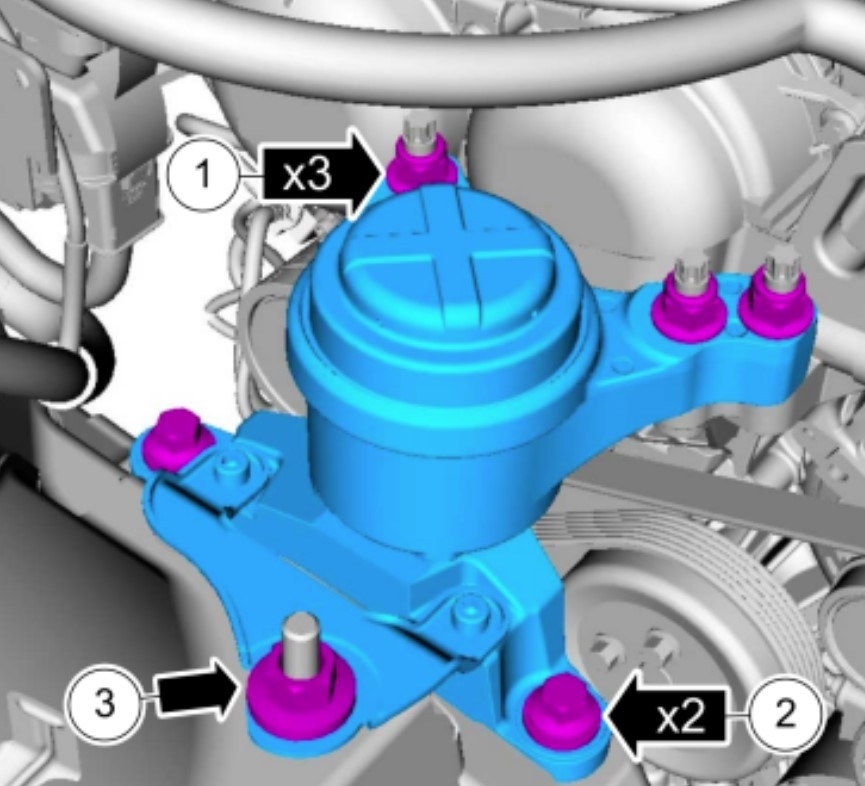

Here is the diagram. FYI to get the belt off you need to loosen the tensioner bolts. The catch to that is that the engine mount bolts to the tensioner, so you need to support the engine, then remove the mount for access. I have been able to coax the belt in between the tensioner pulley and the front case so you may want to try that first.
Images (Click to enlarge)
Attached Media
Attached Media
May 15, 2025 at 5:56 PM
