Cam belt and crankshaft timing marks

2002 RENAULT MEGANE
89,000 MILES • 4 CYL • 2WD • MANUAL
Avatar
DOUG627586
  • MEMBER
  • 1 POST
I have a 1998cc 16valve Renault Megane Convertible Privilidge+ which recently had a cam belt idler collapse, resulting in the usual valve damage after the belt slipped a tooth or 2. I have had the head reconditioned with new valves, guides, and followers, but before I reassemble the whole thing, I need to be sure where my timing marks on the crankshaft, and the camshafts are. Is there any possibility of a photo of what I should be looking for, and also what positions the respective shafts need to be in before reassembly. If a photo isn't possible, as accurate a description as possible would be appreciated.
Nov 16, 2009 at 3:25 PM
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS

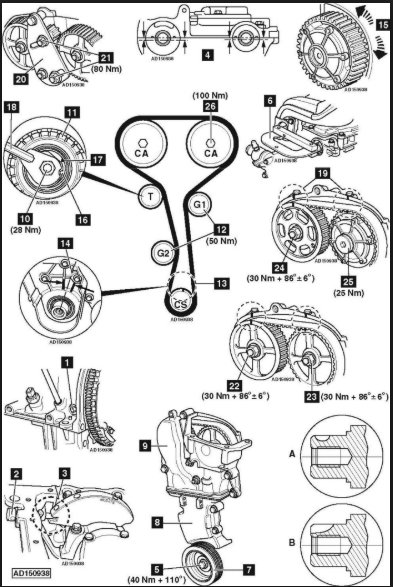

The timing position marks on this vehicle are pretty easy to spot and you need to have these set exactly right to avoid further damage to the valves. Here is a timing belt mark and replacement guide below. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Nov 20, 2009 at 5:26 AM
Avatar
STEPHEN1972
  • MEMBER
  • 1 POST
Engine Mechanical problem
2000 Renault Megane 6 cyl Front Wheel Drive Manual 79.000 miles

the timing belt has broken on my renault megane is this expensive to fix
Nov 29, 2018 at 1:02 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
most garages will charge around the 600 pounds mark to repair your vehicle !
