A/C compressor relay location

1996 GMC JIMMY
170,000 MILES
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
I cannot find a diagram or any information to tell me which of the three relays on the passenger side under the hood is the one to the A/C compressor.
May 4, 2018 at 2:24 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon.

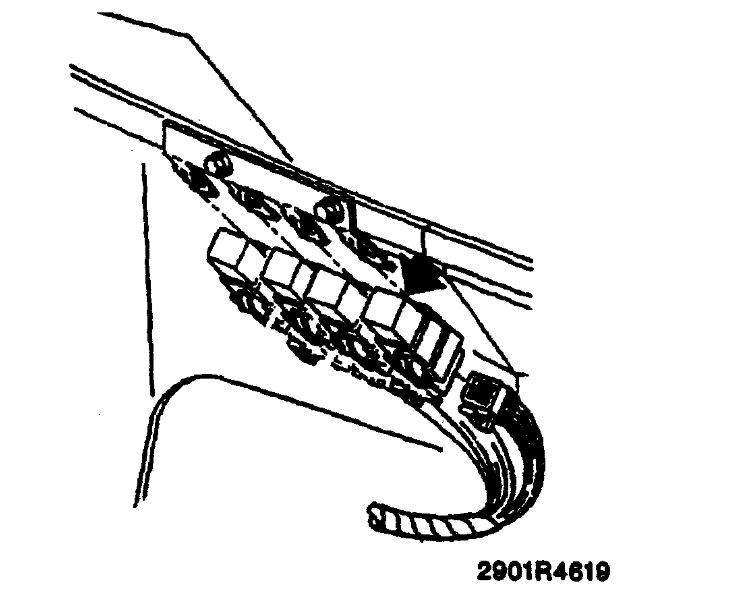

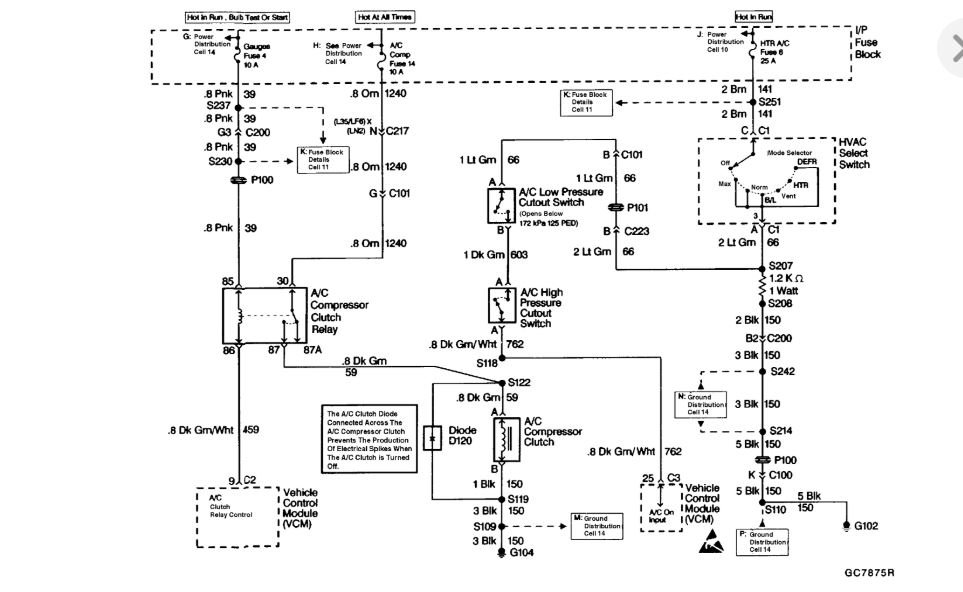

Attached is the diagram for you and the location.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
May 4, 2018 at 2:47 PM
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
Can you tell me what the far left relay is? I see now where there should be four and I am missing one.
May 4, 2018 at 3:07 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Does not identify which relay is which. Is there a connector hanging with no relay attached?

Roy
May 4, 2018 at 3:17 PM
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
Yes.
May 4, 2018 at 4:28 PM
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
There is just a slot where a fourth could go.
May 4, 2018 at 4:29 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
It most likely was for a accessory that was not part of your package.


Roy
May 4, 2018 at 4:39 PM
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
Thank you for all the information. Awesome service!
May 4, 2018 at 5:05 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Thank you. We are here to help.

Roy
May 4, 2018 at 5:10 PM
