how the back brakes reassembles?

2011 CHEVROLET HHR
1,000,000 MILES • 4 CYL • 2WD • AUTOMATIC
Avatar
MCAVINEE
  • MEMBER
  • 69 POSTS
Do you have a diagram on how the back brakes reassembles?
Jul 21, 2018 at 6:07 AM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I am Danny.

Are the rear brakes disc or drum? Here is a guide to help you step by step with instructions in the diagrams below to show you how on your car.

https://www.2carpros.com/articles/how-to-replace-rear-brake-shoes-and-drums

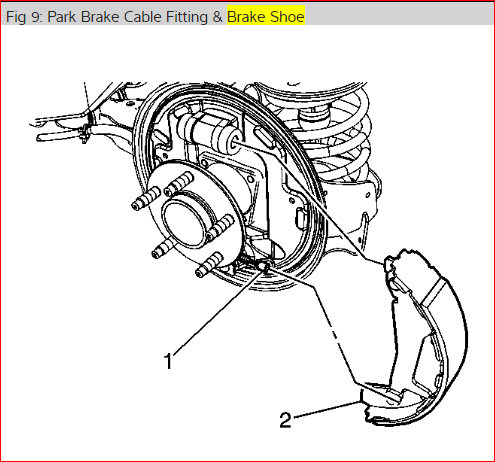

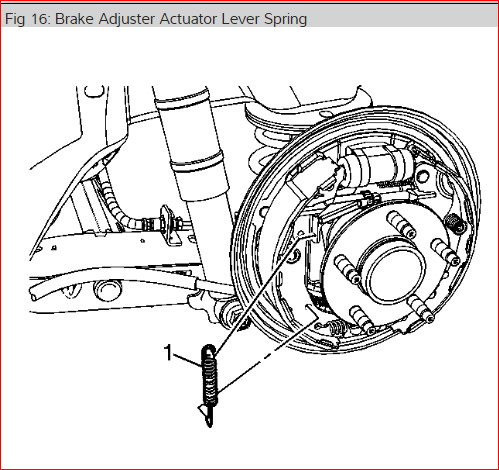

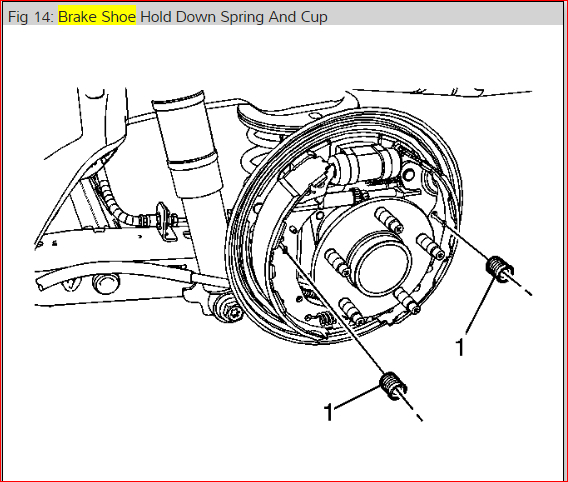

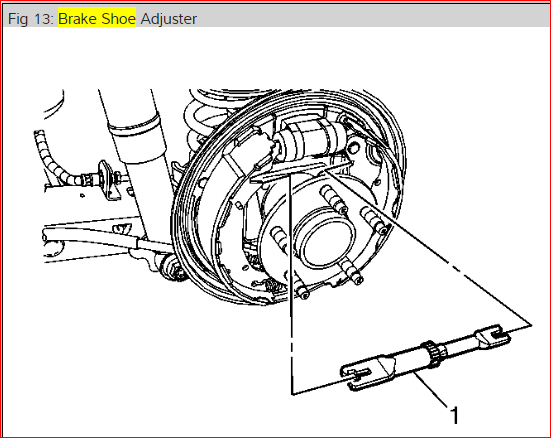

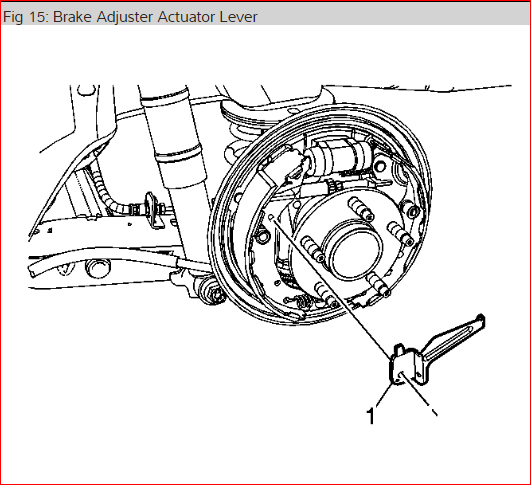

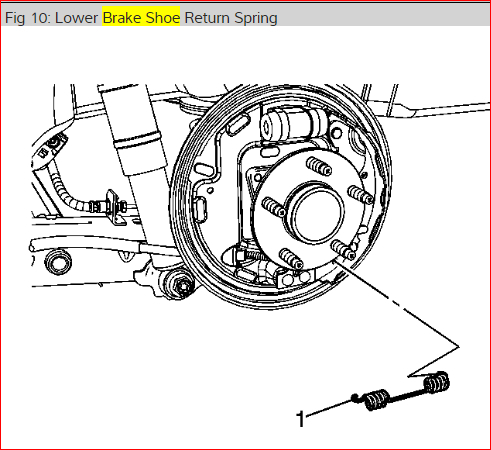

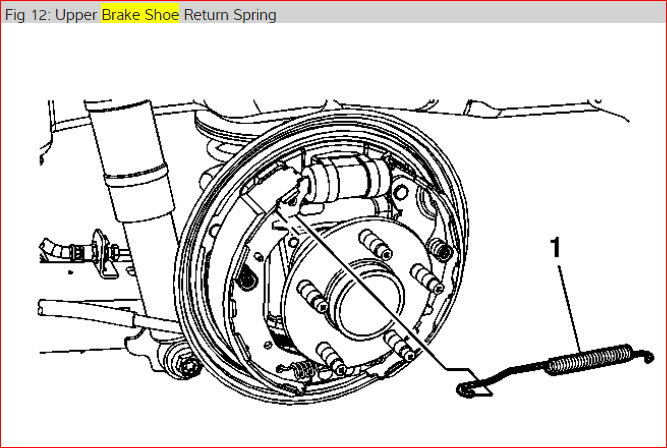

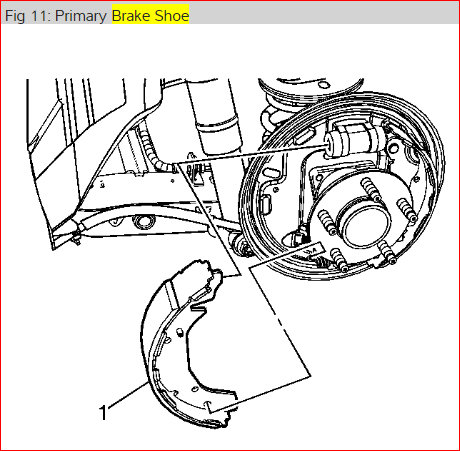

Here are about eight different pictures attached showing various components being highlighted/installed in order. Hope this helps and again thanks for using 2CarPros.
Danny-
Jul 21, 2018 at 7:20 AM
Avatar
MCAVINEE
  • MEMBER
  • 69 POSTS
Thanks so much.
Jul 21, 2018 at 7:35 AM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
You are welcome! Thanks for using 2CarPros.
Danny-
Jul 21, 2018 at 8:41 AM
