Rear A/C not working

2008 SUZUKI XL7
142,000 MILES • 2.7L • 6 CYL • 4WD • AUTOMATIC
Avatar
CHRISTOPHER MICHAEL
  • MEMBER
  • 3 POSTS
The rear A/C stopped working a few years ago. The front works great! I think an actuator door is stuck. Can you tell me where to find the rear climate control actuators and fan? And how to get to them if they are behind a panel of some sort?
Jul 16, 2018 at 3:25 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Yes, here is a guide to help you see what you are in for when doing the job with a diagram below of what it will be like for your car:

https://www.2carpros.com/articles/replace-blend-door-motor

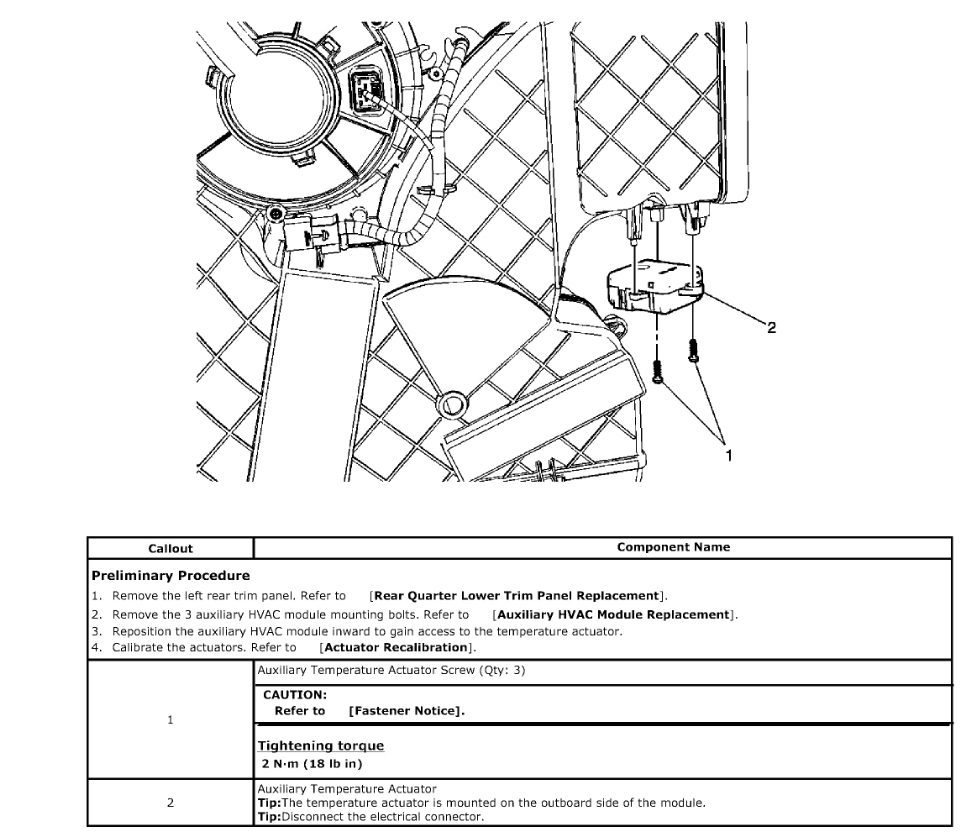

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Image (Click to enlarge)
Attached Media
Jul 18, 2018 at 1:40 PM
Avatar
CHRISTOPHER MICHAEL
  • MEMBER
  • 3 POSTS
Thank you. This does not show the rear system. The front system works fine. The rear system functions separately from the front. Where might the rear system actuator doors be?
Jul 18, 2018 at 4:29 PM
Advertisement
Avatar
CHRISTOPHER MICHAEL
  • MEMBER
  • 3 POSTS
The diagram should work. Thank you for your help!
Jul 18, 2018 at 6:12 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
That is the rear system they call it auxiliary. Please let me know what happens.
Jul 19, 2018 at 10:34 AM
