Have the premium Alpine system and need the wiring diagram for the radio.
Jul 22, 2022 at 11:00 PM
Can I get a radio wiring diagram?
2011 RAM 1500
TRAV CONNER
- MEMBER
- 1 POST
- FOLLOW
Advertisement

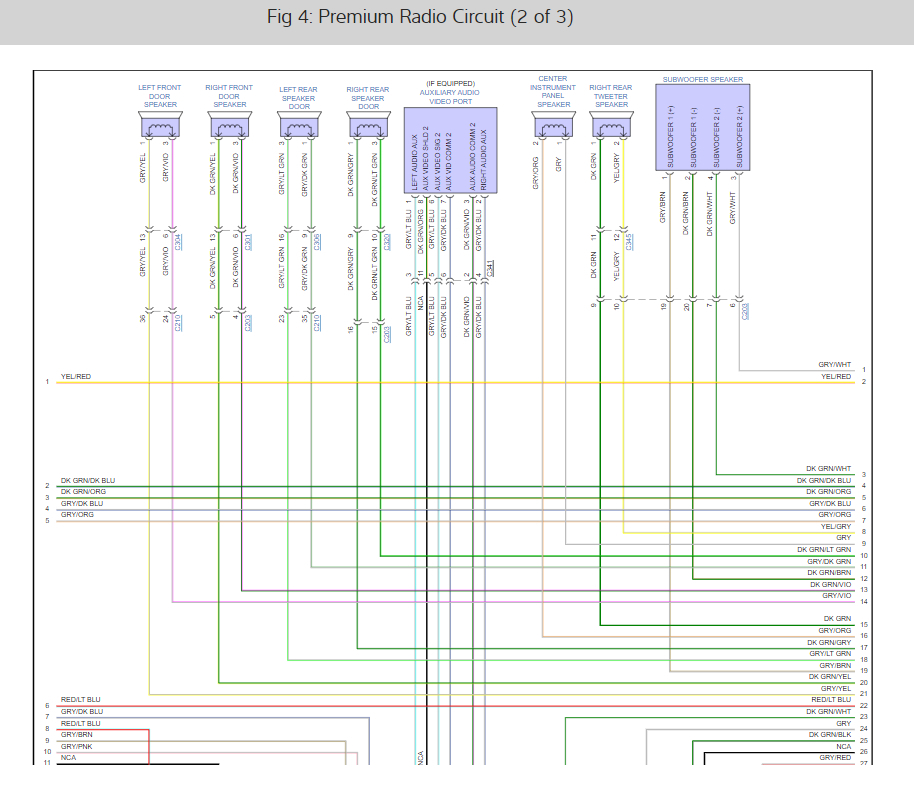

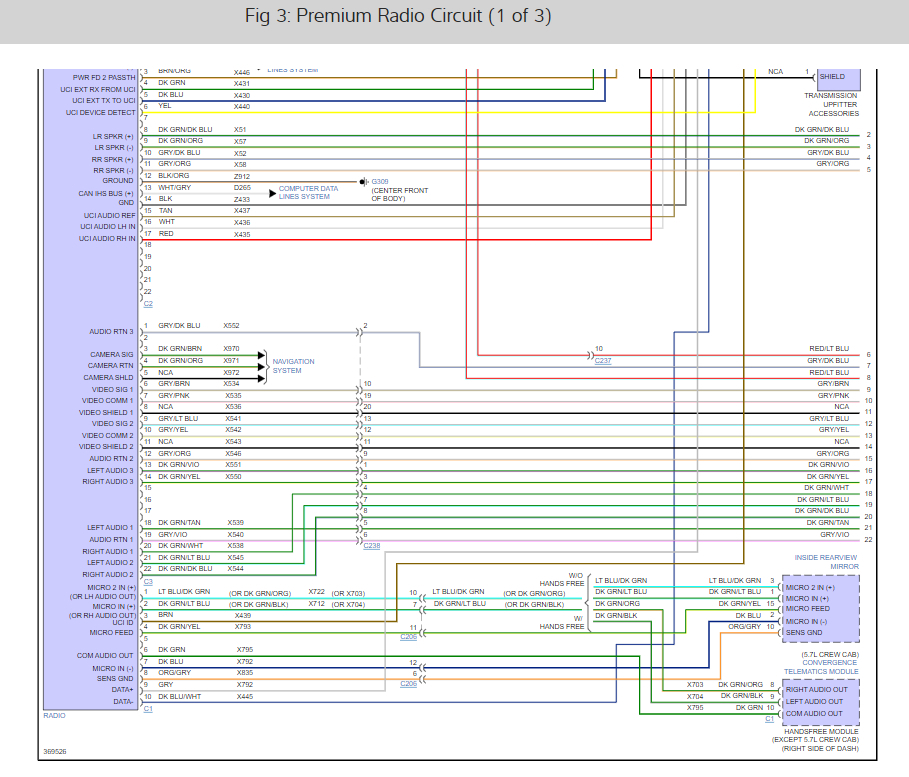

Here is a guide to help you test the wiring connections with the wiring diagrams for the premium radio in the diagrams below.
https://www.2carpros.com/articles/how-to-check-wiring

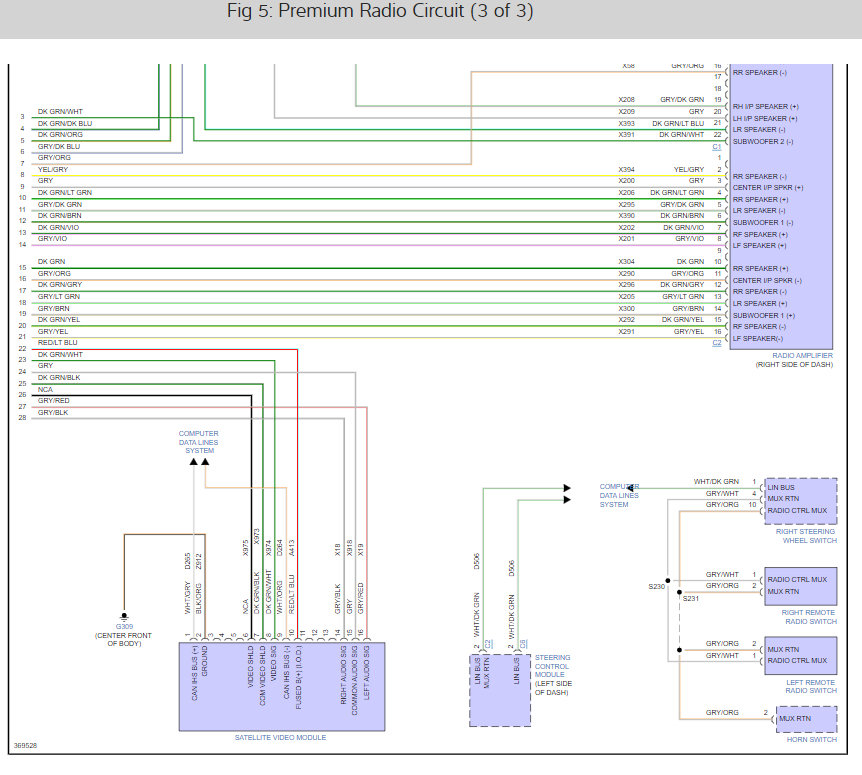

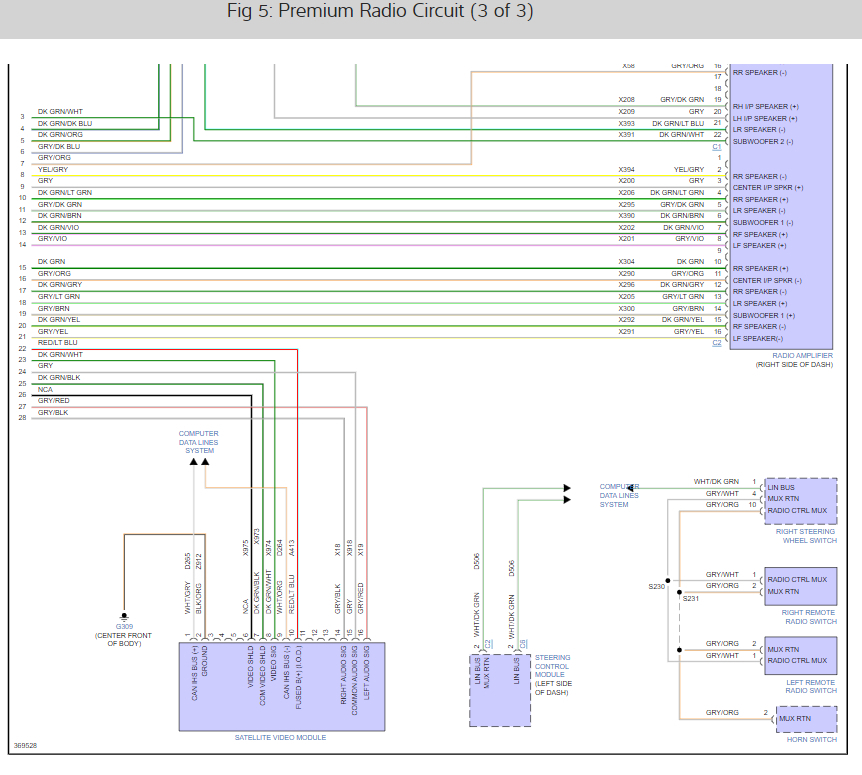

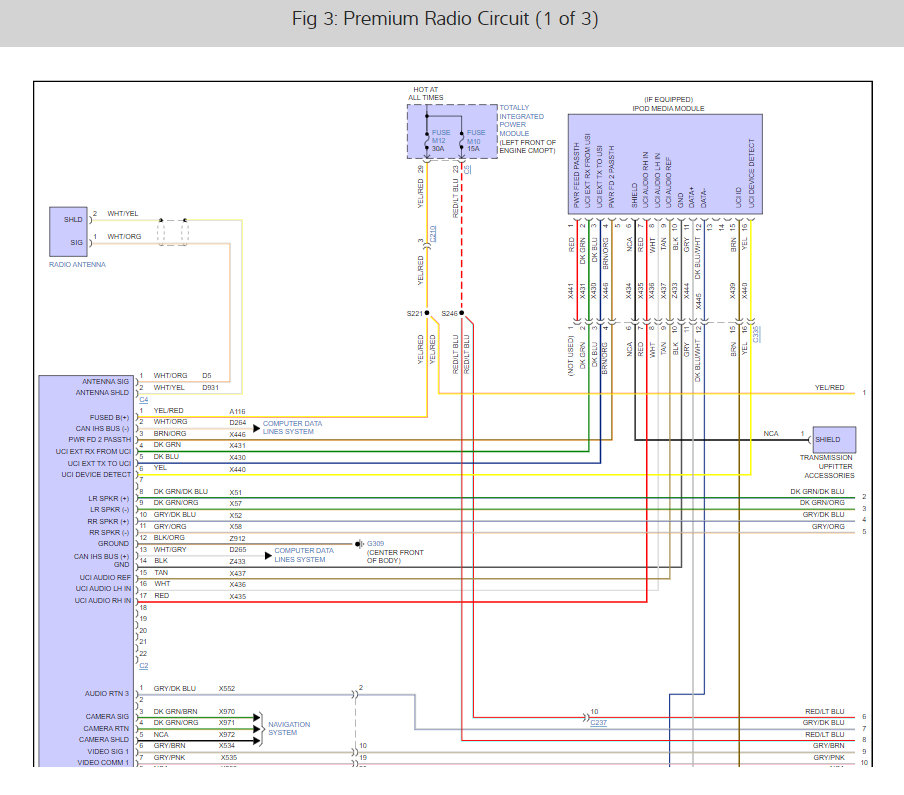

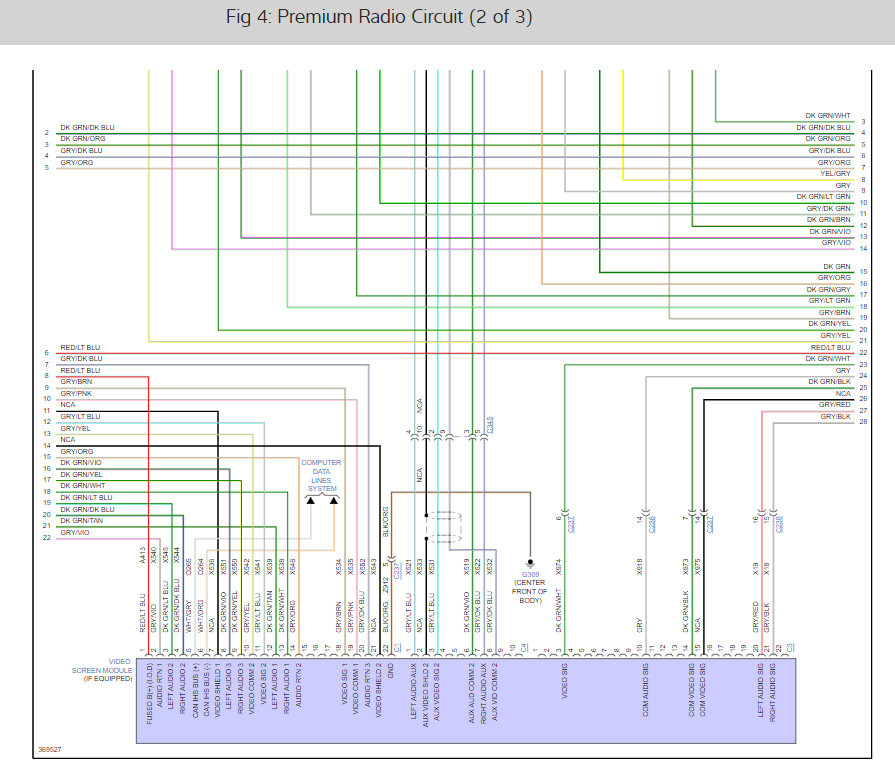

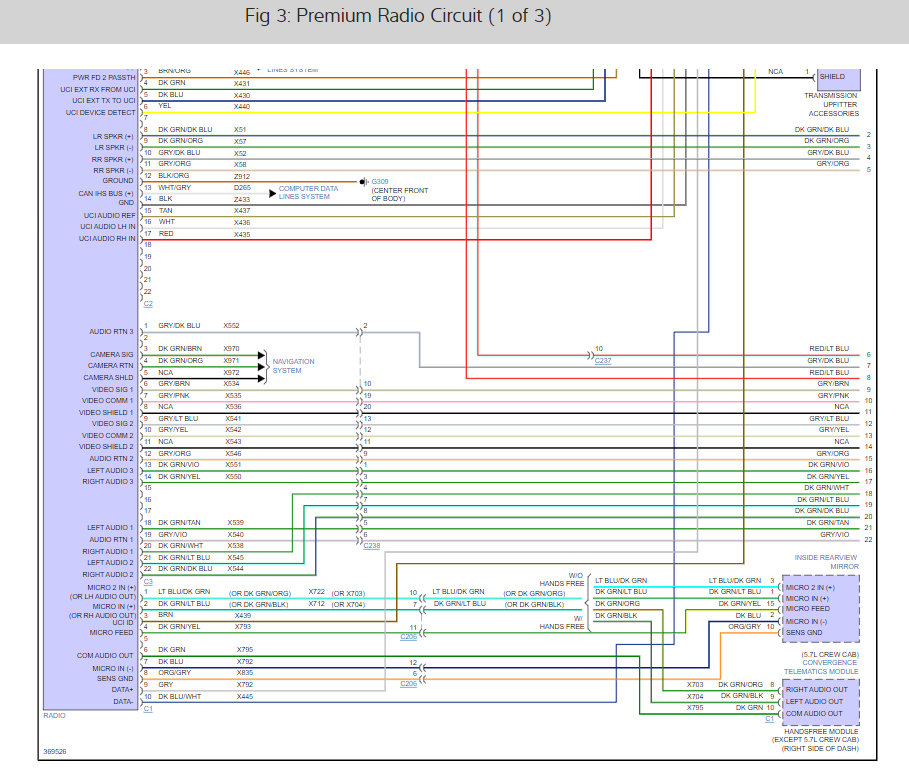

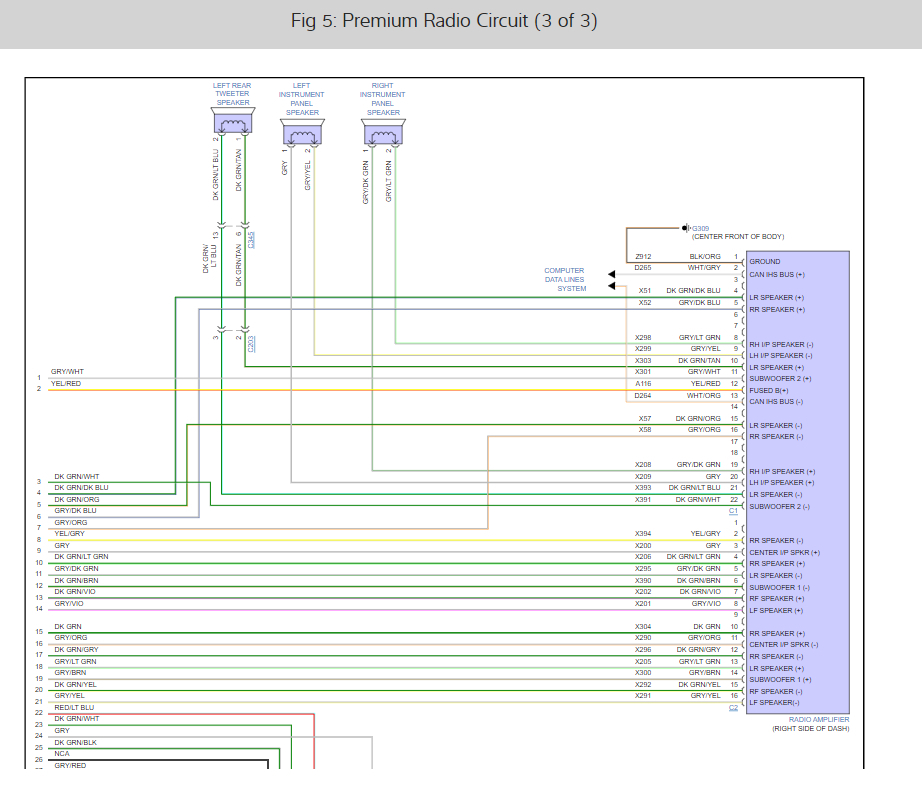

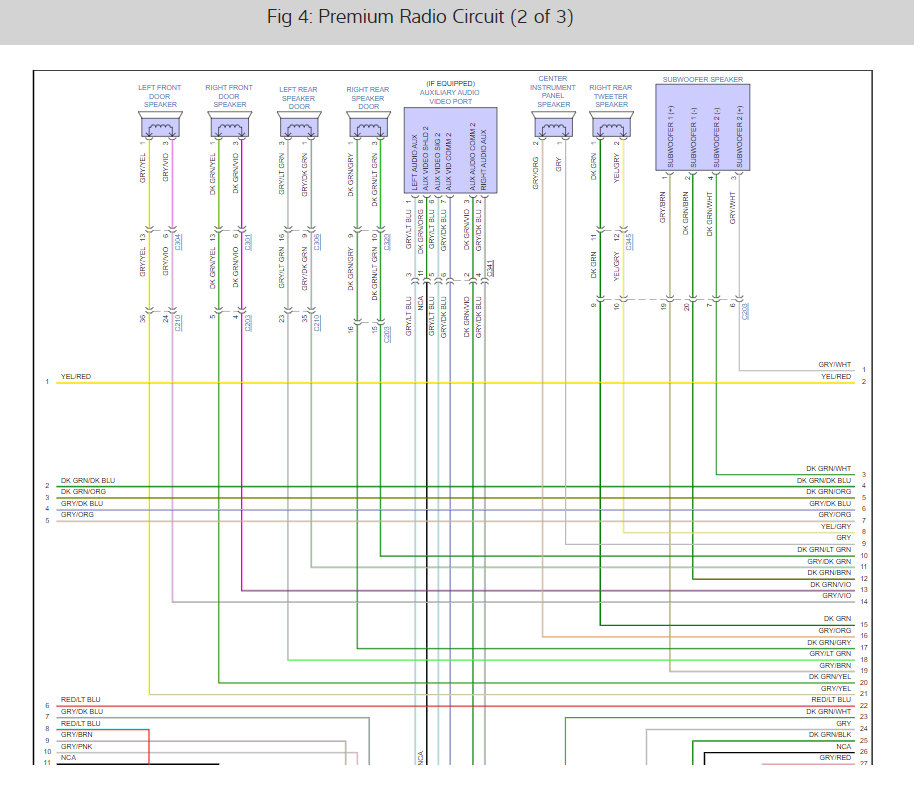

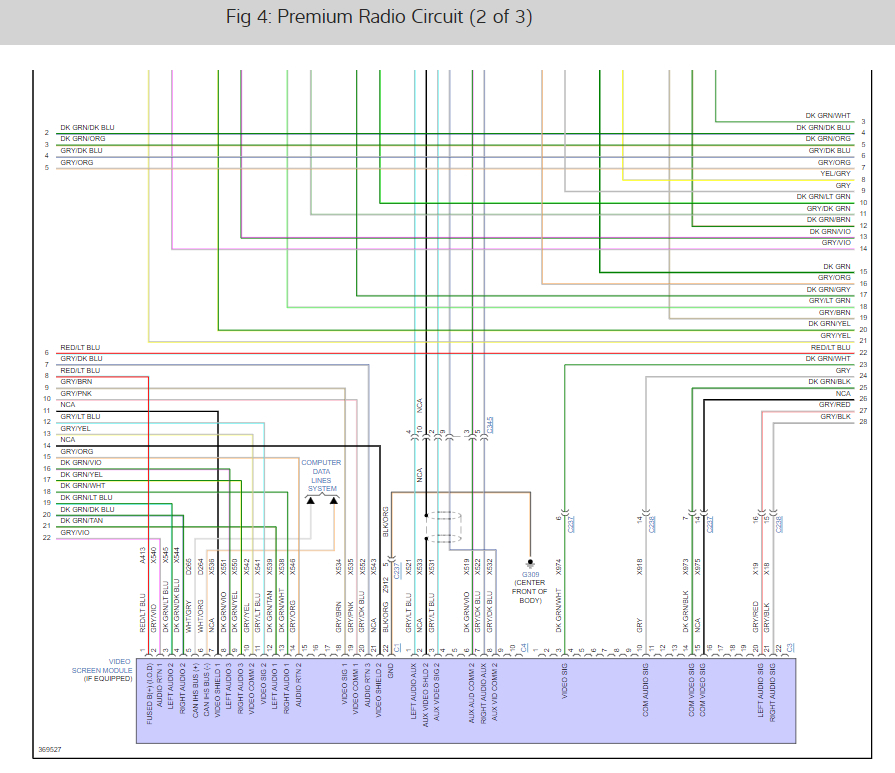

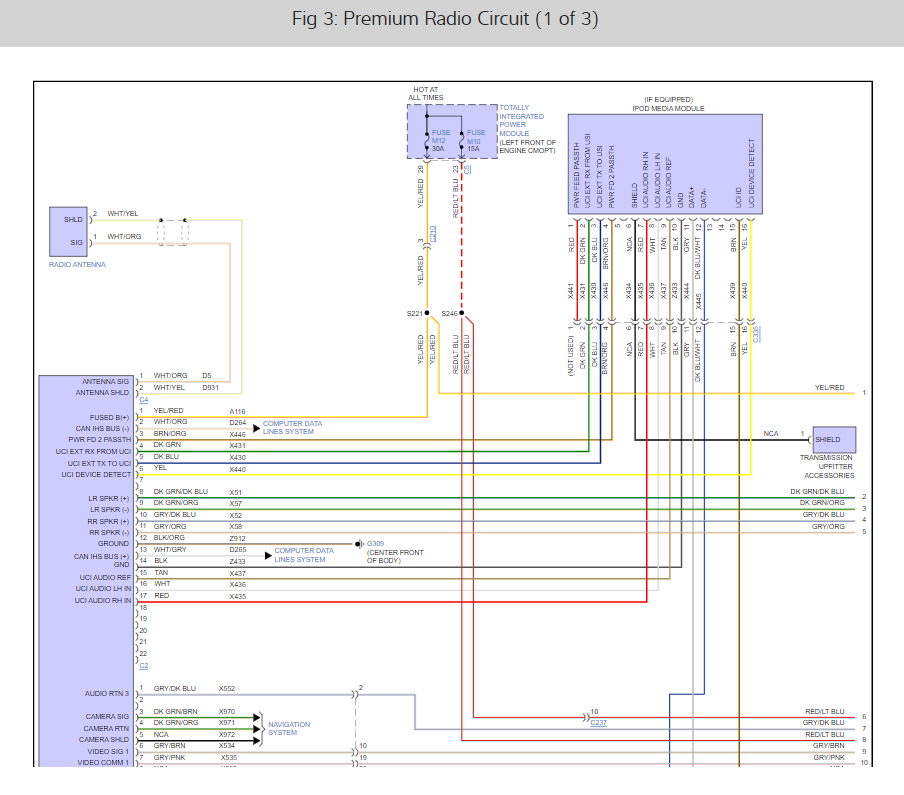

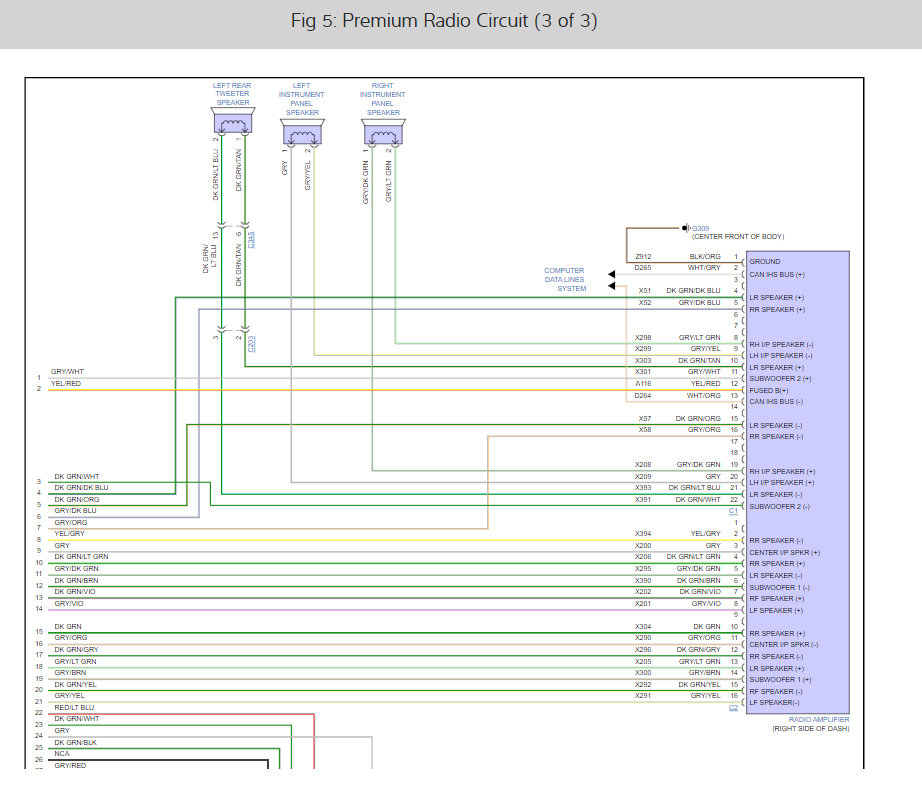

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Jul 23, 2022 at 10:25 AM
