radio fuse shorts out

2016 TOYOTA 4RUNNER
45,000 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
RON MATASON
  • MEMBER
  • 1 POST
Radio worked then stopped. No audio. All other functions seem to work. Replaced 30 A fuse and it immediately blew. Toyota wants $400.00 to diagnose the problem and find the short. Are there any common issues with these amps shorting out?
Dec 20, 2019 at 7:09 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

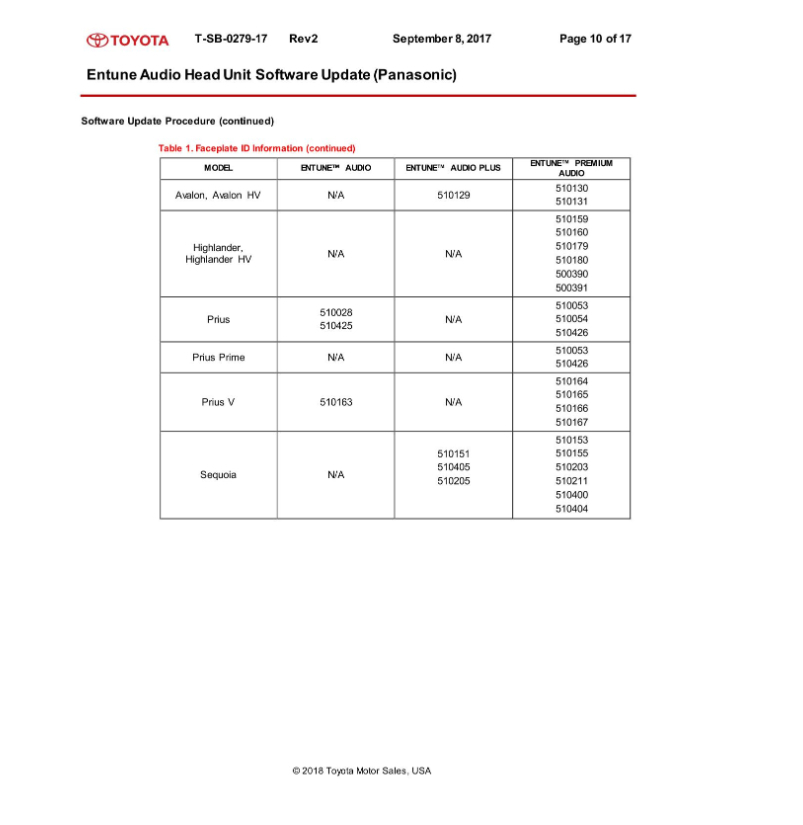

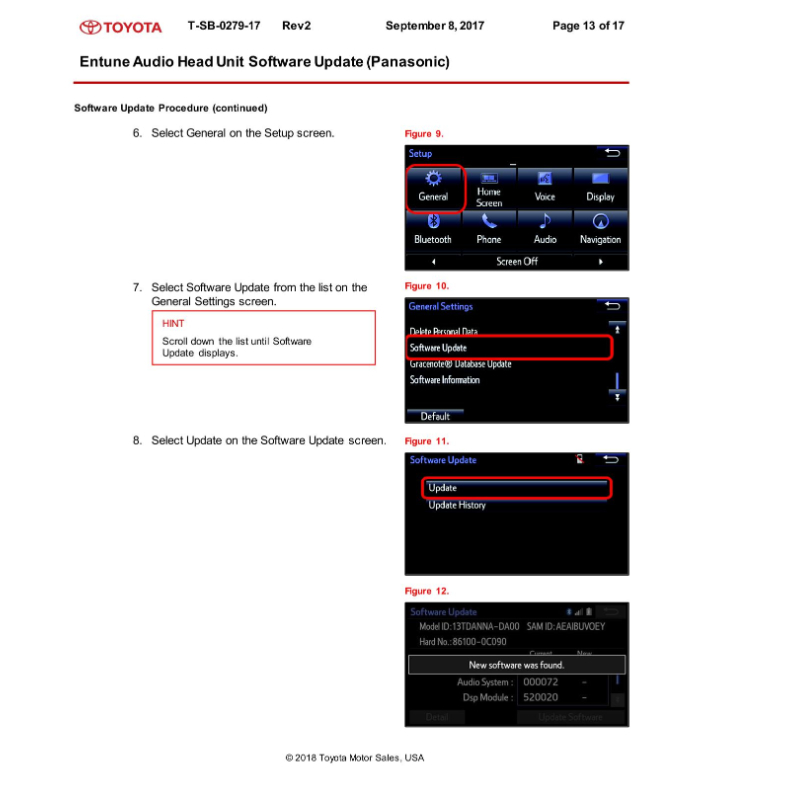

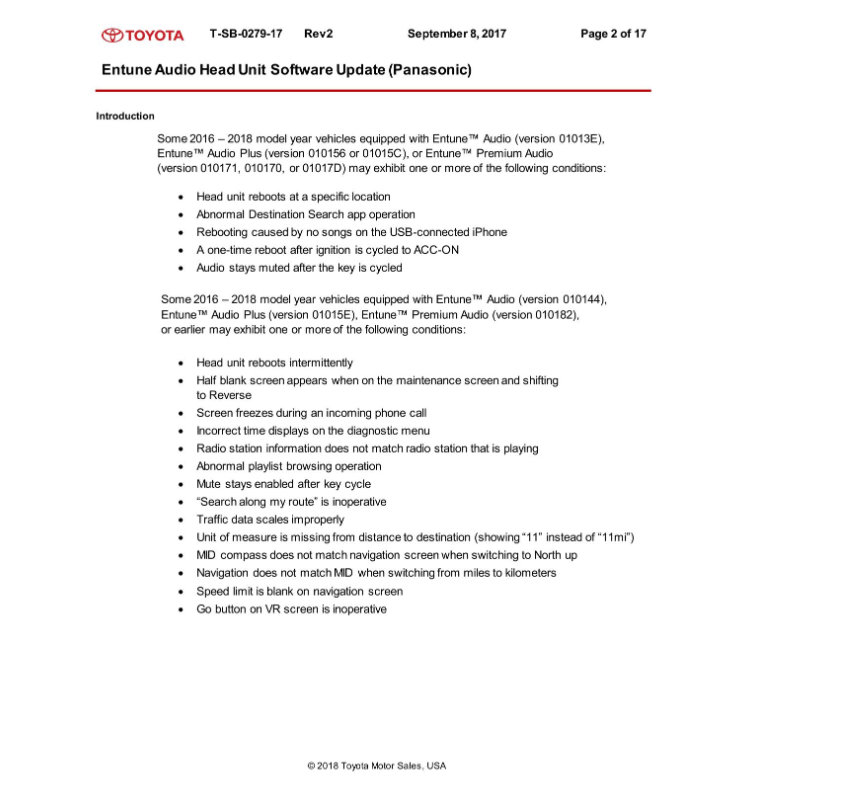

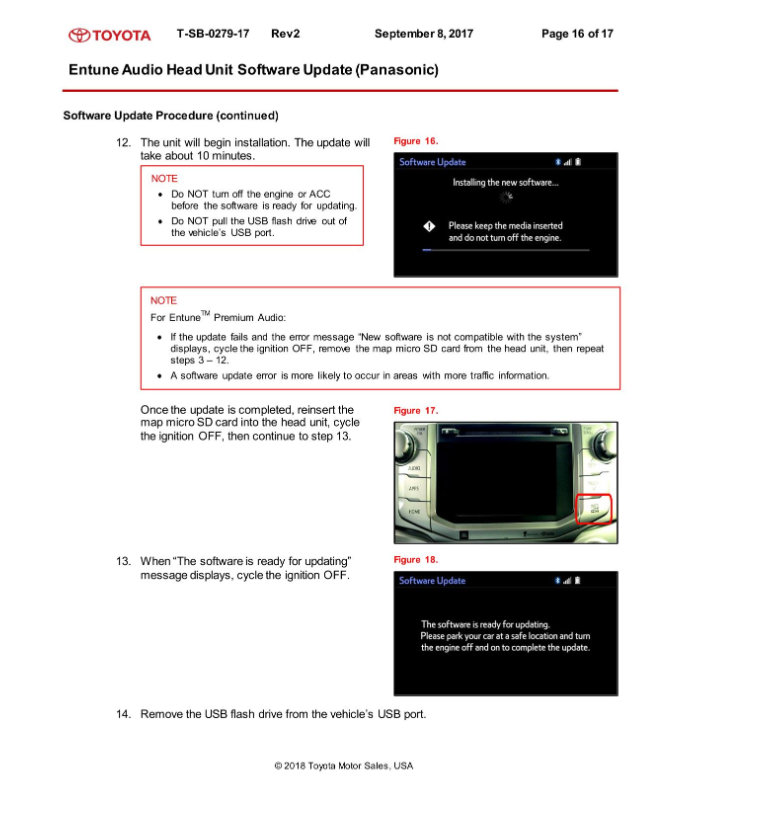

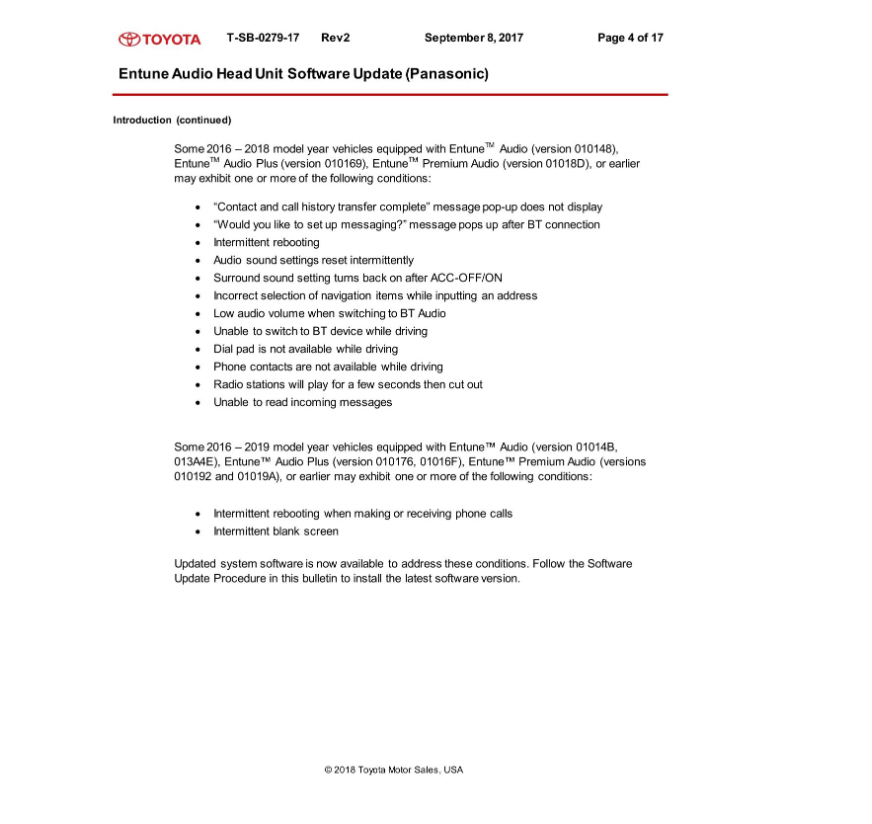

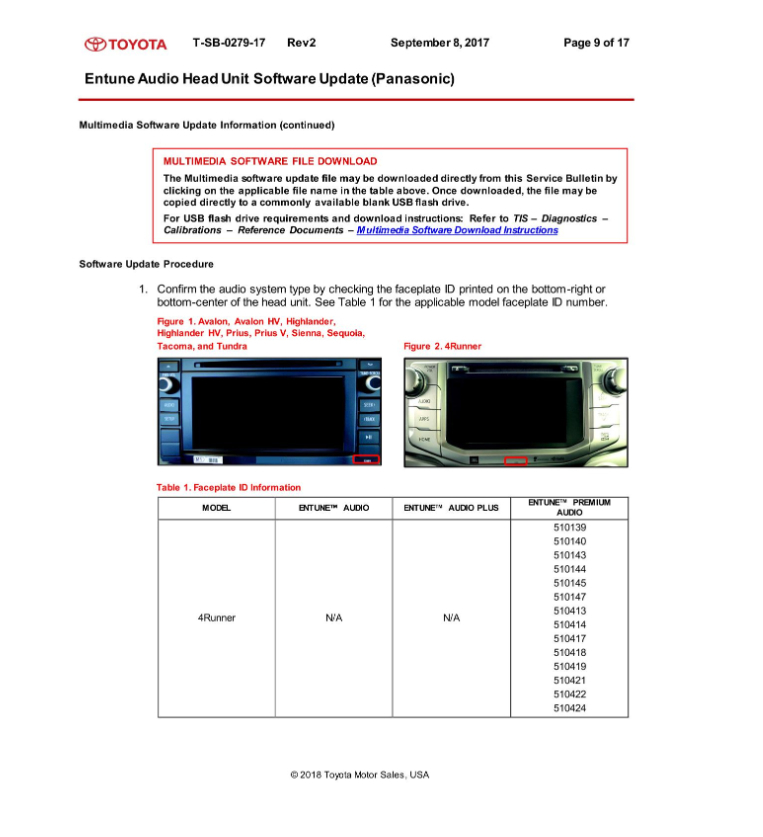

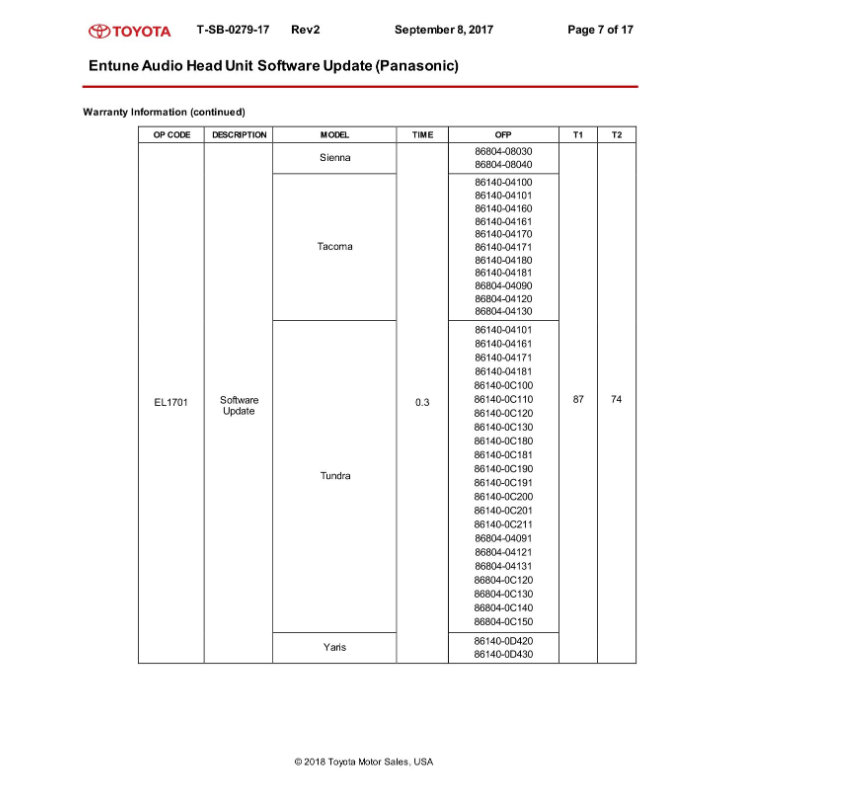

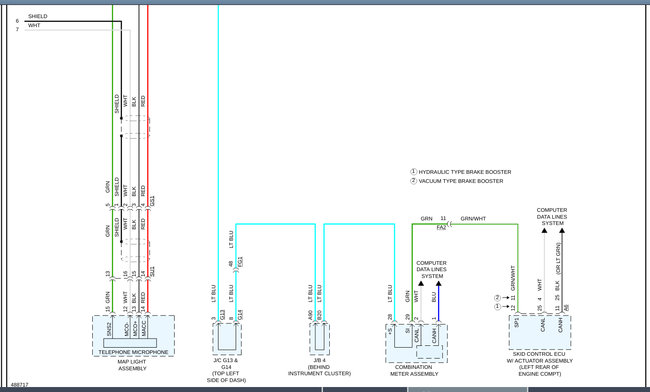

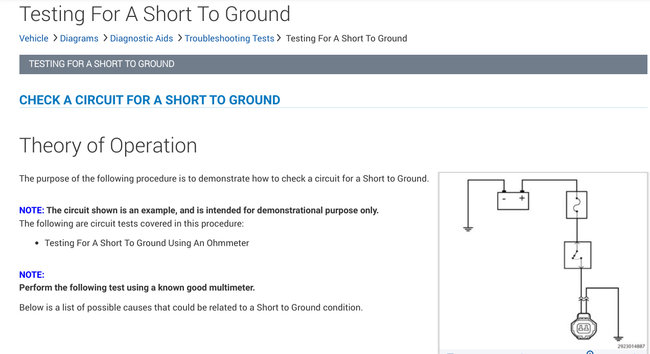

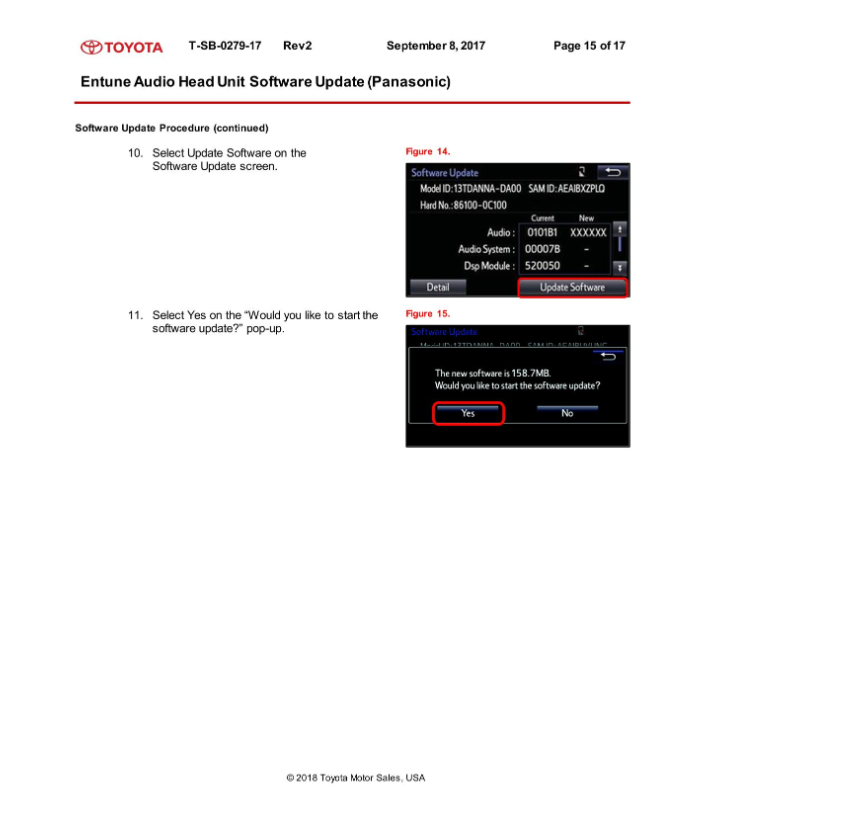

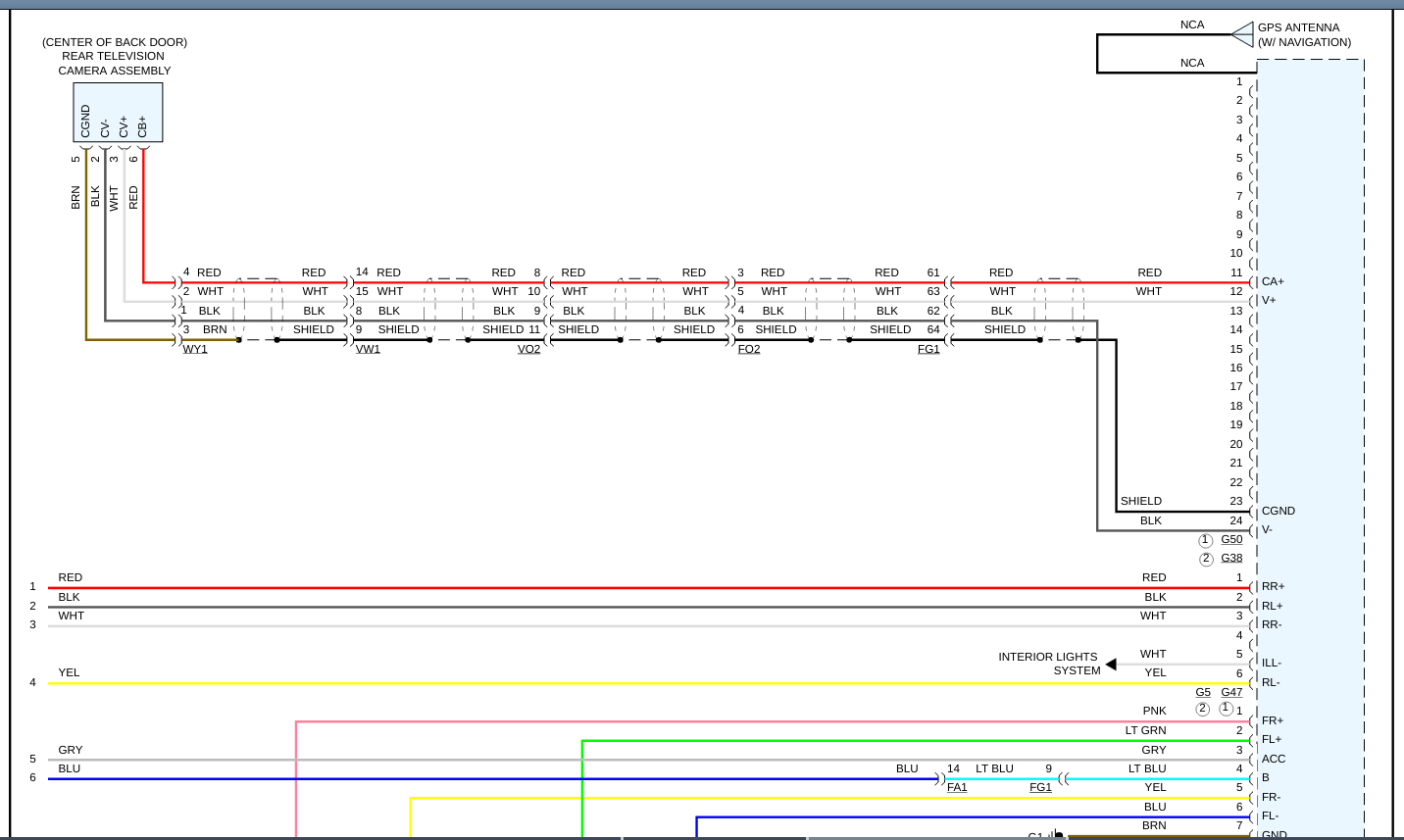

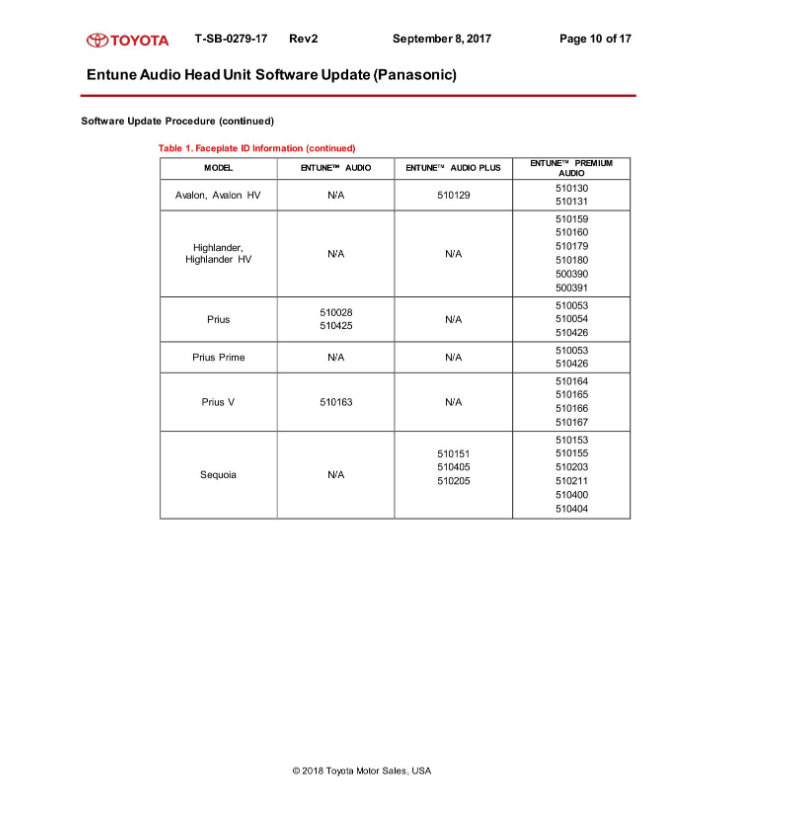

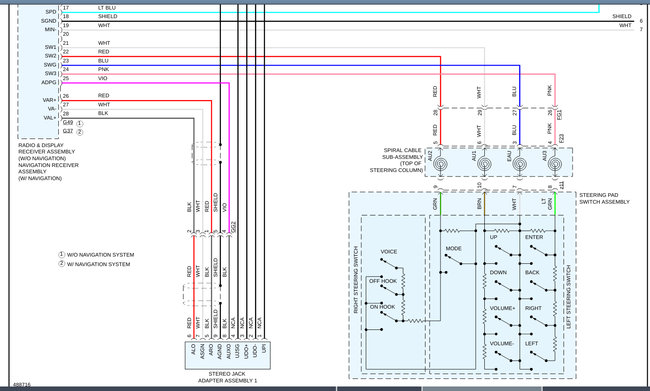

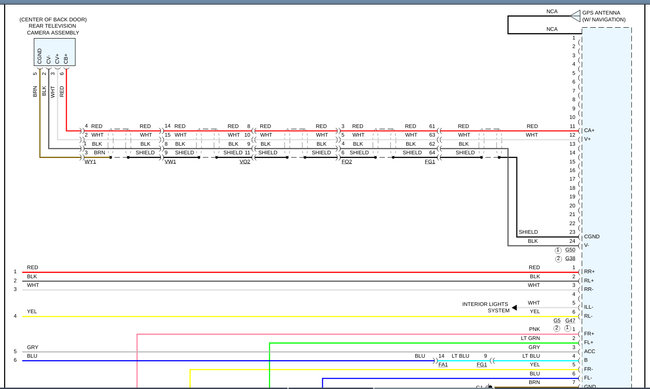

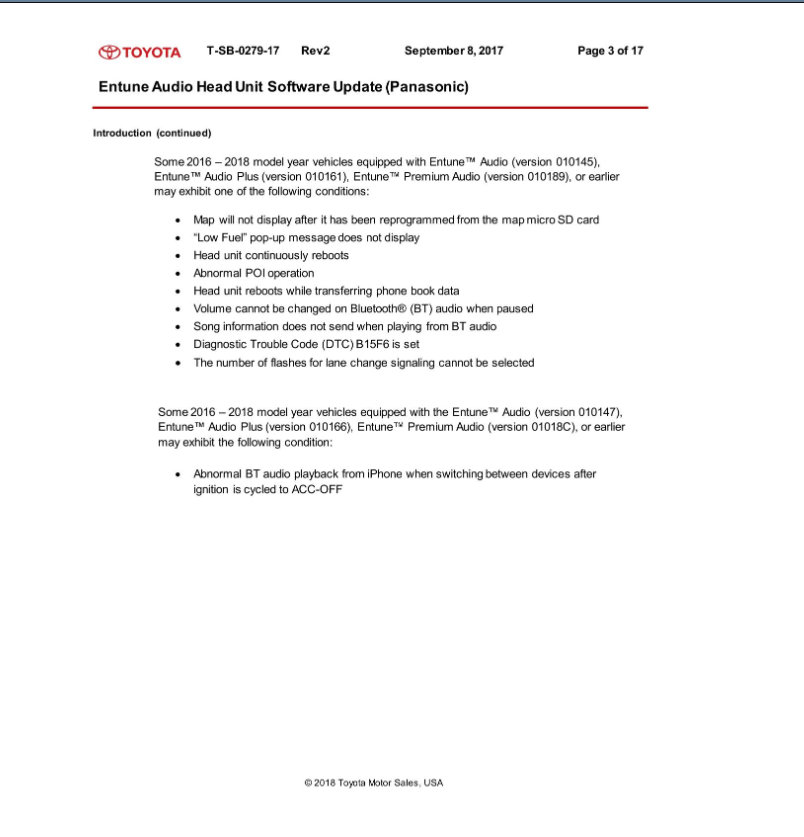

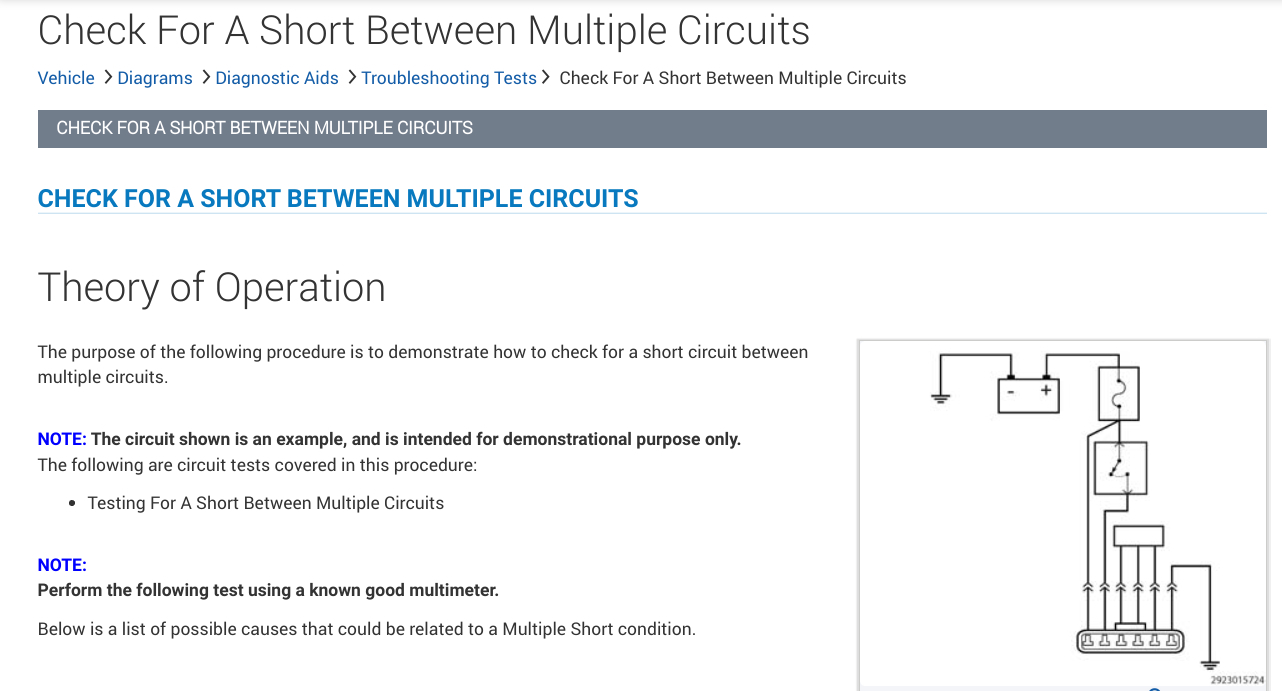

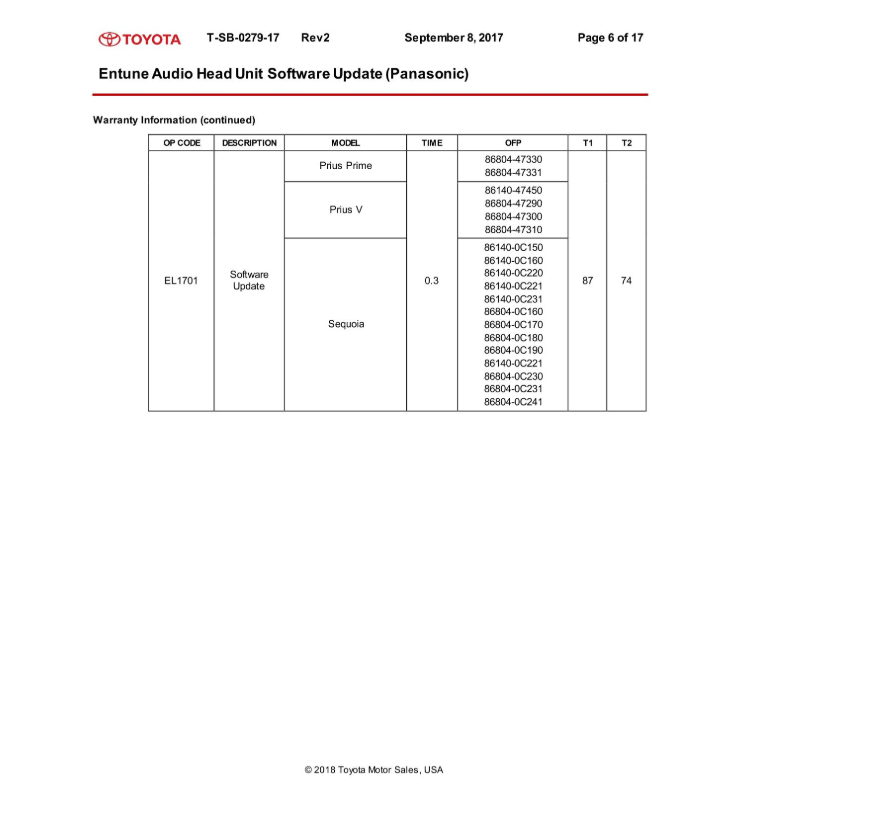

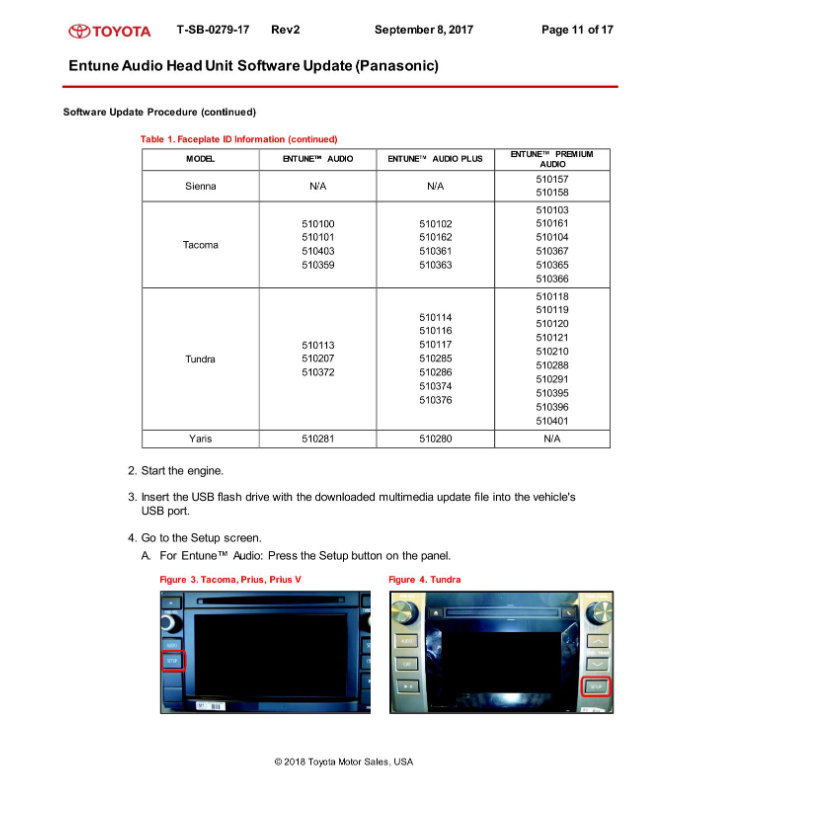

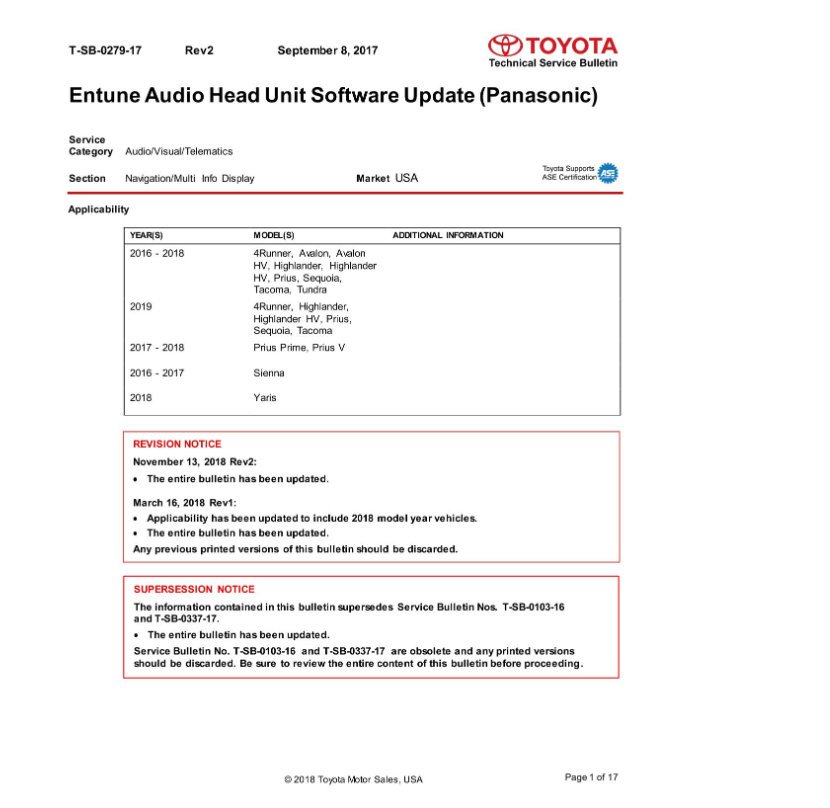

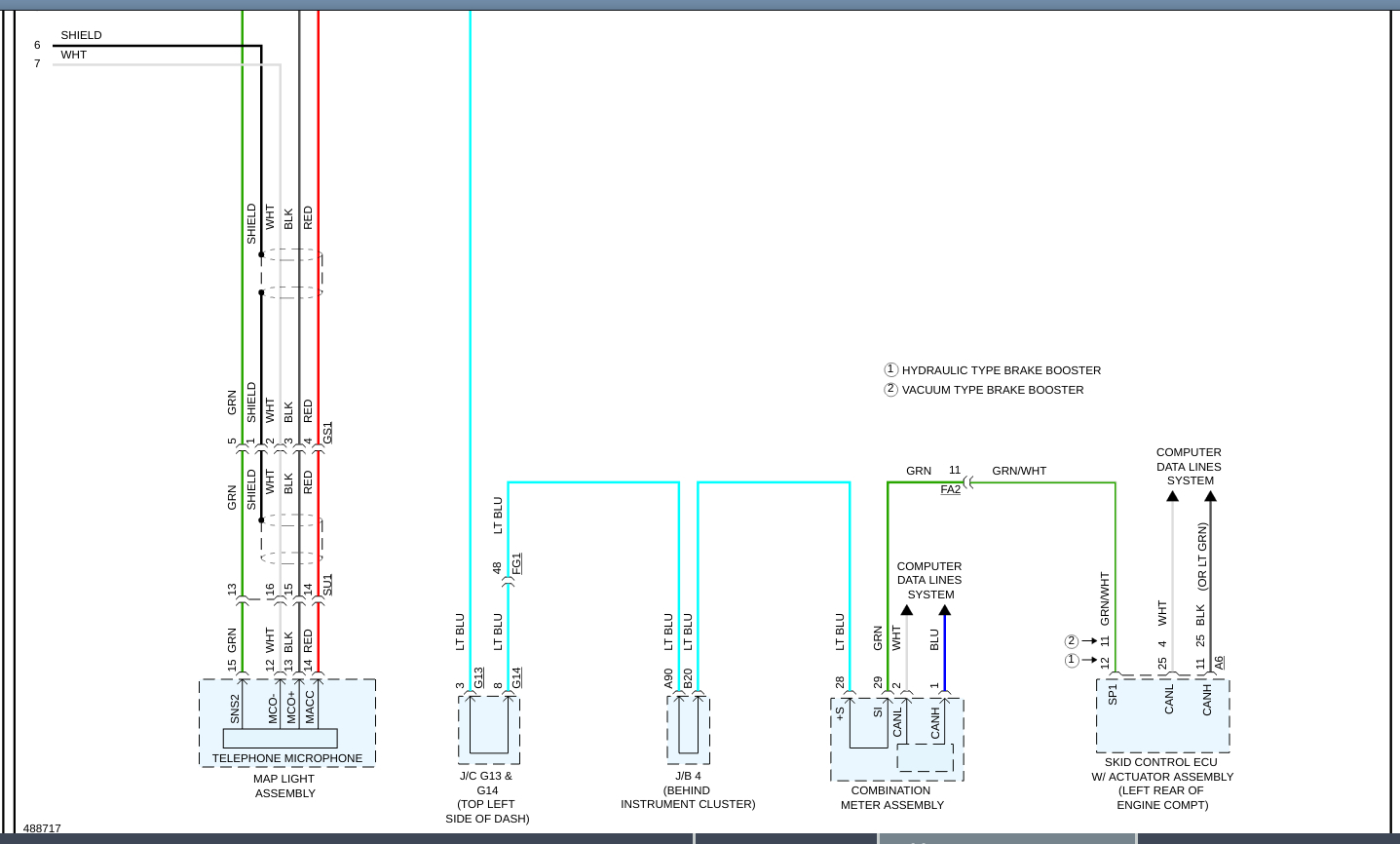

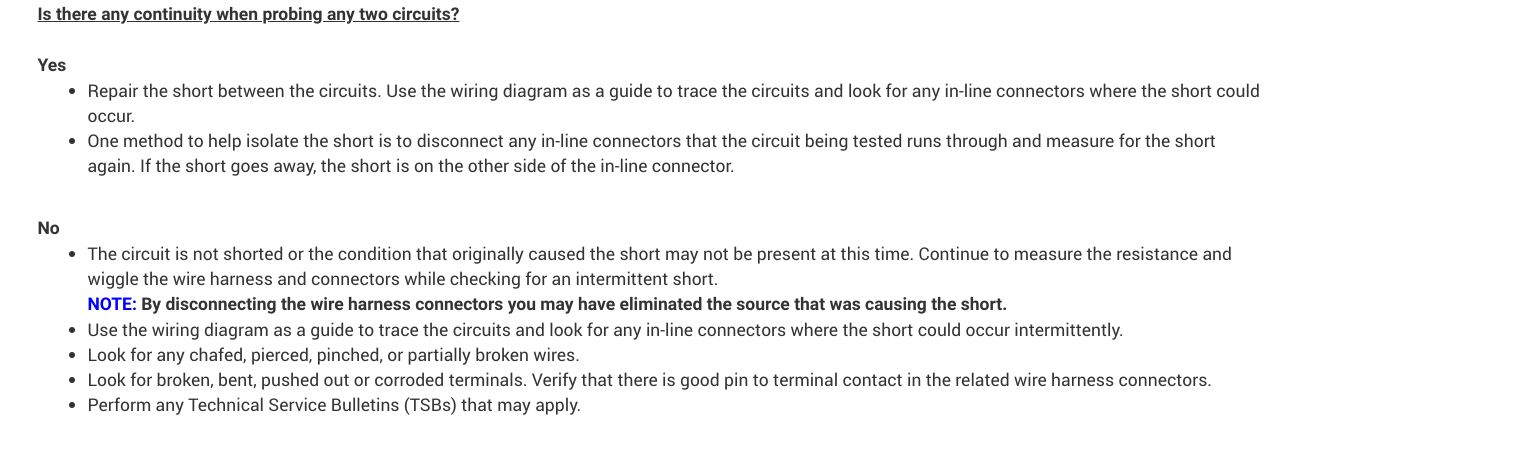

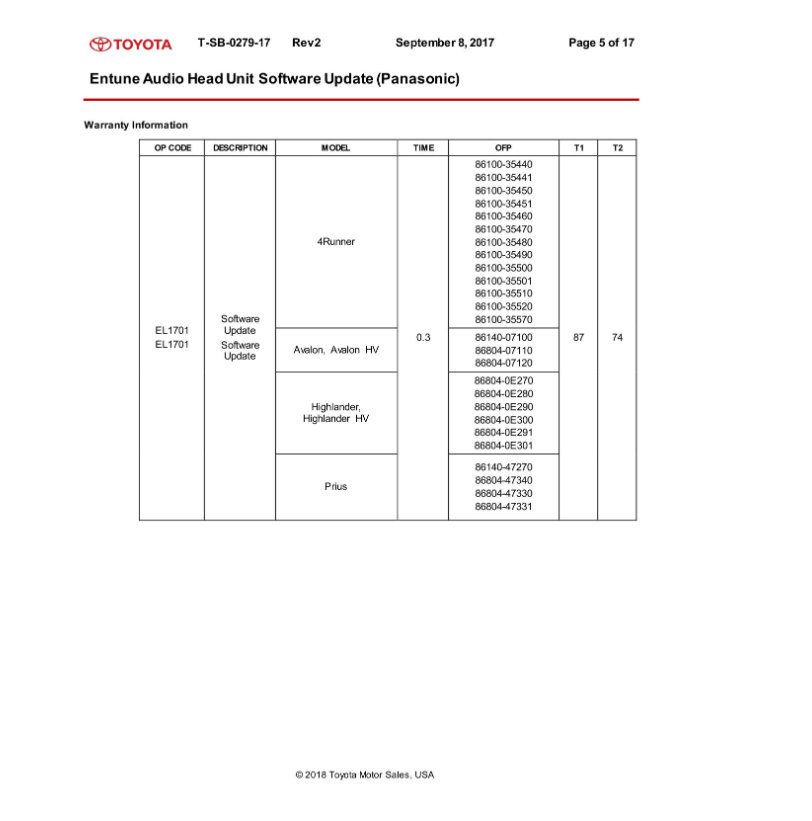

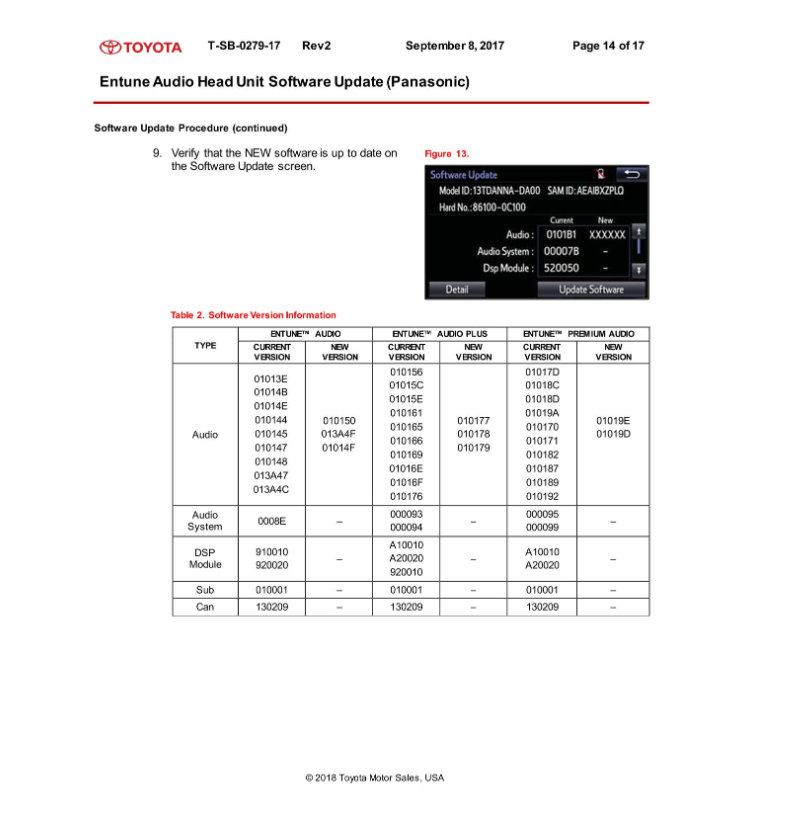

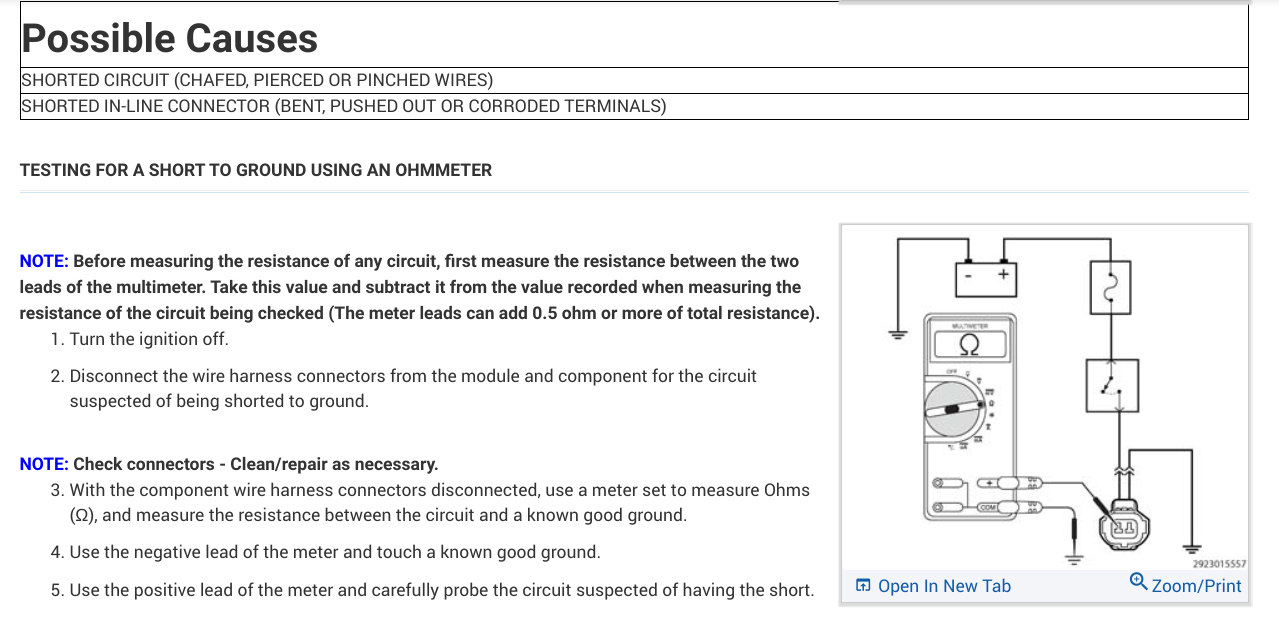

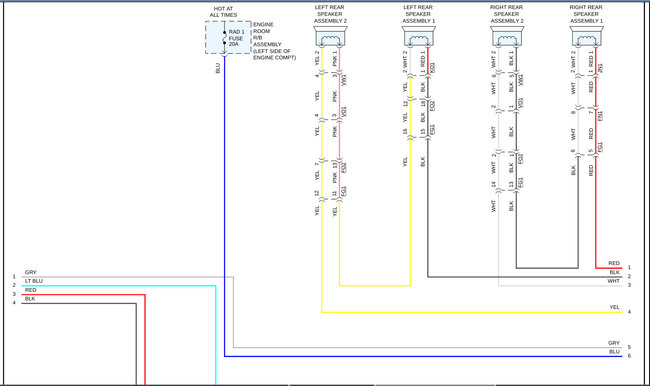

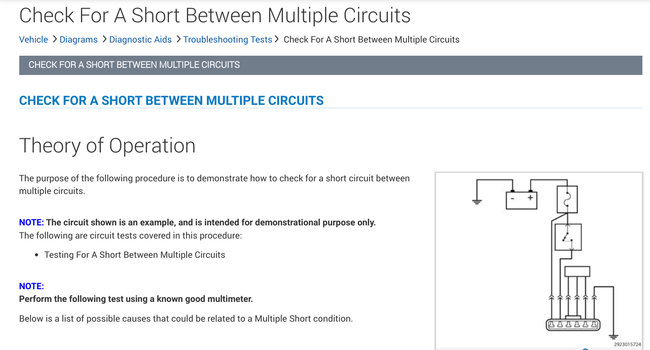

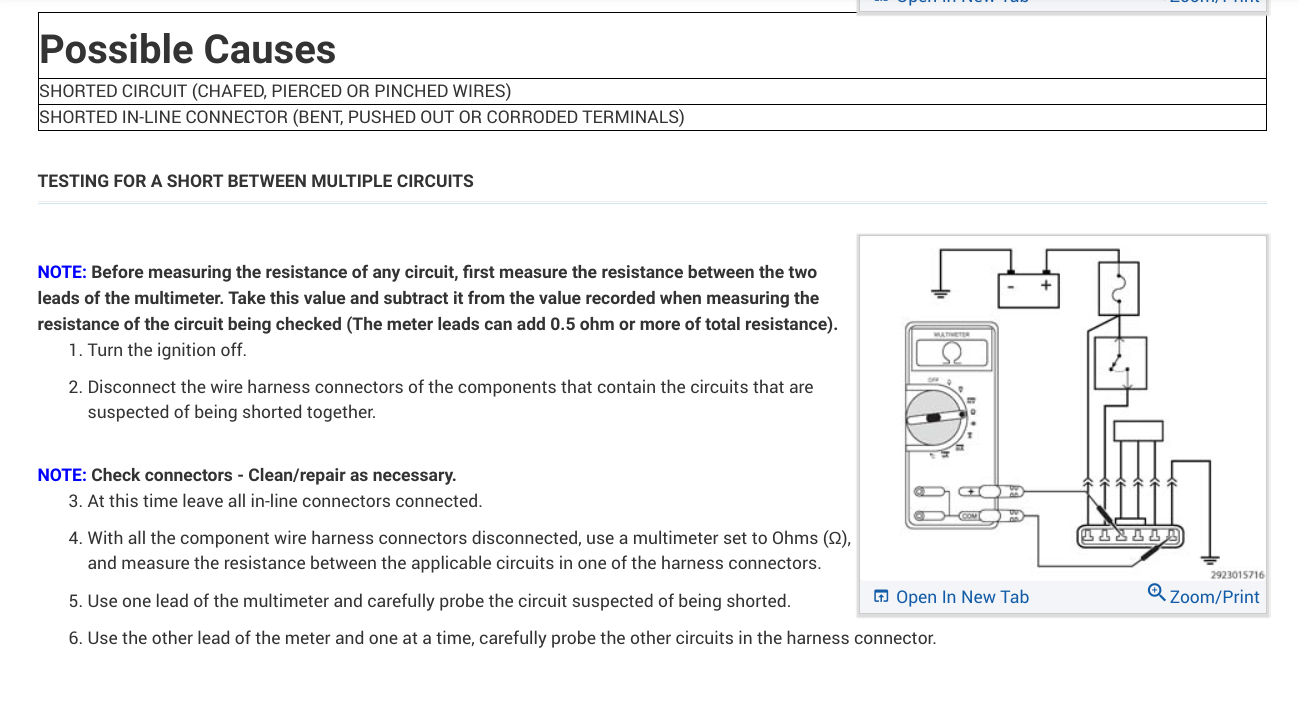

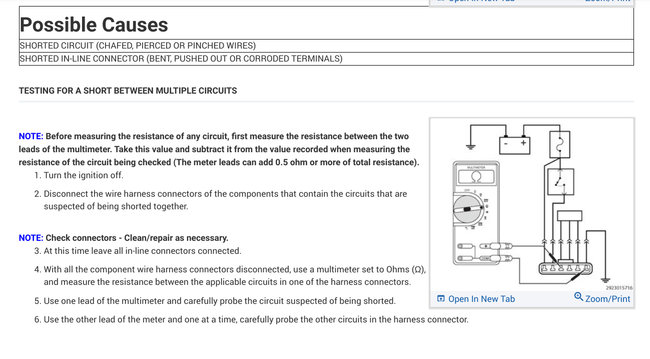

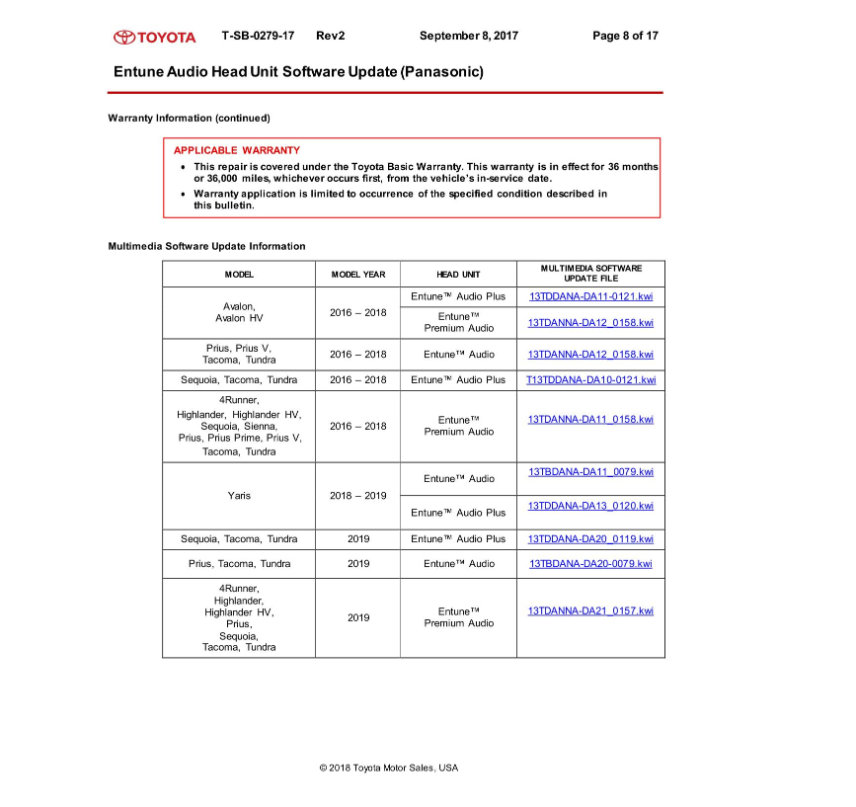

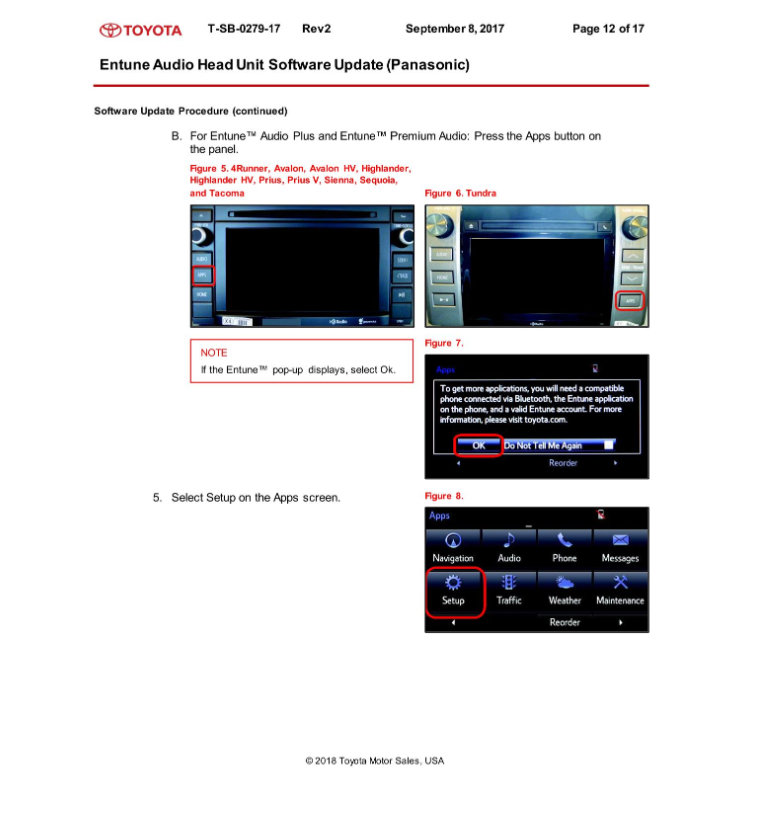

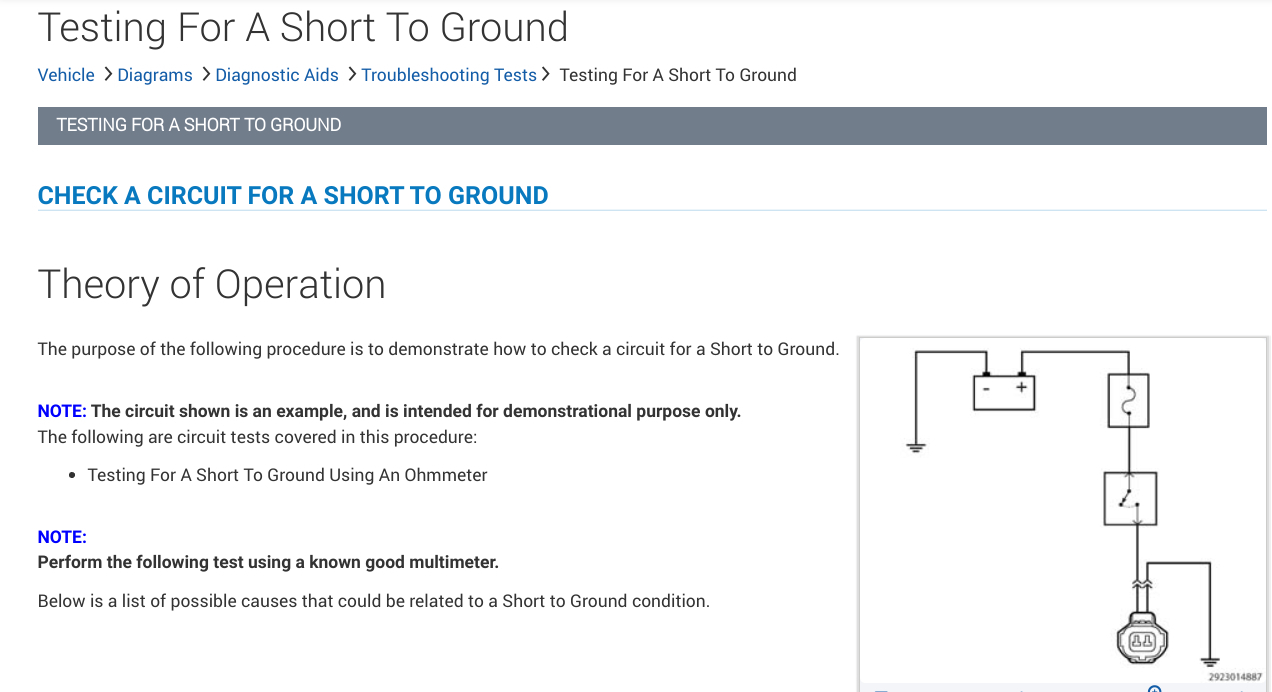

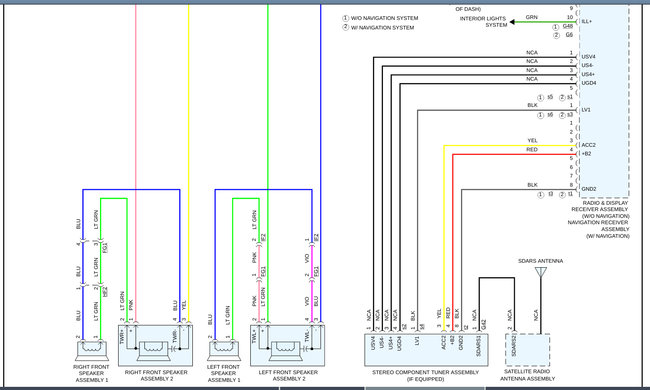

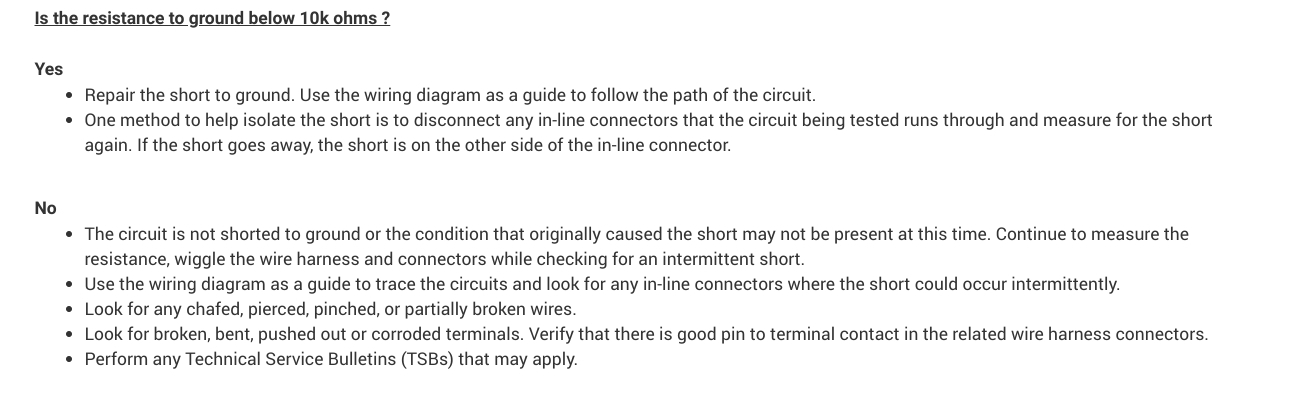

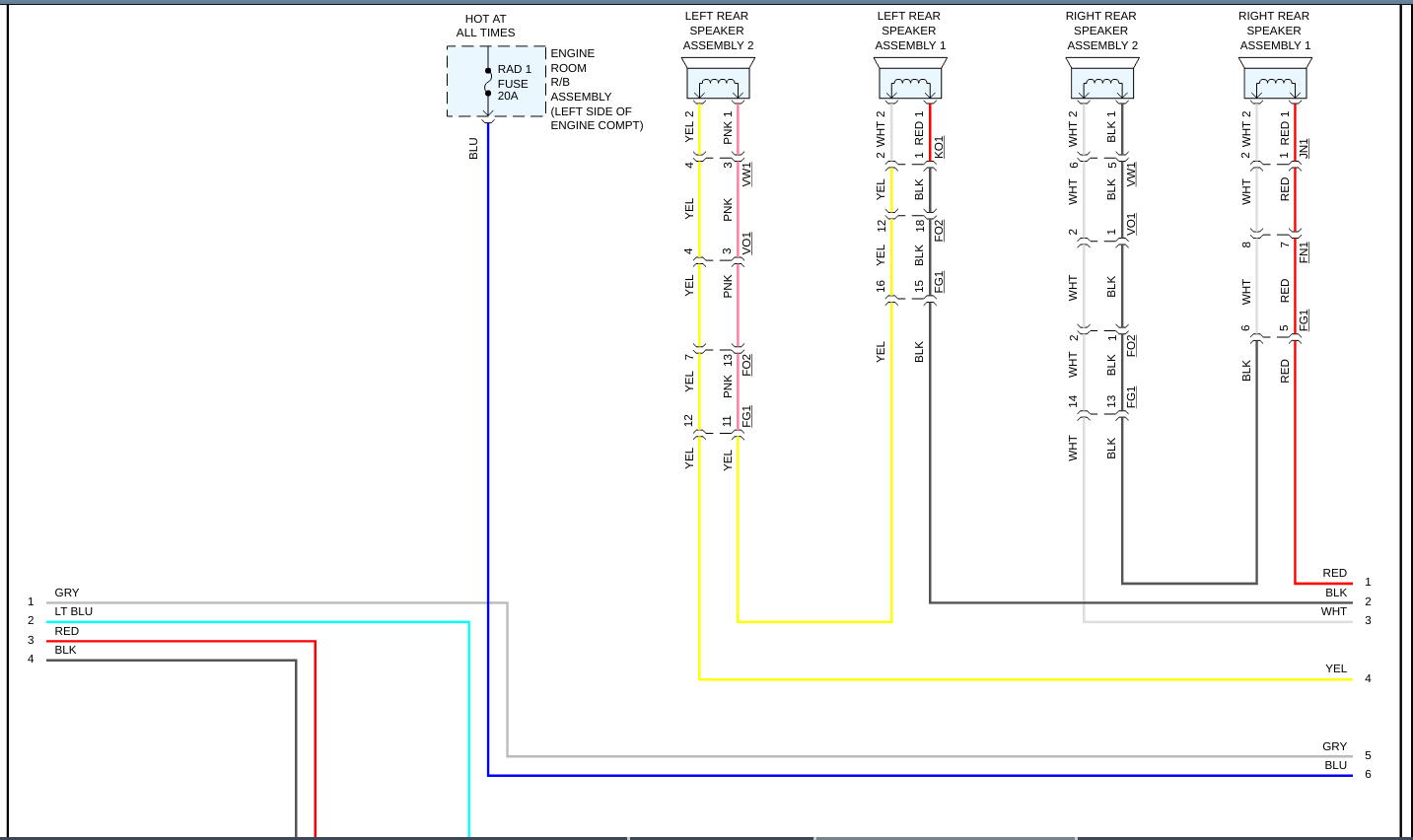

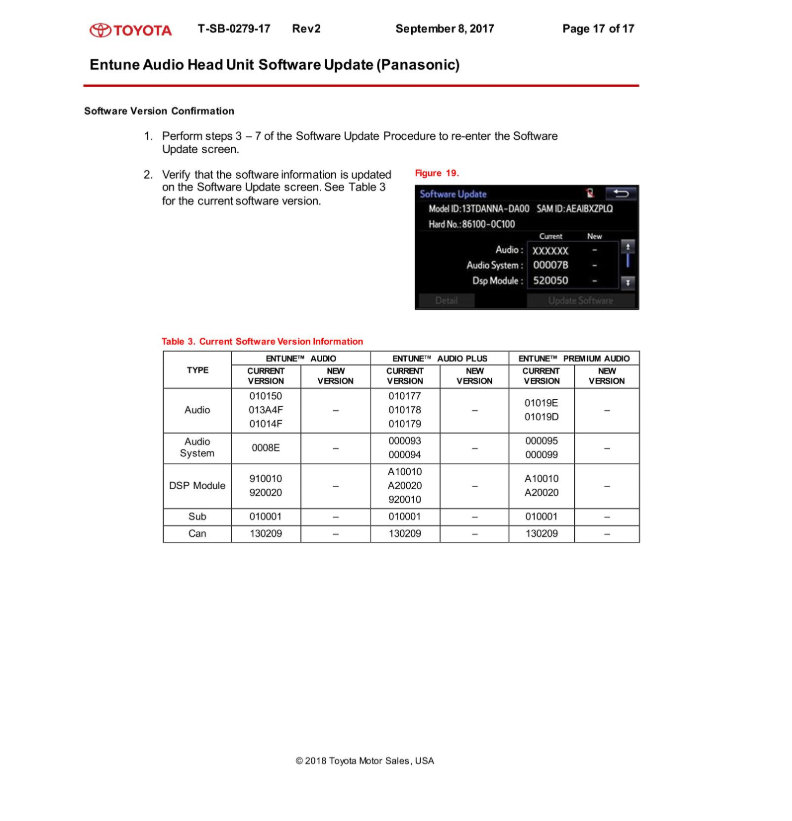

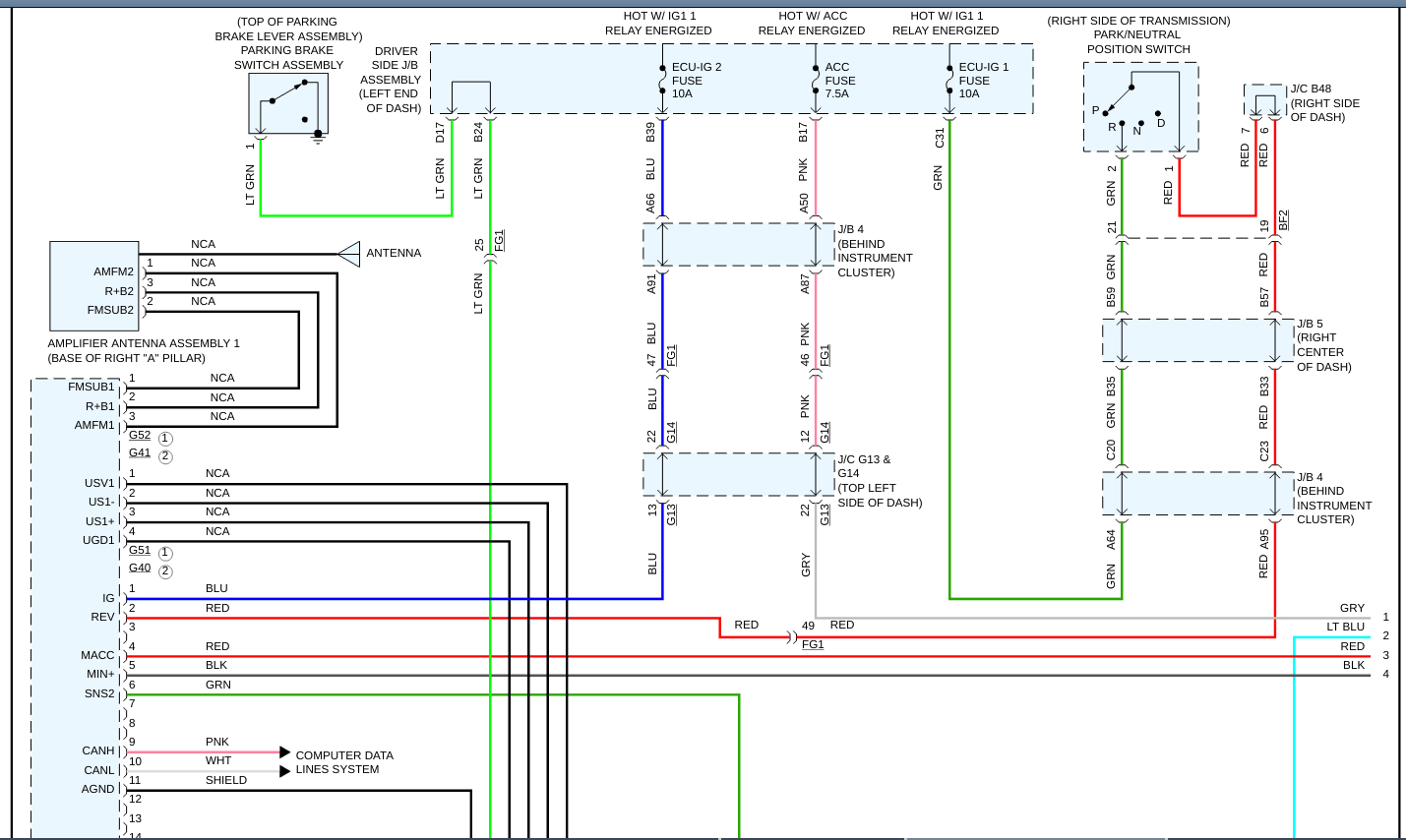

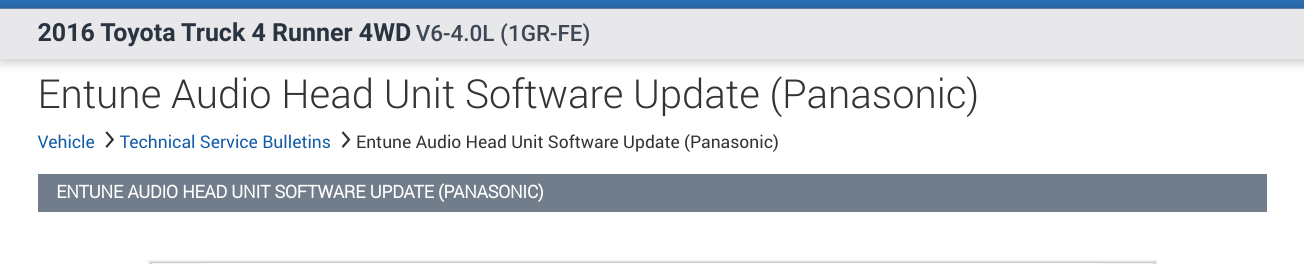

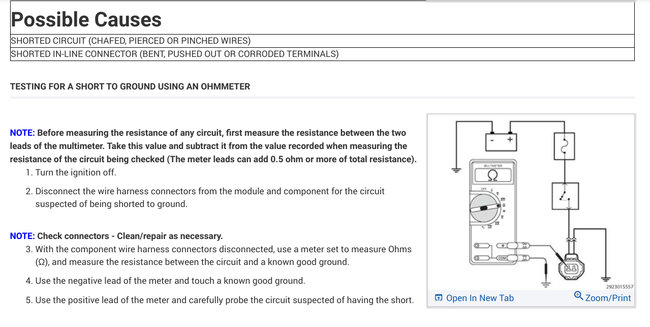

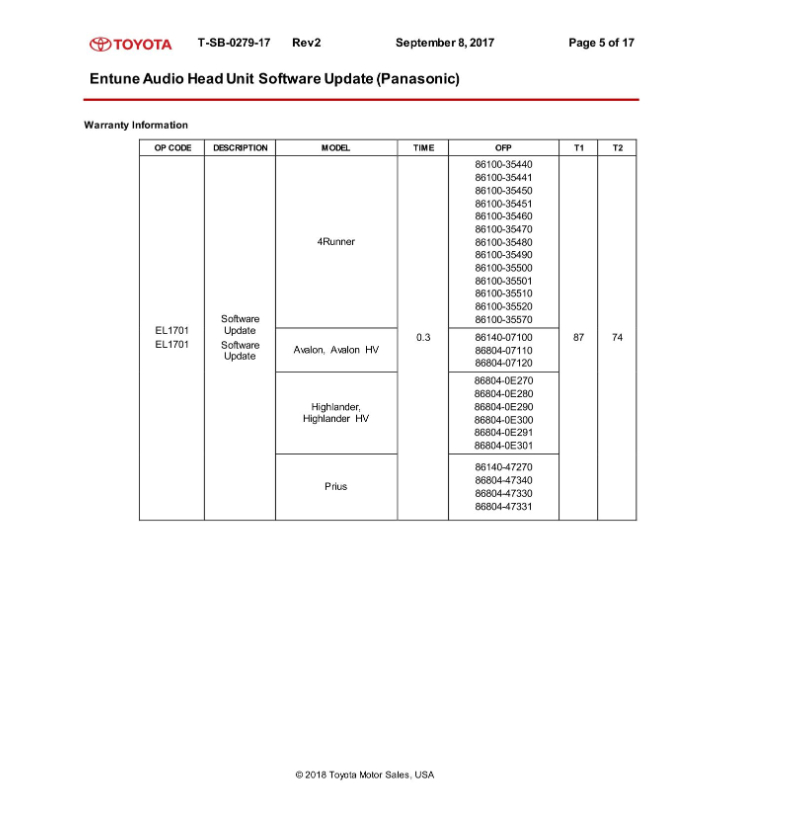

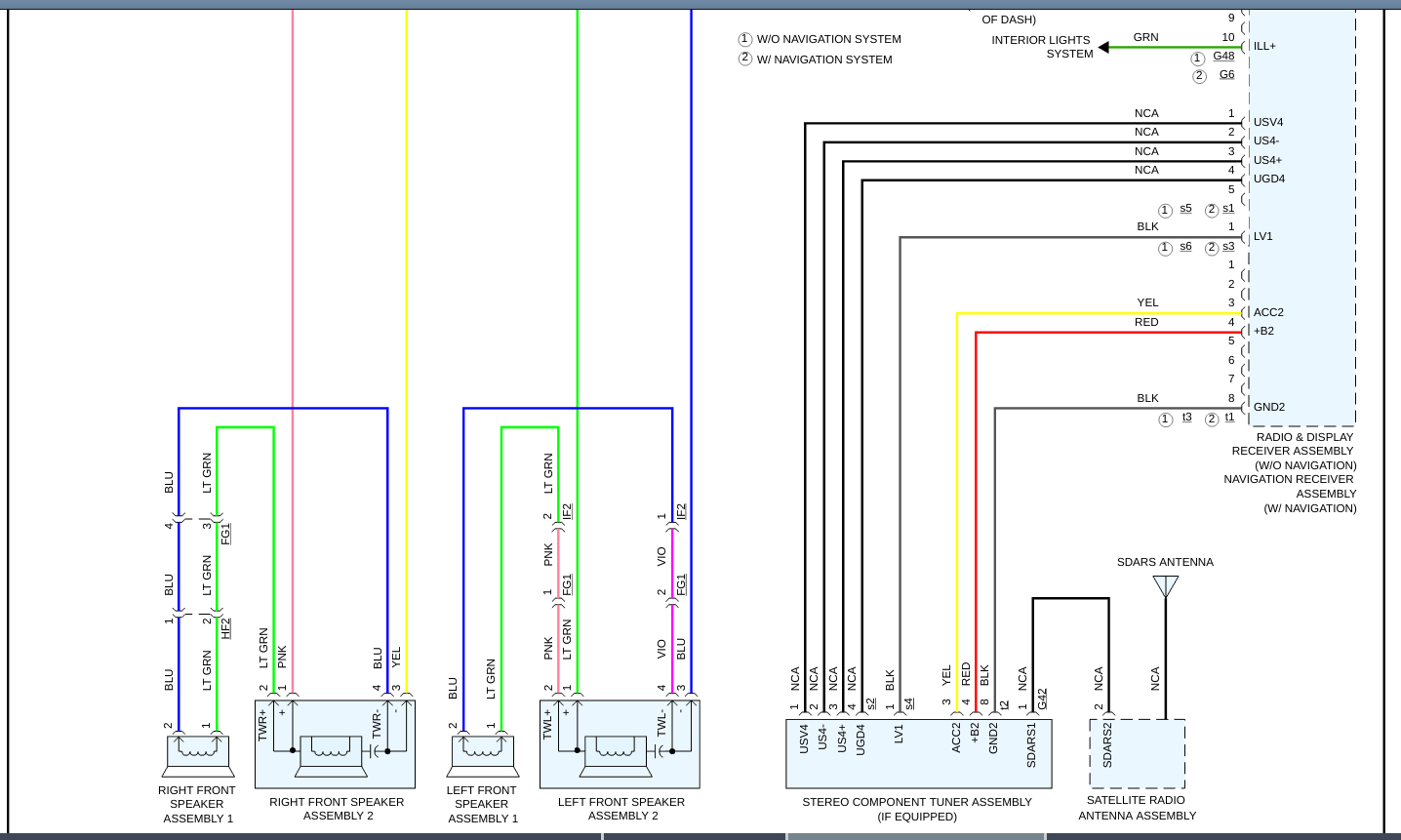

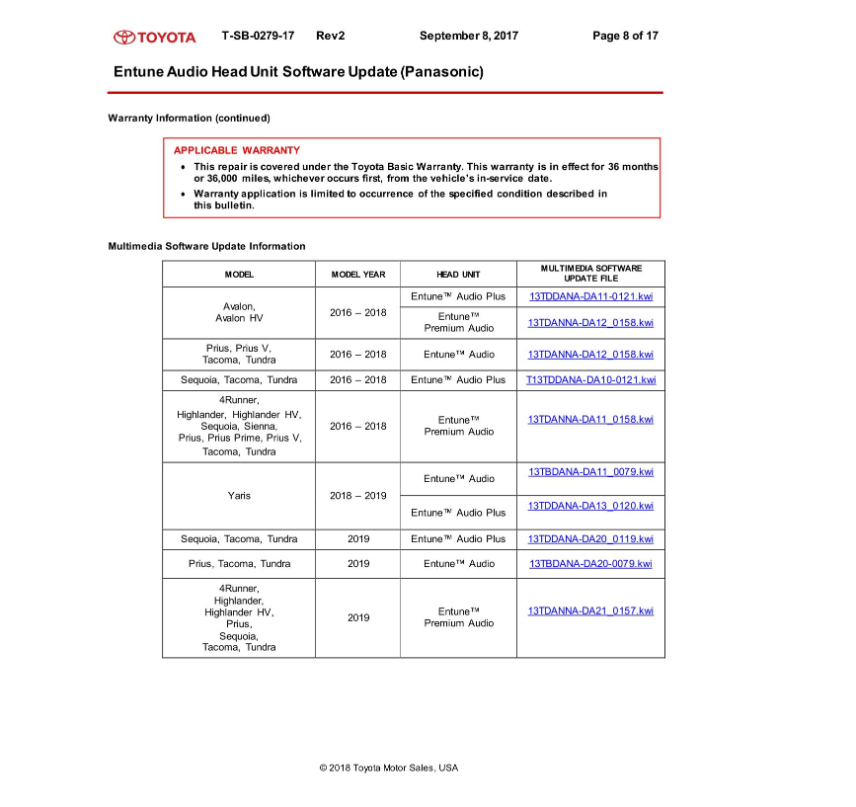

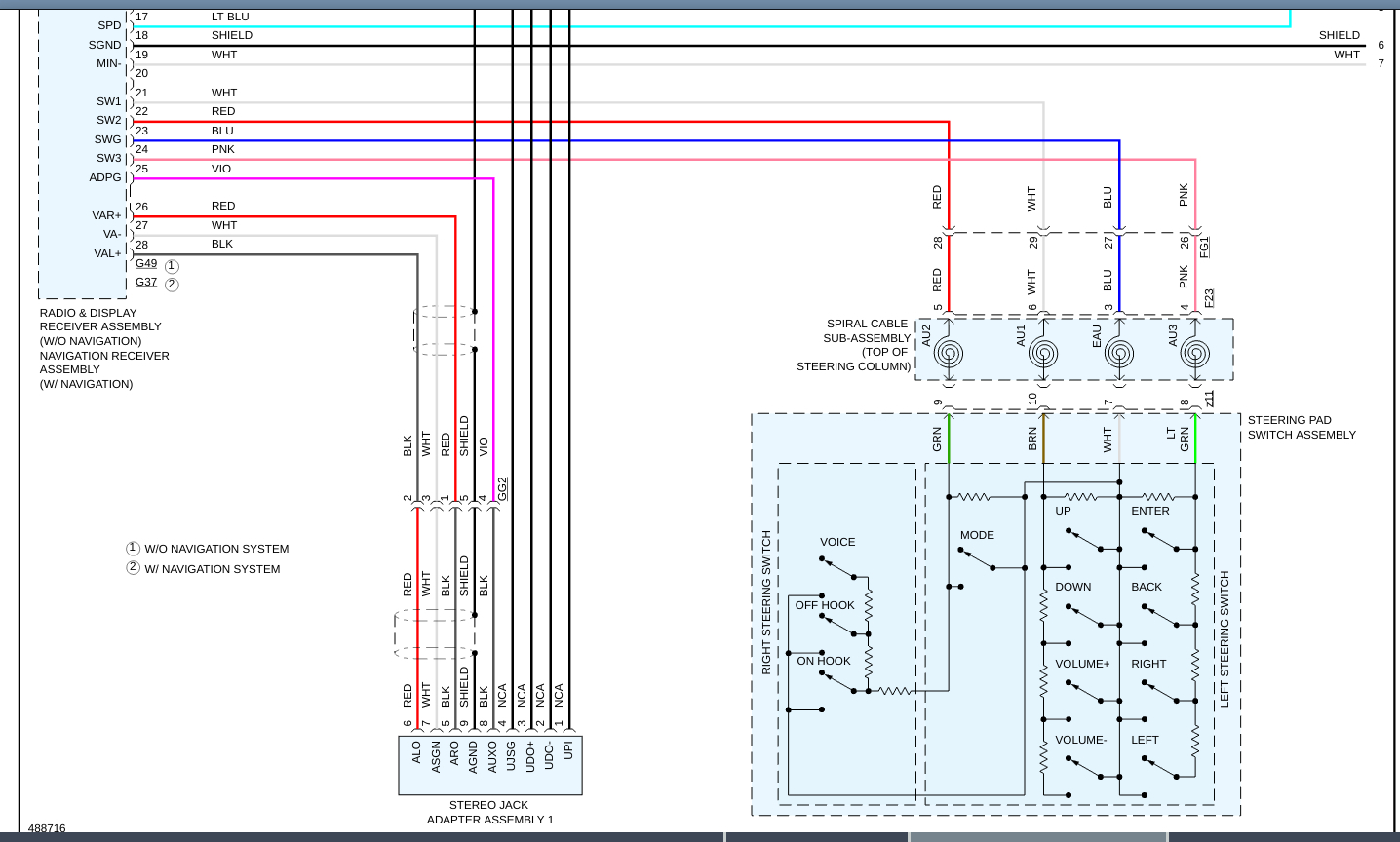

The only Technical Service Bulletin [TSB] that I could find on the stereo unit is in the diagrams down below. I have also included a wiring diagram for the stereo/amplifier for your vehicle along with guides on how to find shorts to grounds in an automotive electrical circuit. You will need to use a Digital Multi-meter [DMM], so here is a link to a guide below explaining how to use one, if needed:

https://www.2carpros.com/articles/how-to-use-a-voltmeter

Please go through these guides and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Dec 21, 2019 at 1:23 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
I do not see a 30 amp fuse in the radio system which number fuse is it and where is it located?
Dec 21, 2019 at 6:33 PM
Advertisement
Avatar
RON MATASON
  • MEMBER
  • 1 POST
Thanks. I'll review the information you sent.
Dec 30, 2019 at 3:35 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Any luck on this?
Dec 30, 2019 at 3:35 PM
