I would love to find a color-coded car stereo wiring diagram for the stock radio. I’m trying to install a new system. Thank you!
Nov 20, 2024 at 11:11 AM
Can I get a color-coded car stereo wiring diagram for the stock radio?
2016 KIA RIO
CDHILB17
- MEMBER
- 1 POST
- FOLLOW
Advertisement

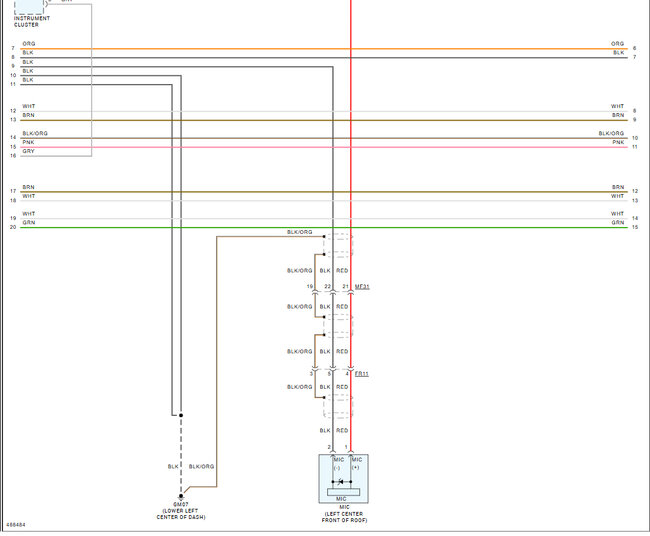

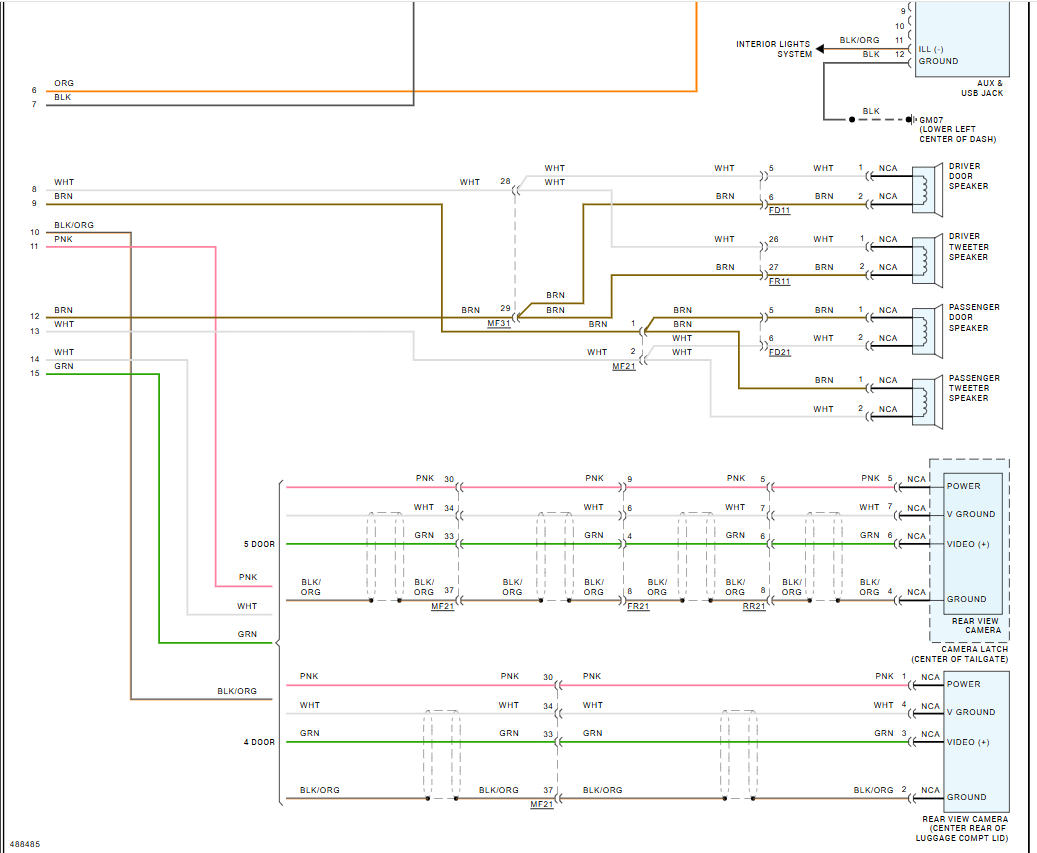

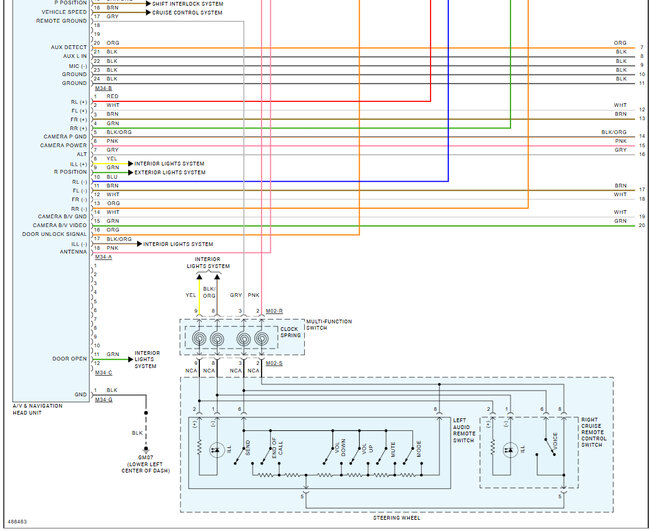

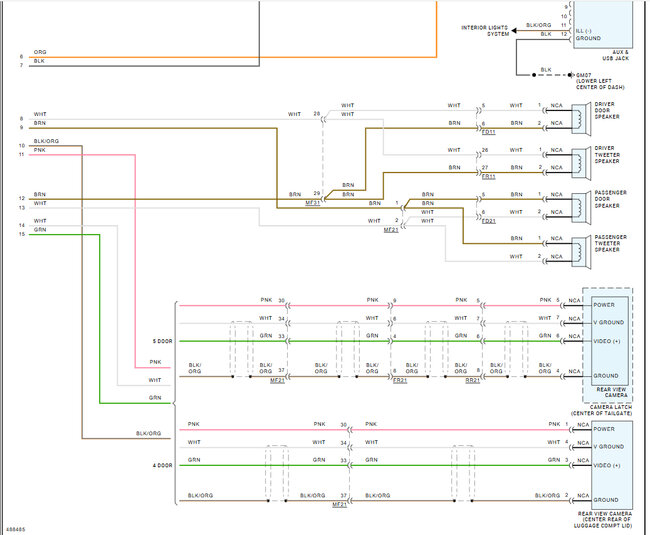

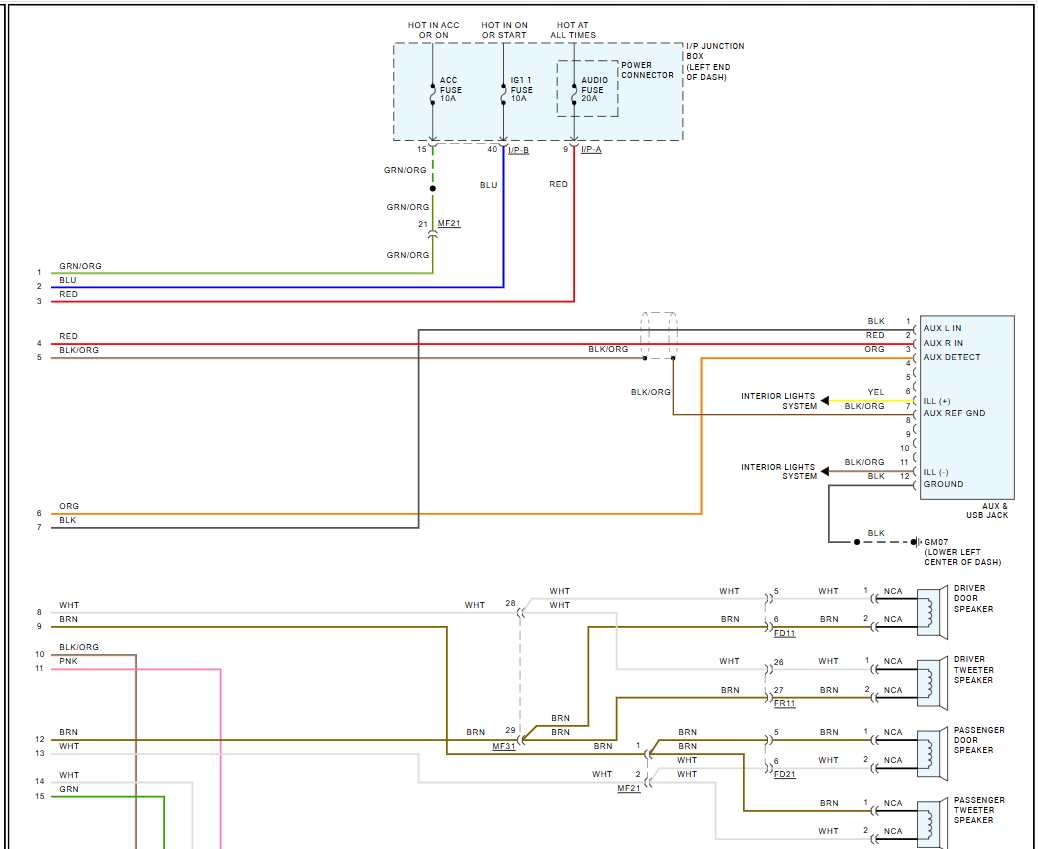

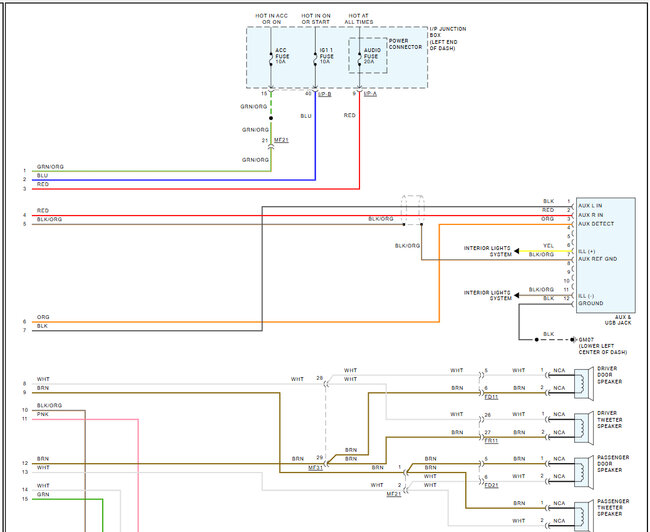

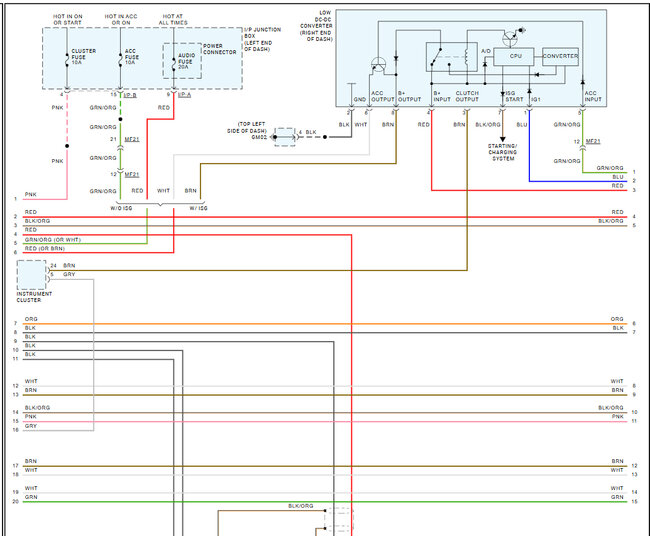

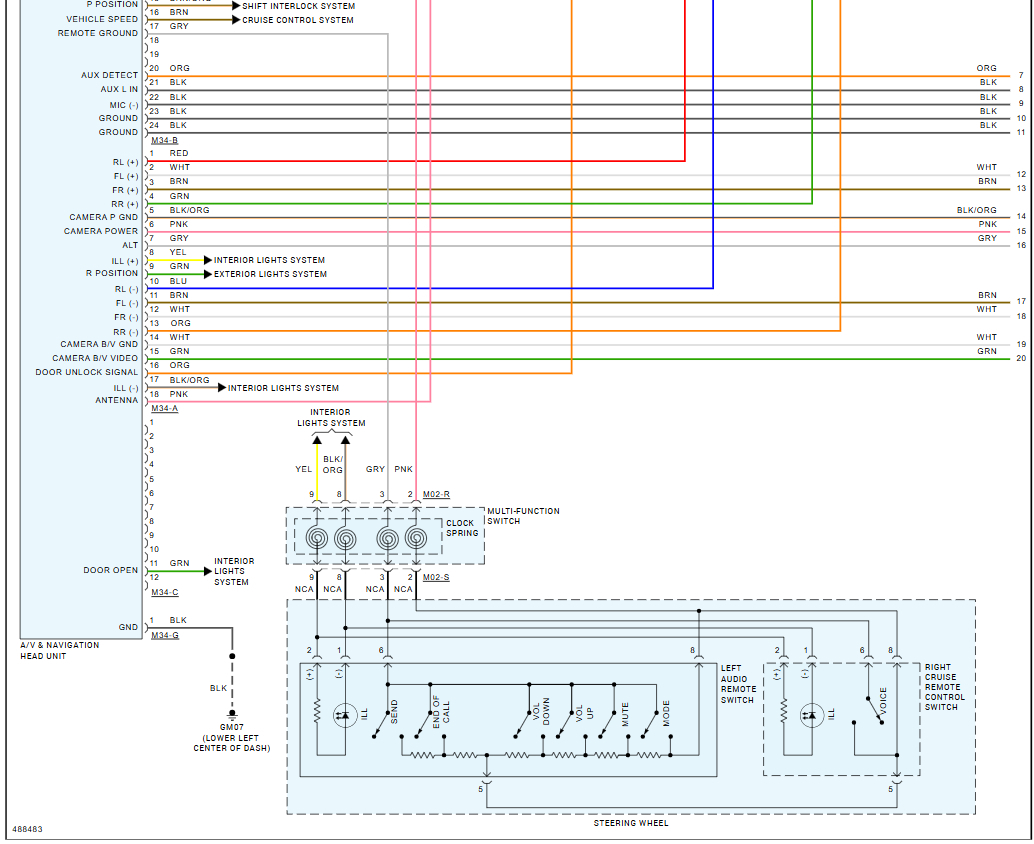

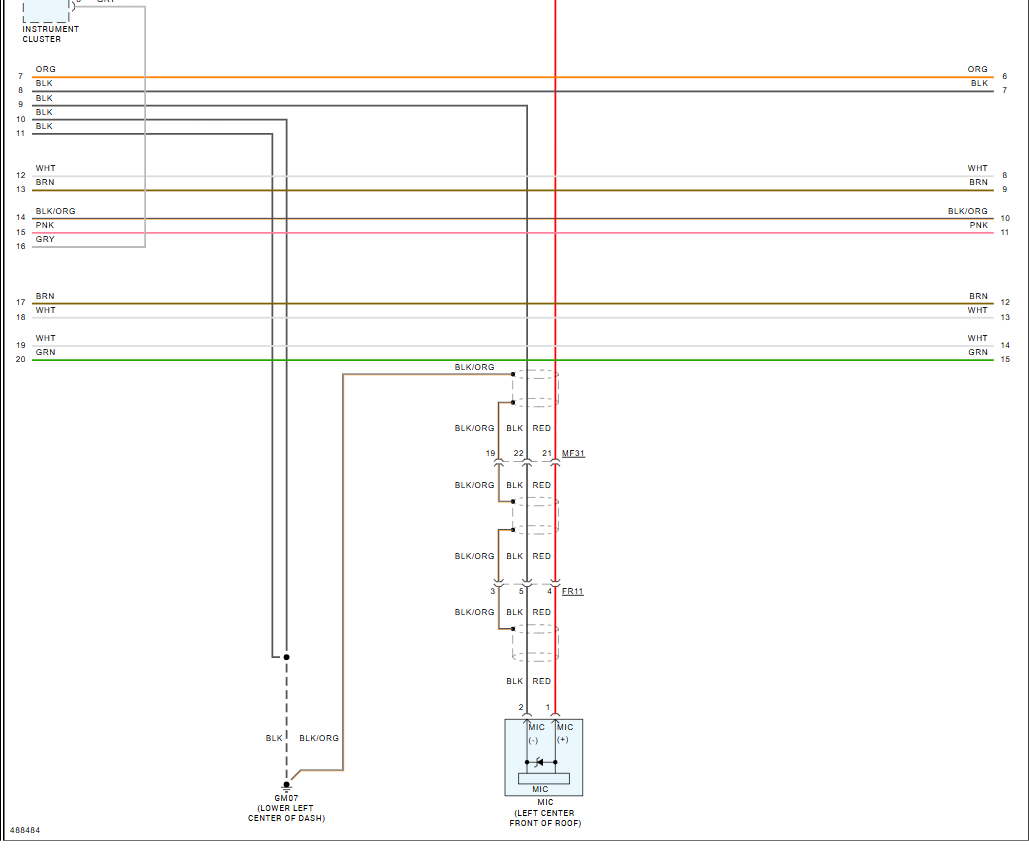

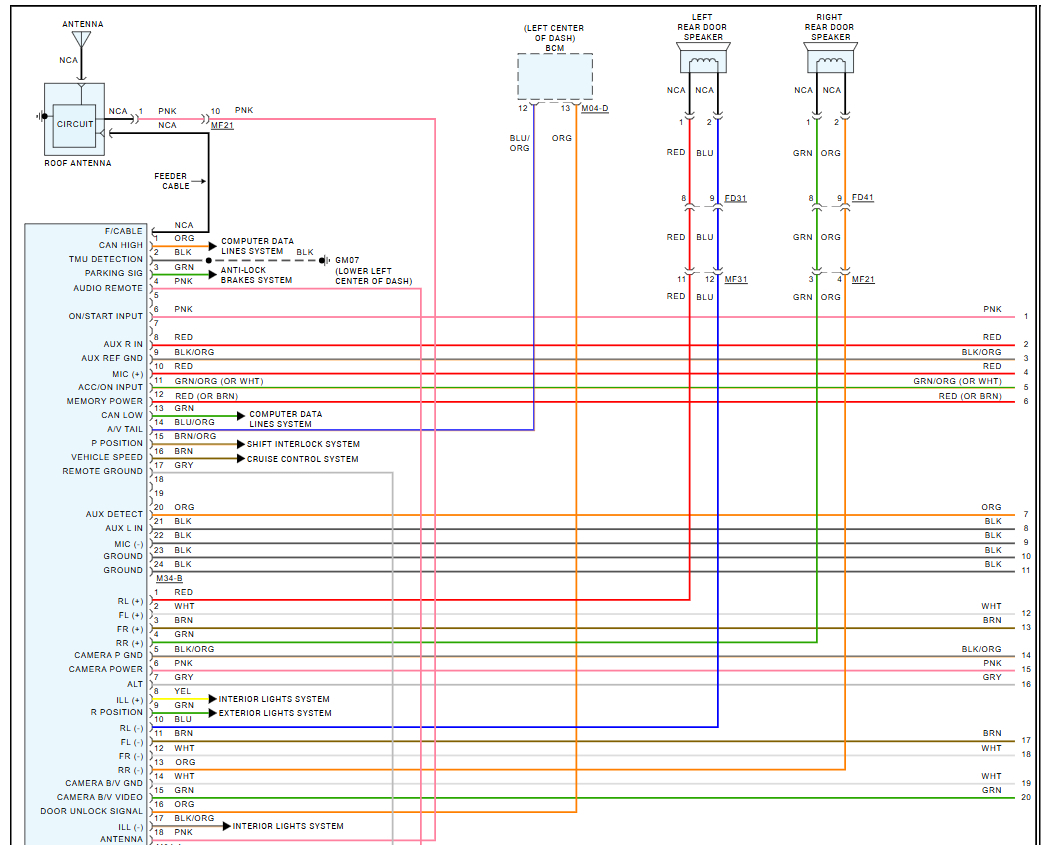

Yep, here is the radio wiring diagrams with a guide to help you check the connections as well.
https://www.2carpros.com/articles/how-to-check-wiring

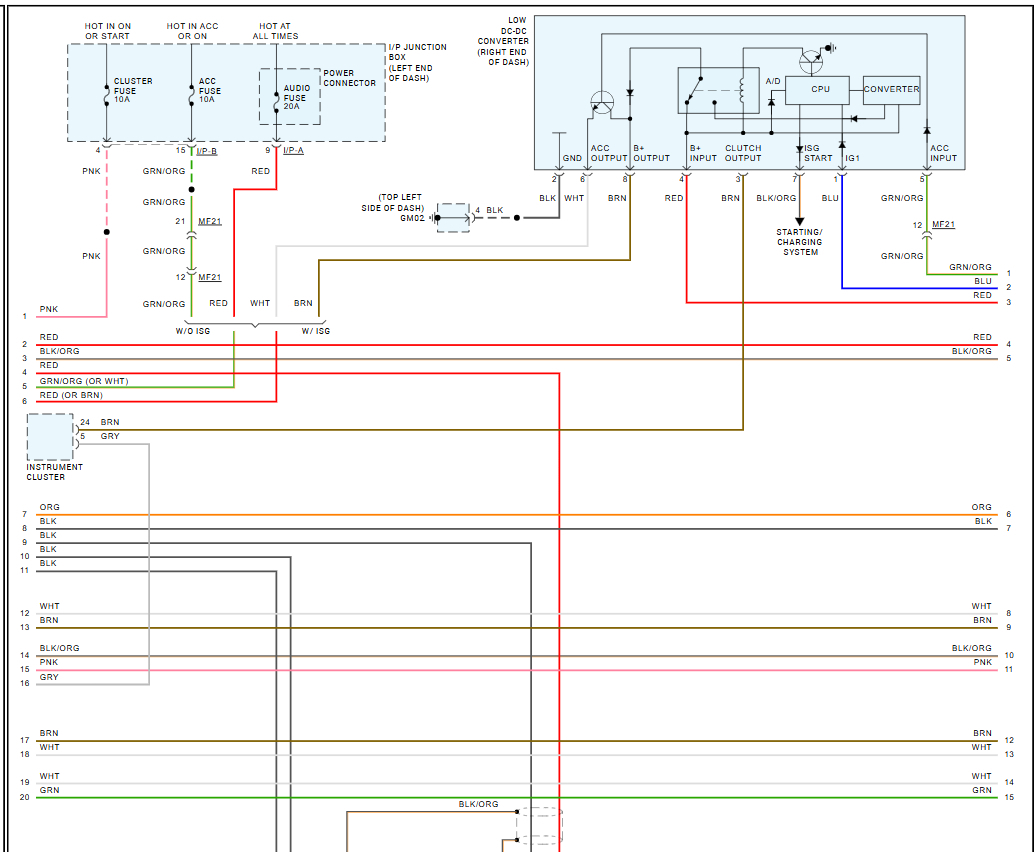

Check out the images (below). Let us know if you need anything else.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Nov 21, 2024 at 11:42 AM
