Radio Bose wiring diagram needed

2003 CHEVROLET SILVERADO

155,000 MILES • 8.1L • V8 • 4WD • AUTOMATIC

LOUD PELLETIER

MEMBER
39 POSTS
FOLLOW

I would like to have the wiring diagram of the radio with sound system Bose for the truck listed above, LT model, but without the roof, tv.

Sep 1, 2021 at 2:19 PM

STEVE W.

CERTIFIED EXPERT
15,113 POSTS

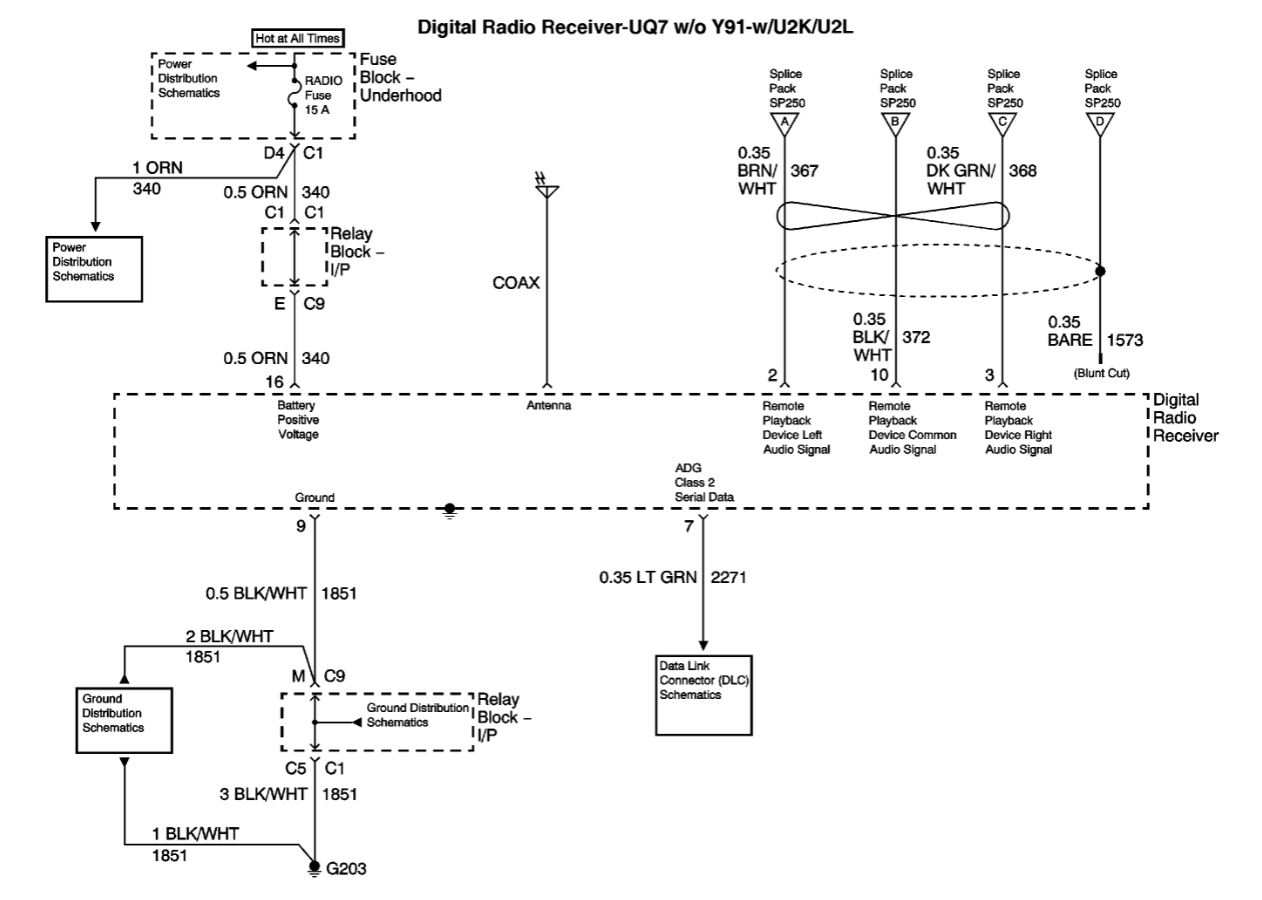

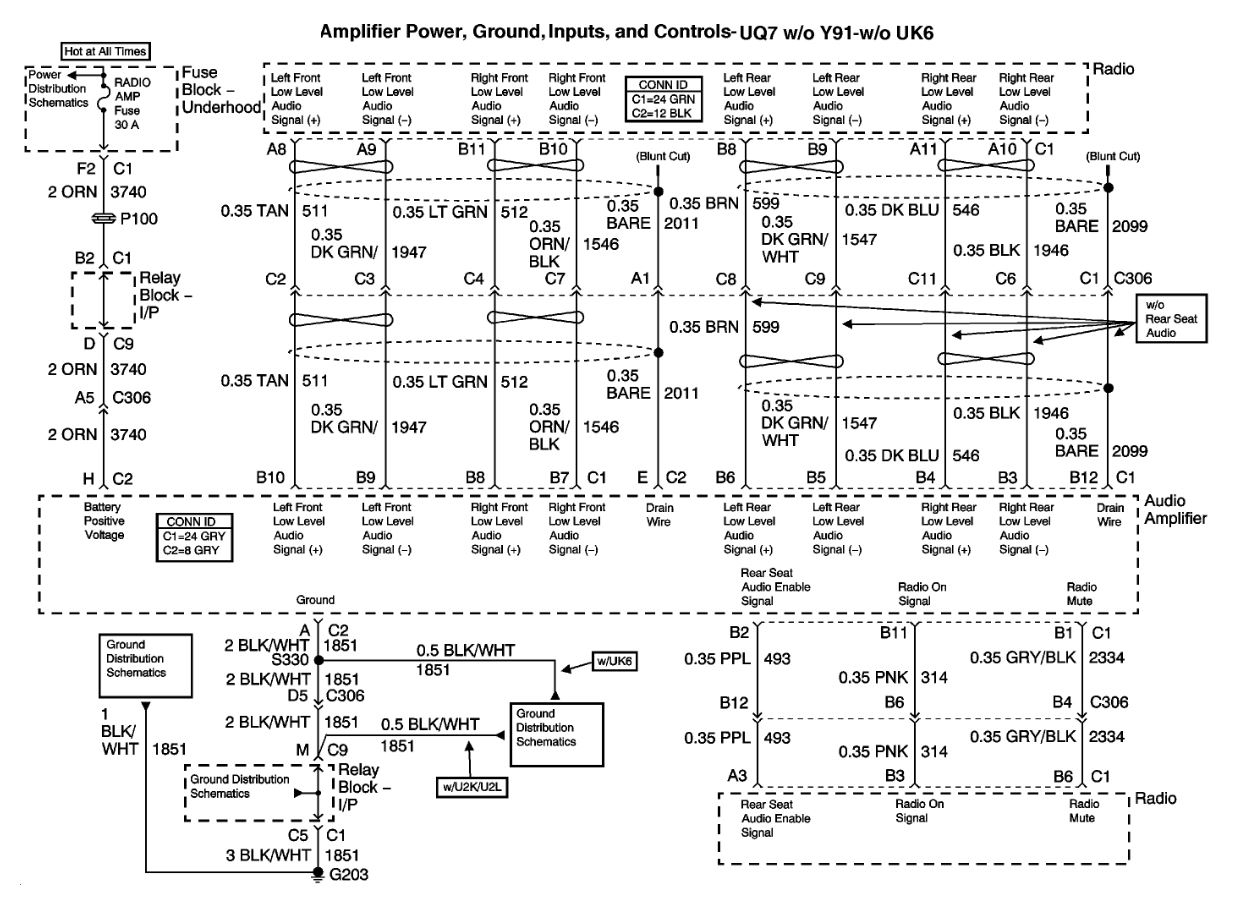

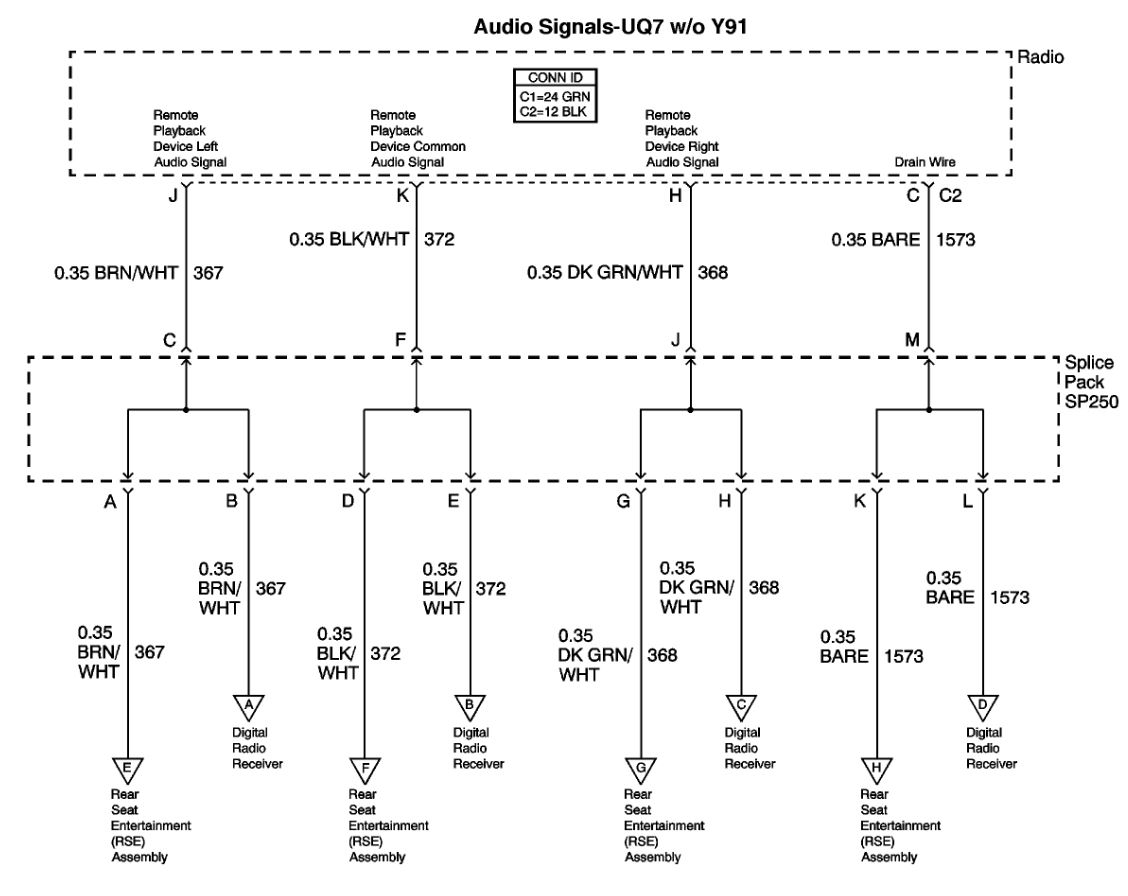

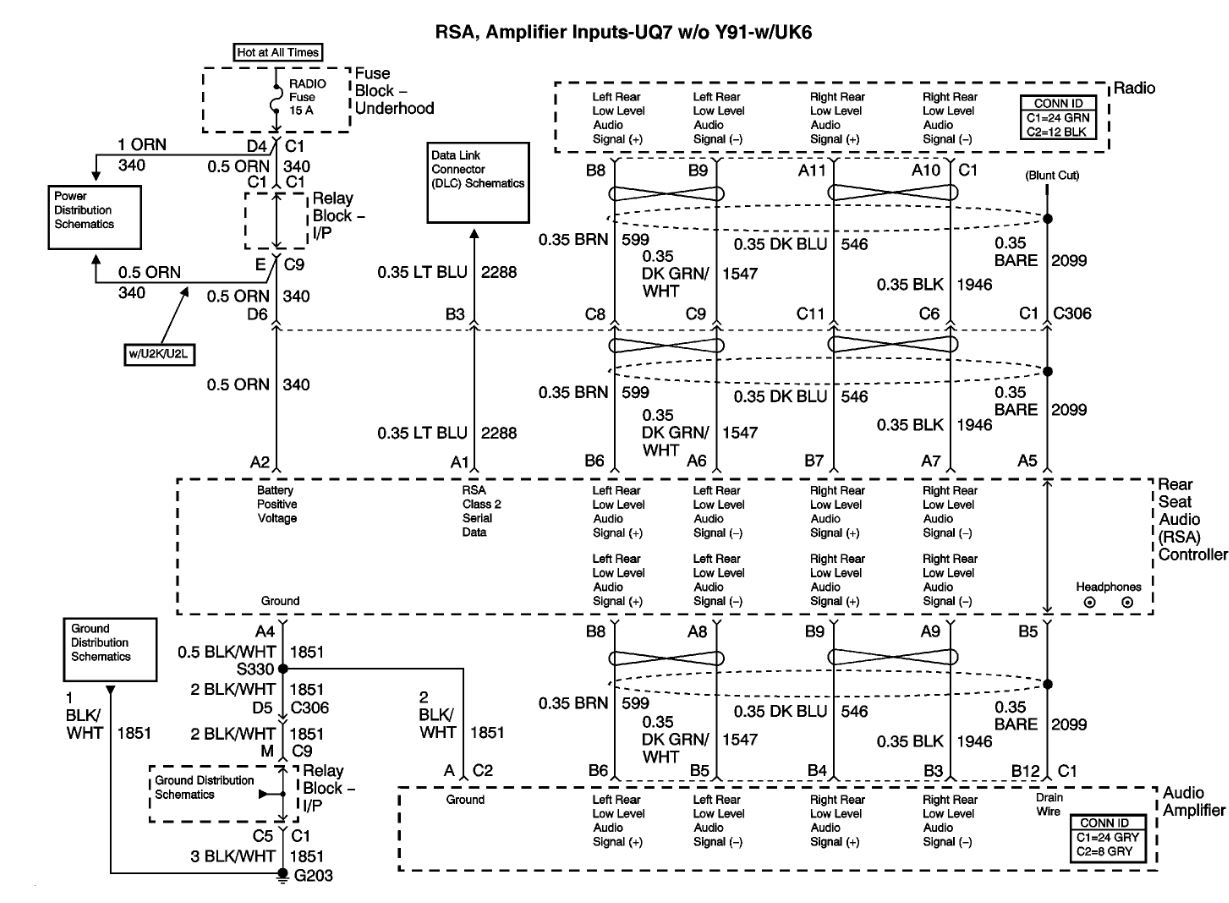

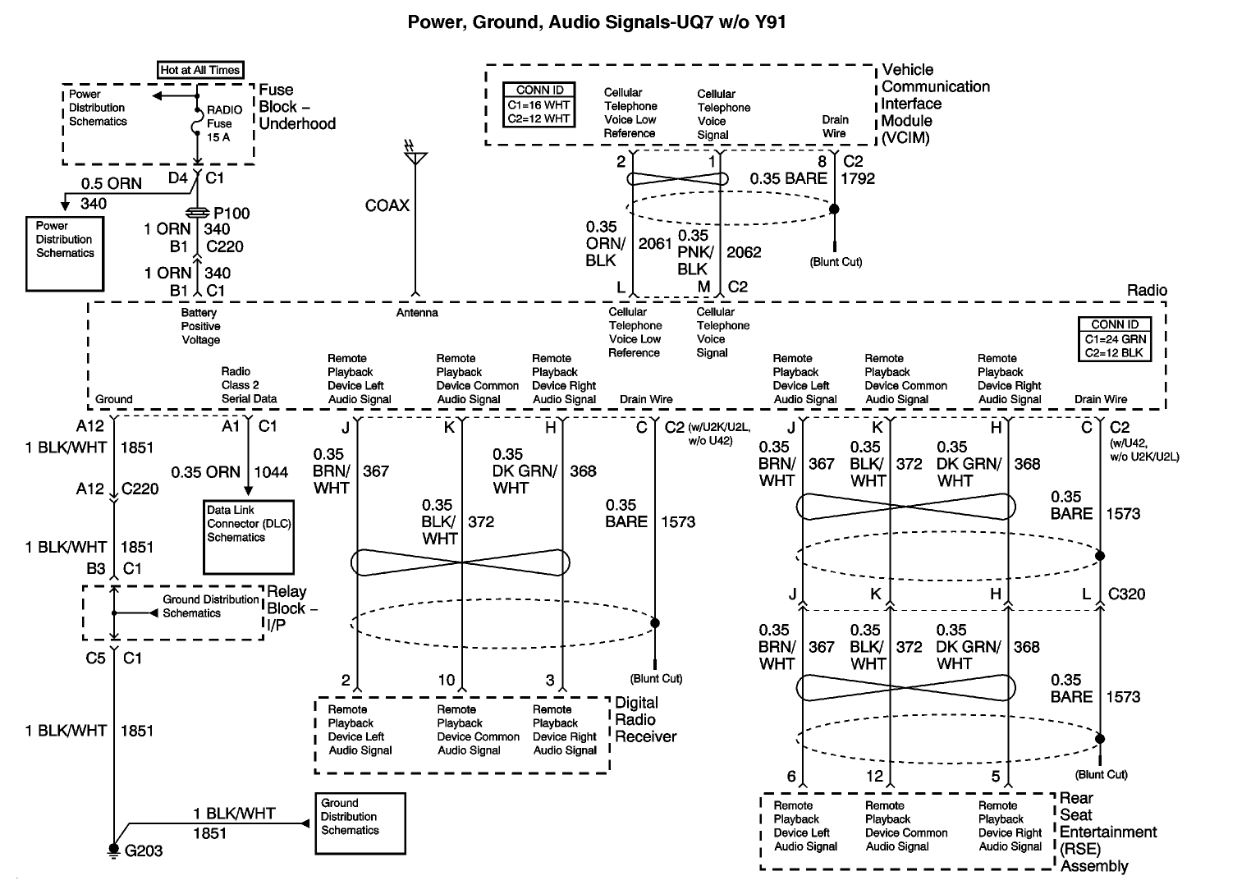

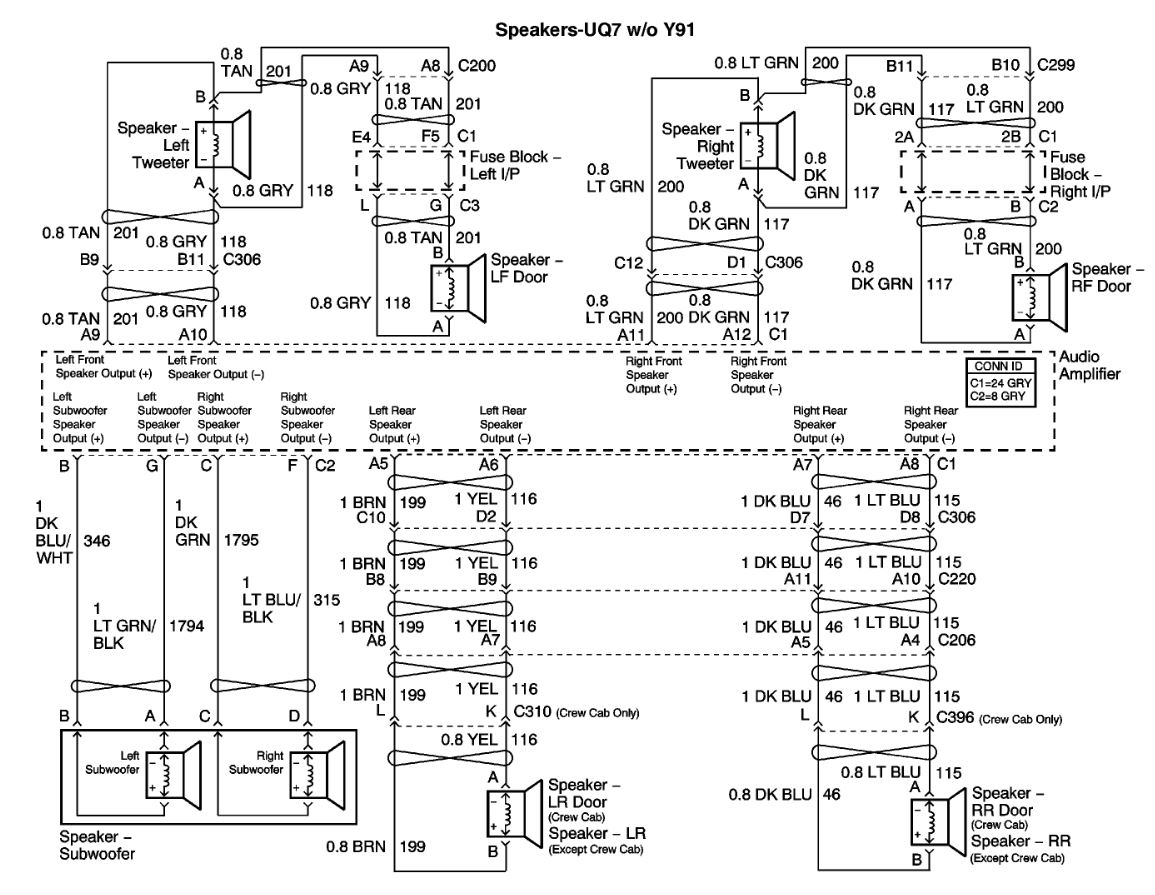

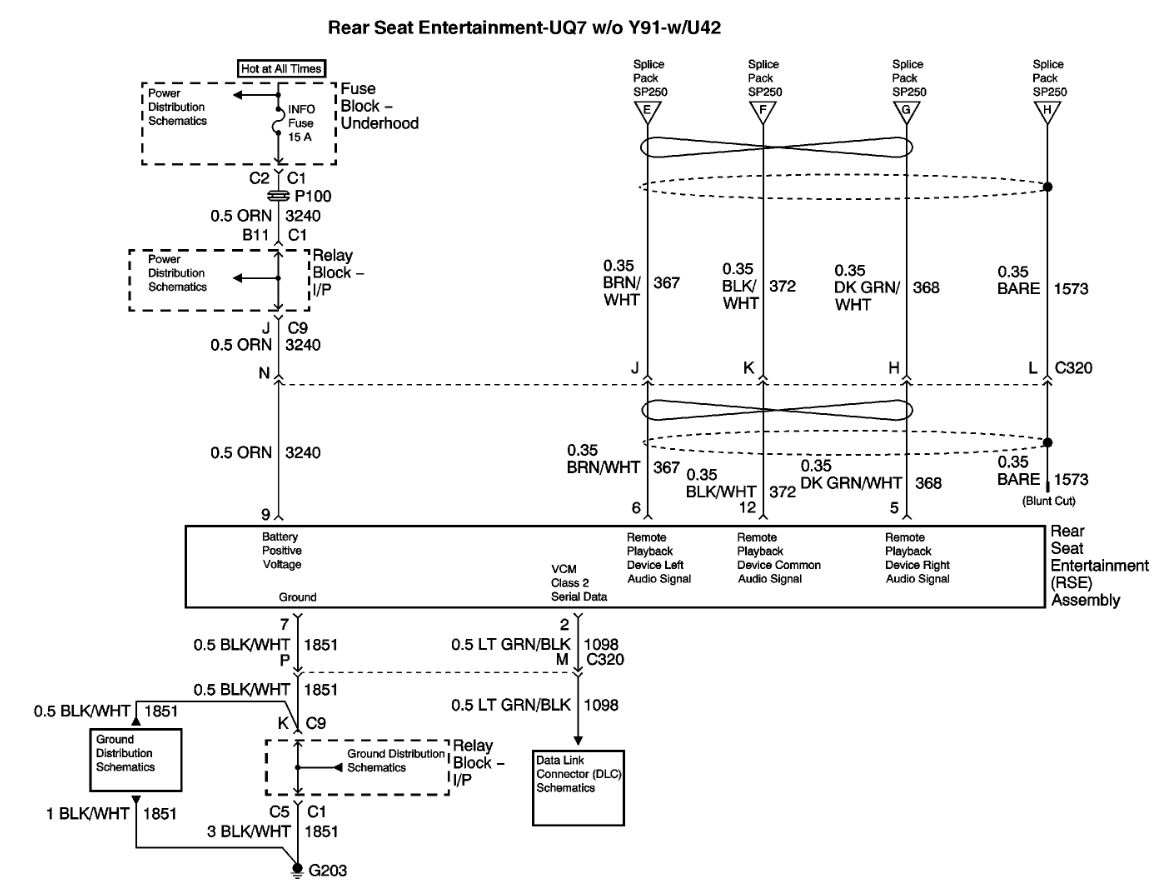

These should be the diagrams for the Bose system in that truck. It covers the audio unit, amp, speakers and the controls. What is the issue you are having with the system? The entertainment system is option U42 but the only part of that which connects to the rest are the control signals and the audio lines.

Images (Click to enlarge)

Sep 1, 2021 at 7:07 PM
