After replacing the clutch there is a bolt I do not know where it goes

2008 CHEVROLET COBALT
120,698 MILES • 2.2L • 4 CYL • 2WD • MANUAL
Avatar
AZDANNO04
  • MEMBER
  • 343 POSTS
I had asked about the locations of bolts diagram. I needed to replace the Clutch, Clutch disc, turn the Flywheel, Pressure plate, Slave cylinder, Master clutch cylinder, I had three bolts left didn't remember where they went since there's threaded holes throughout the block and transmission area. There was one particular bolt not a 10mm but same design but smaller a 7mm or 8mm and the top portion of the bolt is threaded the remaining portion is smooth.
Nov 26, 2021 at 6:18 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

That's a tough one without seeing it. Can you take a couple of pictures of it and upload it for me to see?

They sound like possible valve body bolts if they are threaded but have a smooth portion towards the top. However, this type of bolt is used in other areas as well so it is going to be tough to place it but we are going to need to see it to have a shot at it.

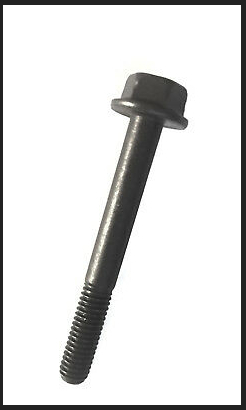

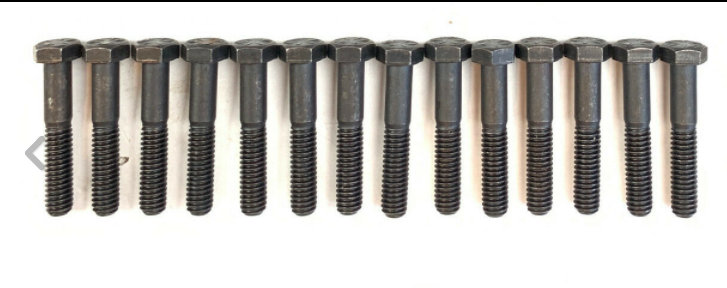

I attached the picture below of what these normally look like.

Let me know.

Joe
Images (Click to enlarge)
Attached Media
Attached Media
Nov 26, 2021 at 11:14 PM
Avatar
AZDANNO04
  • MEMBER
  • 343 POSTS
It was the opposite smooth at the bottom and threaded at the head of the bolt, but it was a smaller bolt then the ones that held the casing to get to the Flywheel etc.
Nov 28, 2021 at 3:50 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

Are you able to get a pic of it and upload it for me to see?

Let me know.

Joe
Nov 28, 2021 at 6:34 PM
Avatar
AZDANNO04
  • MEMBER
  • 343 POSTS
Will do. I just need to get the bolt and take a picture of it.
Nov 28, 2021 at 8:31 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Sounds good. I will watch for your reply.

Take care,

Joe
Nov 29, 2021 at 4:41 PM
