Power steering lines?

2007 KIA RIO
140,000 MILES • 1.6L • 4 CYL • 2WD • AUTOMATIC
Avatar
AGL
  • MEMBER
  • 3 POSTS
I have a massive leak somewhere. Reservoir won't hold oil. No leaks around the pump and no noise from the pump when empty. Not sure how the lines run under the car but would appreciate a few tips and a diagram where the connections are and how they are placed in the vehicle. Also removal and installation. Thanks
Aug 25, 2025 at 5:59 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

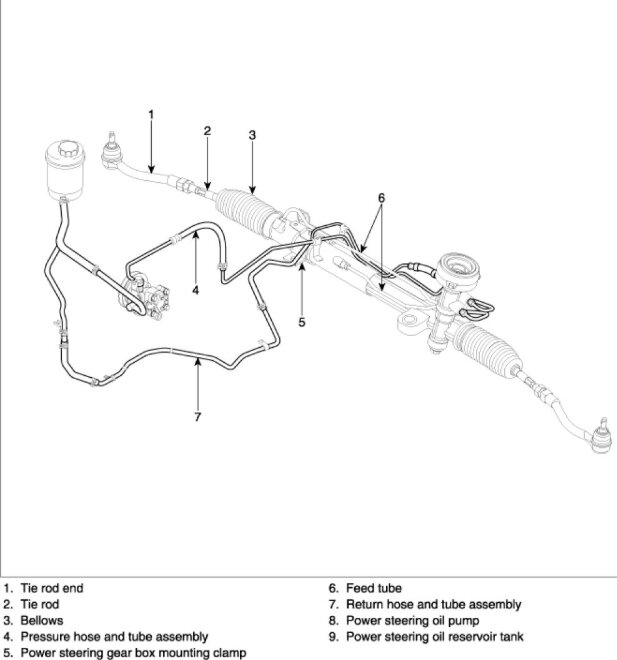

Usually it will be the high pressure line that leaks like this, here is a diagram of the lines and how they go under the car. Check out the images (below). Please upload pictures or videos in your response.
Image (Click to enlarge)
Attached Media
Aug 25, 2025 at 9:53 AM
Avatar
AGL
  • MEMBER
  • 3 POSTS
Thank you. So, the return line goes under the radiator ? And the high pressure goes directly from pump down behind the engine toward firewall ? Thanks
Aug 25, 2025 at 10:02 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
That is correct, the high pressure hose has factory press clamps that cannot be removed.
Aug 25, 2025 at 1:08 PM
Avatar
AGL
  • MEMBER
  • 3 POSTS
Thank you so much. I'm going to run some up dye thru to see if I can pin point it. Will I be able to get it off if I remove both tires ? I have good jack stands and a good 3 ton craftsman jack. Thanks
Aug 25, 2025 at 2:25 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Yep, you should be able to remove the line.

here is a guide to help with the jack and stands:

https://www.2carpros.com/articles/jack-up-and-lift-your-car-safely

Please go over this guide and get back to us.
Aug 25, 2025 at 5:59 PM
