Air Conditioning problem
1995 Plymouth Voyager 4 cyl Front Wheel Drive Automatic

the van doesnt have any belt diagrams and the ac belt is gone ive purchased a new belt not realy sure how the new one goes on. any advice would be greatly appriciated.
May 26, 2010 at 12:34 PM
Advertisement
Avatar
INTERNETMECHANIC
  • CERTIFIED EXPERT
  • 700 POSTS

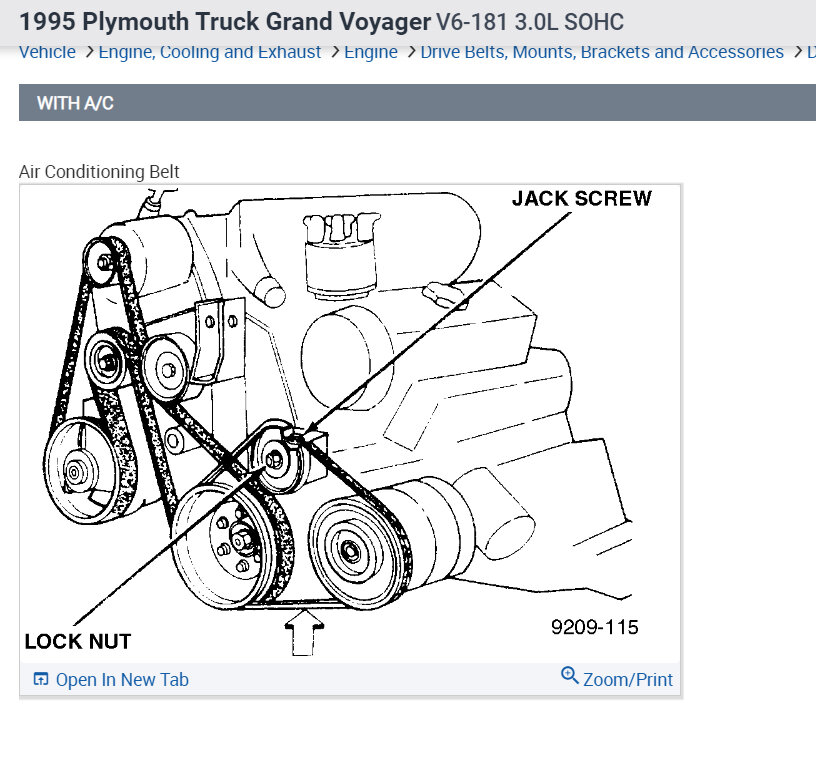

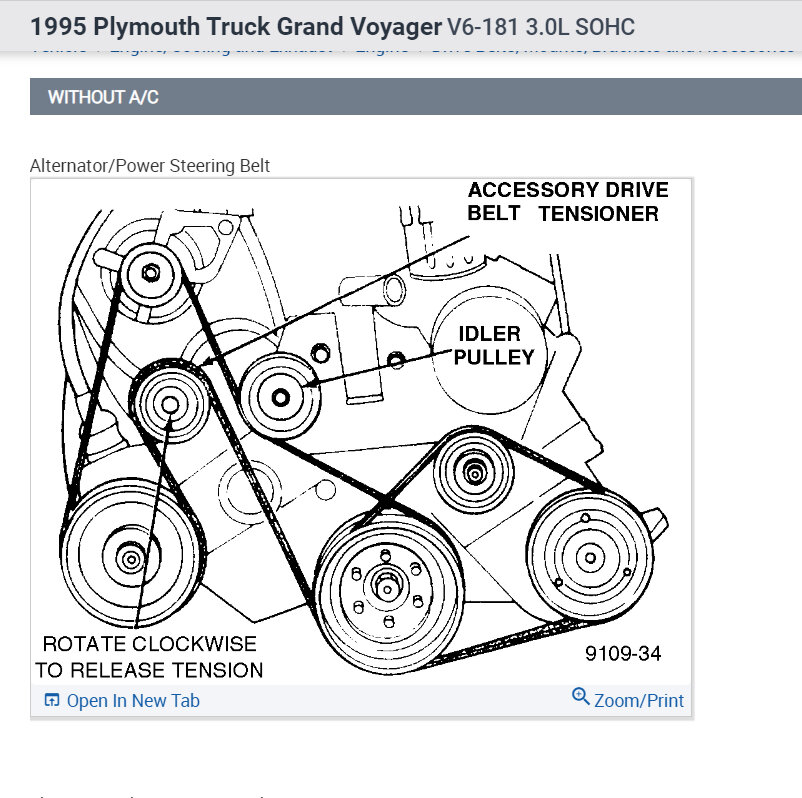

I found this belt routing diagram. Note the engine litre size. If the diagram doesn't match your vehicle, ignore.


https://www.2carpros.com/forum/automotive_pictures/512072_voyager_belt_routing_1.jpg

Check the v6 belt diagrams below
