power lock switches don't work

1994 PLYMOUTH VOYAGER
Avatar
BOOSH
  • MEMBER
  • 1 POST
Electrical problem 6 cyl Front Wheel Drive Automatic 45000 miles

I just bought this car with 45000 mi. There are several electrical issues that I can't help but think are related. The power lock switches don't work (driver or passenger side), stereo doesn't work, interior lighting doesn't work, small bulb under hood doesn't work, and elec. mirror adjustment doesn't work. All fuses check out fine. I took the mirror adjustment switches off to find burnt connections and wires, however all other switches and wiring look fine. Can you help me?
Jul 6, 2009 at 11:56 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hey BOOSH,

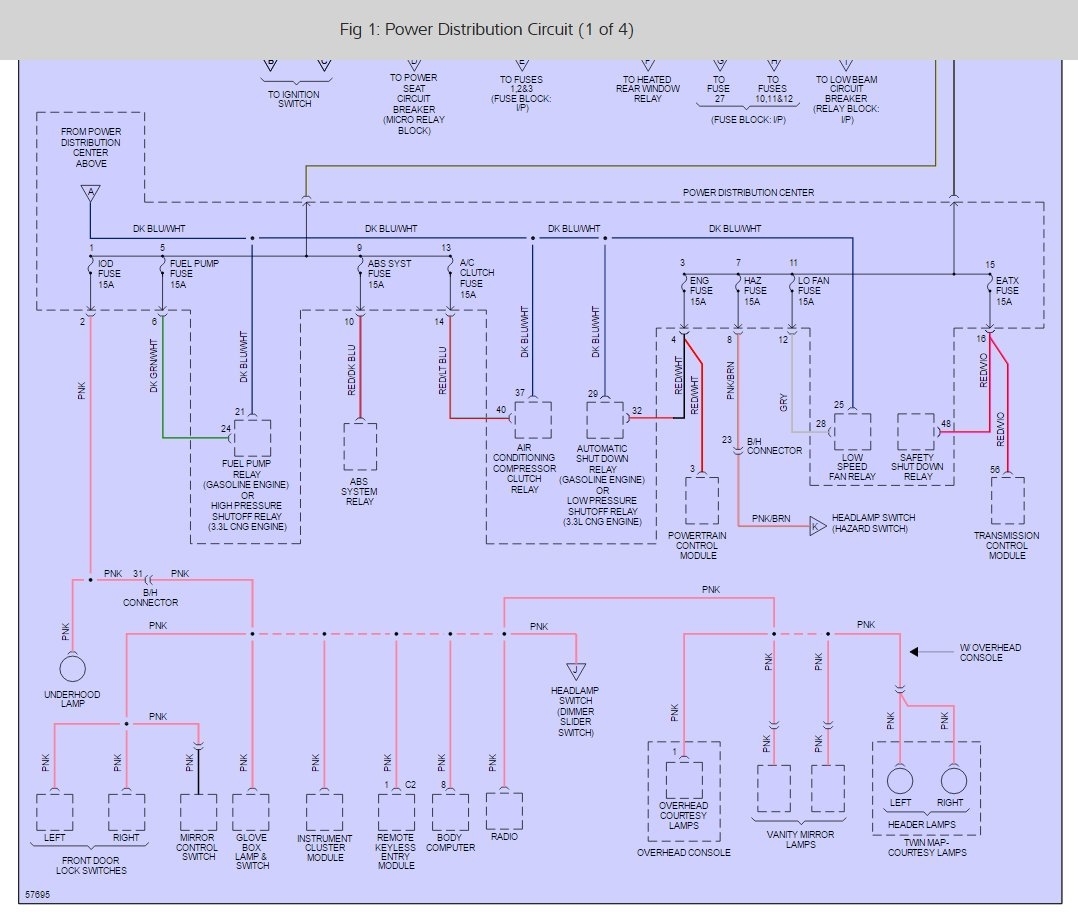

I think you missed a fuse as you can tell by this wiring diagram it is the IOD 15 amp fuse int he under hood fuse panel. Use a test light to see if it has power.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Please run some tests and get back to us so we can continue helping you.

Best, Ken

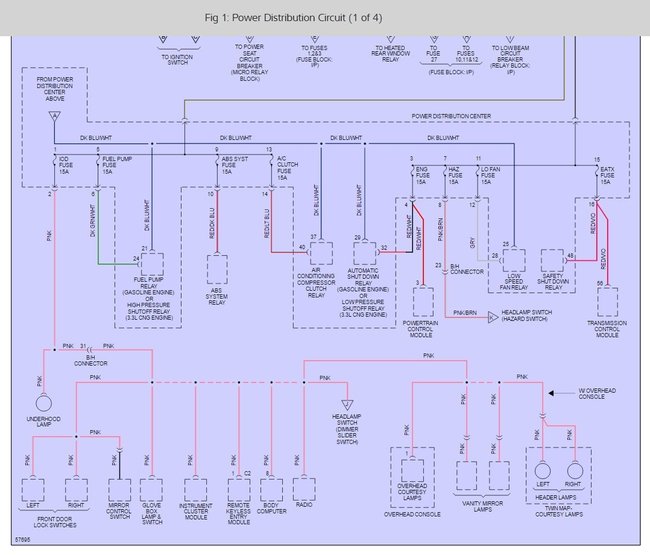

Image (Click to enlarge)
Attached Media
Feb 24, 2017 at 4:09 PM
Avatar
DOBOY55555
  • MEMBER
  • 3 POSTS
Electrical problem
1993 Plymouth Voyager 6 cyl Front Wheel Drive Automatic 240000 miles

fuses are all good but the radio ,interior light and door lock button does not work. have power for map light using tester but light does not work (light bulb is good). are these all connected in the electrical bundle behind the radio? could I have a broken wire or a ground short? All were working then went out and then came back on. All are not working again. cant find a good skematioc only the one in back or Haynes book.
Feb 24, 2017 at 4:09 PM (Merged)
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi:
Yes it sounds like a ground problem. If you go to the local plymouth dealer, they should be able to show you a schematic of the grounds for those items.
Feb 24, 2017 at 4:09 PM (Merged)
