PCM pinout

2001 MERCURY SABLE
168,000 MILES • 3.0L • 6 CYL • 2WD • AUTOMATIC
Avatar
REDNOSEDSAVAGE13
  • MEMBER
  • 3 POSTS
Hi, i just need the exact pinout of the PCM for my car. My car is the GS, it is the Vulcan with the ax4s transmission. Is it possible to get that harness diagram also that would be incredibly helpful? Thank you for your time.
Jul 1, 2019 at 9:27 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

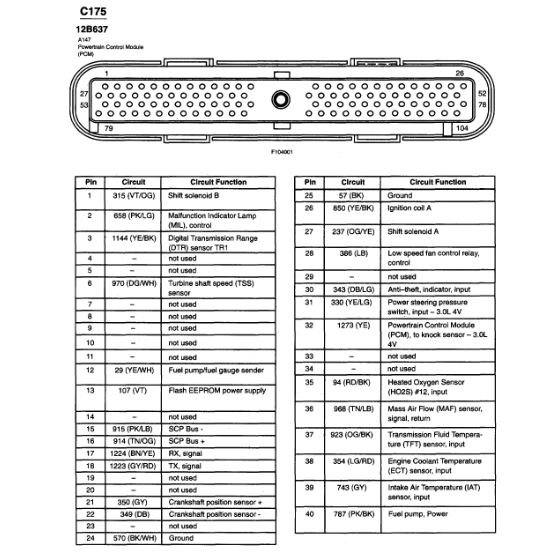

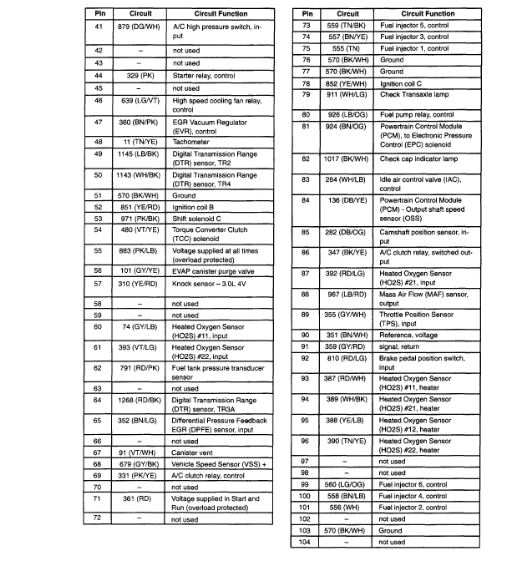

I attached the pin out for the engine control module.

All the pins are marked and there function.

As far as the routing, there is no diagram for the harness routing.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Jul 2, 2019 at 3:07 AM
Avatar
REDNOSEDSAVAGE13
  • MEMBER
  • 3 POSTS
Thank you, that is much appreciated. I don't need routing necessarily, just the circuits and how they're distributed.
Jul 2, 2019 at 3:28 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

The pin out will tell you the controls.

Roy
Jul 2, 2019 at 4:58 AM
Avatar
REDNOSEDSAVAGE13
  • MEMBER
  • 3 POSTS
Okay. What wires are shared with what plug?
Jul 2, 2019 at 7:45 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
As you can see there are over 100 wires.

What plugs? what wires?

Roy
Jul 2, 2019 at 7:47 AM
