Good morning,

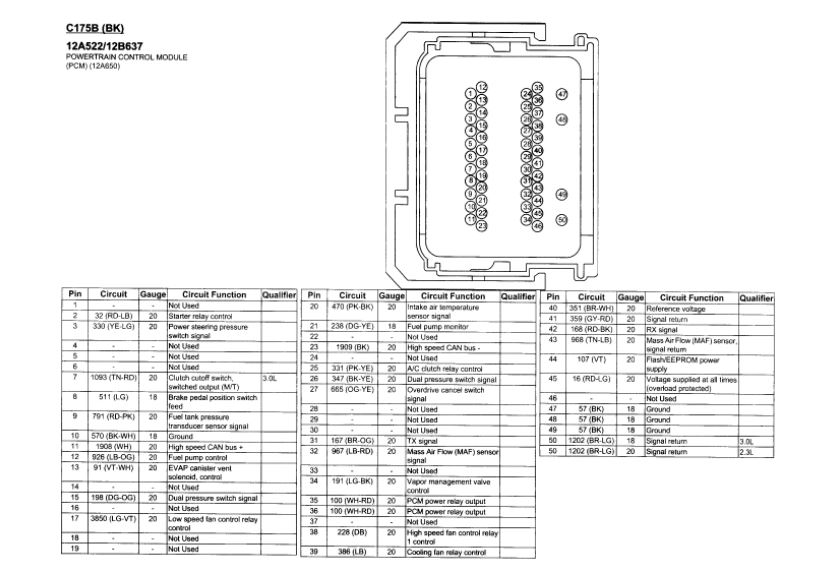

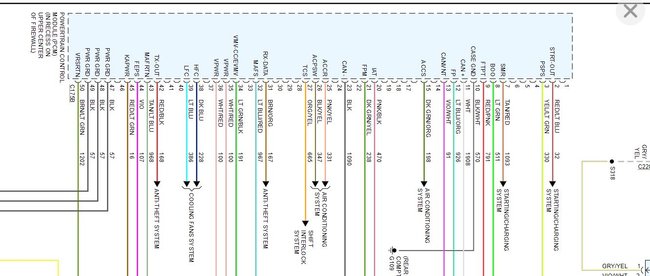

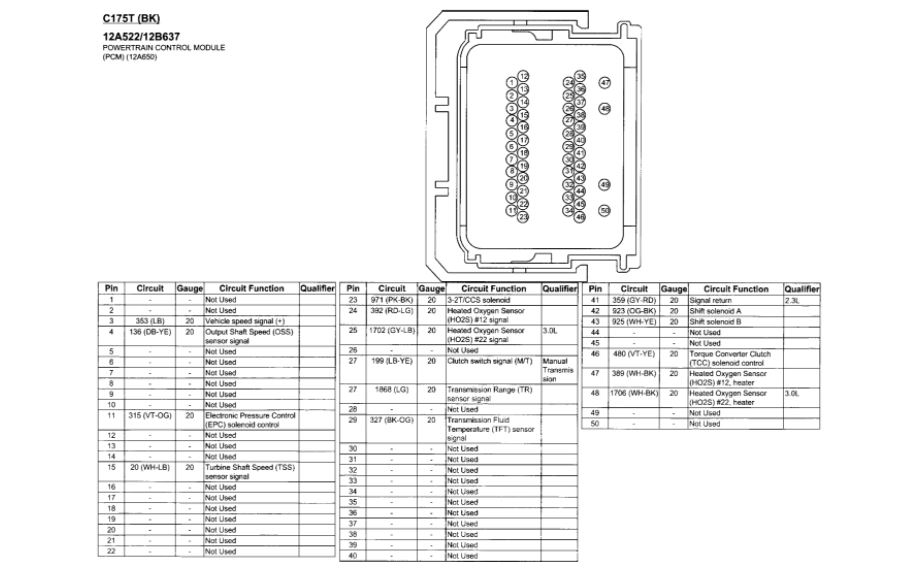

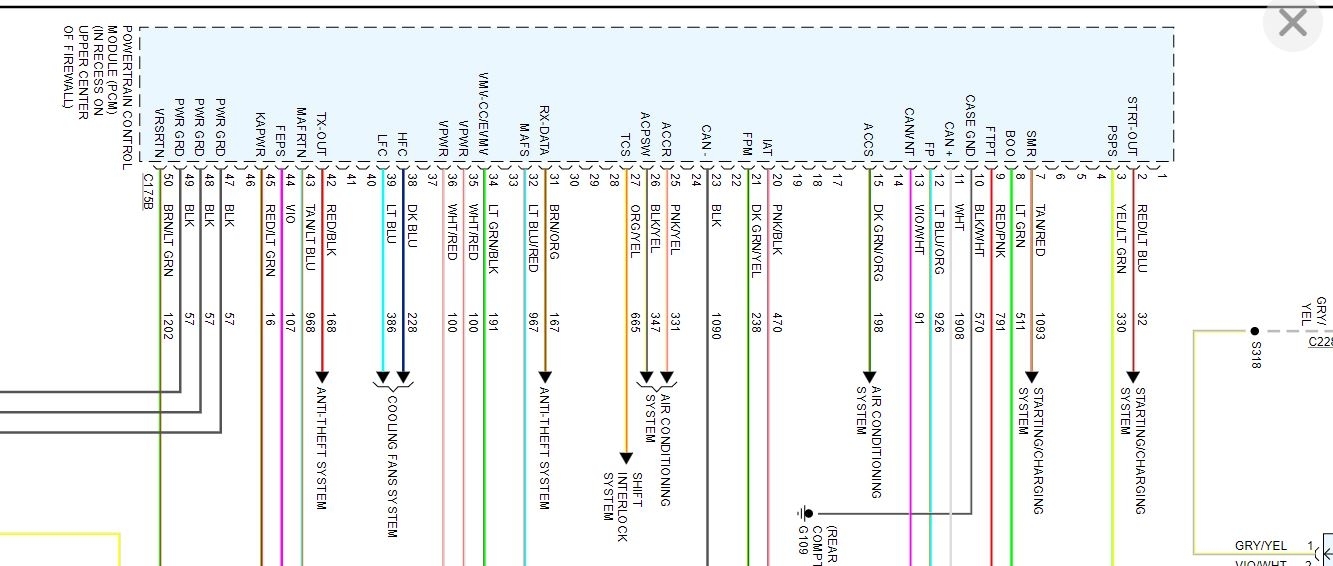

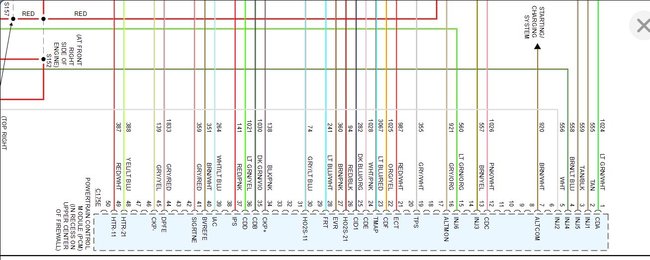

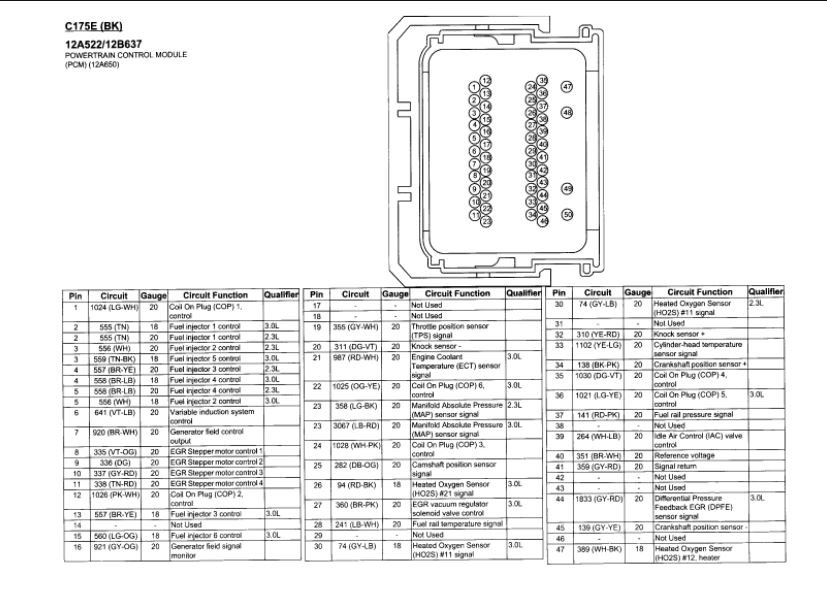

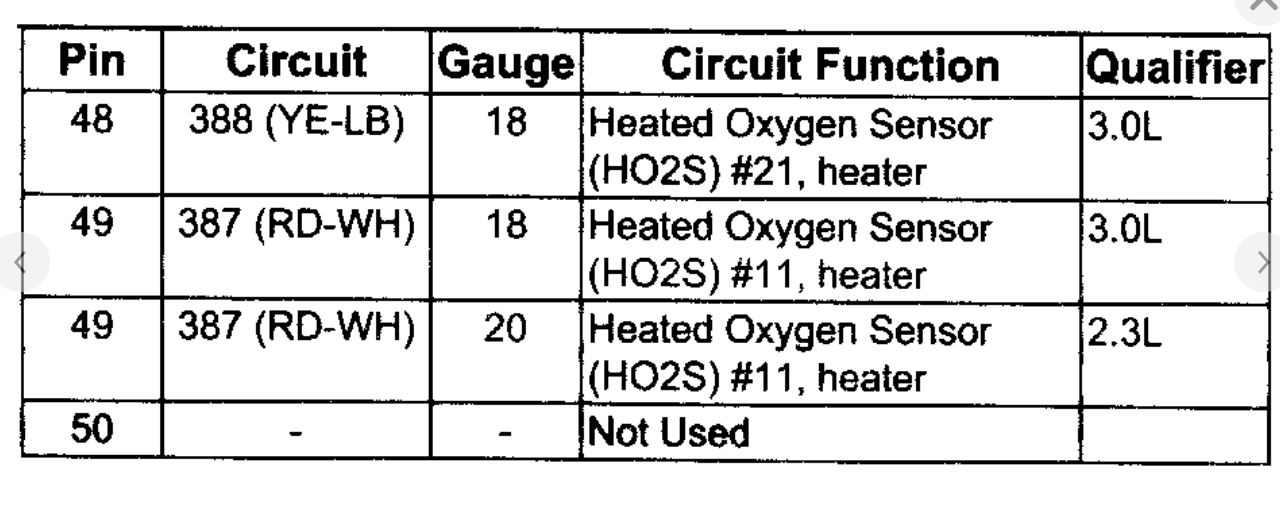

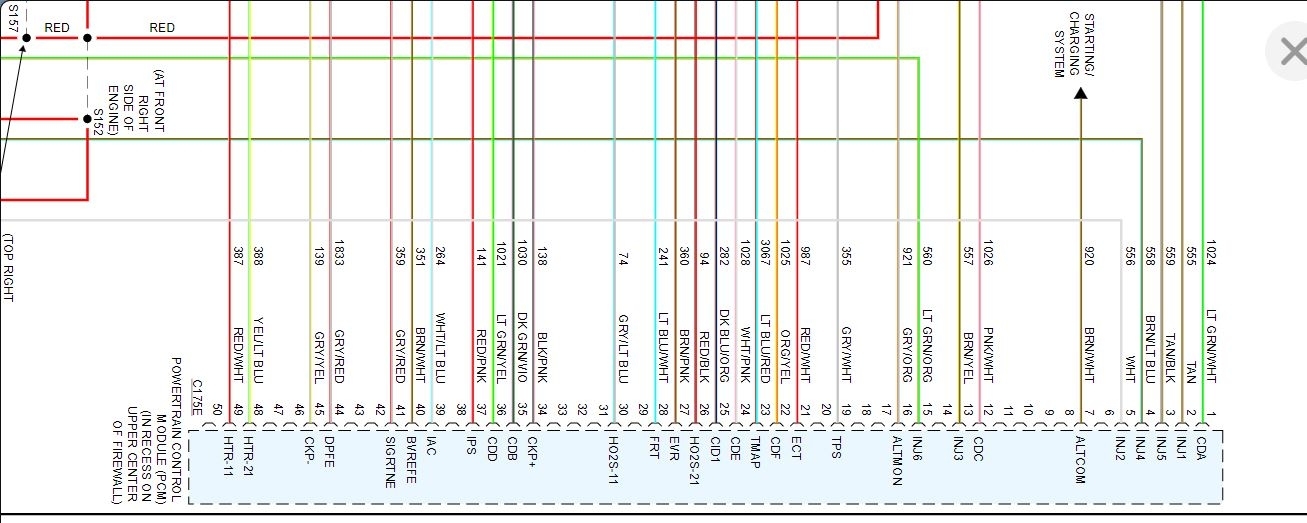

I attached both the pins and the identification and the diagram of the ECM and the controls for you to view.
Let me know if you have any other questions.

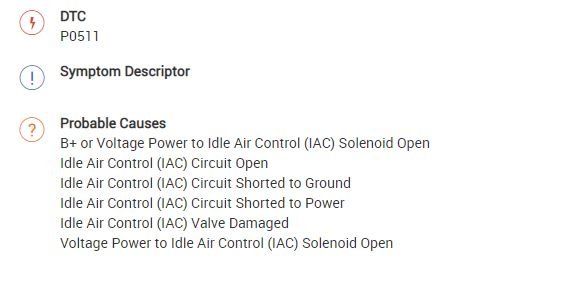

I also attached the flow chart for the 511 code for you as well.
https://www.2carpros.com/articles/how-to-check-wiring
Roy
KE: Idle Air Control (IAC) Valve
KE: Introduction See: Computers and Control Systems > Pinpoint Tests > KE: Idle Air Control (IAC) Valve - Introduction
KE1 CHECK FOR DTCS
Are DTCs P0505, P0506, P0507, P0511, P1504, P1506, or P1507 present?
Yes
For DTCs P0505, P0506, P0511, P1504 or P1507, GO to KE2.
For DTCs P0507 or P1506, GO to KE15.
No
For all other symptoms without DTCs, GO to KE2.
KE2 DTCS P0505, P0506, P0511, P1504 OR P1507: CHECK FOR INLET AIR LEAKS (OR STARTS ONLY AT PART THROTTLE)
With the engine running at idle (if possible), listen for vacuum leaks.
Inspect the entire air intake system from the mass air flow (MAF) sensor to the intake manifold for leaks such as:
damaged or loose IAC air tubes.
cracked or punctured intake air tube.
loose intake air tube at the air cleaner housing or throttle body.
IAC valve or gasket seal.
EGR valve gasket seal.
vacuum supply connector and hose.
PCV valve, connectors and hoses.
Are any leaks present?
Yes
REPAIR as necessary.
CLEAR the DTCs. REPEAT the self-test.
No
GO to KE3.
KE3 CHECK FOR VOLTAGE TO THE IAC SOLENOID
Note:If EGR DTC P0402 is output during the self-test, diagnose it first before continuing with this pinpoint test.
IAC connector disconnected.
Key ON, engine OFF.
Measure the voltage between:
Is the voltage greater than 10 V?
Yes
GO to KE4.
No
REPAIR the open circuit. CLEAR the DTCs. REPEAT the self-test.
KE4 CHECK THE RESISTANCE OF THE IAC VALVE
Key in OFF position.
IAC connector disconnected.
Measure the resistance between:
Is the resistance between 6 ohms - 15 ohms?
Yes
GO to KE5.
No
INSTALL a new IAC valve. REFER to Computers and Control Systems, Electronic Engine Controls.
CLEAR the DTCs. REPEAT the self-test.
KE5 CHECK THE IAC VALVE FOR AN INTERNAL SHORT TO THE IAC CASE
Measure the resistance between:
Is the resistance greater than 10K ohms?
Yes
GO to KE6.
No
INSTALL a new IAC valve. REFER to Computers and Control Systems, Electronic Engine Controls.
CLEAR the DTCs. REPEAT the self-test.
KE6 CHECK THE IAC CIRCUIT FOR AN OPEN IN THE HARNESS
IAC connector disconnected.
PCM connector disconnected.
Measure the resistance between:
Is the resistance less than 5 ohms?
Yes
For IAC-RC applications, GO to KE7.
For all others, GO to KE8.
No
REPAIR the open circuit. CLEAR the DTCs. REPEAT the self-test.
KE7 CHECK IAC-RC FOR VOLTAGE
Measure the voltage between:
Is the voltage greater than 10 V?
Yes
GO to KE8.
No
REPAIR the open circuit. CLEAR the DTCs. REPEAT the self-test.
KE8 CHECK THE IAC CIRCUIT FOR A SHORT TO VOLTAGE IN THE HARNESS
Key ON, engine OFF.
Measure the voltage between:
Is the voltage less than 1 V?
Yes
GO to KE9.
No
REPAIR the short circuit. CLEAR the DTCs. REPEAT the self-test.
KE9 CHECK THE IAC CIRCUIT FOR A SHORT TO GROUND IN THE HARNESS
Key in OFF position.
Measure the resistance between:
Is the resistance greater than 10K ohms?
Yes
GO to KE10.
No
REPAIR the short circuit. CLEAR the DTCs. REPEAT the self-test.
KE10 CHECK FOR A DROP IN IDLE RPM WITH THE IAC DISCONNECTED
PCM connector connected.
IAC connector connected.
Key ON, engine running.
Bring the engine to normal operating temperature.
Transmission in PARK or NEUTRAL.
Disconnect the IAC valve.
Does the RPM drop or the engine stall?
Yes
GO to KE12.
No
GO to KE11.
KE11 CHECK FOR A STUCK IAC PINTLE
Key in OFF position.
Inspect the entire intake air system for debris, blockage or other damage.
Remove and inspect the IAC valve and check the pintle movement.
Check the air tubes (if equipped) for blockage or damage.
Remove and inspect the air cleaner element for excessive dirt.
Is the IAC valve OK?
Yes
GO to KE12.
No
INSTALL a new IAC valve. REFER to Computers and Control Systems, Electronic Engine Controls.
CLEAR the DTCs. REPEAT the self-test.
Images (Click to enlarge)
Oct 2, 2020 at 2:05 AM
