Code p216c, can I a wiring diagram for the ECU?

2014 CHEVROLET CAMARO
123,690 MILES • 3.6L • V6 • 2WD • AUTOMATIC
Avatar
SKRIPTIC_15
  • MEMBER
  • 4 POSTS
misfire on cylinder 5. dtc code p216c is for fuel injector 5 circuit high. i replaced the fuel injectors and still get the same code. i need the wiring diagram for the ECU to test ohms of each injector circuit as well as continuity between the ECU connector and injector connector.
Aug 16, 2023 at 5:10 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

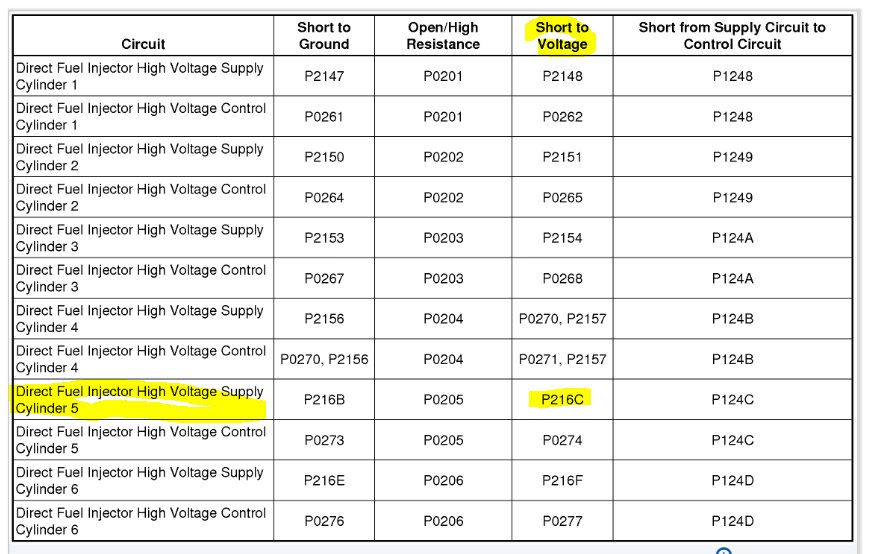

To get you started, the code is specific to a short to power for the number five injector. I thought that might make it easier for you. (See pic 1)

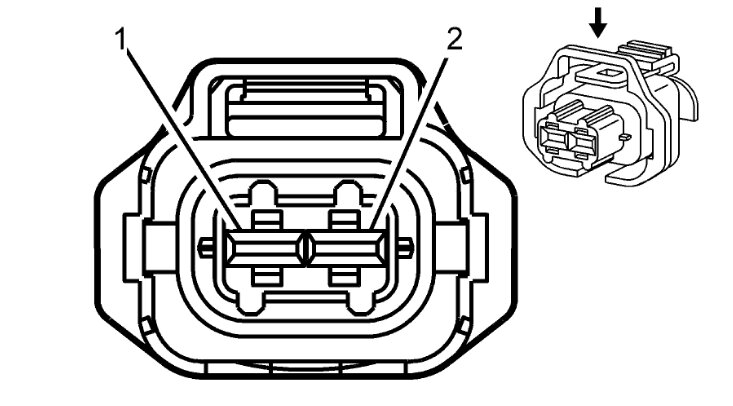

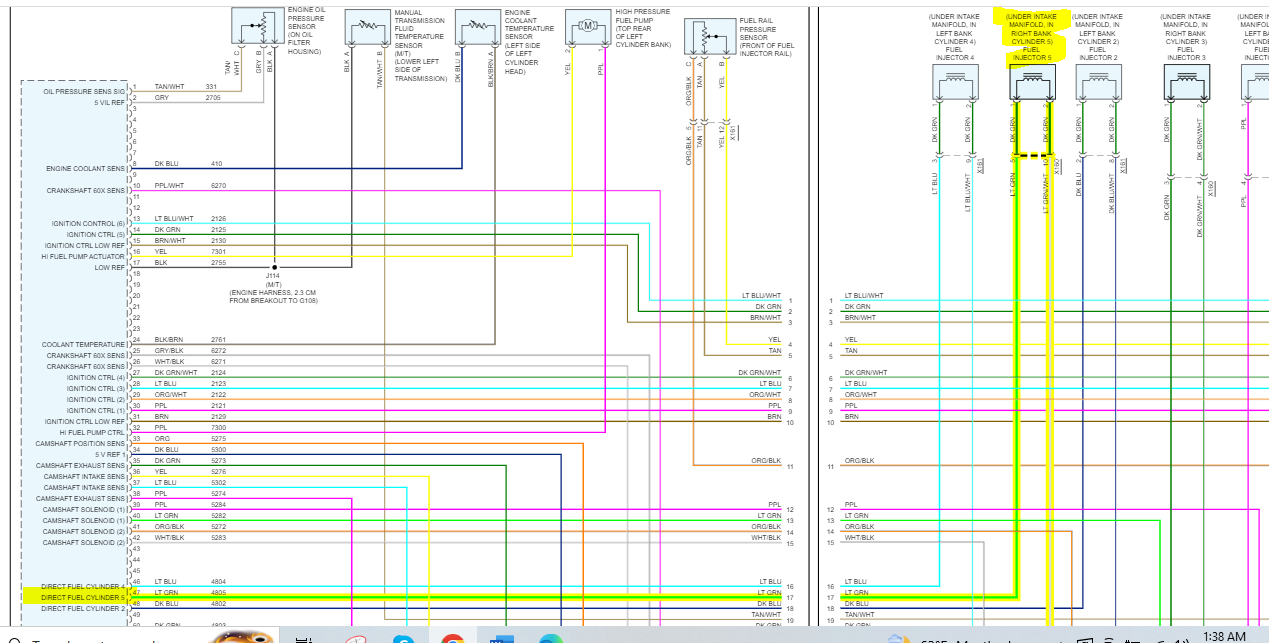

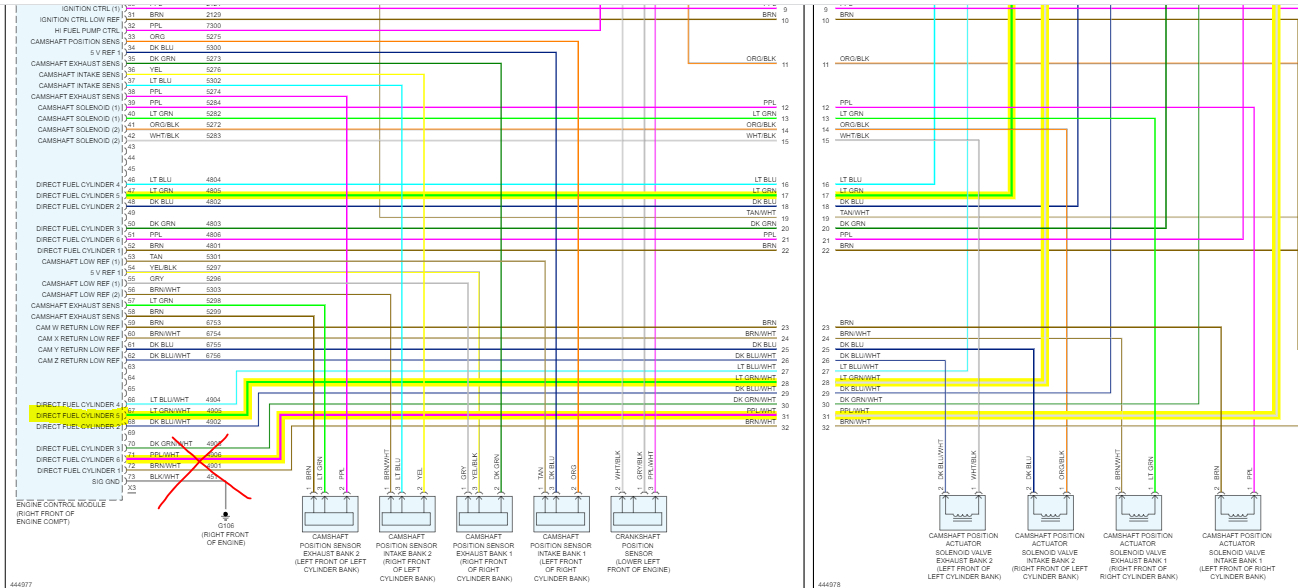

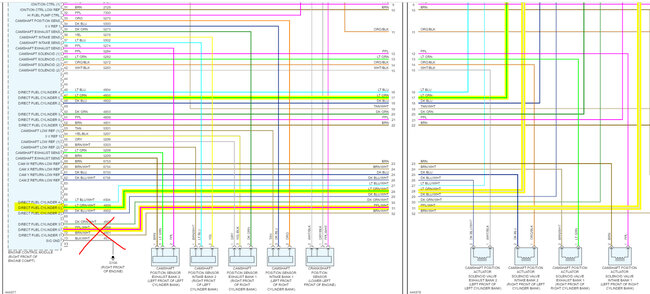

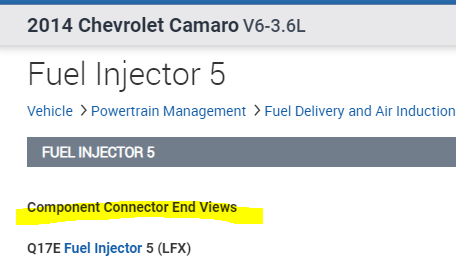

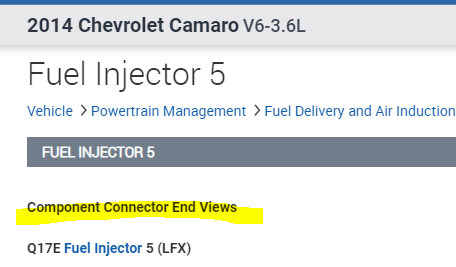

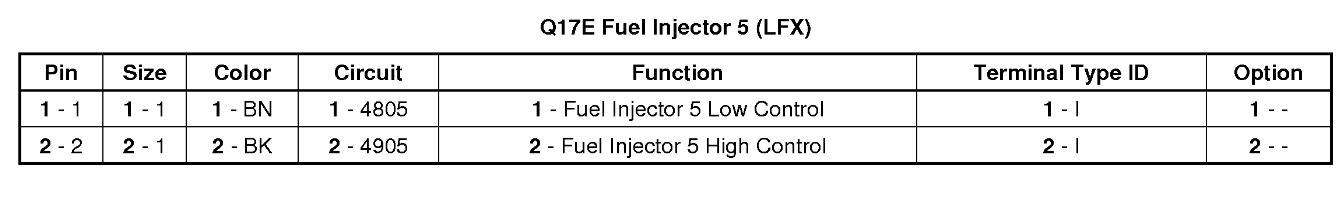

Now, I attached the wiring to injector 5 from the PCM below (pics 2 and 3). Additionally, I attached a connector pinout for the same injector. (Pic 4, 5, 6)

Let me know if this is what you needed, or if you have other questions.

Take care,

Joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 16, 2023 at 10:45 PM
Avatar
SKRIPTIC_15
  • MEMBER
  • 4 POSTS
Could this short be caused by the ECM? Thank you for the diagrams.
Aug 16, 2023 at 10:47 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

It could, but chances are it is either wiring-related or connector related. Check to see if there is constant power or ground at the injector connector. If there is, then make the same check at the PCM itself. Note that the pins are small at the PCM, so it is possible one is damaged or making contact with another.

Let me know what you find. I'm interested in knowing.

Take care,

joe
Aug 16, 2023 at 11:29 PM
Avatar
SKRIPTIC_15
  • MEMBER
  • 4 POSTS
I checked the ohms to each injector from the ECM connector to see if there is more resistance in an injector than the other injectors and all injectors through the harness are at 2.2-2.4 ohms. So, I don’t believe it is the injectors themselves rather than something internally damaged in the ECM.
Aug 16, 2023 at 11:32 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

Chances are you're correct. However, make sure to check connector pins at the PCM to make sure none are corroded, damaged, or pushed inward.

Let me know.

Joe
Aug 17, 2023 at 6:19 PM
Avatar
SKRIPTIC_15
  • MEMBER
  • 4 POSTS
Finally have some good news. Friday, I ended up taking the Camaro to the dealership. Due to me thinking it was the ECM being bad but turns out that the alternator that I had just put on about a month ago had a bad voltage regulator and was causing all of my issues.
Sep 3, 2023 at 2:56 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

Thanks for the update. Wow, I wouldn't have suspected the alternator would cause a cylinder 5 misfire (injector). However, anything is possible. LOL

Regardless, I'm glad to know you found the problem and it has been resolved.

Take care of yourself and feel free to come back anytime in the future.

Joe
Sep 3, 2023 at 9:24 PM
Avatar
JR7305
  • MEMBER
  • 1 POST
Interesting wonder how they came to the conclusion it was the alternator?
Dec 16, 2023 at 1:20 AM
