Code P0443?

2003 FORD F-150

125,000 MILES • 5.4L • V8 • 2WD • AUTOMATIC

MEMBER
1 POST
FOLLOW

Replaced purge valve, service engine soon light comes back on. Had PCM serviced, still same problem. Need Wiring diagram to check for shorts, also vehicle has a hard time starting, but if you turn the key on and wait a minute or so, it will start. Already replaced fuel pump. The truck listed above is a Harley Davidson edition with the supercharger on it.

Sep 10, 2022 at 5:37 PM

JACOBANDNICKOLAS

CERTIFIED EXPERT
110,175 POSTS

Hi,

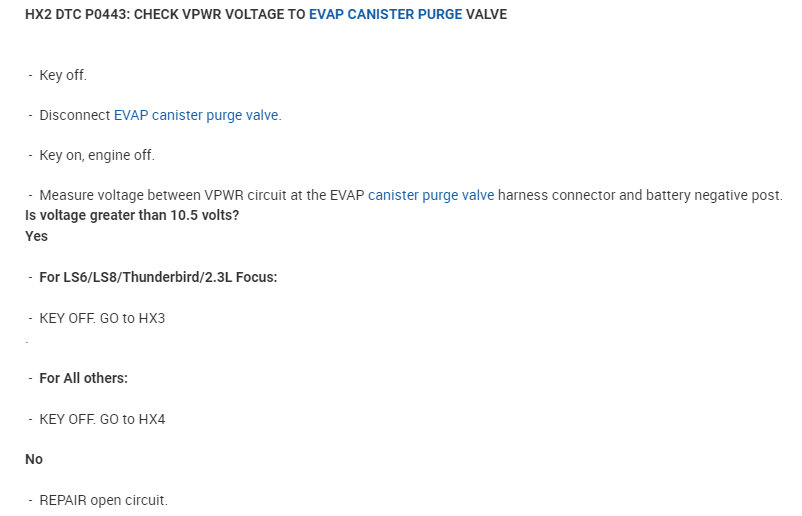

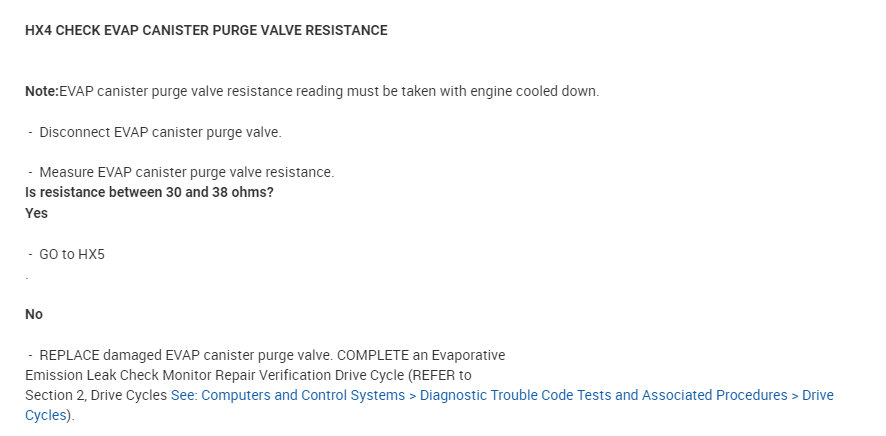

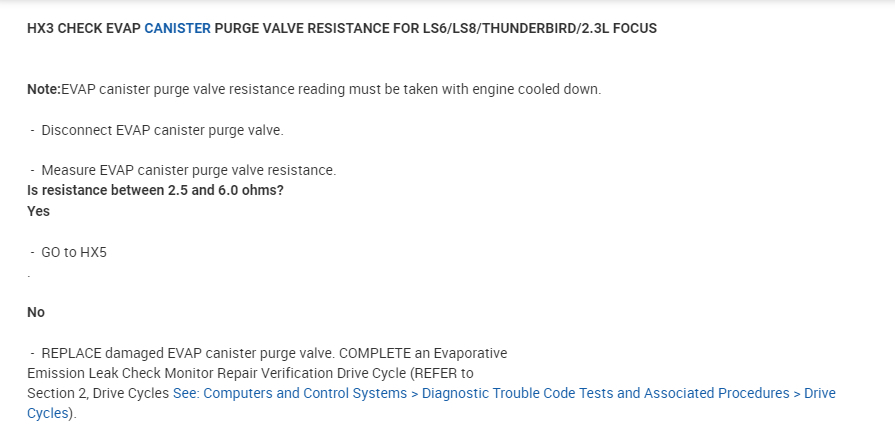

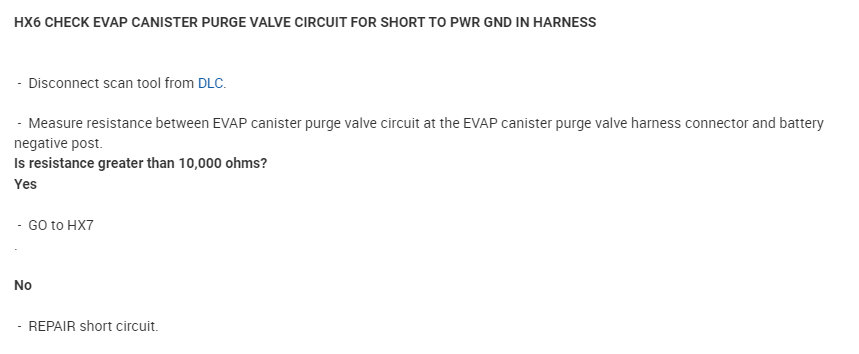

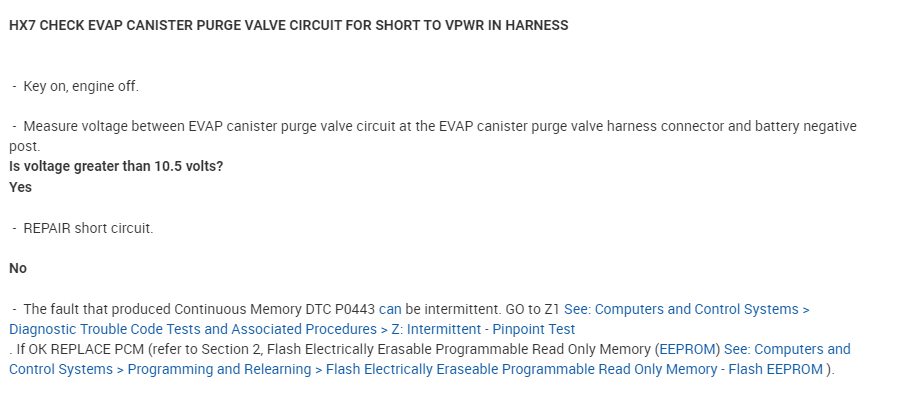

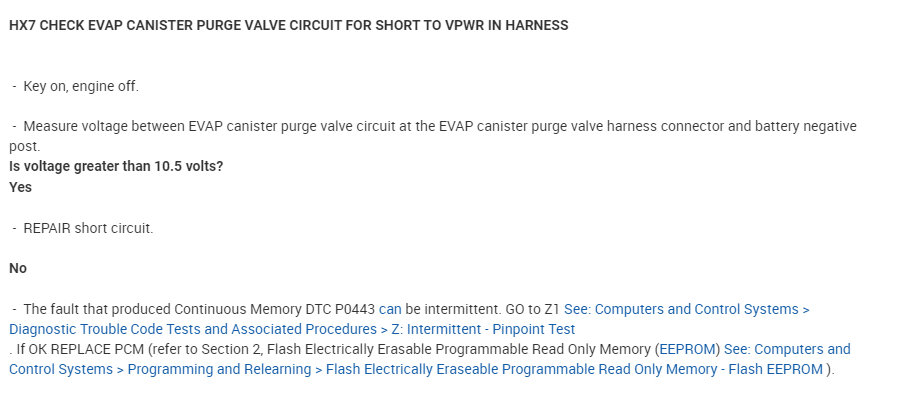

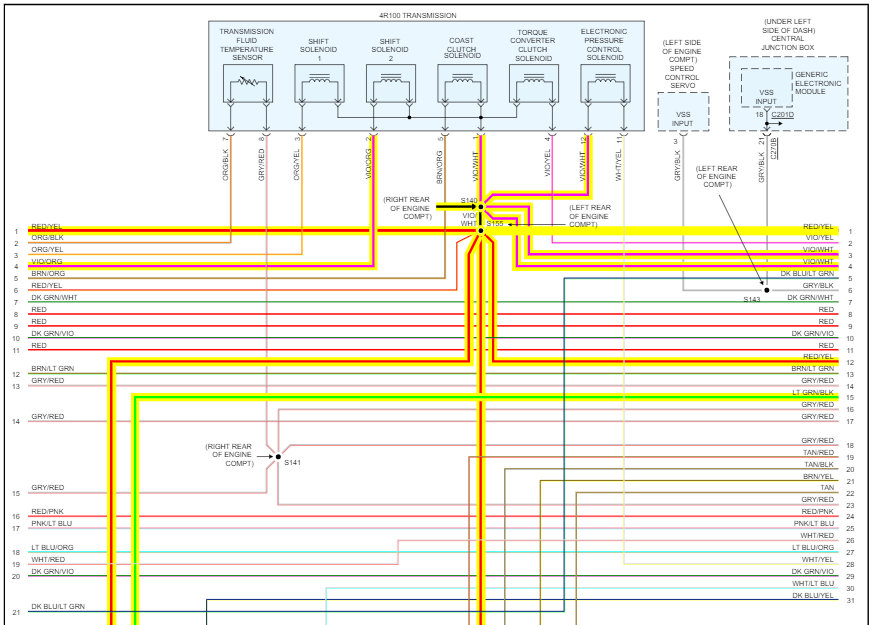

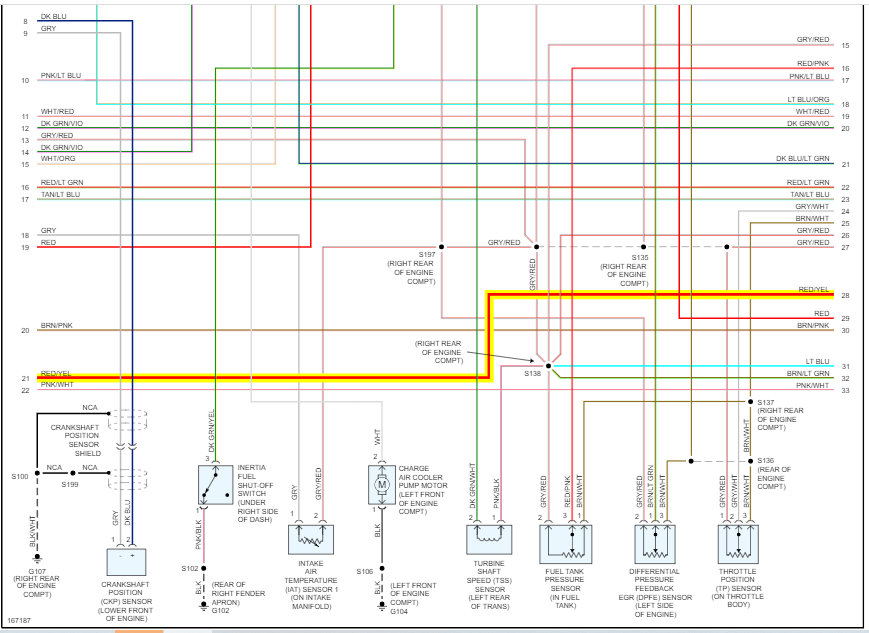

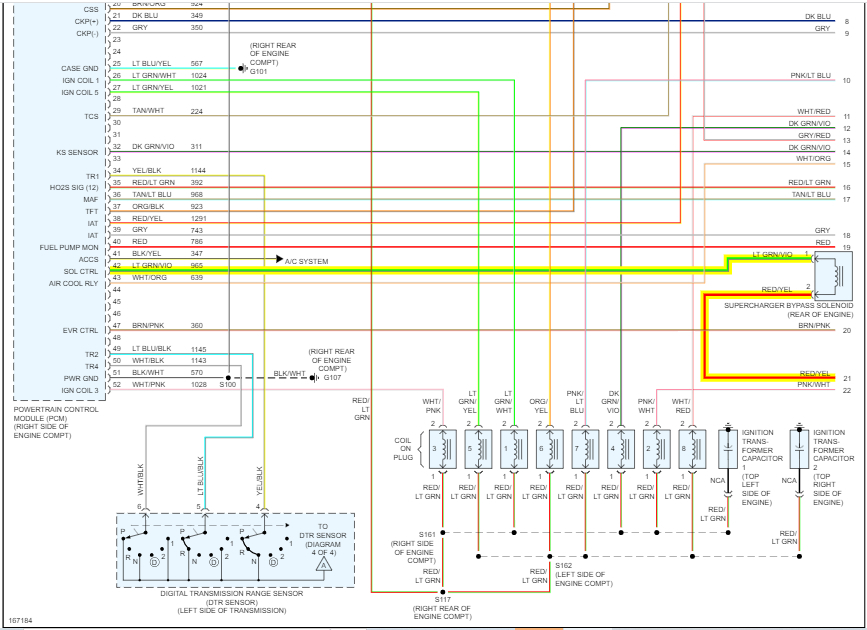

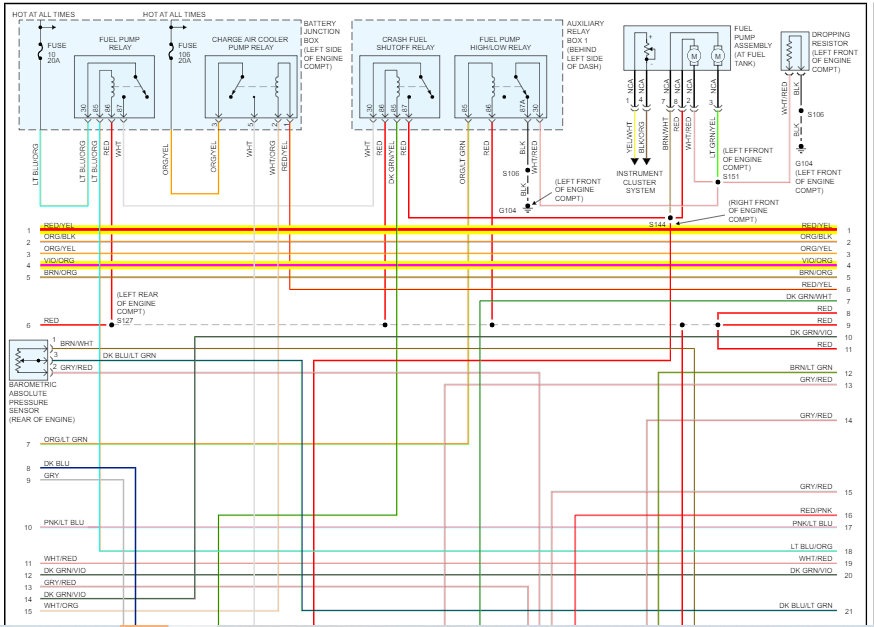

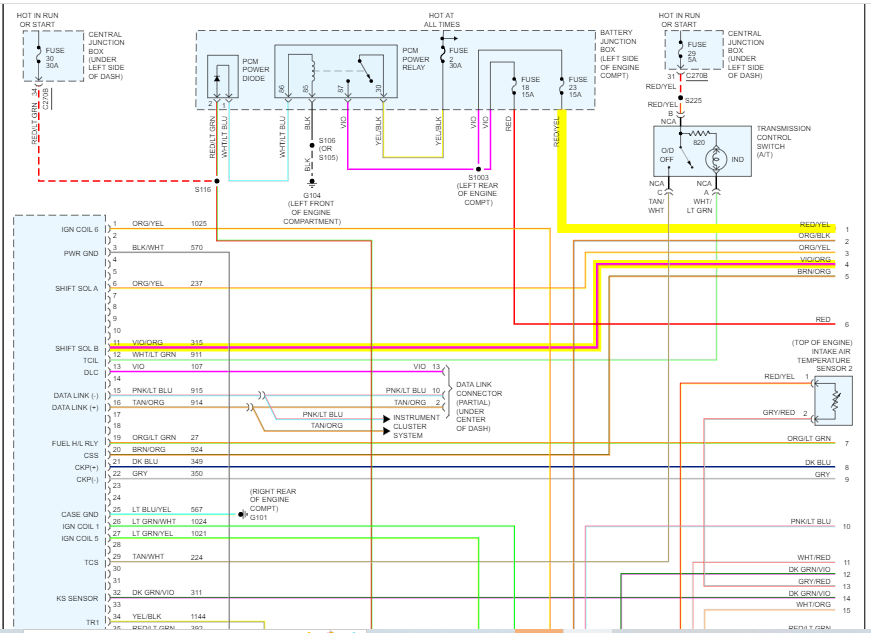

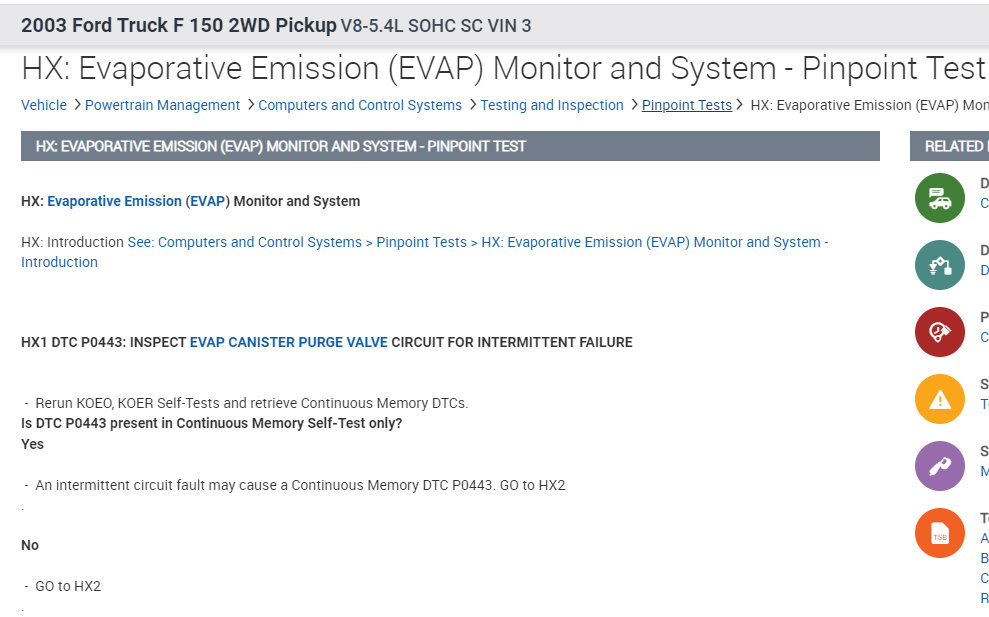

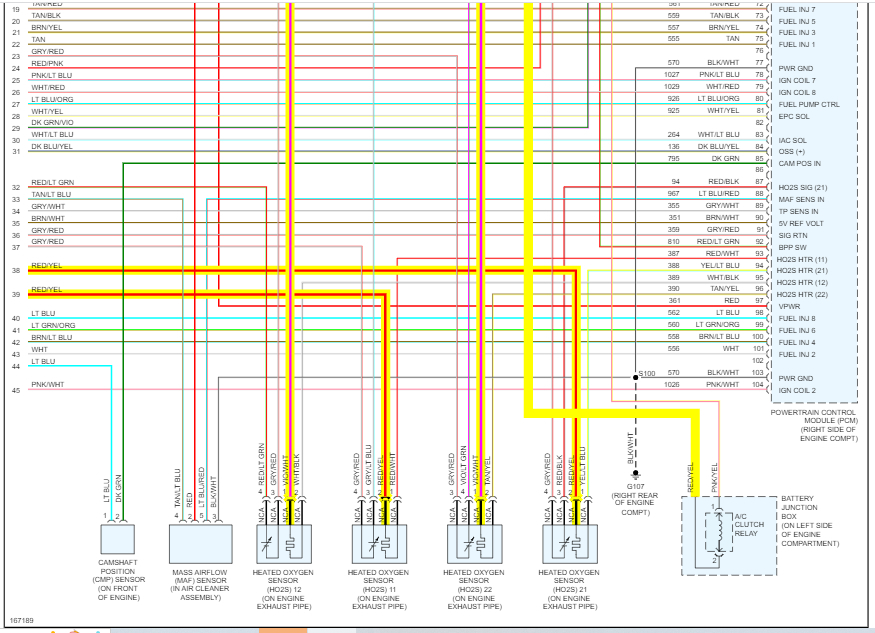

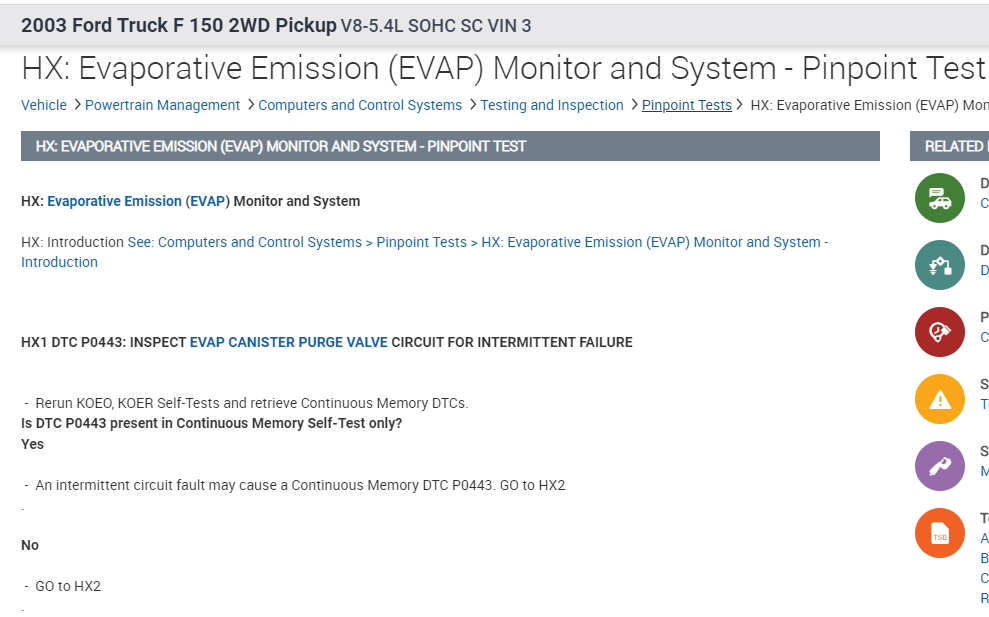

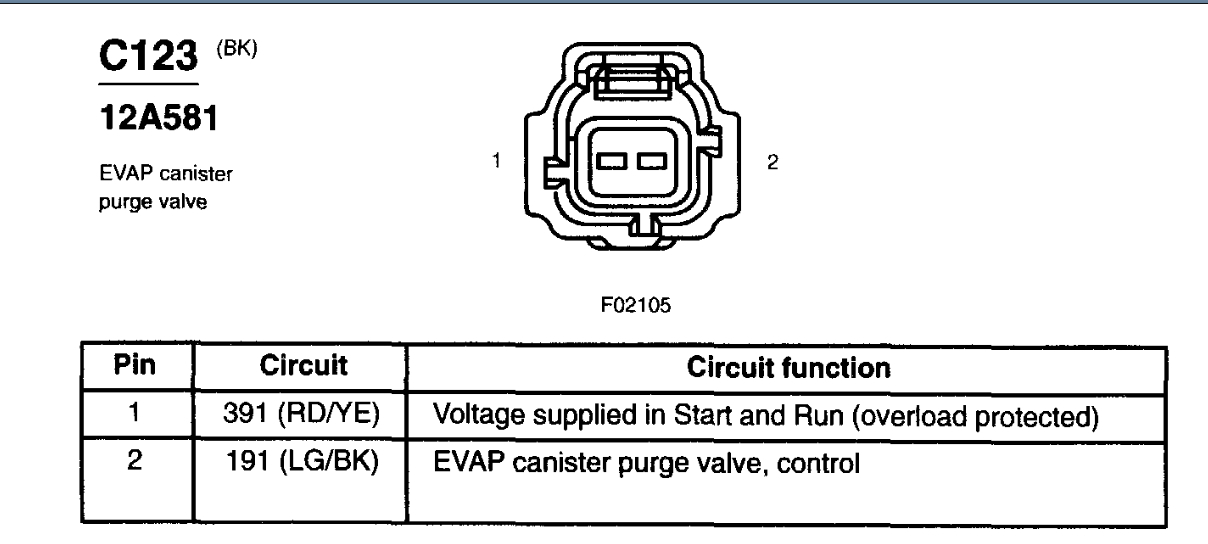

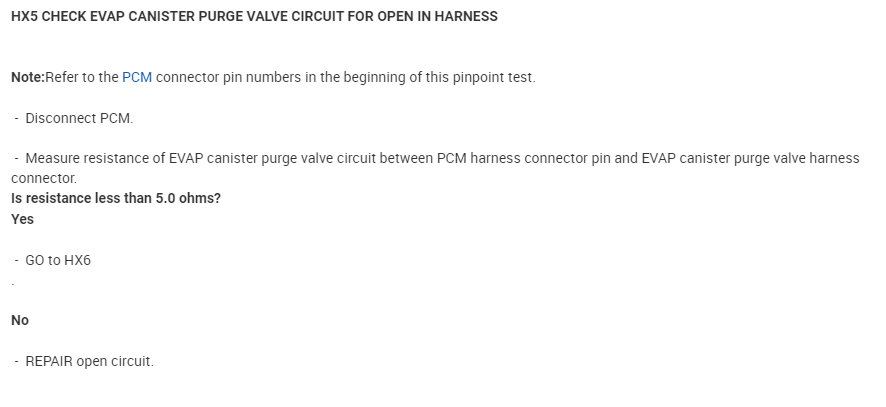

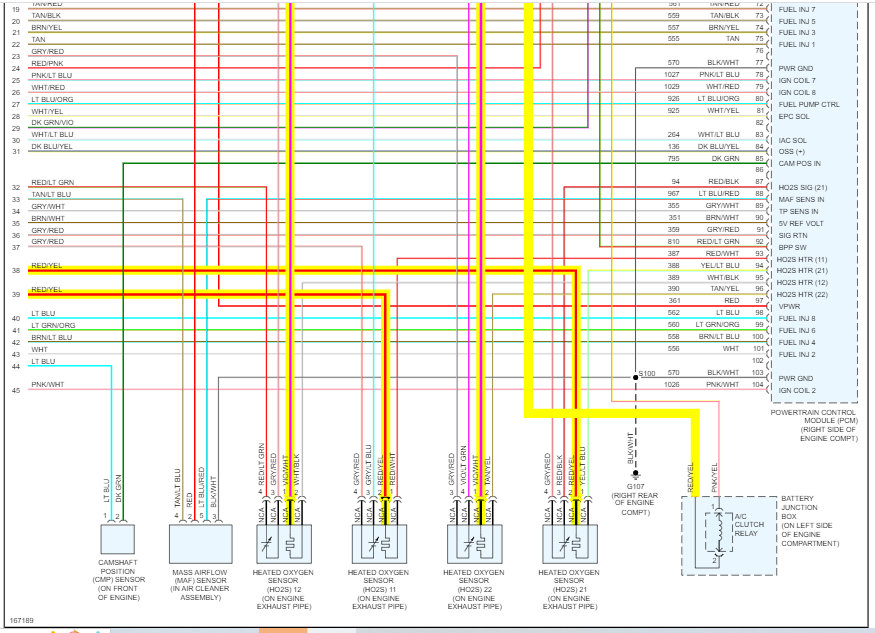

I attached the diagnostics below specific to the code. Pics 1 - 7 contain the directions. The remaining pics show the connector and wiring schematics for the powertrain control circuits. I highlighted the wiring for the purge valve. However, when I highlight the power wire, it covers other things as well, so take your time when going through them.

Here is a link you may find helpful:

https://www.2carpros.com/articles/how-to-check-wiring

Let me know if this helps or if you have other questions.

Take care,

Joe

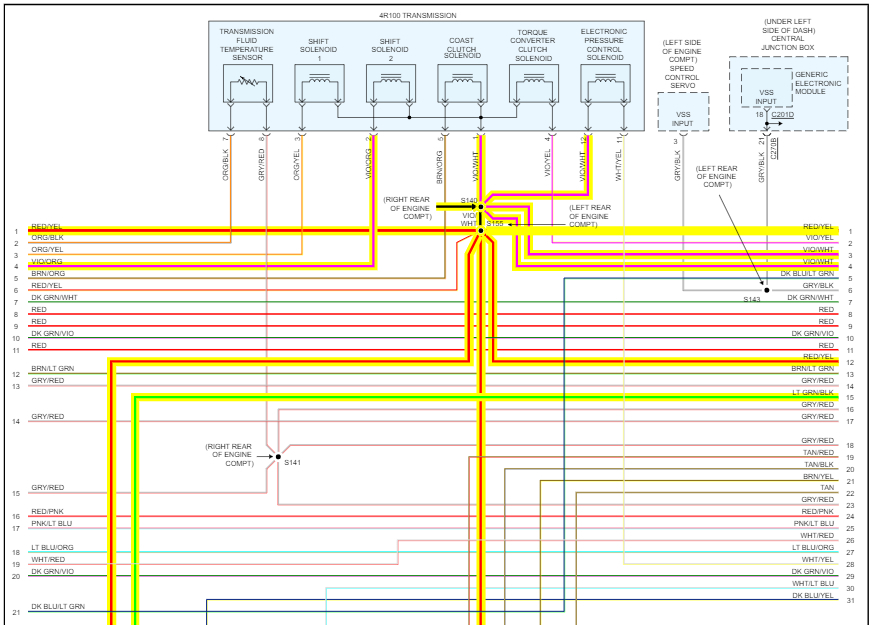

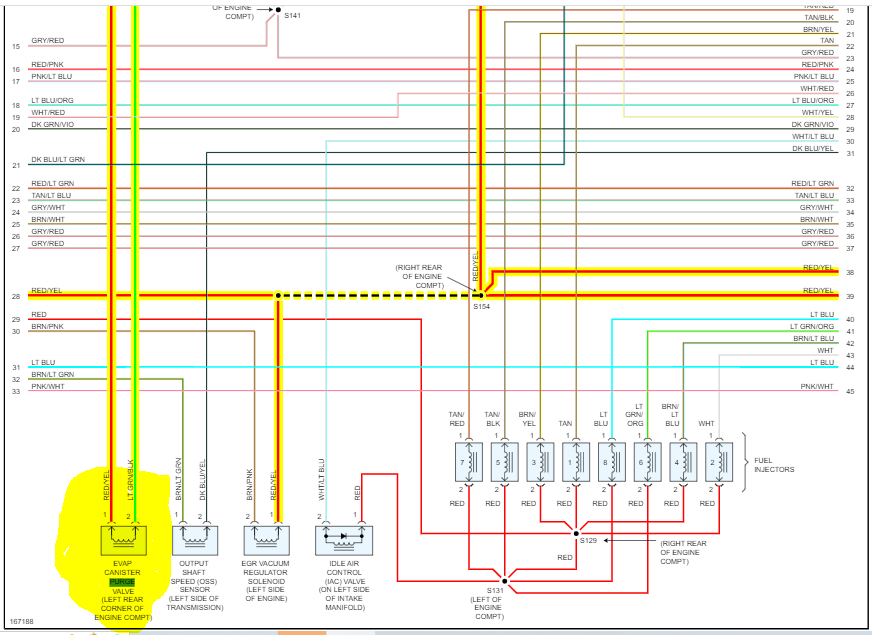

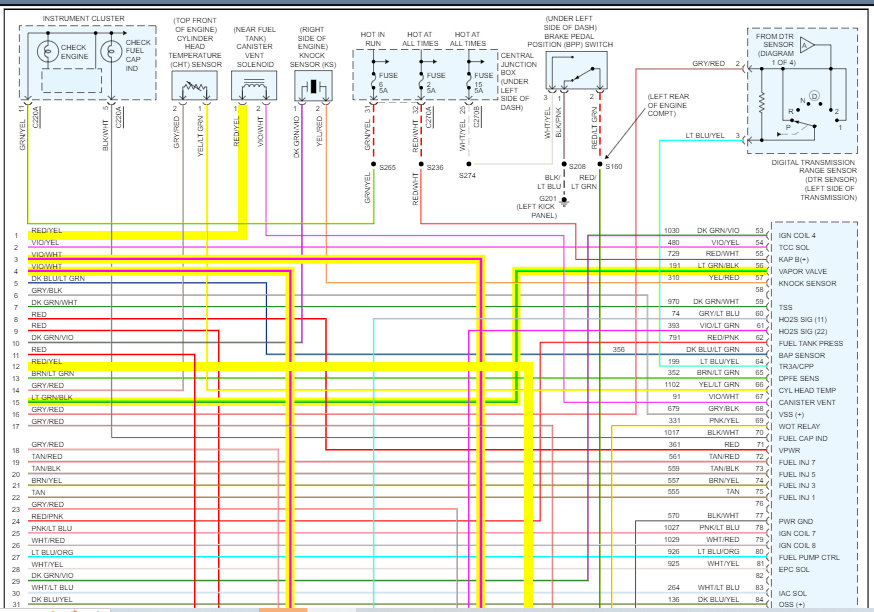

See pics below. Note: The schematics started as only 4 pages. I had to cut each in half to make them readable for you. I did overlap them so you can follow from one to the next.

Images (Click to enlarge)

Sep 10, 2022 at 9:07 PM
