HVAC on off clicking

2010 CHRYSLER TOWN AND COUNTRY
130,000 MILES • 4.0L • V6 • 2WD • AUTOMATIC
Avatar
DONALD JOHNSTONE
  • MEMBER
  • 1 POST
A/C and heater air blend actuator clicking.
Sep 10, 2020 at 12:19 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

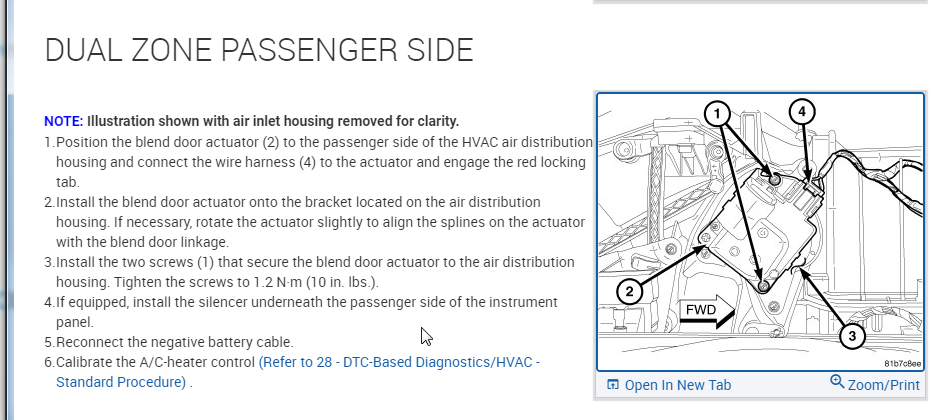

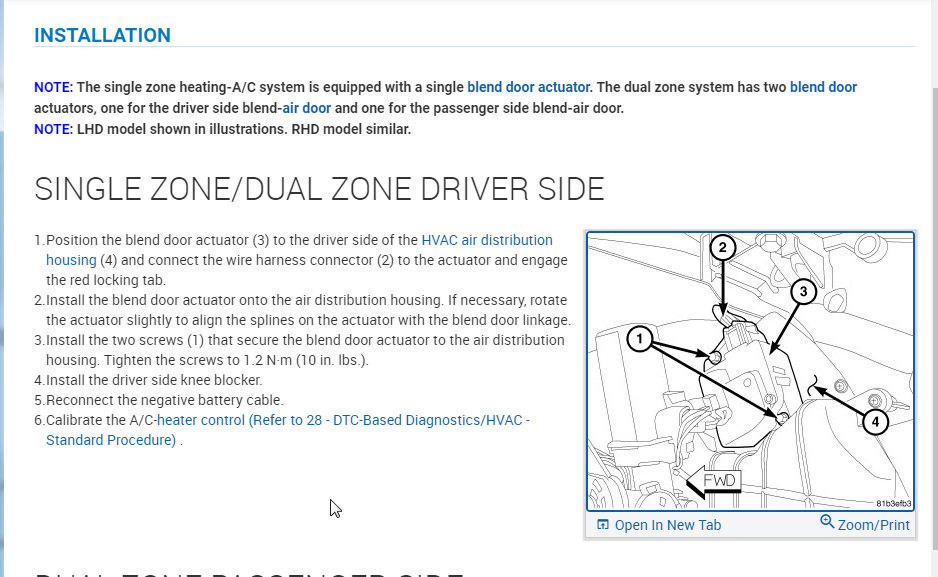

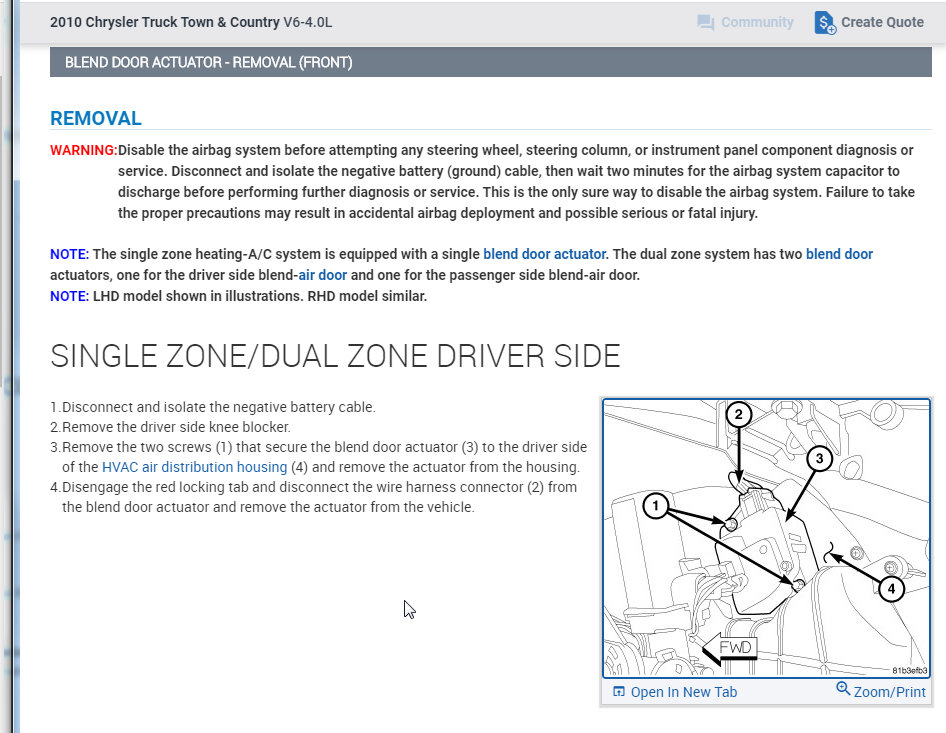

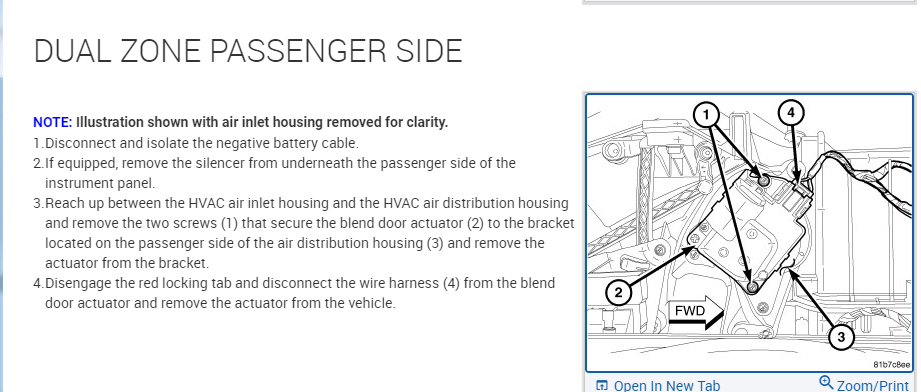

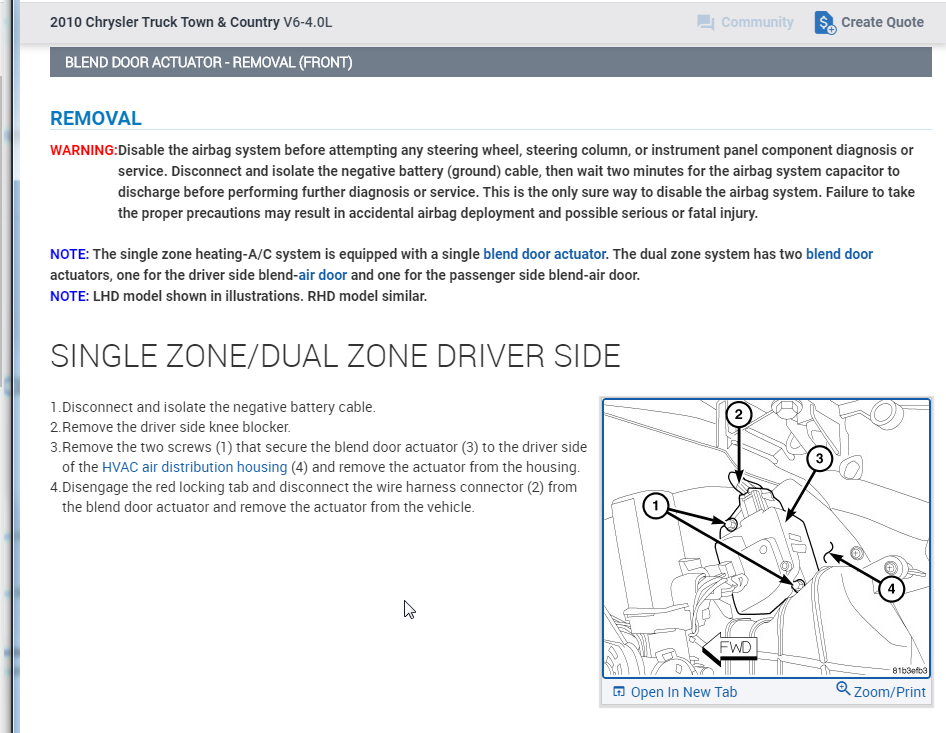

I attached the process for the front blend door actuator. This is not uncommon when the plastic gear inside of it strips and it starts clicking.

Let us know if you have more questions. Thanks

https://www.2carpros.com/articles/replace-blend-door-motor
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Sep 10, 2020 at 4:44 PM
