OBD2 Port not working?

Hi,

The data link connector (DLC) is powered by the HVAC control/ignition fuse in the body control module.

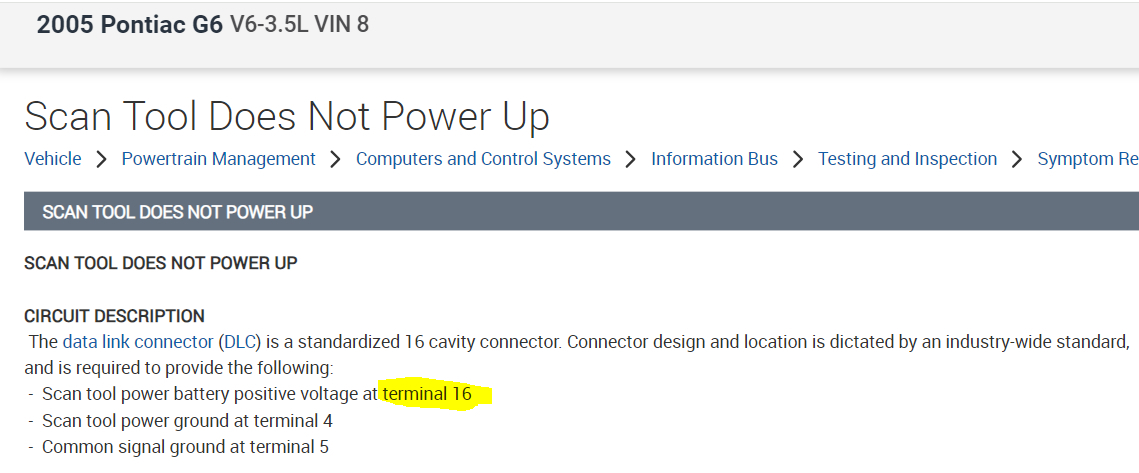

I attached three pics below. Pic 1 indicates the connectors to check:

Pin16 for battery power

Pins 4 and 5 for ground.

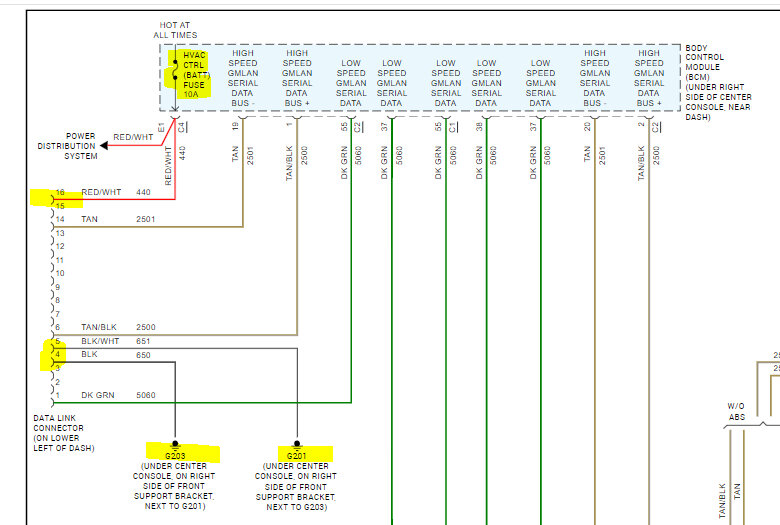

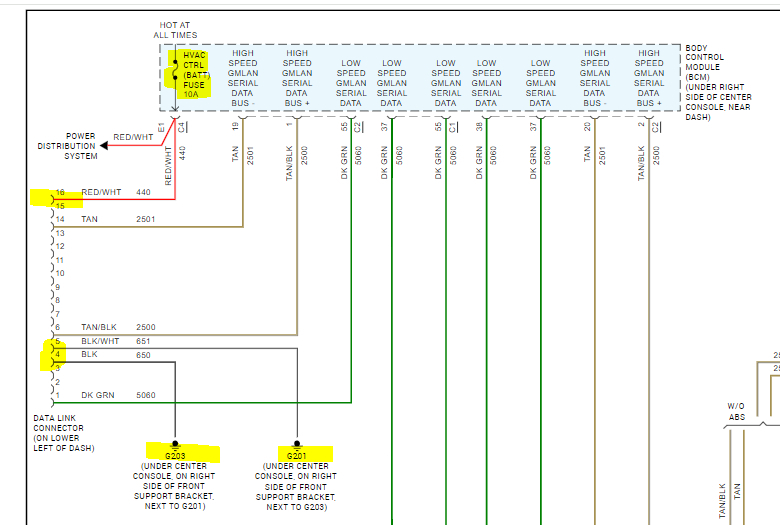

Pic 2 is the schematic to the connector

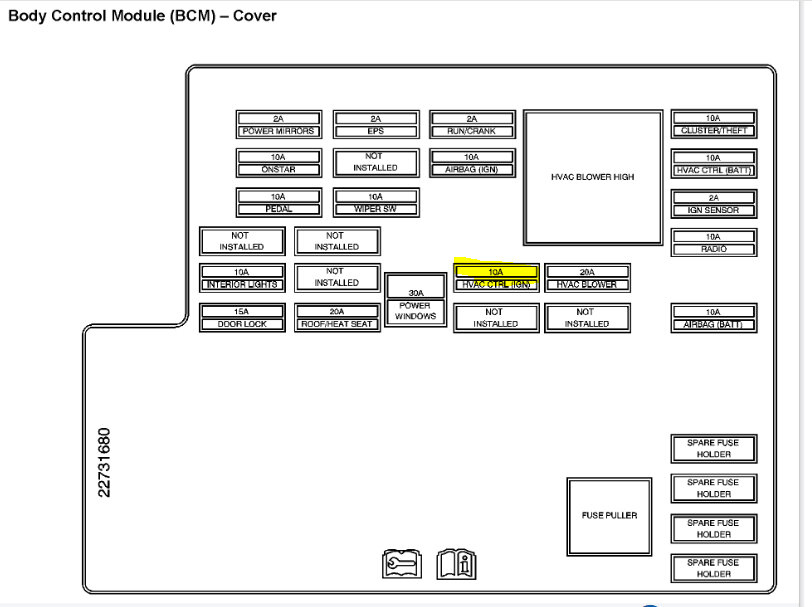

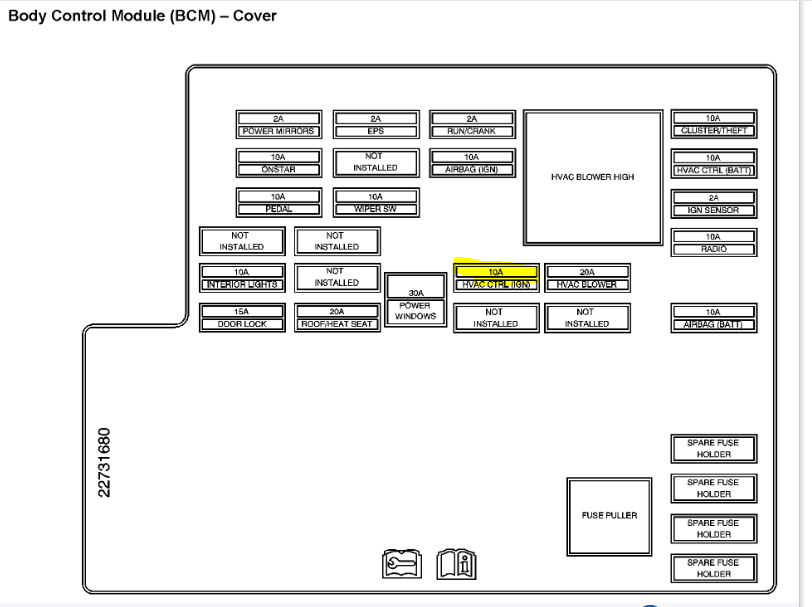

Pic 3 shows the fuse location.

When you check the fuse, make sure there is power to and from it. Note: It should have power at all times.

Here is a link you may find helpful:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Let me know what you find.

Take care,

Joe

See pics below.
