OBD2 port not working

2003 FORD ESCAPE
100,000 MILES • AUTOMATIC
Avatar
MATTSTLEF
  • MEMBER
  • 1 POST
Check engine light is on, so I hooked obd2 reader (Innova 3100) up, but nothing. I tested the reader on my 2016 F150 and a Toyota and it works. I checked fuses (including cig lighter fuse) but they were fine.

Does anyone have the wiring diagram for the obd2 port on this vehicle?
Jan 23, 2022 at 7:05 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

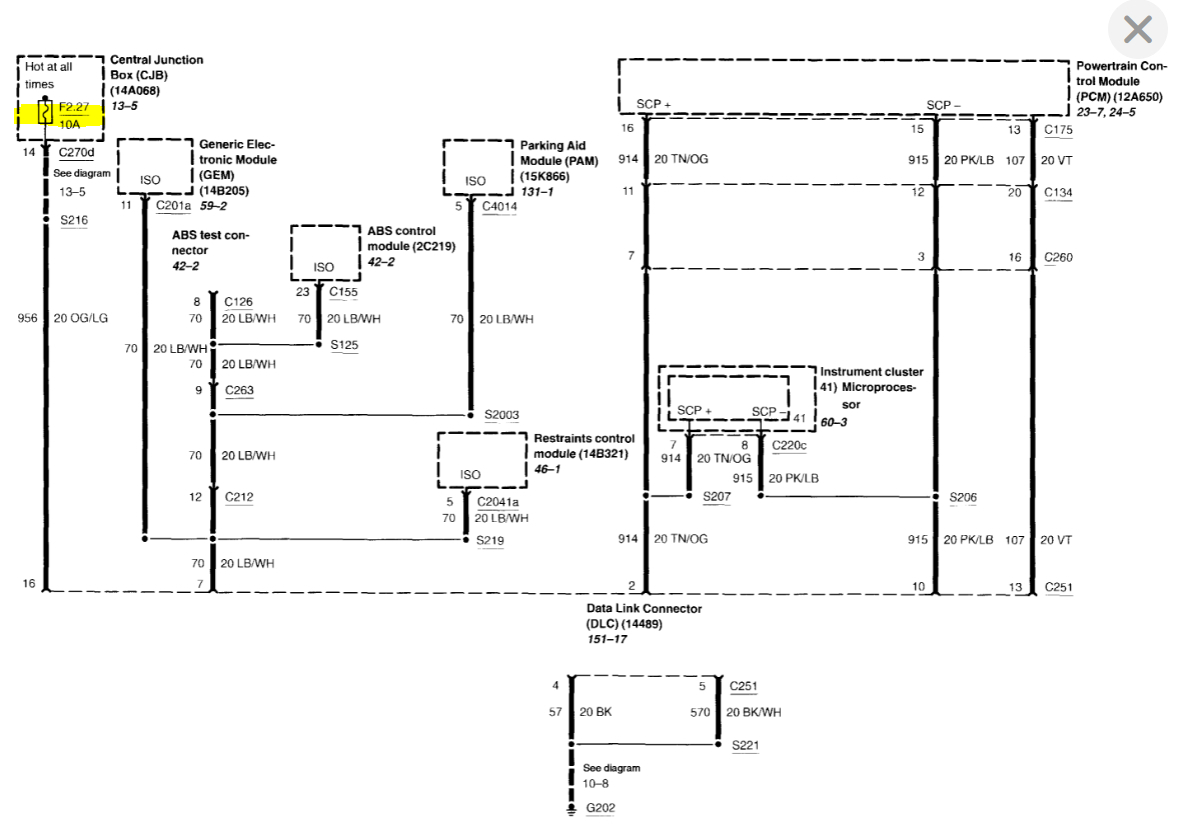

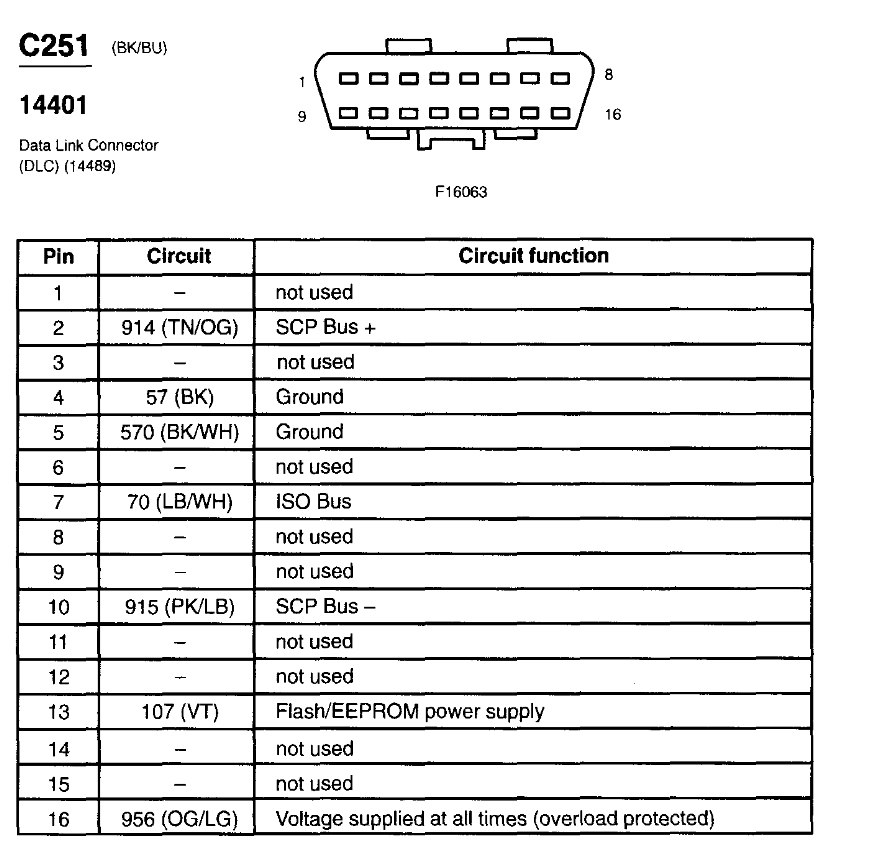

I have attached the pinout as well as the wiring schematics for the OBD port.
There should be a 10A fuse in the junction box. If the fuse is good, then it is likely faulty or loose wiring.

Please let me know if you have any questions.
Thank you.

https://www.2carpros.com/articles/how-to-check-a-car-fuse
https://www.2carpros.com/articles/how-to-check-wiring
Images (Click to enlarge)
Attached Media
Attached Media
Jan 23, 2022 at 9:05 PM
