O2 Sensor pin out

1996 FORD TAURUS
163,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
BLAZ85
  • MEMBER
  • 54 POSTS
i am doing some testing on my o2 sensors. could you give me the pin out on the bank 2 sensor 2 (downstream) o2 sensor? the engine is the 3.0 vulcan vin "u".

thank you in advance for your reply!
Feb 6, 2022 at 10:07 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

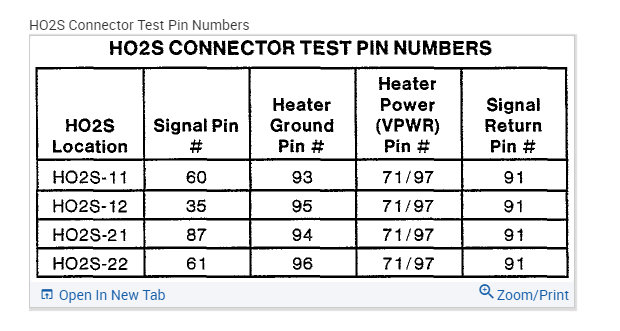

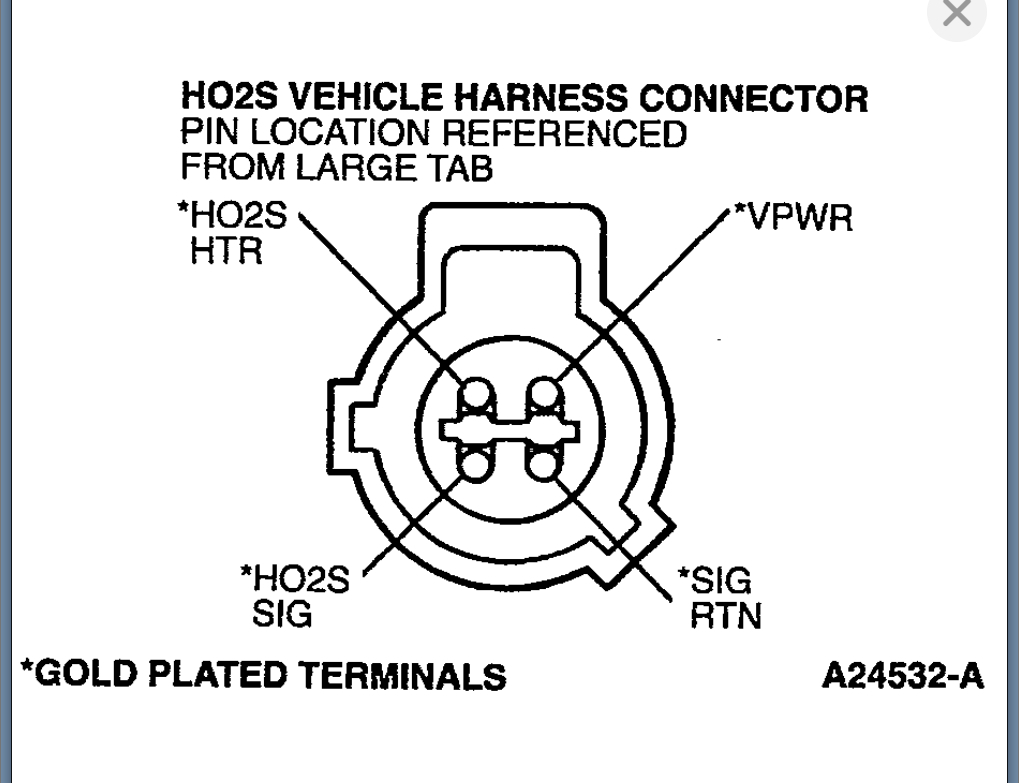

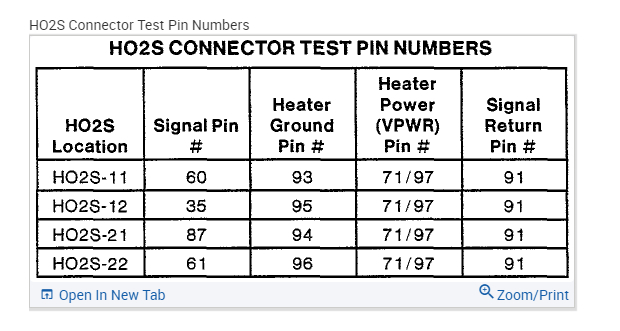

No problem. Here is the pinout for them plus here is a guide if you need it to test these sensors:

https://www.2carpros.com/articles/how-to-test-an-oxygen-sensor-02-sensor

Please see the info attached and let us know what questions you have.

Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Feb 8, 2022 at 8:26 AM
Avatar
BLAZ85
  • MEMBER
  • 54 POSTS
Thank you for your quick reply. As usual you provided me with just the information I needed.
Thanks again.
Feb 9, 2022 at 9:18 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
Great. Thanks for the update and glad we could help. Talk to you next time.
Feb 10, 2022 at 7:46 AM
