No spark ignition fuse keeps blowing

1995 PLYMOUTH VOYAGER
126,000 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
DARREN HARRIS2
  • MEMBER
  • 3 POSTS
Was driving to work van stopped running, try to start but no start, no spark, no fuel pump. Ignition fuse keeps blow every time I try to turn it over. can’t check relays under the hood because when try to turn on key fuse blows.
Mar 3, 2019 at 6:47 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

What fuse number is failing? so I can look for a diagram of what the fuse controls so you can search your failure.

Roy
Mar 3, 2019 at 9:13 AM
Avatar
DARREN HARRIS2
  • MEMBER
  • 3 POSTS
On the inside fuse panel it is fuse 16 that says ignition feed 15A. please I need help.
Mar 3, 2019 at 12:14 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS

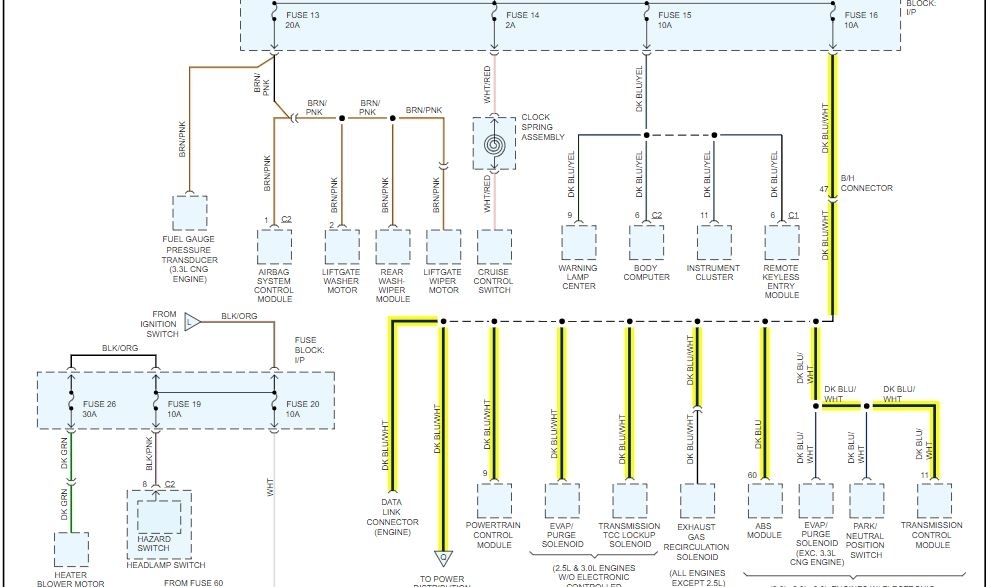

Okay, I attached a diagram of all that fuse 16 controls. You need to unhook all the components that are controlled and then see if the fuse still blows. If It does, it is a wiring harness issue. If it does not then you need to plug one component back in, one at a time until the fuse fails. Then you know the failure.

Roy
Image (Click to enlarge)
Attached Media
Mar 3, 2019 at 12:29 PM
Avatar
DARREN HARRIS2
  • MEMBER
  • 3 POSTS
Oh, my this may that a while. but I may have to take it to a garage or have someone look at it that’s just more then I know how to do.
Mar 3, 2019 at 12:43 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Okay, that is a good idea.

Keep me updated.

Roy
Mar 3, 2019 at 12:49 PM
