No oil pressure

2007 FORD BANTAM
100,000 MILES • 1.3L • 4 CYL • 2WD • MANUAL
Avatar
A HARICHUND
  • MEMBER
  • 1 POST
I just overhaul the engine. Crank pulley broke as it had cracks. Replaced it and started the engine there is no oil coming up to cylinder head. It was okay before replacing the crank pulley. No oil pressure.
Feb 10, 2019 at 9:28 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

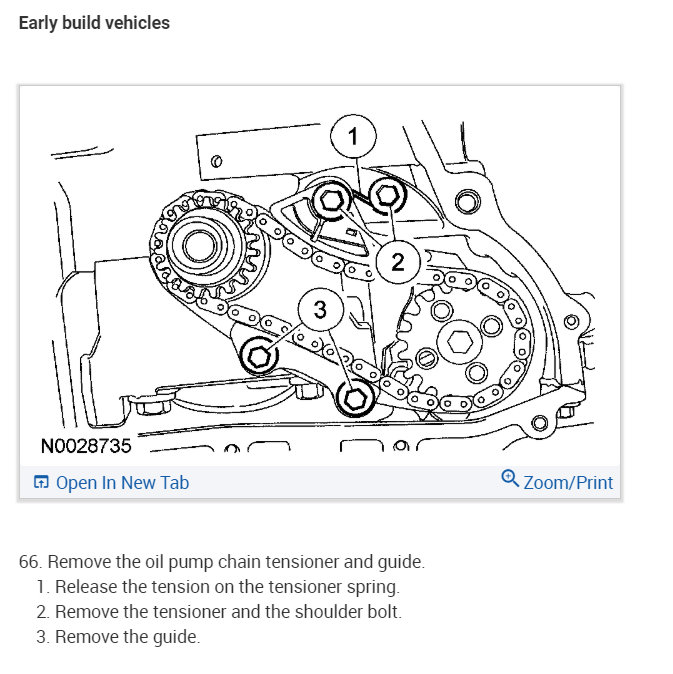

There is a chain that runs the oil pump it must have broke or stripped out. Here is a diagrams to show you so you can check it out. Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Image (Click to enlarge)
Attached Media
Feb 11, 2019 at 10:44 AM
