No ECM signal from ECM to fuel pump relay

2004 CHEVROLET TRUCK
220,075 MILES • 6.6L • V8 • 2WD • AUTOMATIC
Avatar
CHARLESHOPPER
  • MEMBER
  • 2 POSTS
This issue is on the truck listed above c4500 with 6.6l diesel engine in it. I am not receiving any signal from ECM when I turn to run/ start position. I am very stumped on this truck. Need help badly.
Apr 7, 2021 at 8:31 AM
Advertisement
Avatar
CHARLESHOPPER
  • MEMBER
  • 2 POSTS
I need to know if you guys found anything on my problem on this 2004 c4500 with duramax diesel yet?
Apr 7, 2021 at 2:14 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

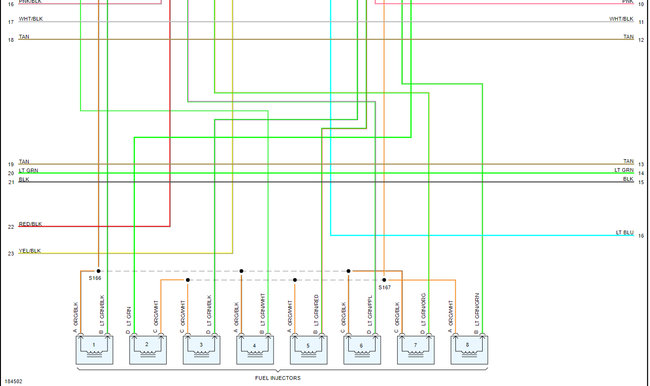

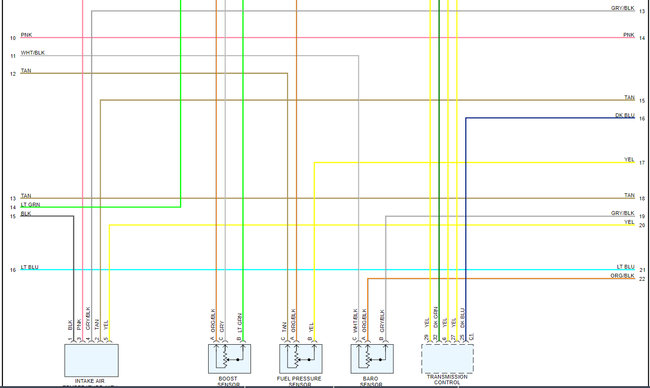

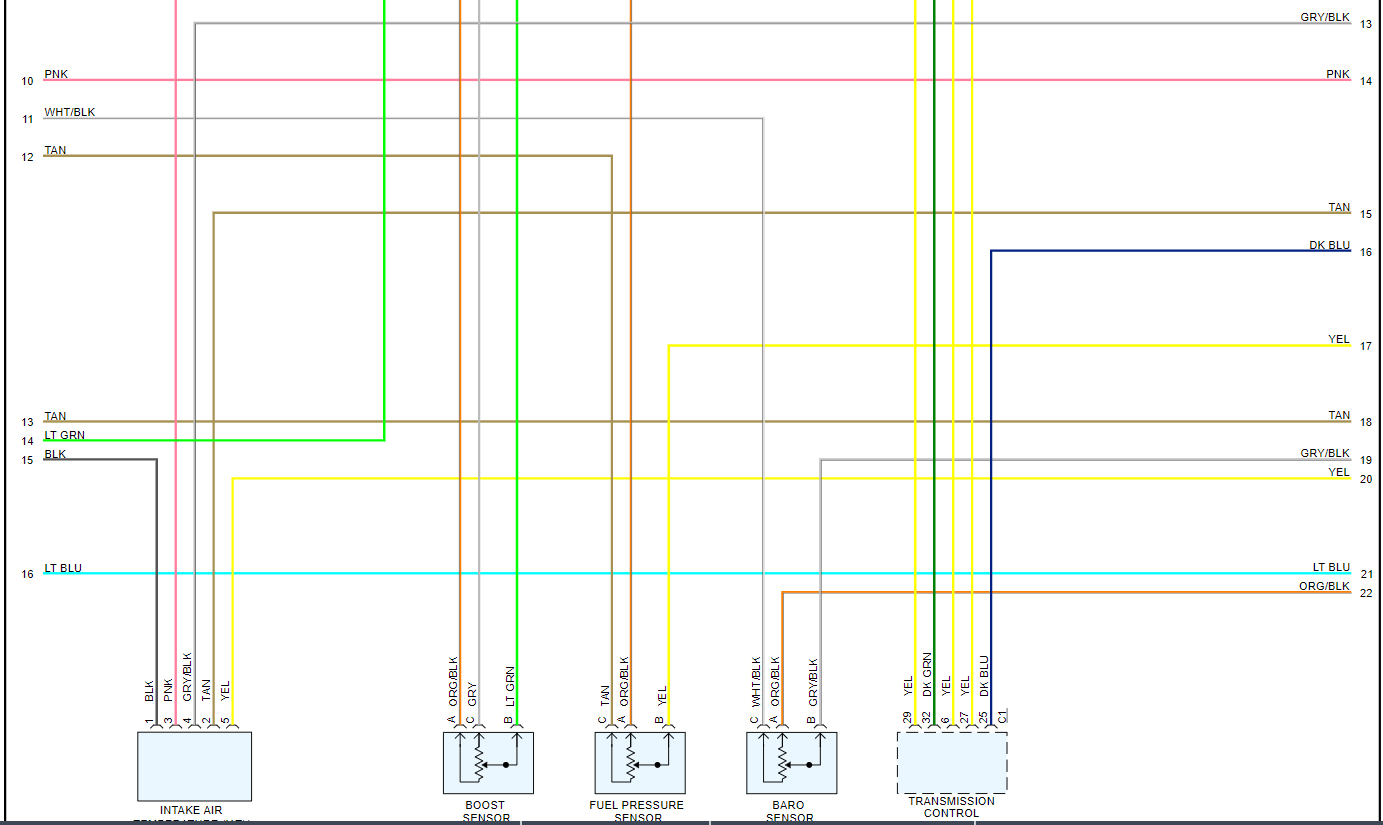

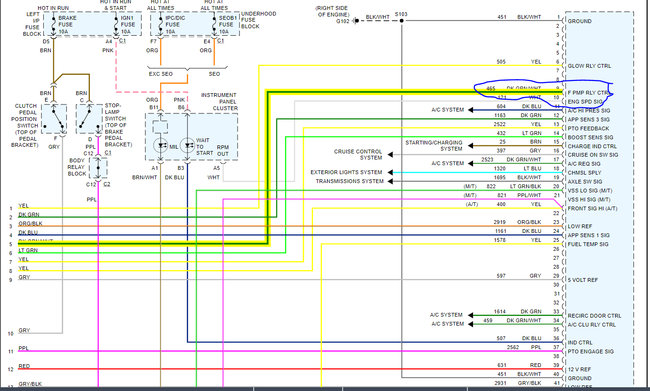

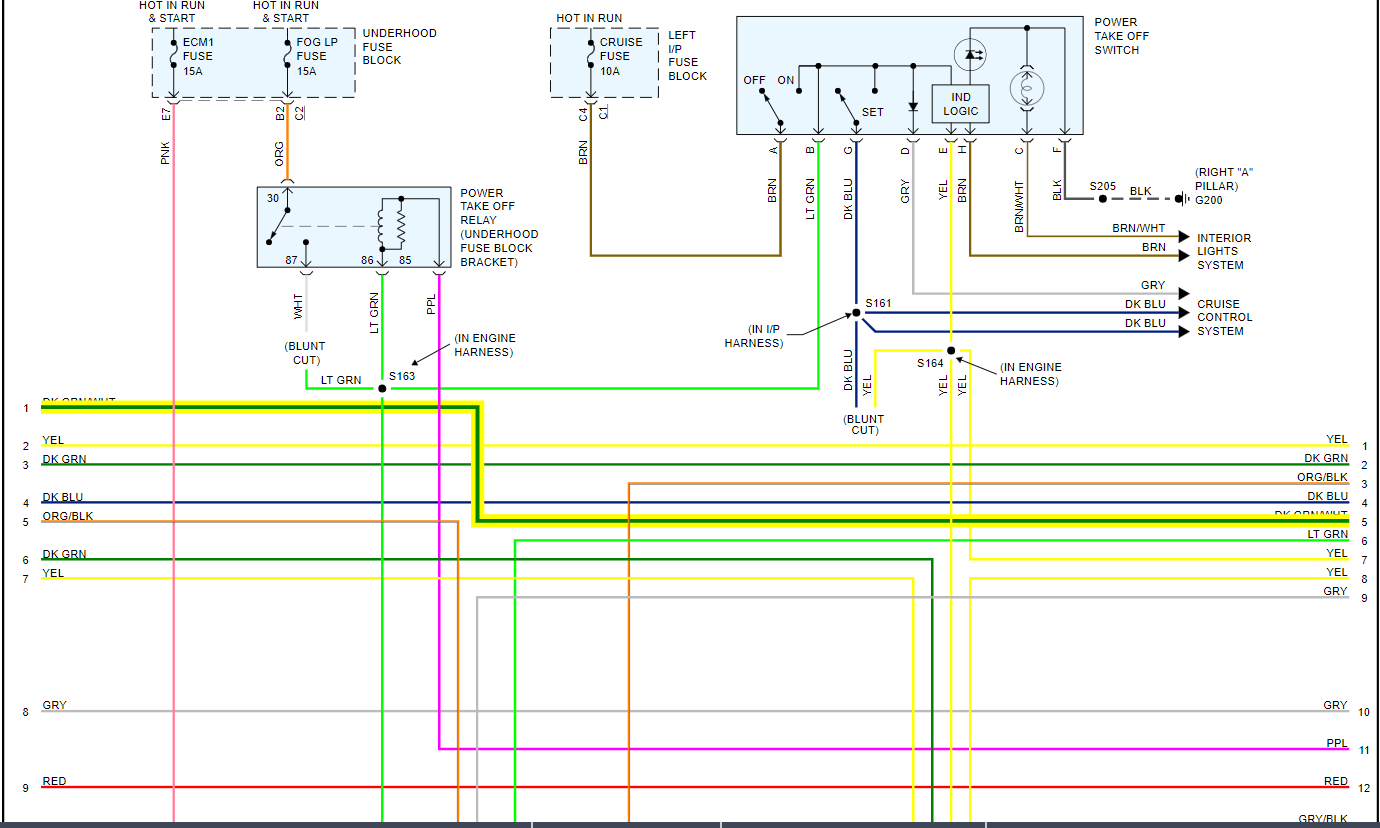

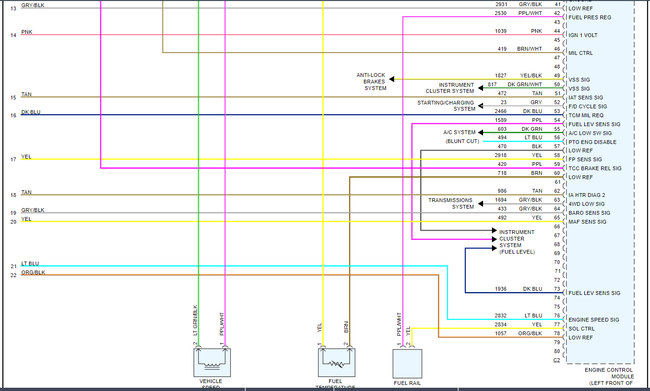

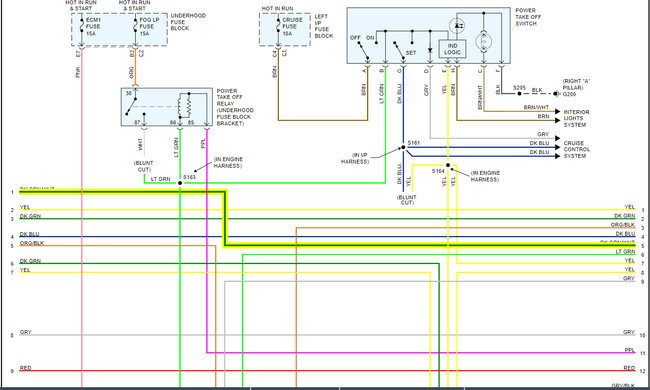

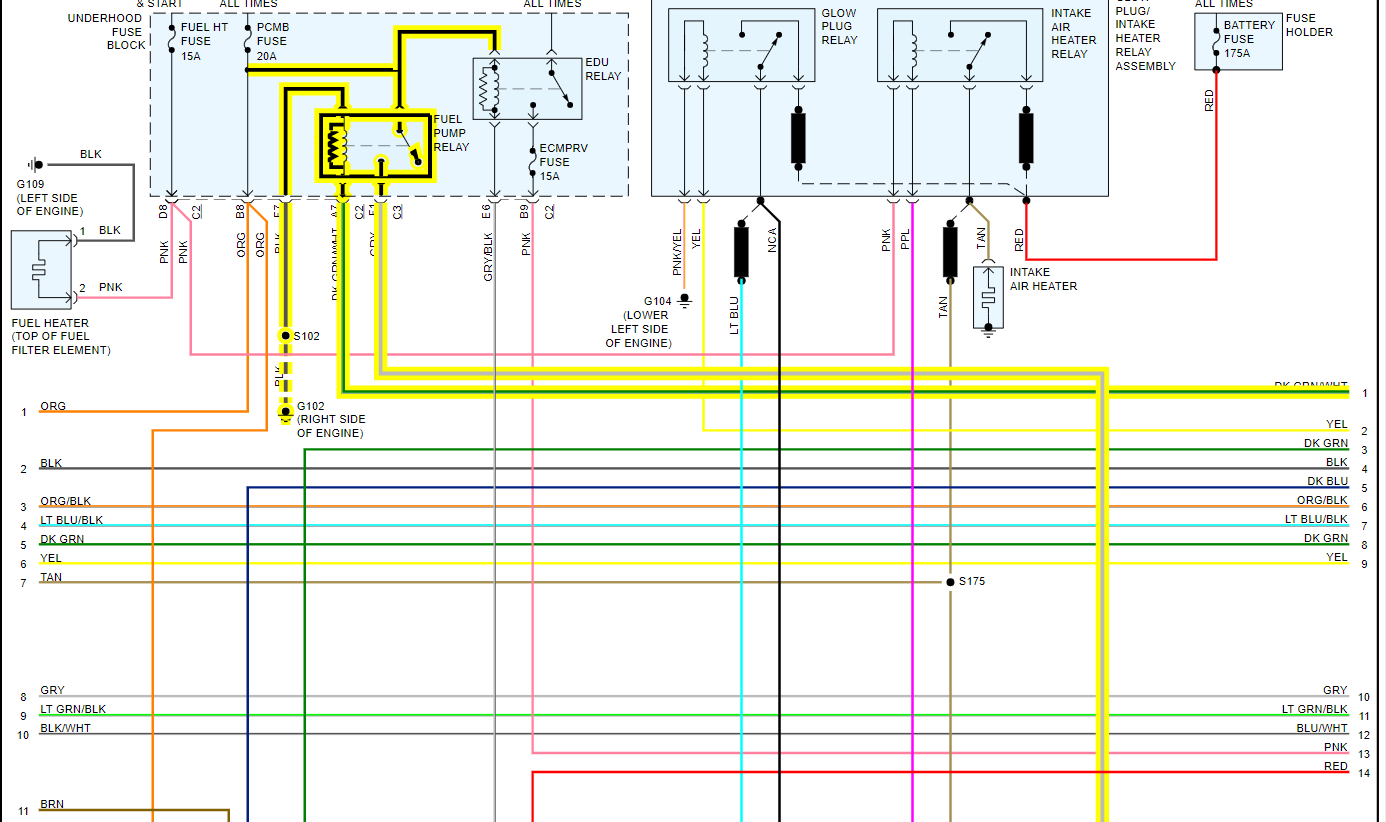

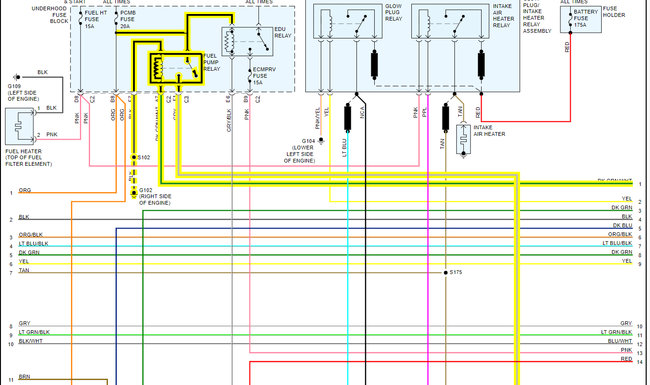

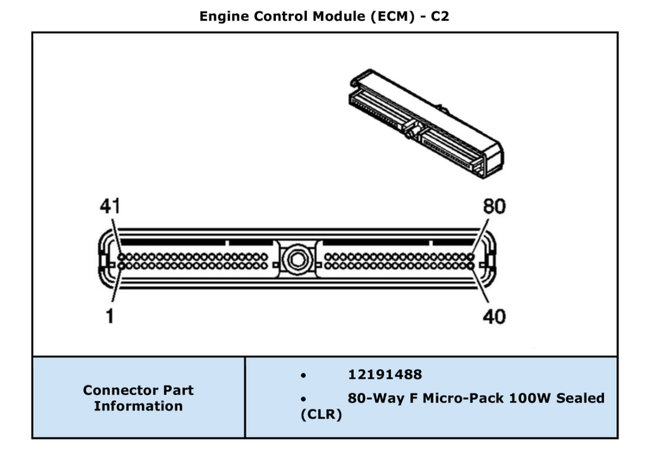

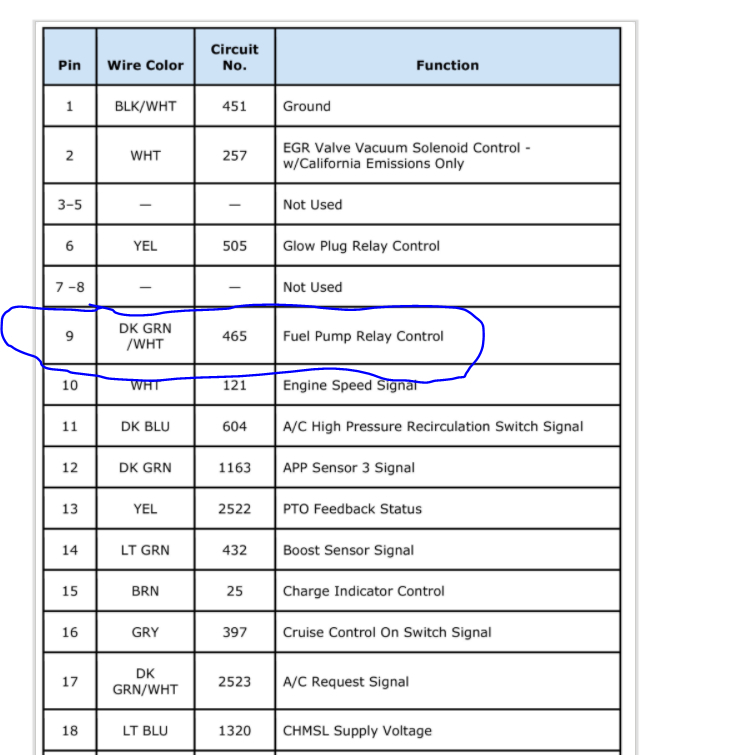

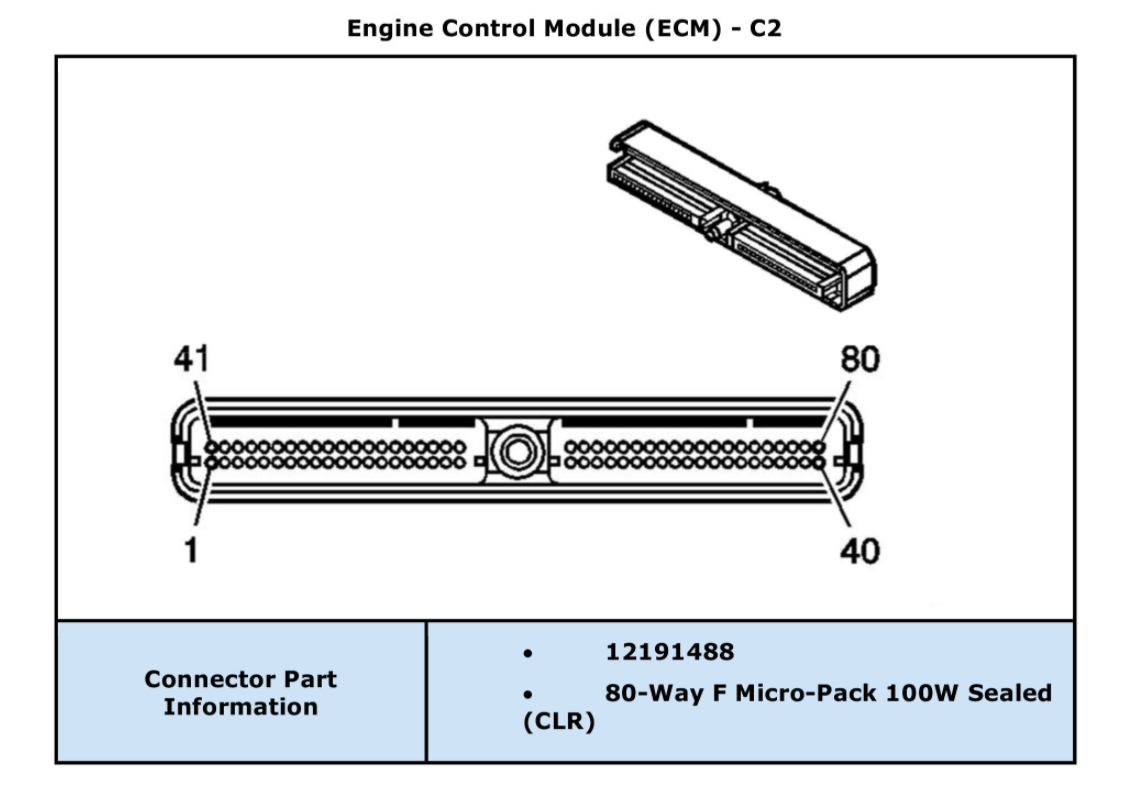

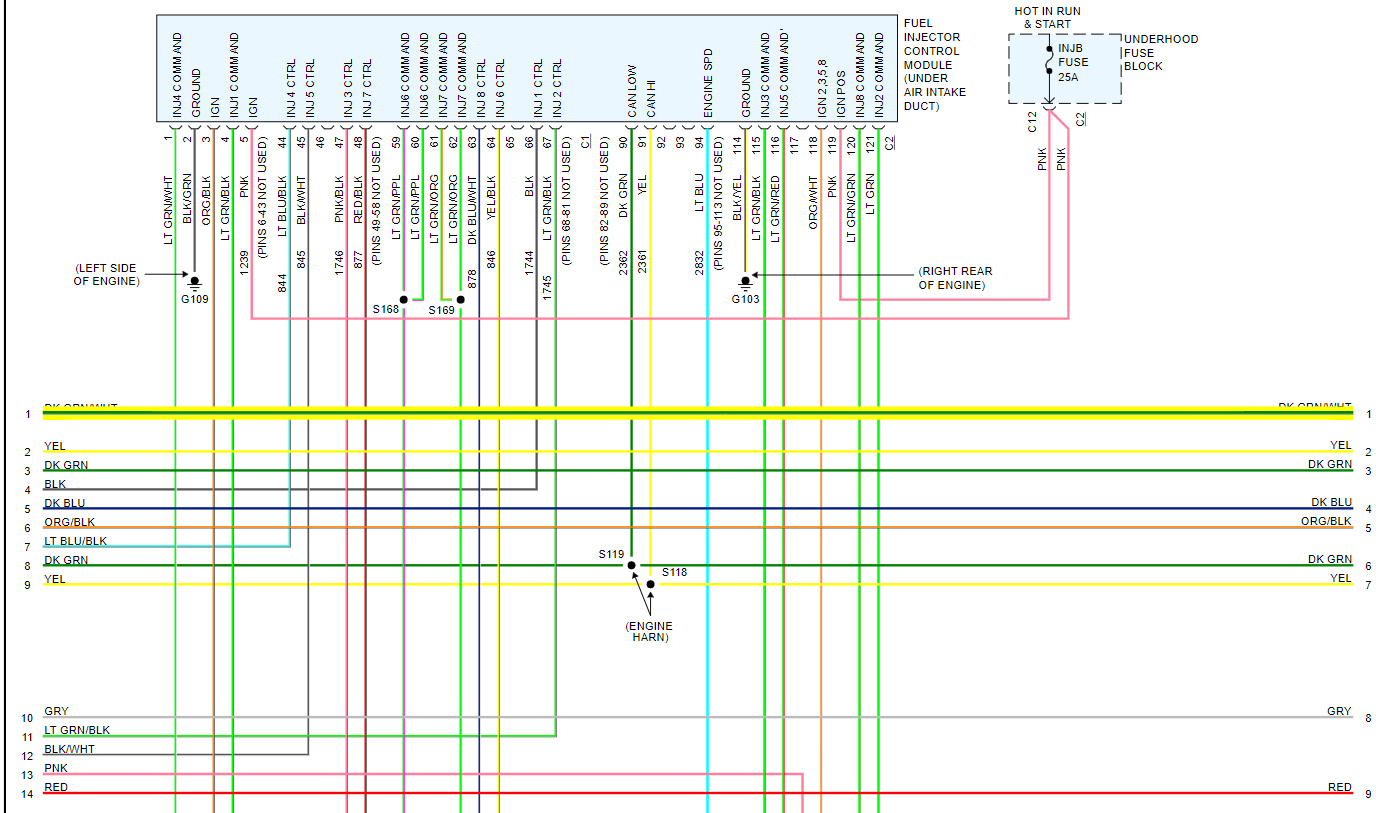

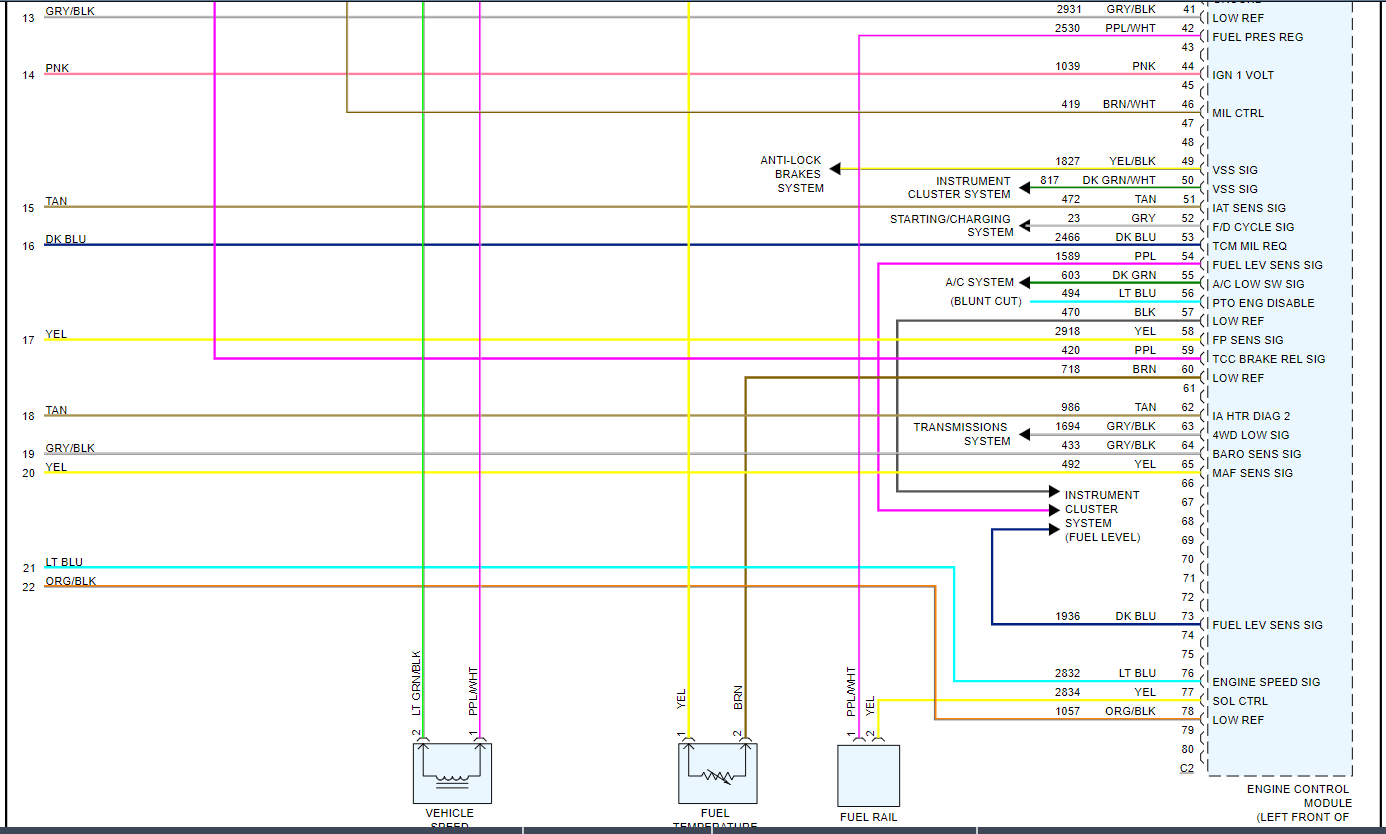

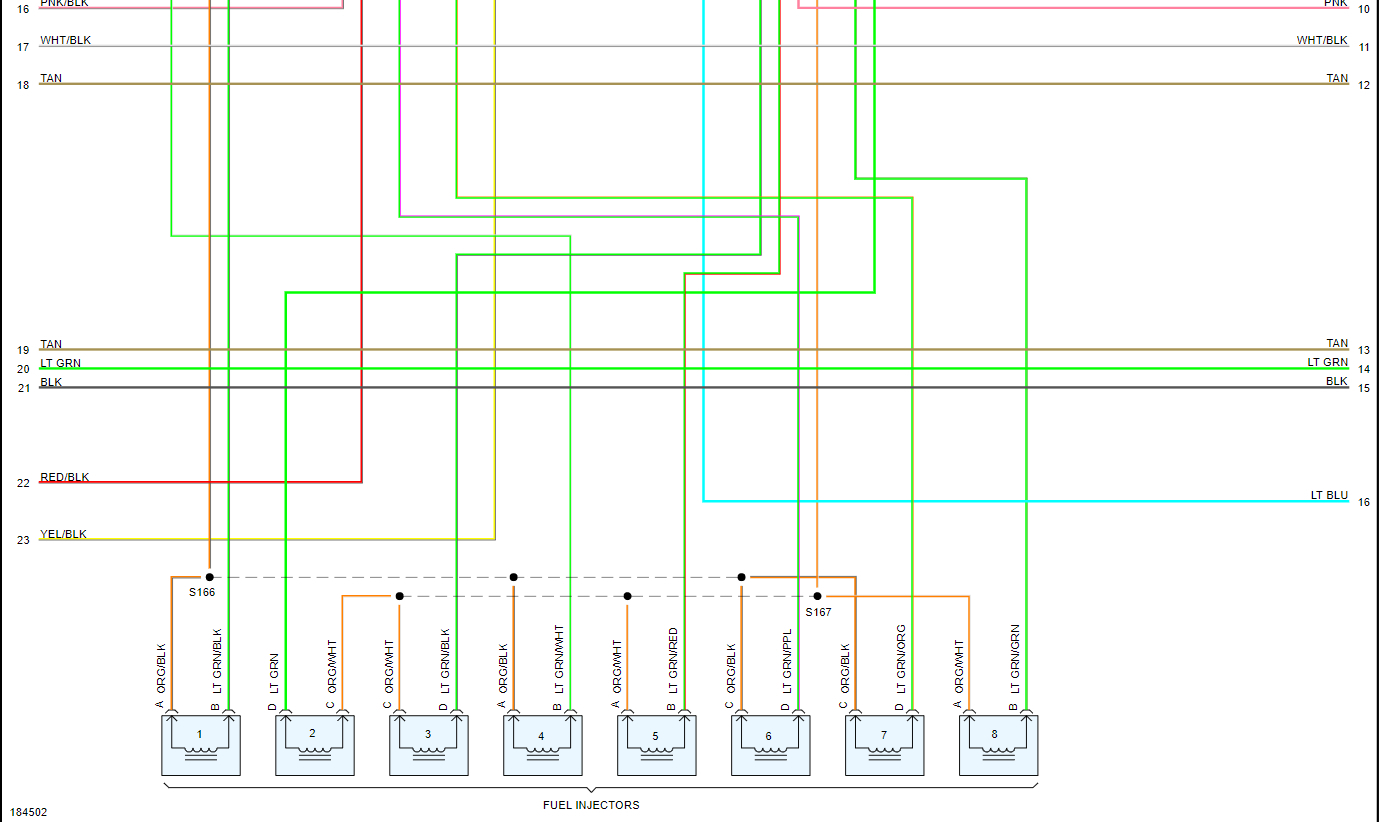

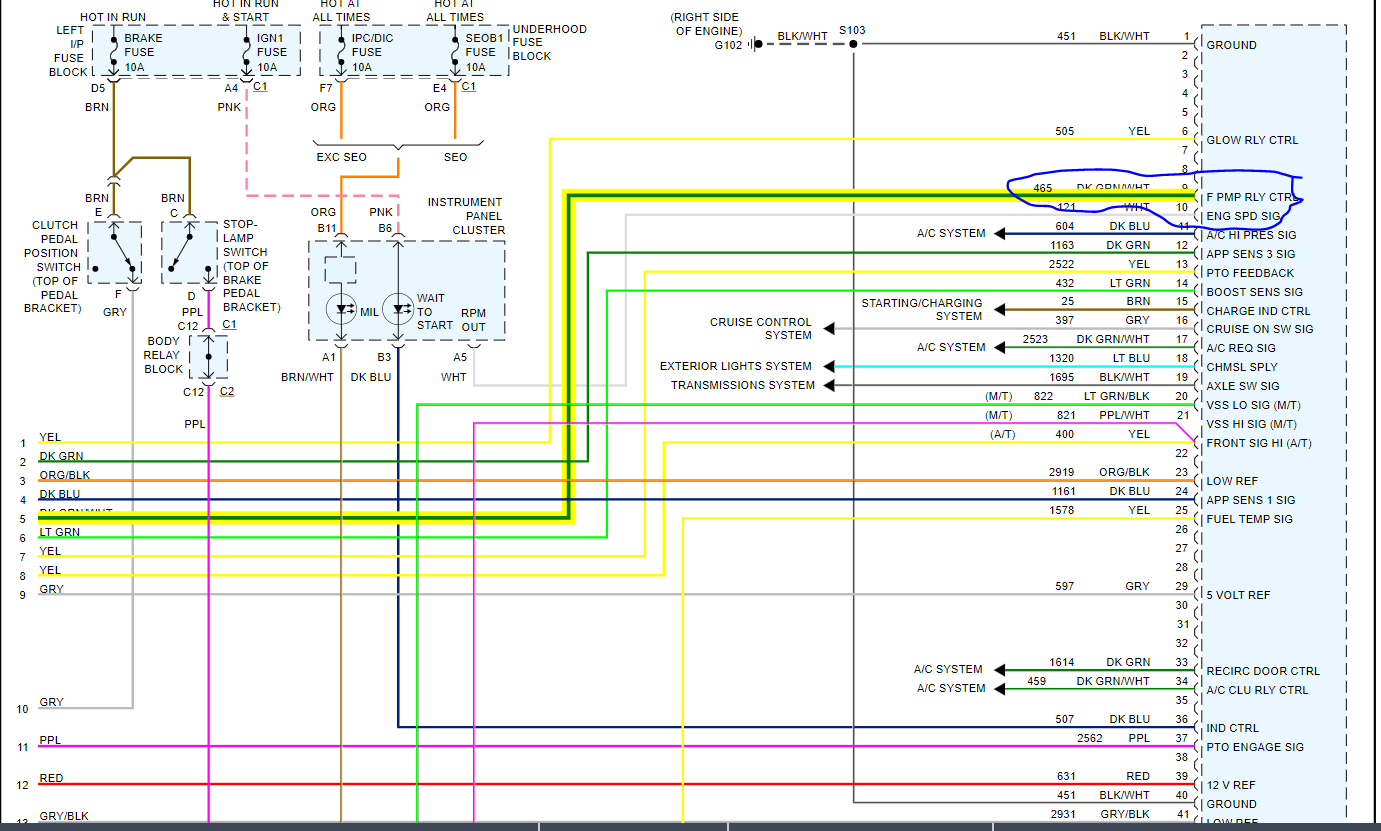

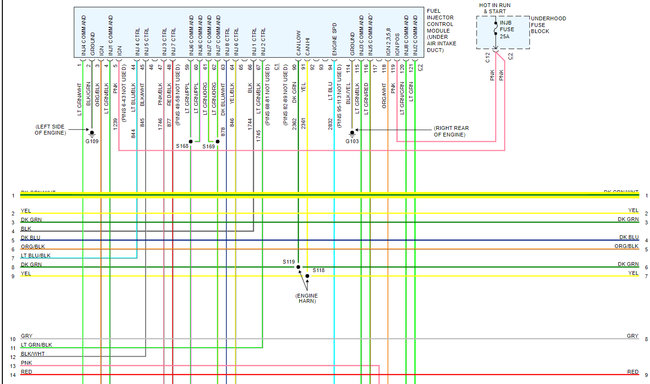

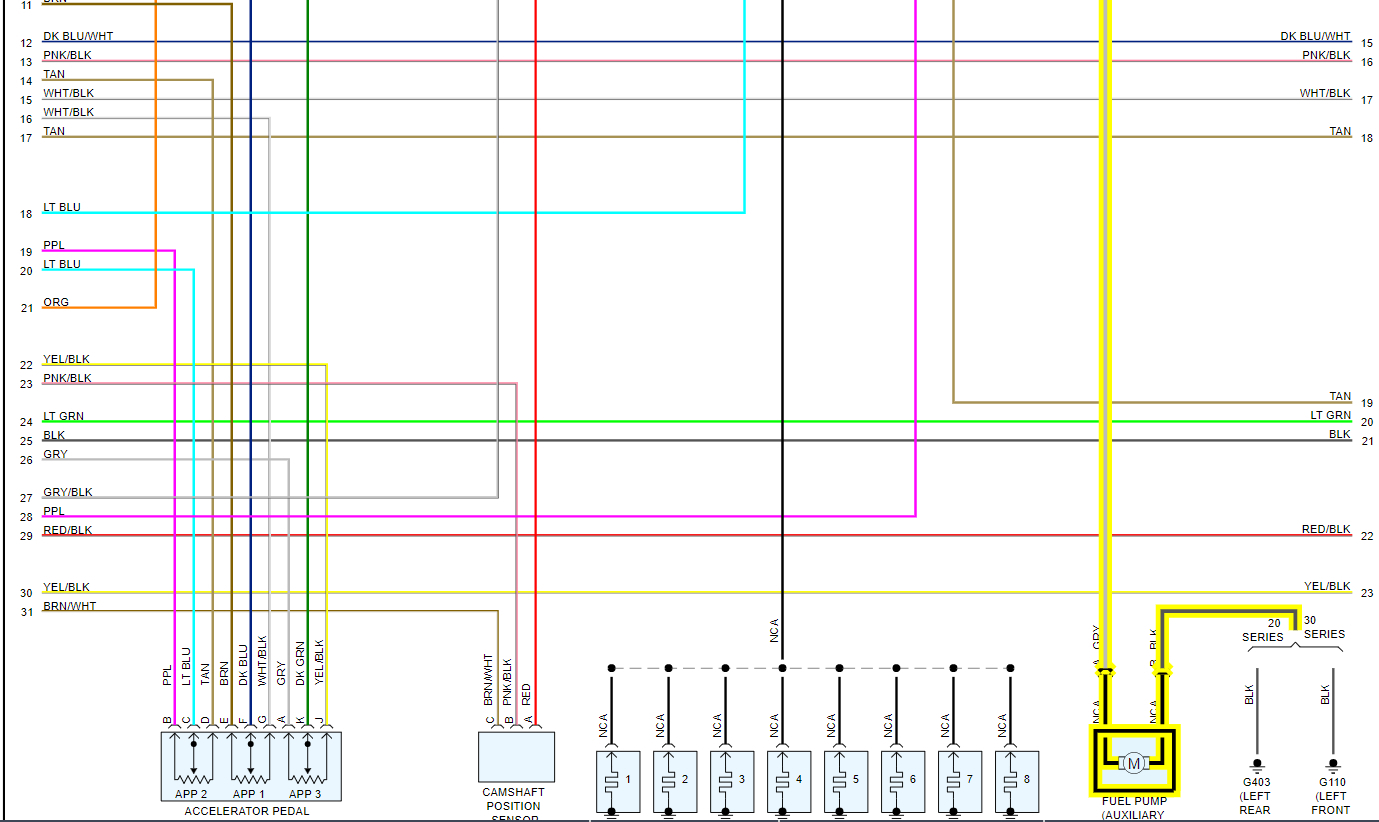

I attached the wiring diagram for you below. Check the ECM connector 2 pin 9 for power with the key on. It will only have power for 2 seconds with the key on. It should have constant voltage while cranking. If there is no voltage the ECM is the issue.

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-use-a-voltmeter

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

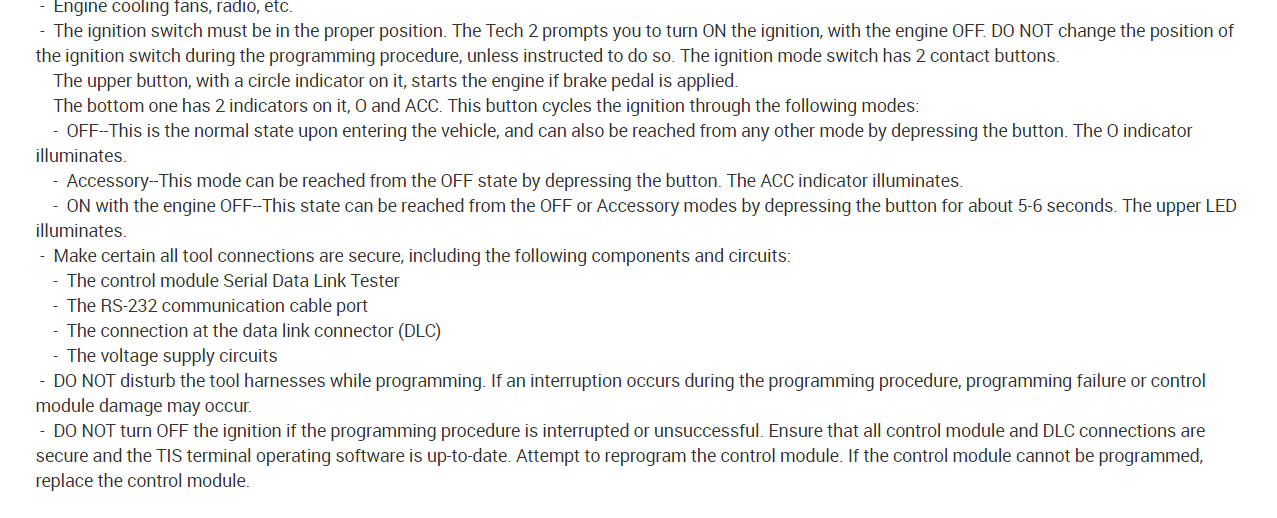

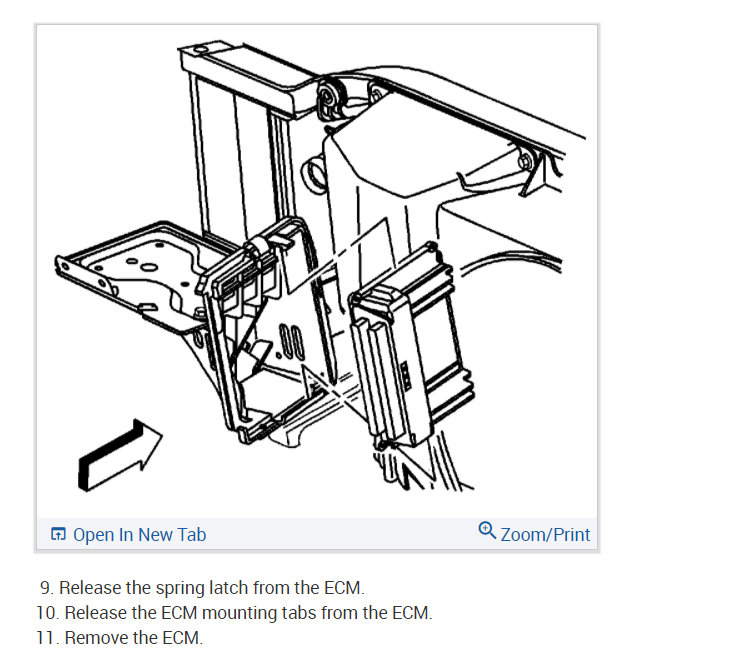

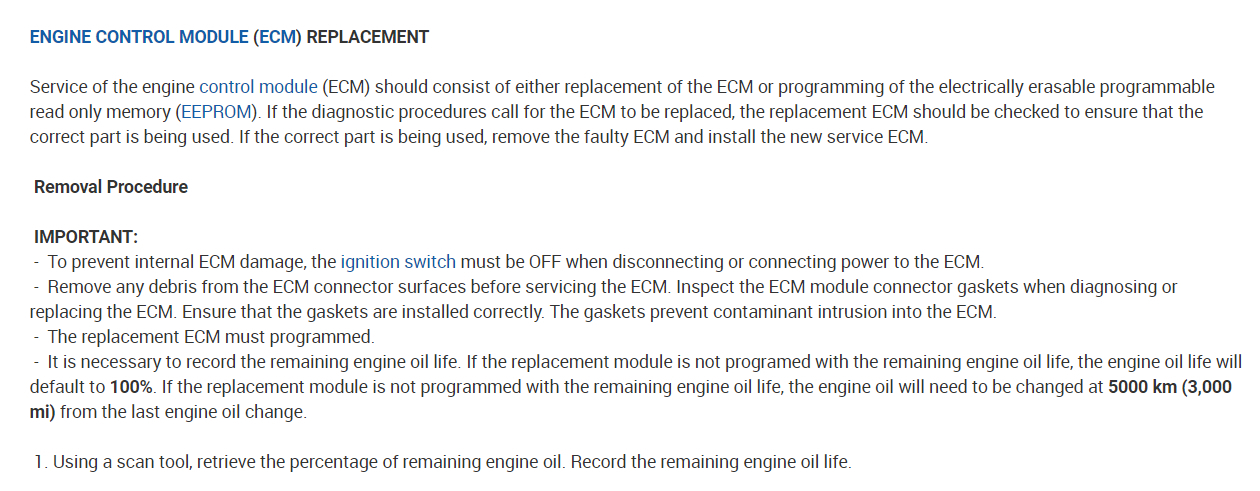

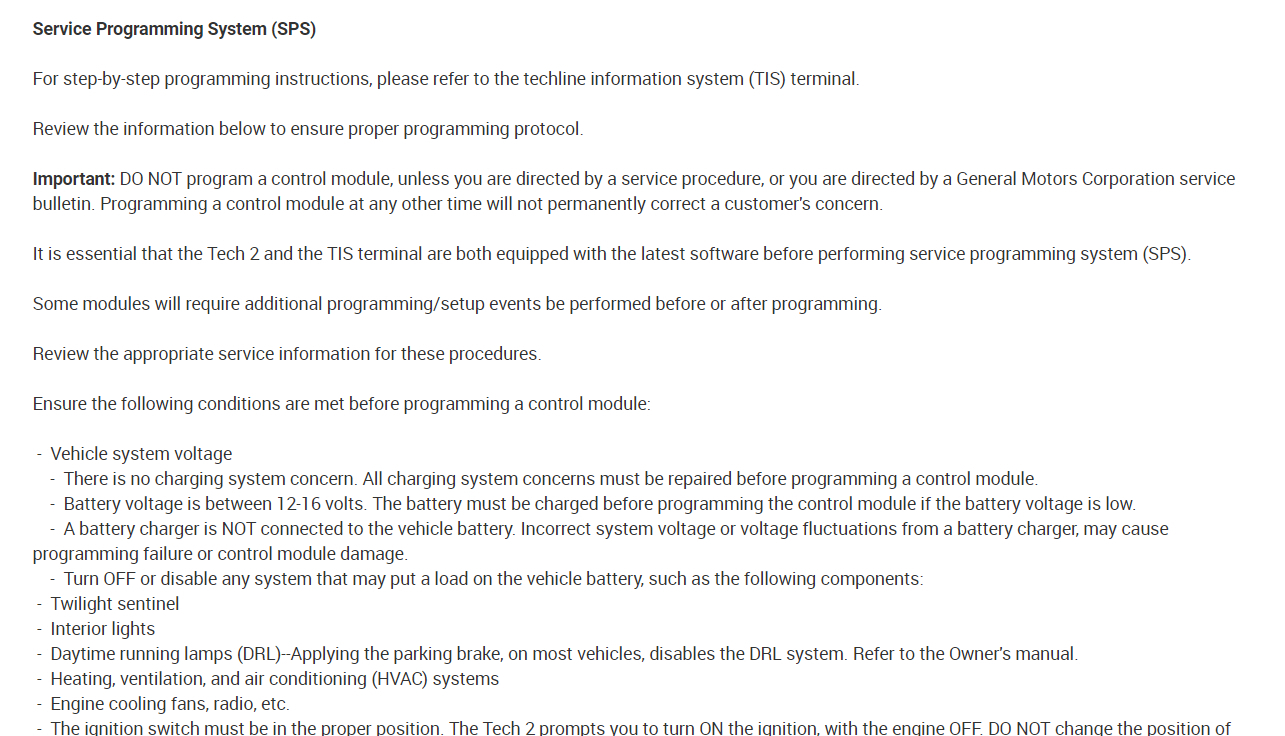

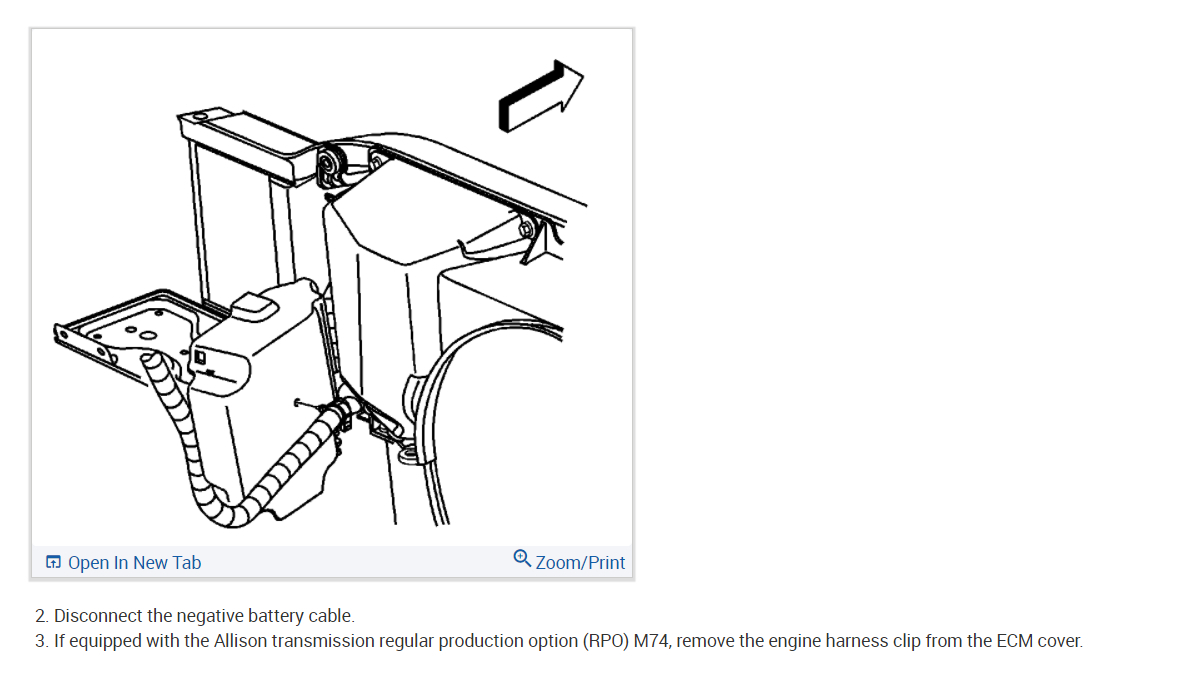

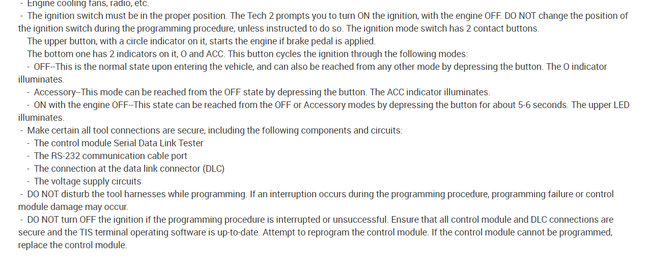

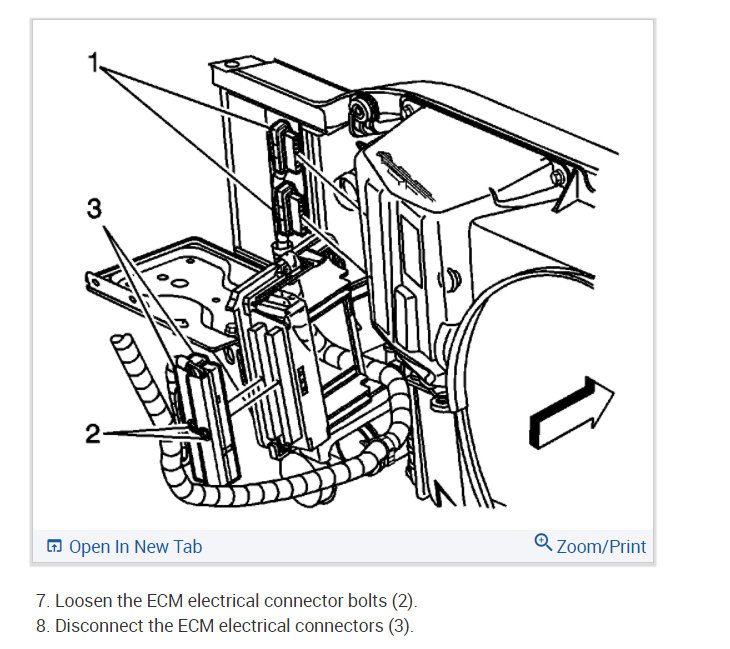

I attached the procedure replacing the ECM and the programming as well.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Apr 7, 2021 at 4:01 PM
