No communication to the scan tool?

2002 FORD F-350
200,000 MILES • 6.8L • V10 • 2WD • AUTOMATIC
Avatar
EARL91
  • MEMBER
  • 89 POSTS
no communication to the scan tool. i have power to the obd2 port, just no communication to the scan tool. i cant find any info to help on the inter web.
Dec 11, 2023 at 6:43 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Did you try the scanner in another car to see if it works?

This video can help as well:

https://youtu.be/6Tlg3JmgNSQ?si=GyIBIQSRKZNomZks

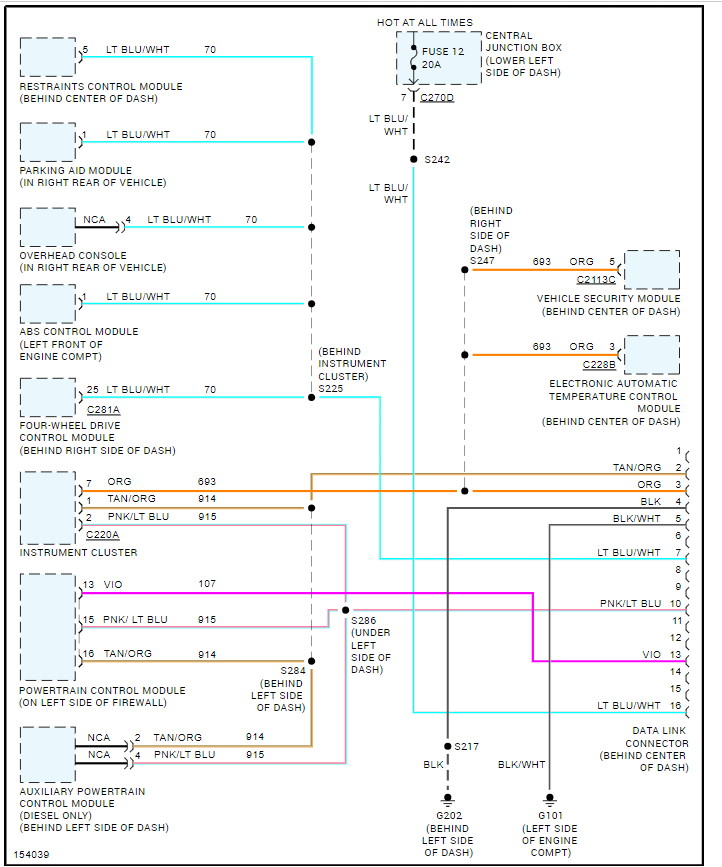

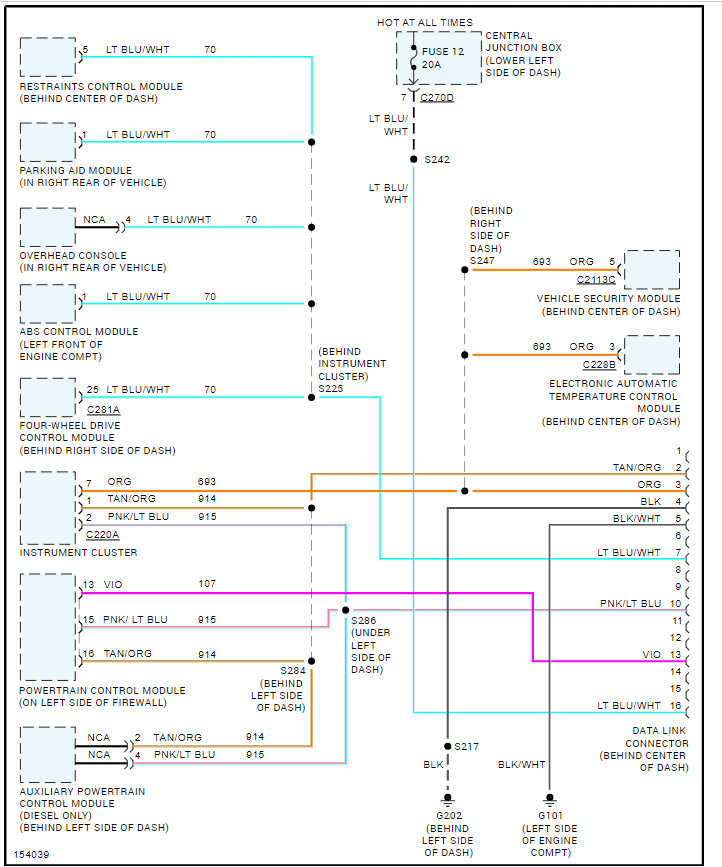

You should check the grounds (2) of the connector as well, here is a guide to help and the OBD2 port wiring diagrams so you can see how it works and which wires to test. Test the black and blk/wht wires for ground. Check out the images (below). Let us know how it goes.

Image (Click to enlarge)
Attached Media
Dec 12, 2023 at 12:03 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
anything?
May 9, 2024 at 11:59 AM
