Need to replace the wiper linkage assembly

2005 HYUNDAI SANTA FE
85,000 MILES
Avatar
DSEIBERT
  • MEMBER
  • 14 POSTS
I need to replace the wiper linkage / transmission on this car for my daughter. The spline has stripped on the drivers side. How do I remove the body panel to get to the motor linkage assembly.

Thanks in advance

Don
Apr 29, 2013 at 7:16 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

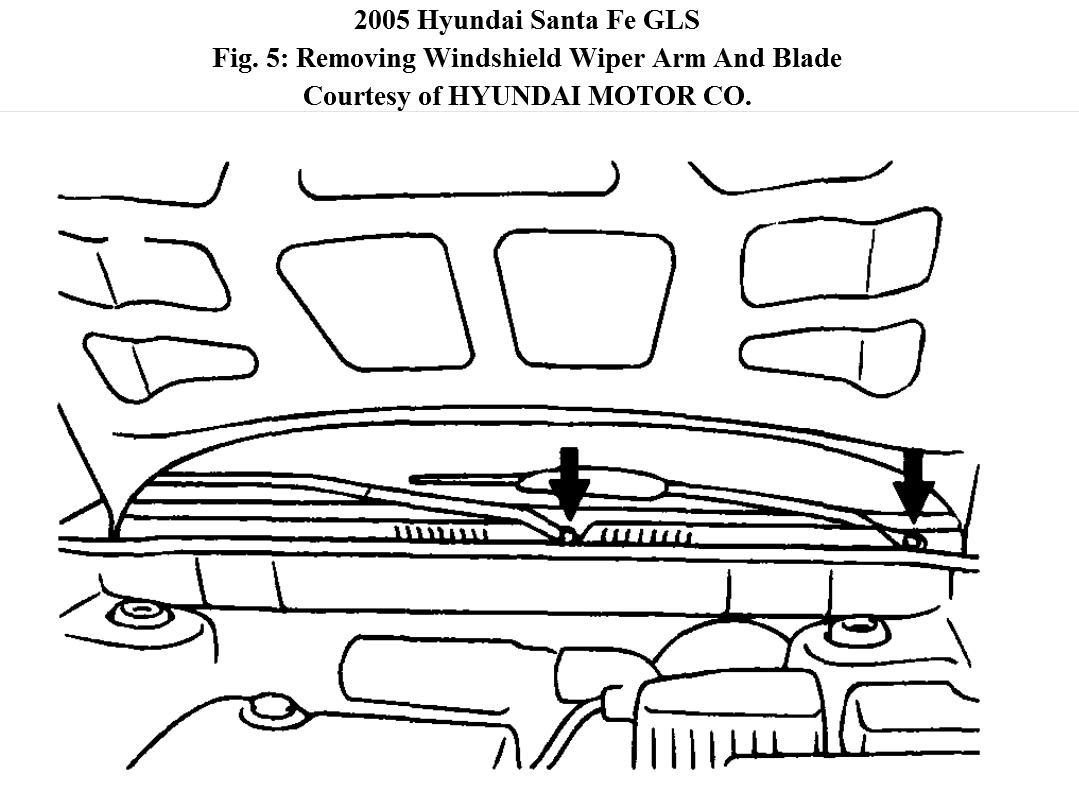

1. Remove the windshield wiper arm and blade.
NOTE:
Care must be taken not to scratch the engine hood.

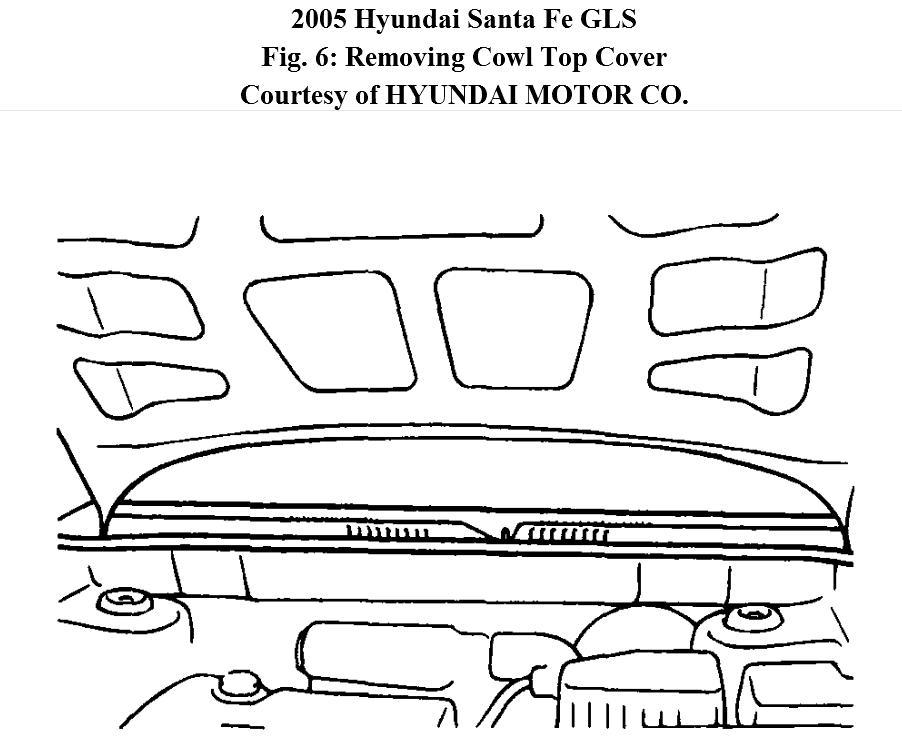

2. Remove the weather strip and the cowl top cover.

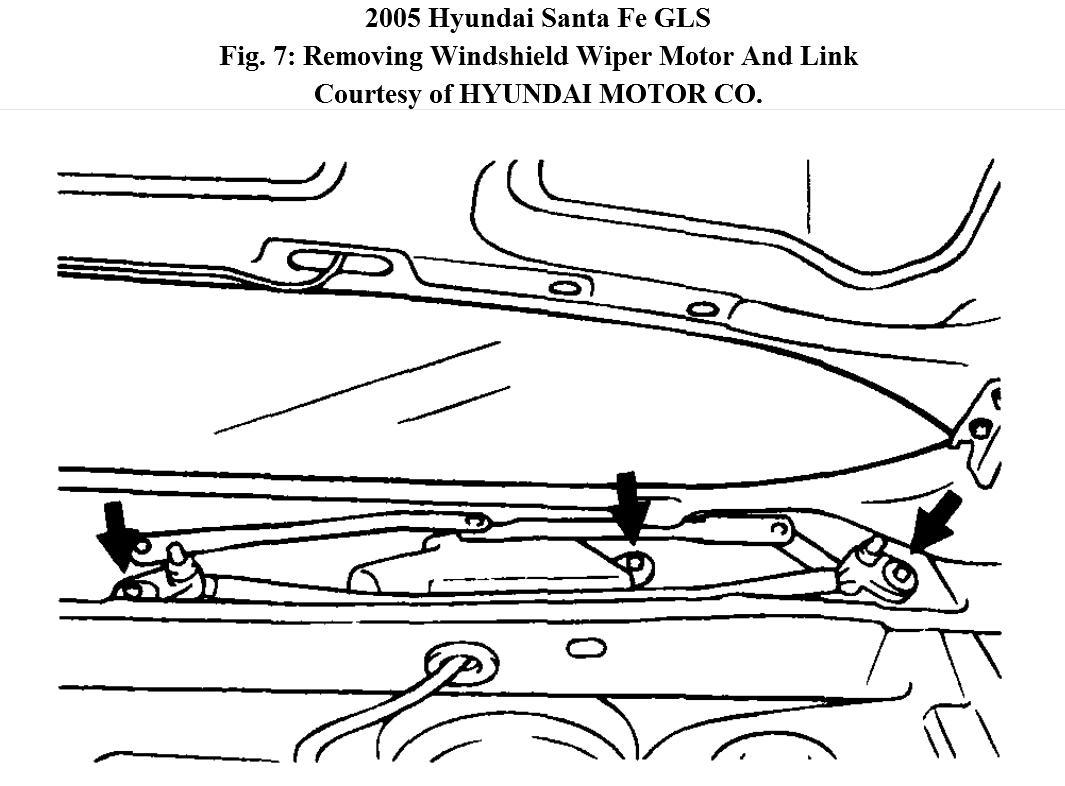

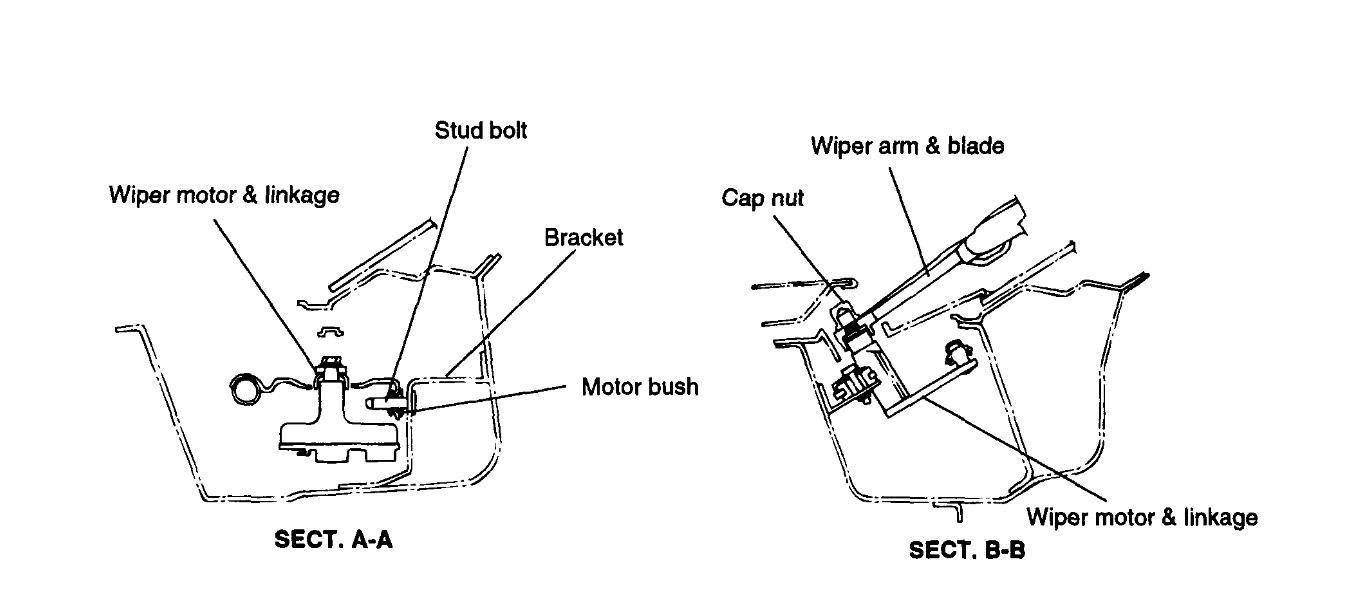

3. Disconnect the windshield wiper motor connector and remove the windshield
wiper motor and the link.

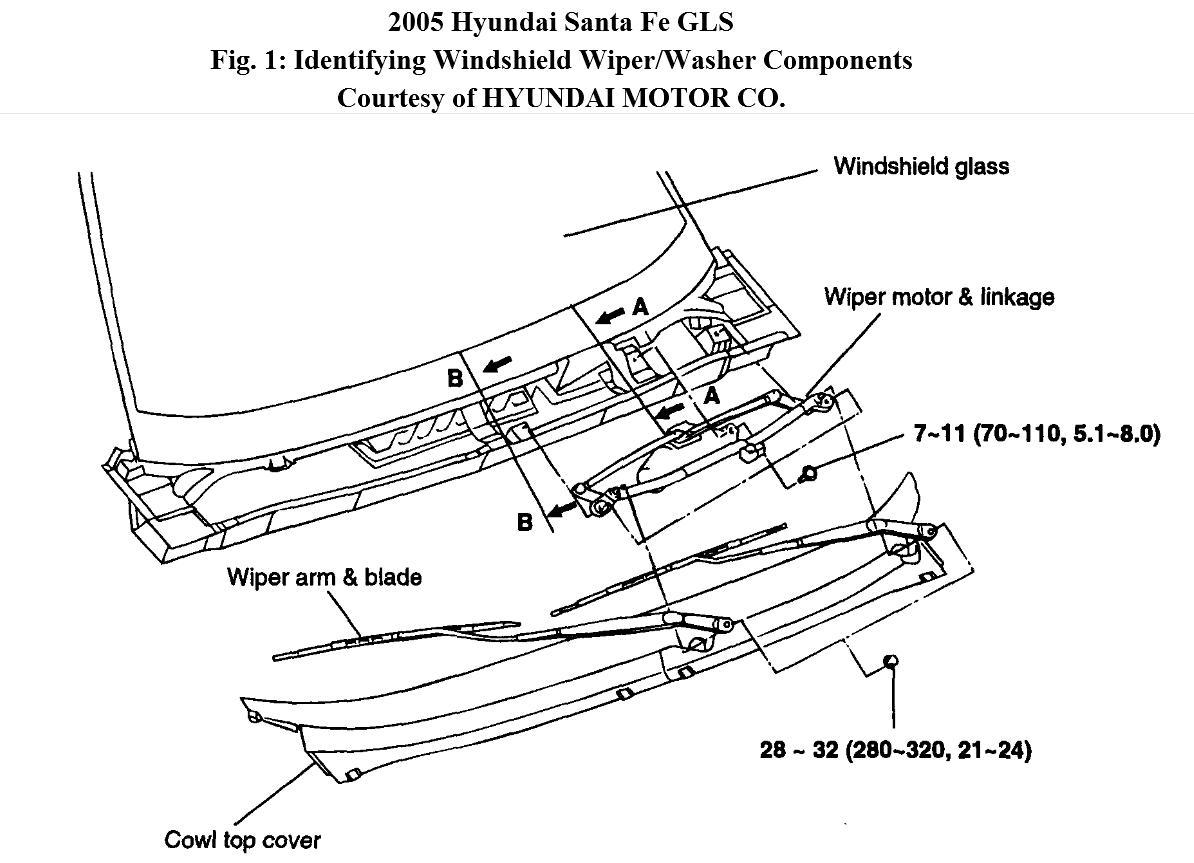

Tightening torque
7~11 Nm (70~110 kg.cm, 5.1~8.0 lb.ft)


Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Apr 29, 2013 at 10:16 AM
Avatar
DSEIBERT
  • MEMBER
  • 14 POSTS
Hi,

Thank you very much...

One more question if you would be so kind.

Looks like 4 clips(?) hold the cowl on the engine side. Haven't seen the car yet to examine. She is bringing it over tonight

Thanks in advance

Don
Apr 29, 2013 at 11:02 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Sorry I don't have information on the number of clips.
Apr 30, 2013 at 5:24 AM
