Replacing serpentine belt, complete diagram and instructions needed?

2008 HONDA ODYSSEY
220,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
YIKAI CAO
  • MEMBER
  • 2 POSTS
I need the correct diagram of the belt and exact location of bolt to release tension.
Dec 20, 2023 at 10:42 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

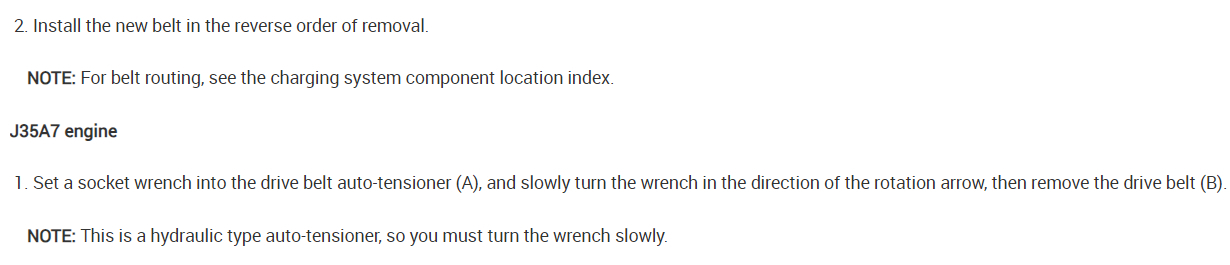

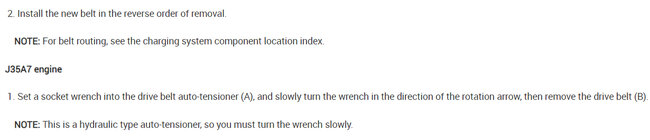

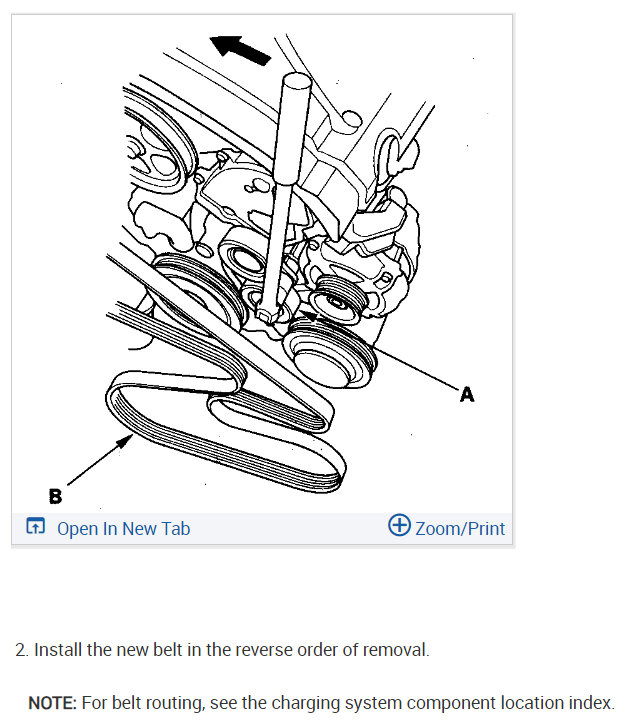

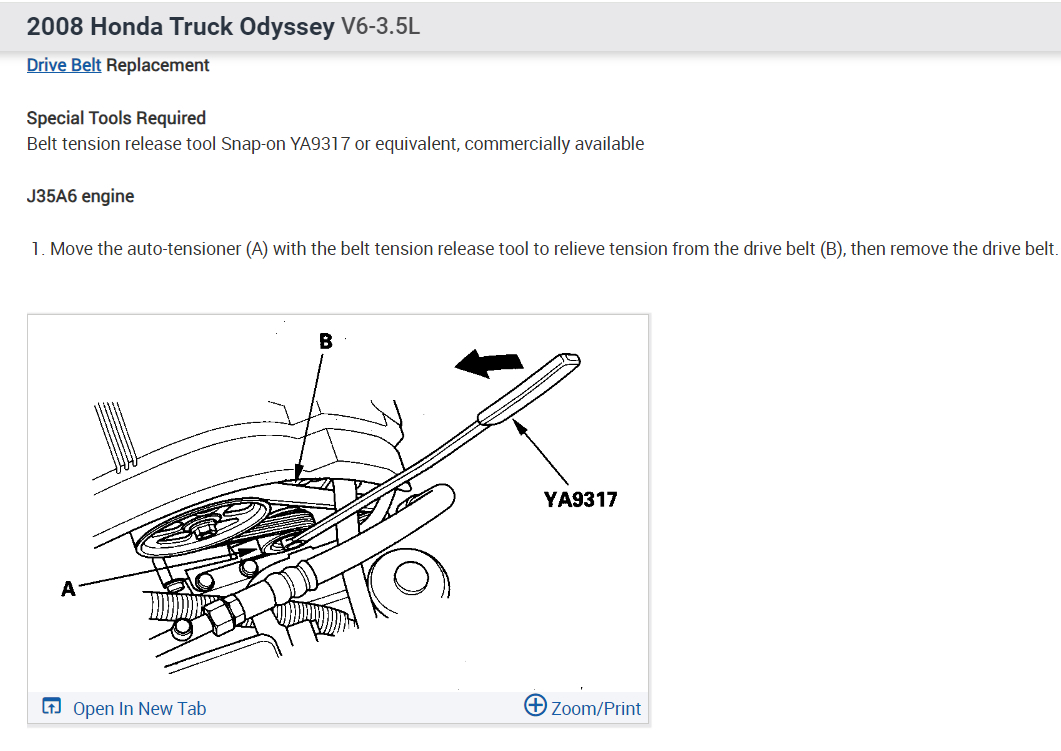

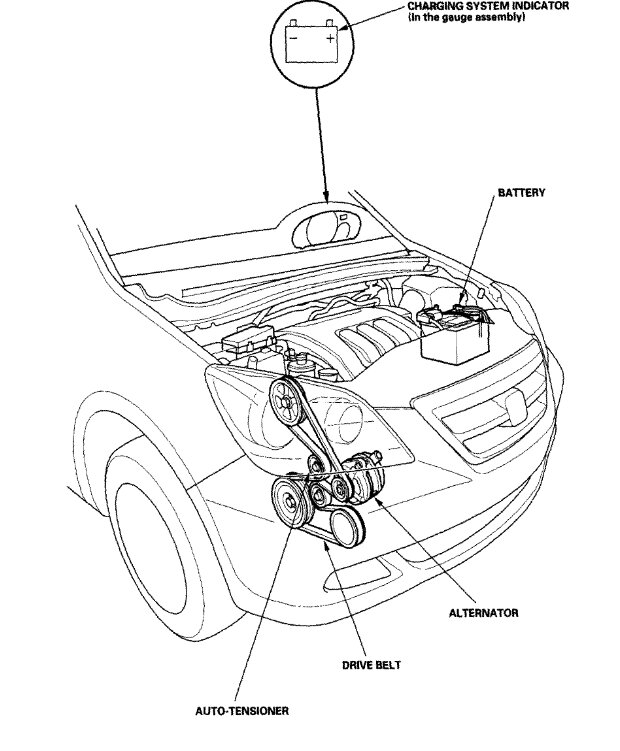

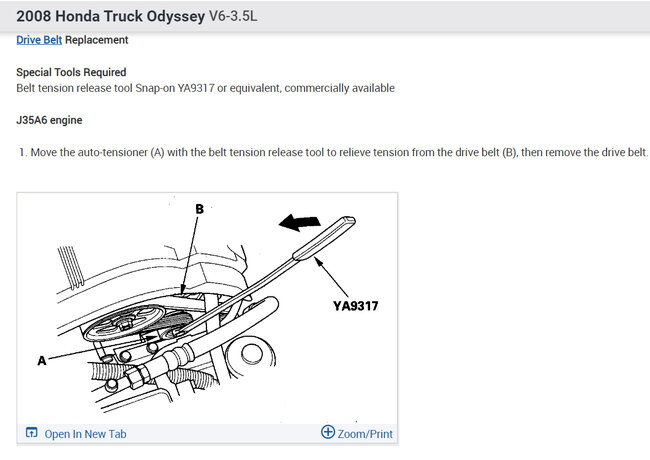

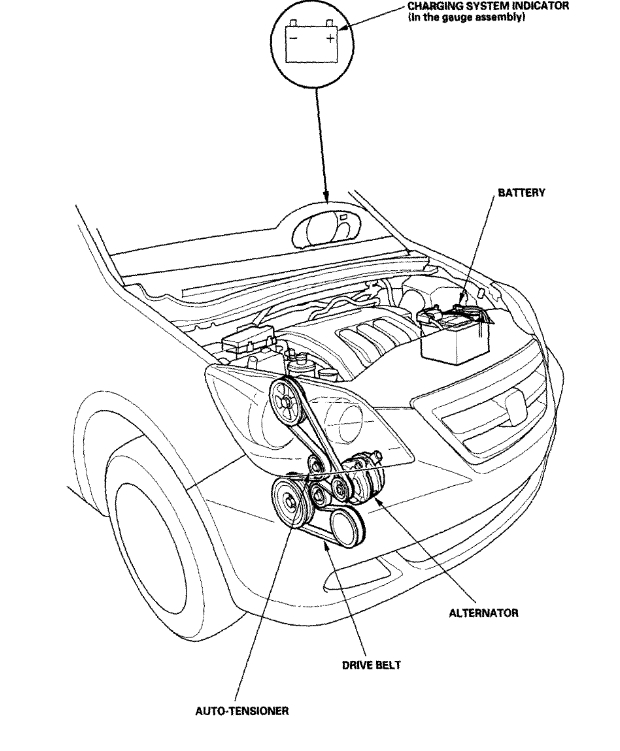

Sure, here are the instructions on how to replace the serpentine drive belt on your vehicle with the belt routing as well. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Dec 21, 2023 at 2:02 PM
Avatar
YIKAI CAO
  • MEMBER
  • 2 POSTS
Where is the location of the bolt to release stress of belt? Is it in the center of the tension wheel?
Dec 21, 2023 at 9:13 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
It is in the center of the tensioner pulley.
