Need the belt diagram for the serpentine belt

2013 VOLKSWAGEN PASSAT
89,000 MILES • 2.5L • 5 CYL • 2WD • AUTOMATIC
Avatar
MARIMAR80
  • MEMBER
  • 1 POST
I replaced the alternator but do not remember the serpentine belt routing.
Nov 3, 2016 at 6:42 AM
Advertisement
Avatar
JIS001
  • CERTIFIED EXPERT
  • 3,412 POSTS
Hello,

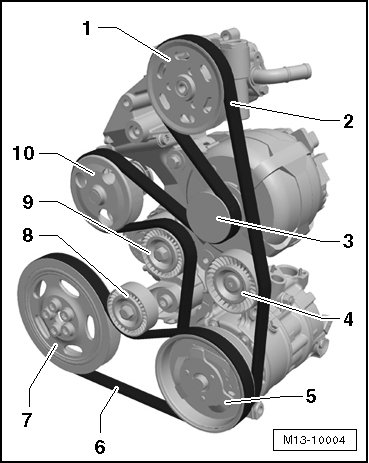

Here is a guide to help you get the belts changes with a belt routing diagrams so you can see how it goes below.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Nov 3, 2016 at 1:22 PM
