Need a diagram of engine vacuum lines connections

Hi and thanks for using 2CarPros.com.

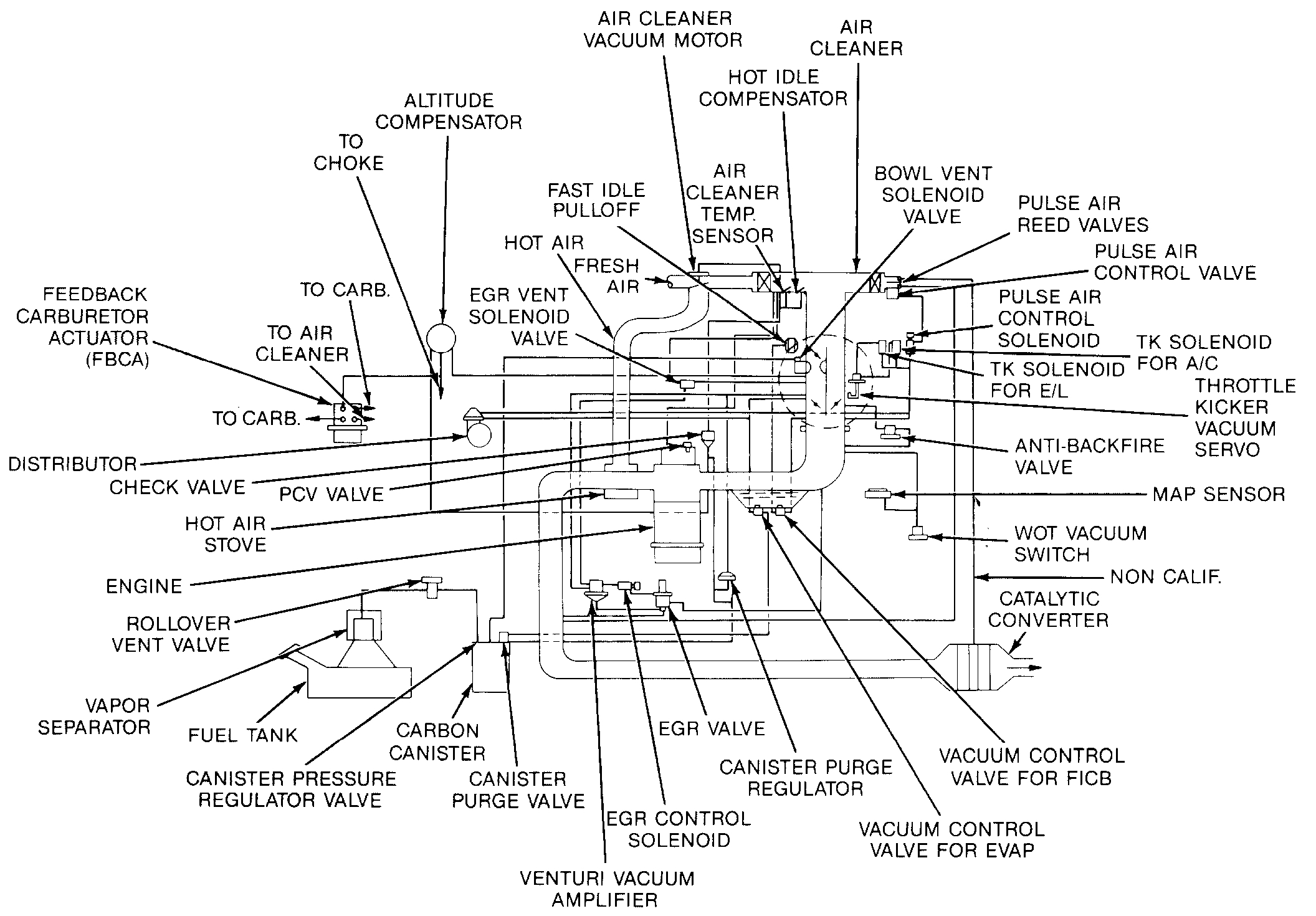

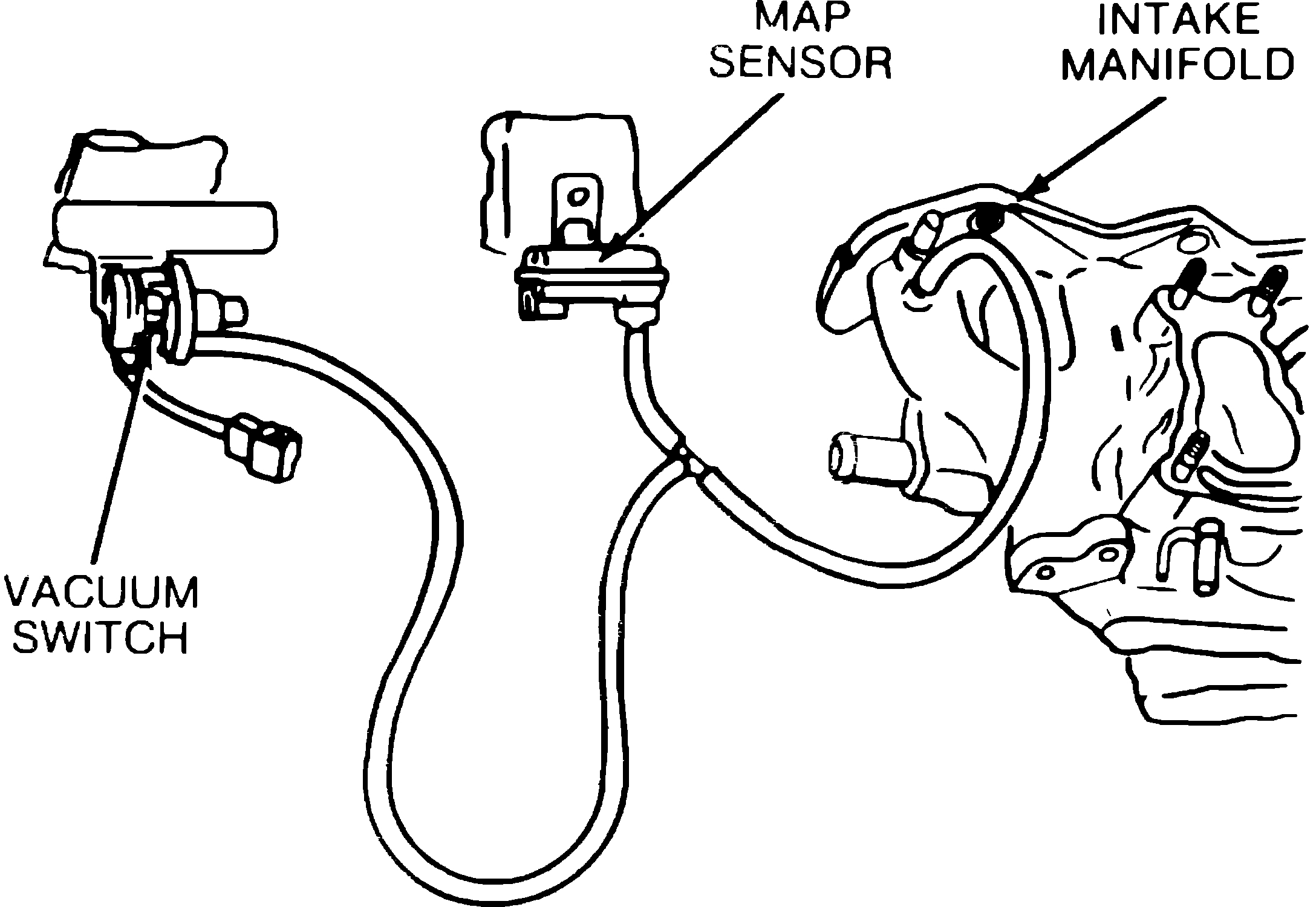

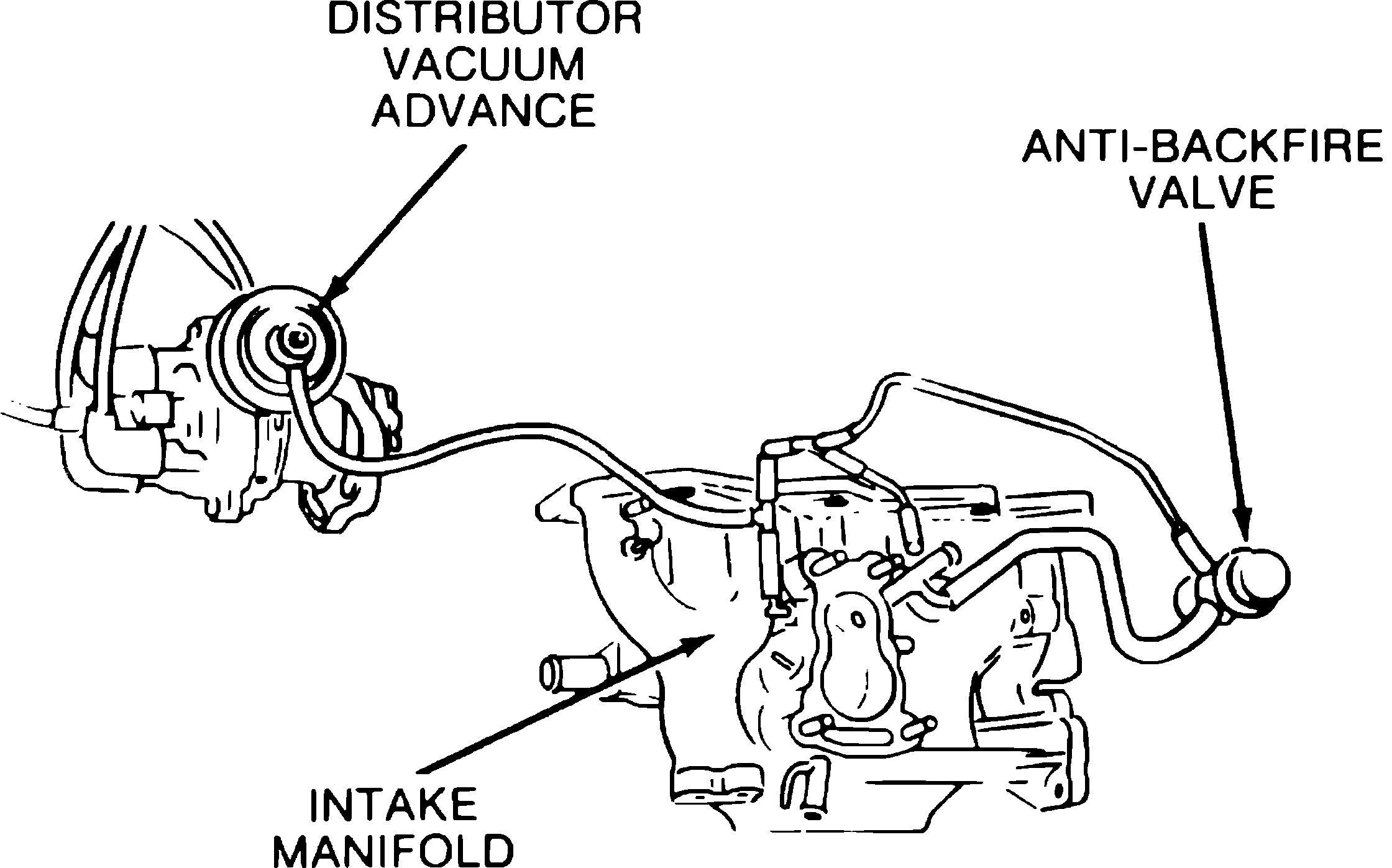

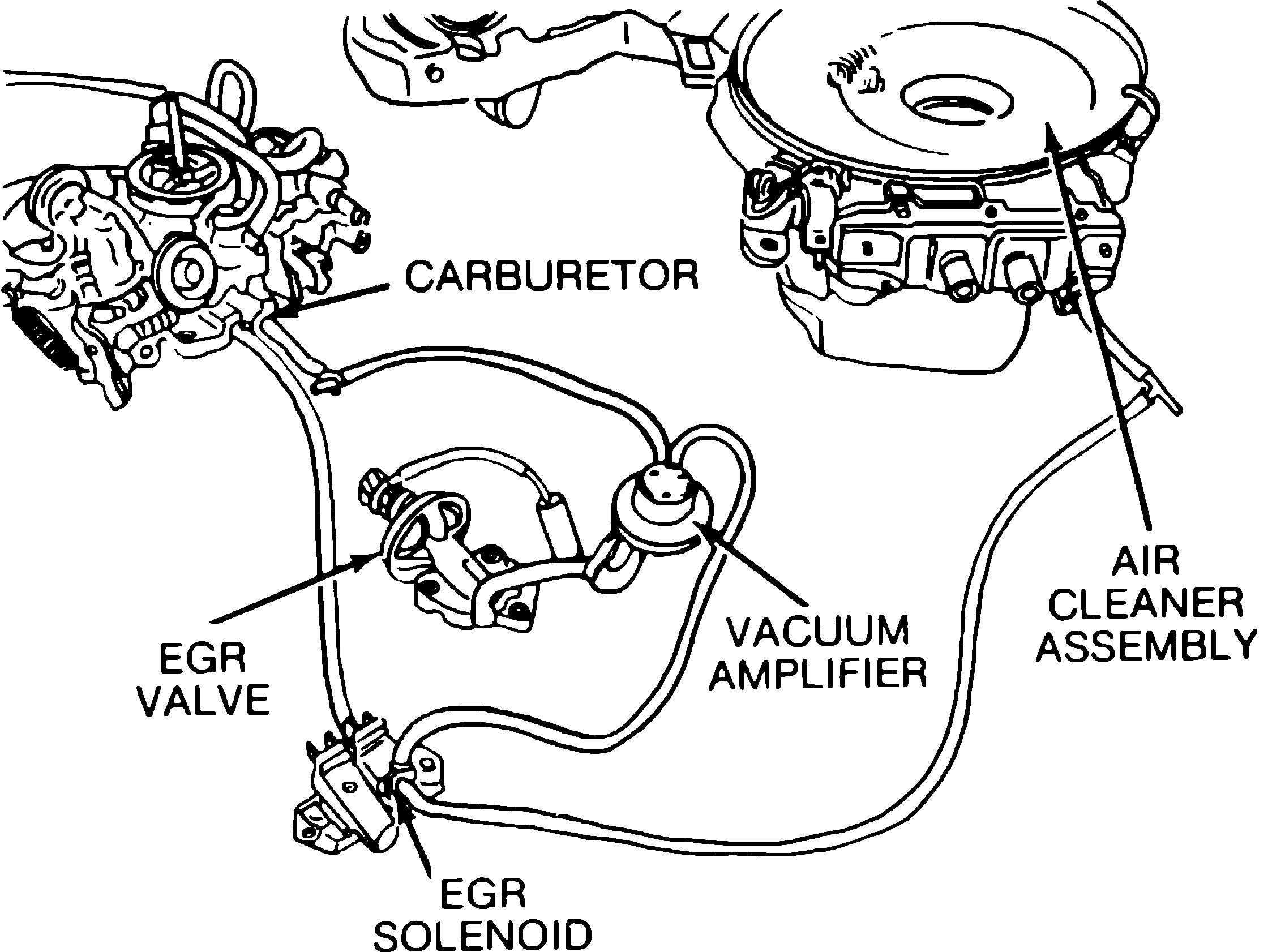

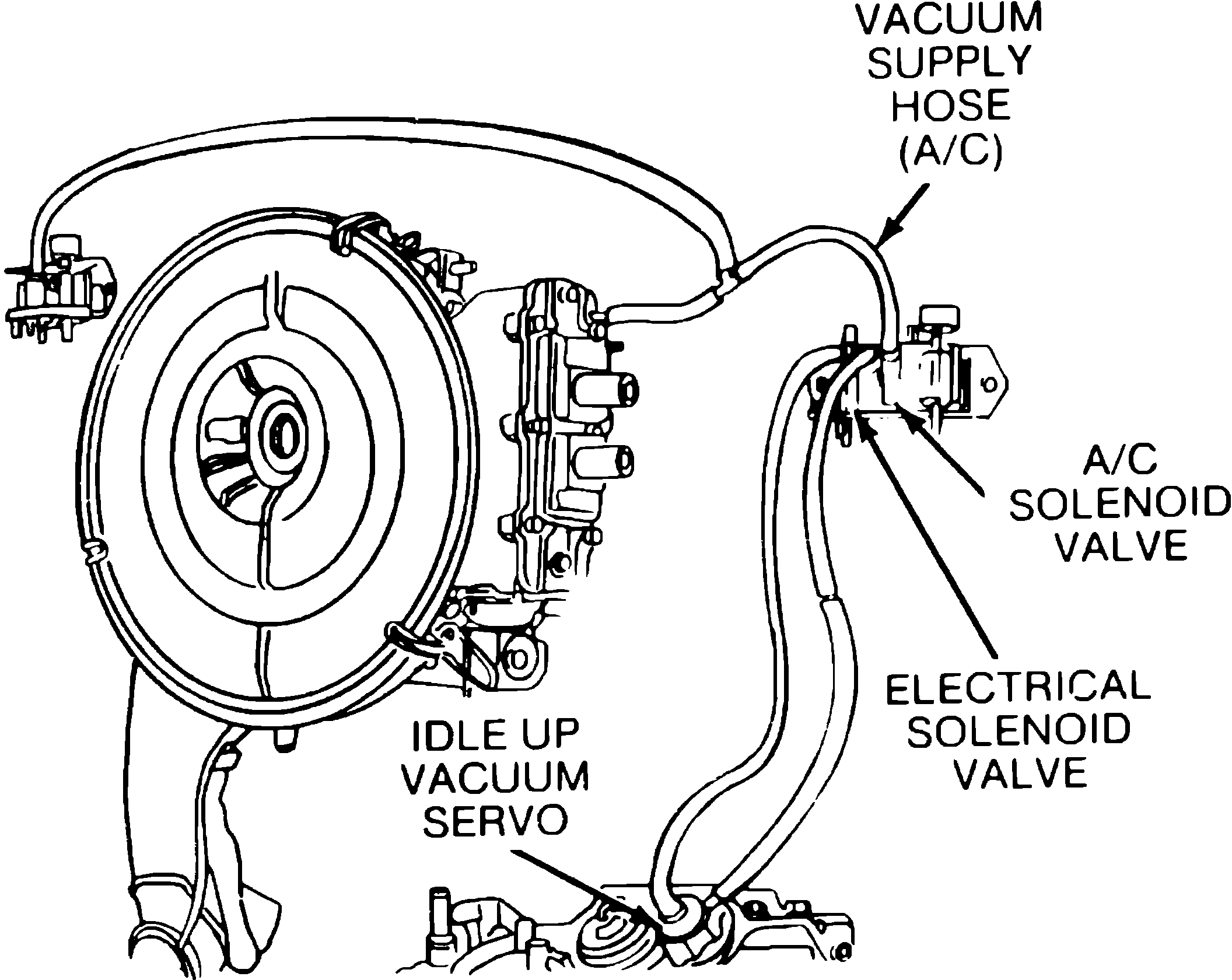

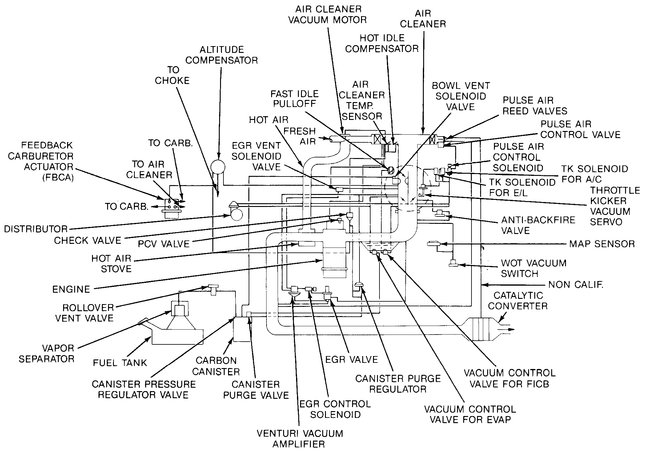

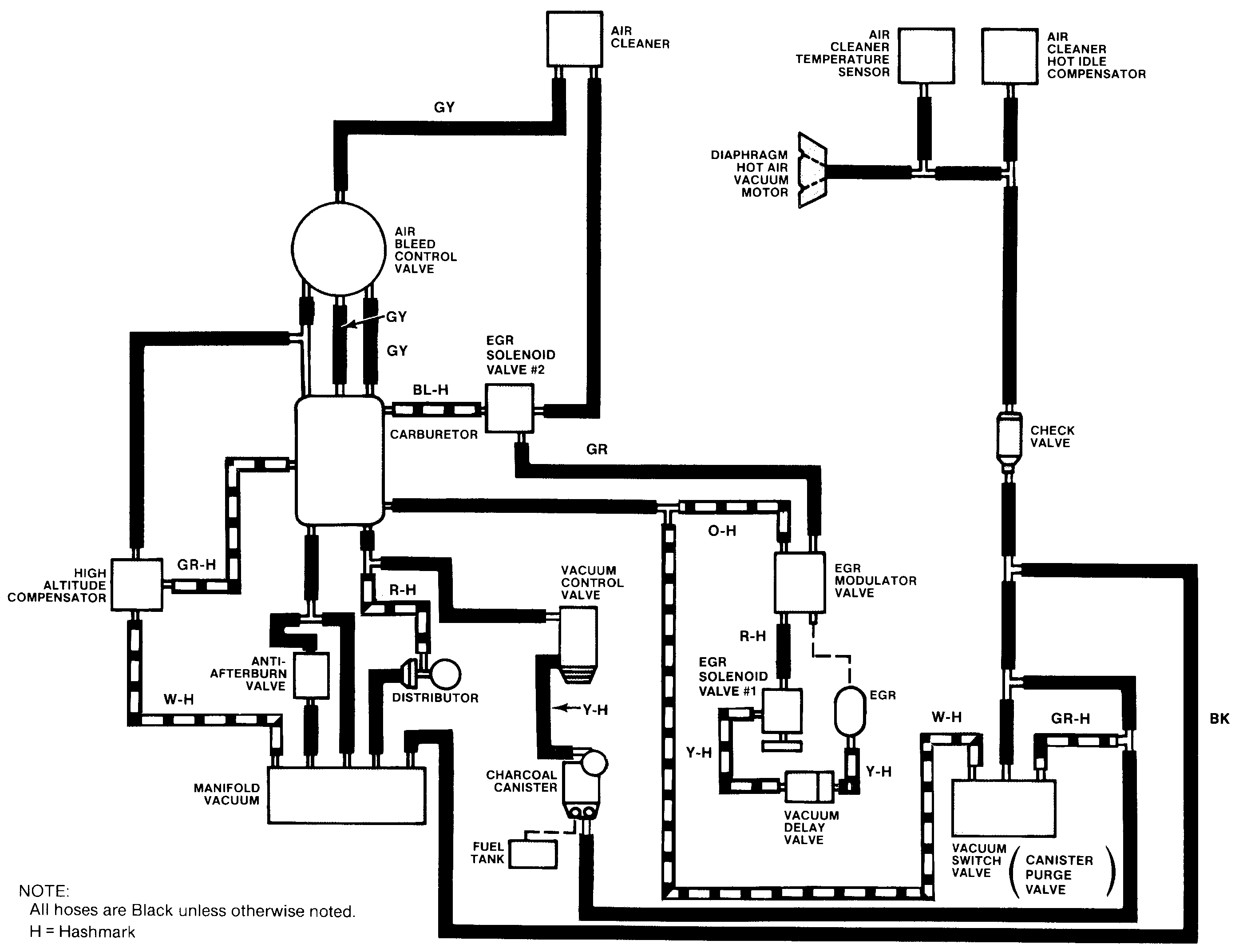

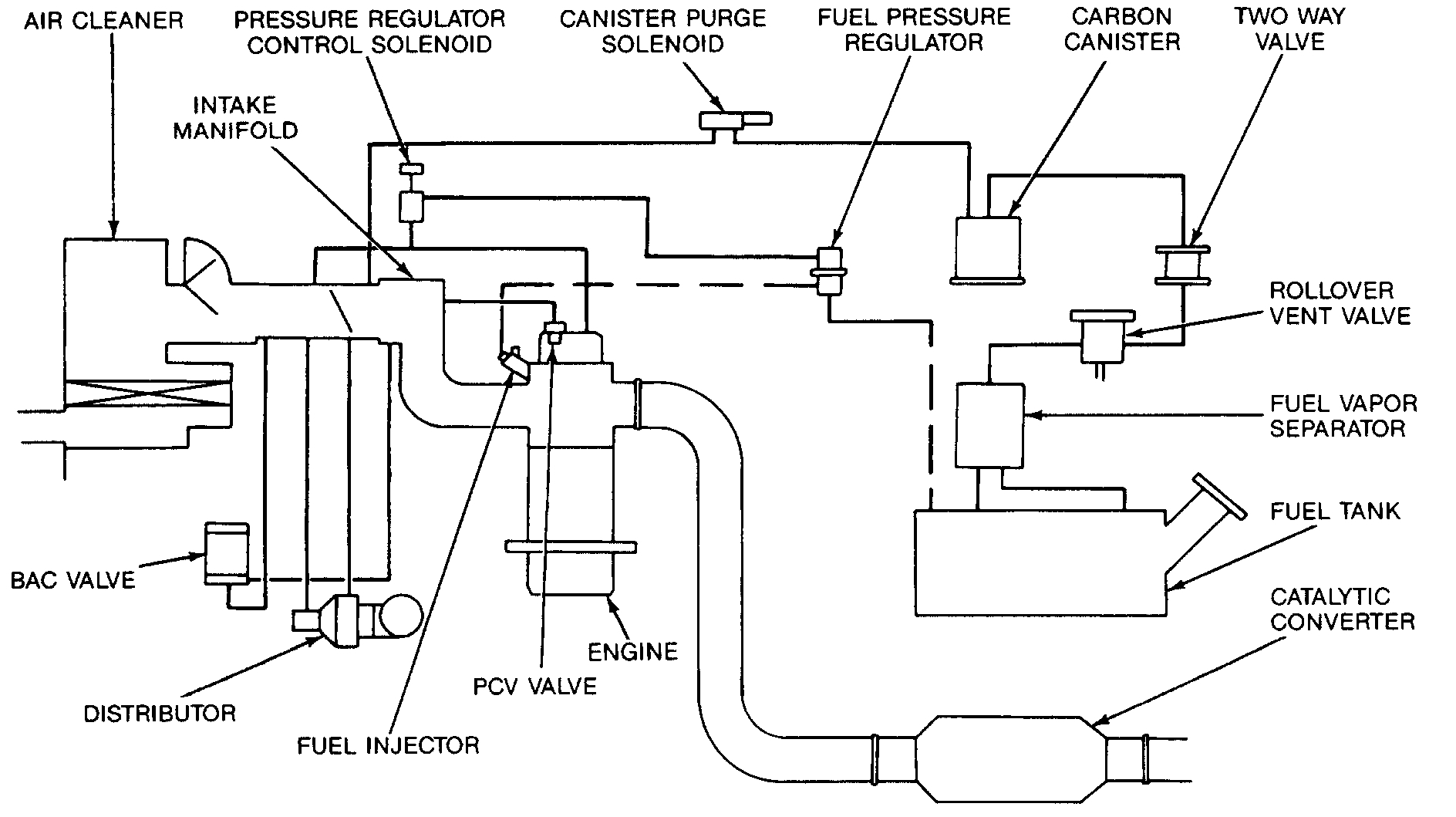

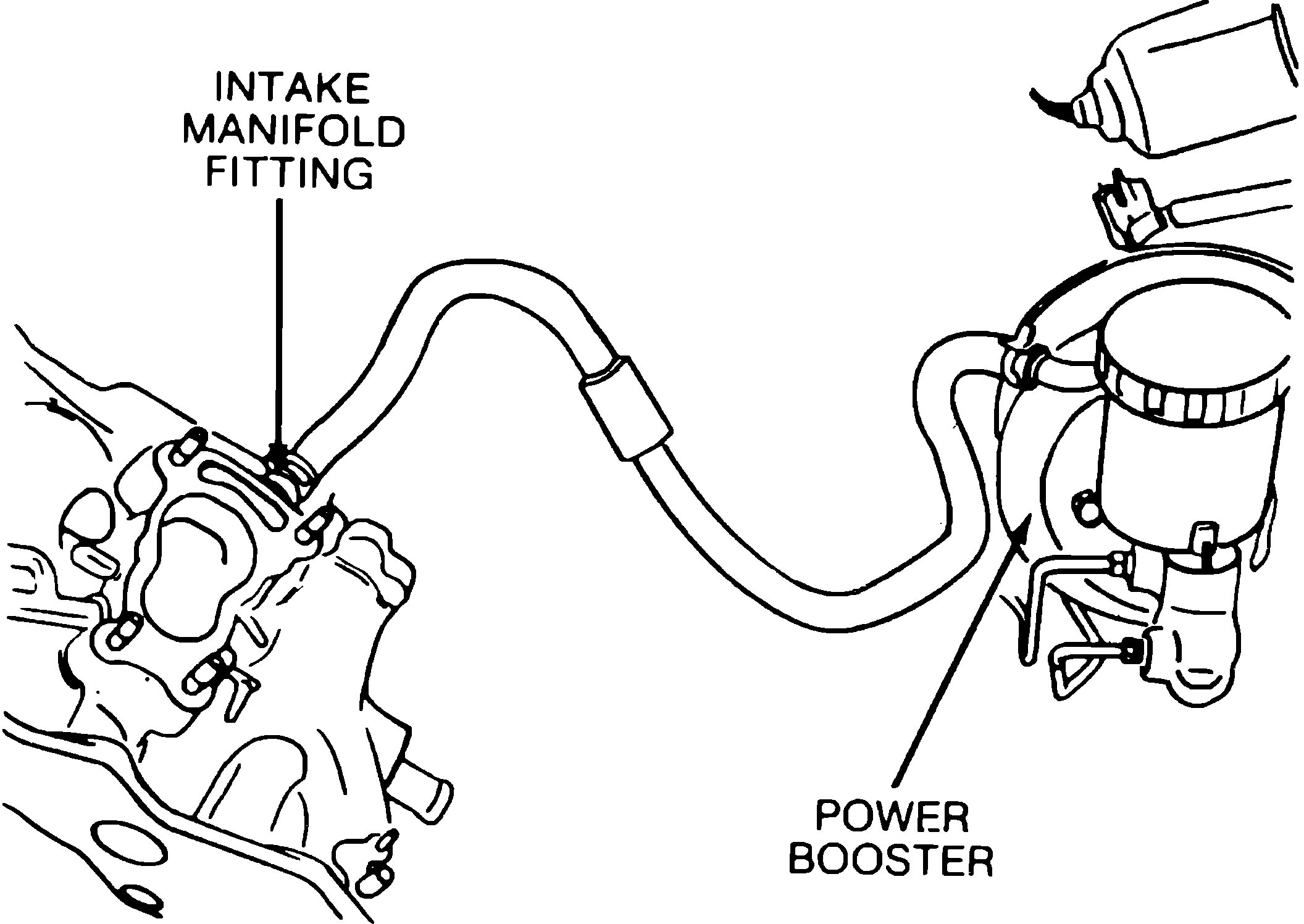

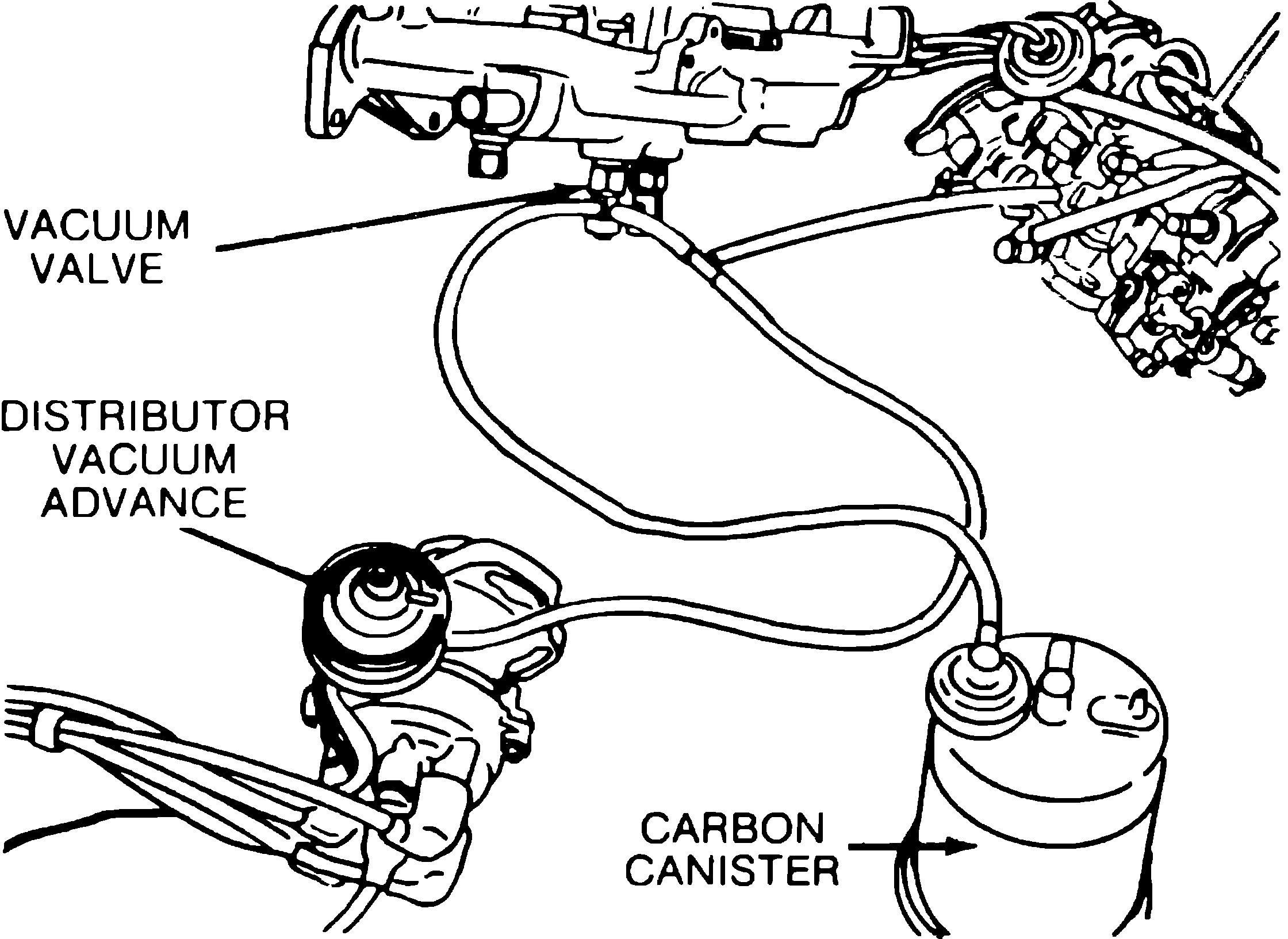

I have attached all the shop manual schematics for your review. They are broken down by components. The last two pictures are routing pictures. They basically show how the hoses ran originally. Picture 8 is for a carburetor design and picture 9 is for one which is fuel injected. I hope this helps.

Let me know if you need more information or have a questions.

Take care,
Joe

Do not know if what I am looking for exist. All my vacuum lines are color coded. Looking for something that tells me what they are for.

Hi again. I am sorry. I looked through a few manuals and nothing indicates vacuum hoses by color. I can try to help you with the ones I sent. If you have a specific question or questions, ask and I should be able to help.

Let me know,
Joe

Previous owner did not replace disconnected vacuum lines correctly. Need to know proper order. Would like to see a good diagram (images if possible) of their proper connection order.

Are there any reliable websites that have adequate instructions for Festiva repairs?

Hi and thanks for using 2CarPros.com.

I think I may have answered this question for another post. Not sure if it is you or not, so here are the schematics.

Let me know if this helps.

Take care,
Joe
