vacuum line diagram

1996 CHEVROLET LUMINA
250,000 MILES
Avatar
MIKE CLARK2
  • MEMBER
  • 2 POSTS
Need vacuum line diagram. Need 360 image.
Jun 26, 2017 at 7:18 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Which engine size do you have the 3.1L or the 3.4L engine ?
Jun 27, 2017 at 9:49 PM
Avatar
MIKE CLARK2
  • MEMBER
  • 2 POSTS
3.1 V6
Jun 27, 2017 at 10:02 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

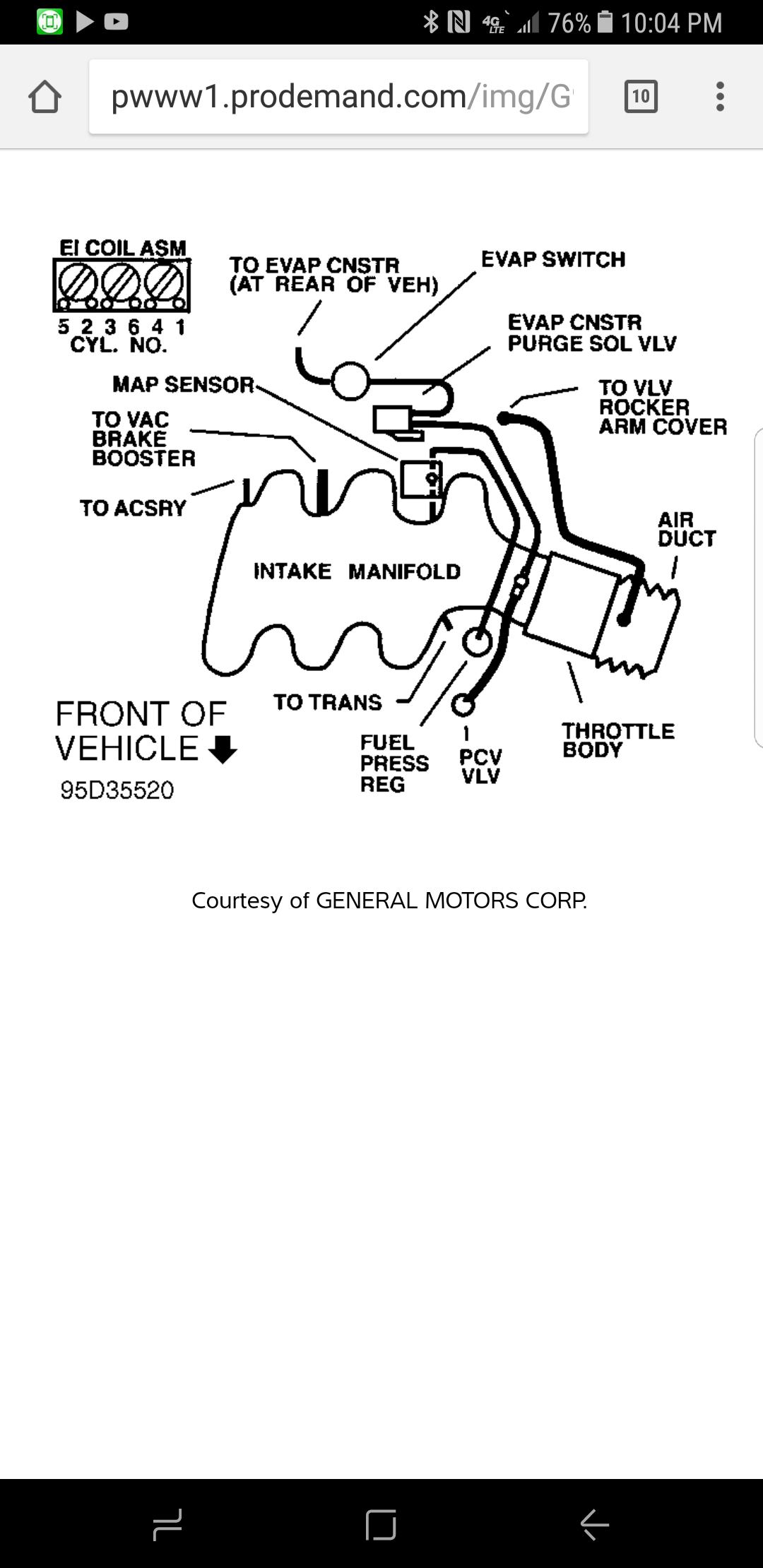

There is your vacuum diagram.
Image (Click to enlarge)
Attached Media
Jun 27, 2017 at 10:06 PM
