engine Vacuum diagram

2000 MERCEDES BENZ ML320
Avatar
RANDYWARD
  • MEMBER
  • 1 POST
Engine Mechanical problem 6 cyl Four Wheel Drive Automatic 122000 miles

The fan belt broke on my 2000 ML320. After replceing it I found a small "L" shaped vacuum hose (about 1/4") but can't find where it goes. The check engine light came on about 50 miles after replacing the belt. Is there a vacuum hose diagram or can you tell me where to look or where it might belong?
Jun 22, 2009 at 8:31 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

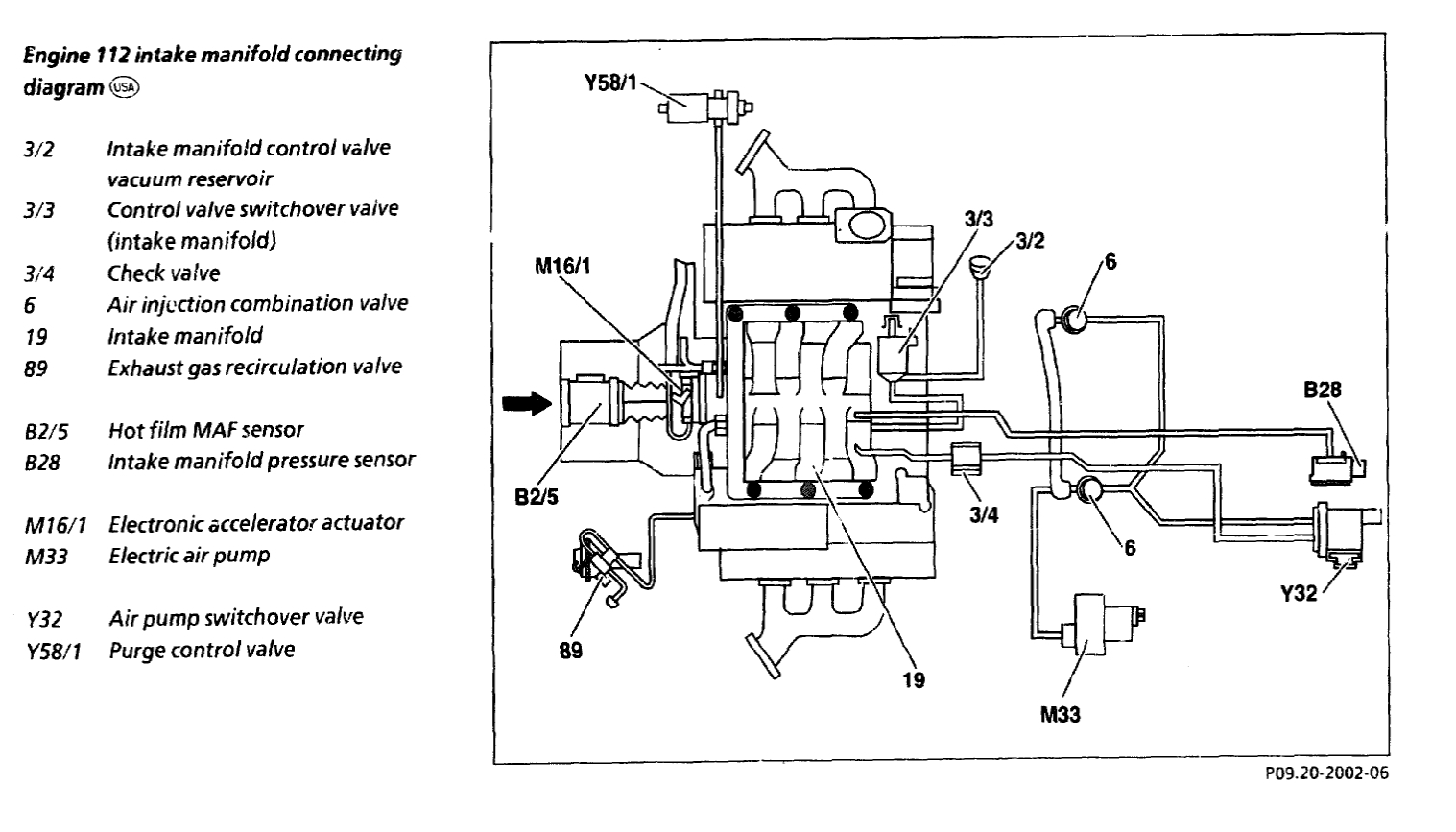

I found this engine vacuum diagrams for you.


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic_48.jpg

Here is a larger version (below) Please let us know if you need anything else to get the problem fixed.
Sep 21, 2017 at 5:03 PM
