Mass air flow sensor replacement?

2008 DODGE GRAND CARAVAN
225,000 MILES • 3.3L
Avatar
PAULINYAKIMA
  • MEMBER
  • 1 POST
https://www.youtube.com/watch?v=Ui8zhMLp5EM
I watched this YouTube video of yours. About 1:10 into the video you show what the mass air flow sensor is. I believe mine is bad but can't find the part anywhere? Can you help?
Mar 6, 2023 at 9:15 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

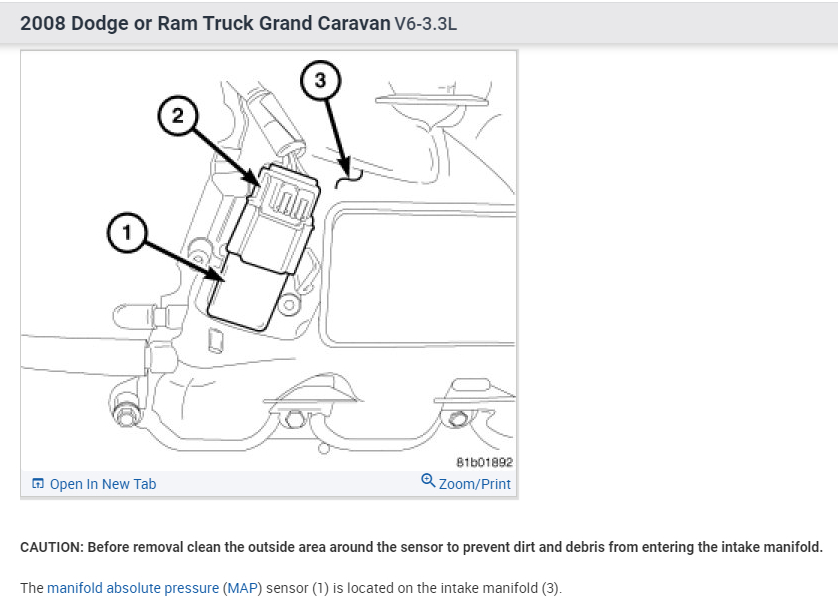

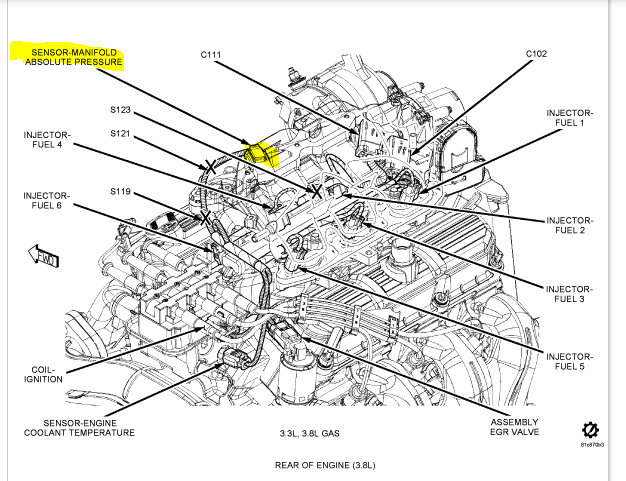

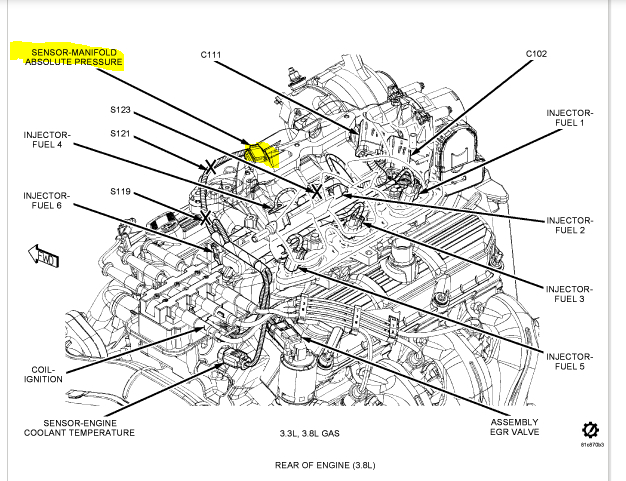

On your vehicle, there is no mass air flow sensor (MAF). In its place is a manifold absolute pressure sensor (MAP). If you look at pic 1 below, it shows a general location.

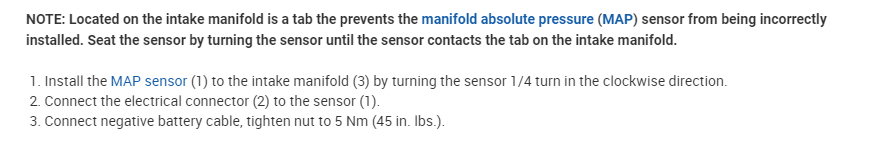

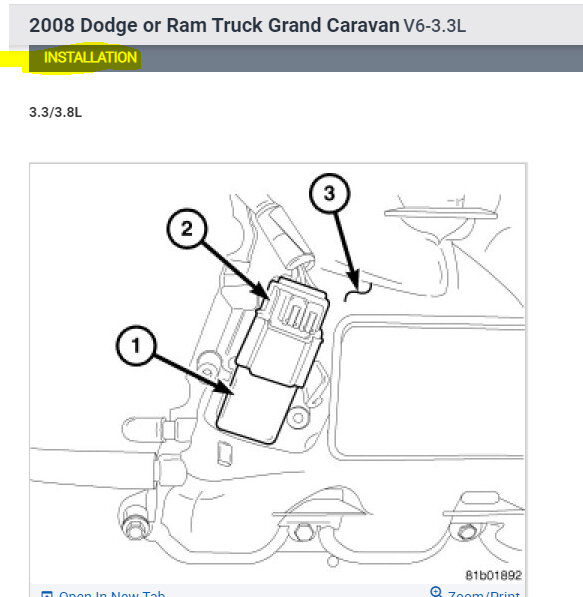

The remaining pictures are the directions for the removal and replacement of the MAP.

I'm not sure what your vehicle is doing or if you have retrieved any diagnostic trouble codes, but if you have questions, let me know.

Take care,

joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Mar 6, 2023 at 9:38 PM
Avatar
SACHMO
  • MEMBER
  • 1 POST
I was asking about a 2003 dodge grand caravan 3.3l a van, how do you test the maf sensor?
Apr 6, 2026 at 10:03 AM
